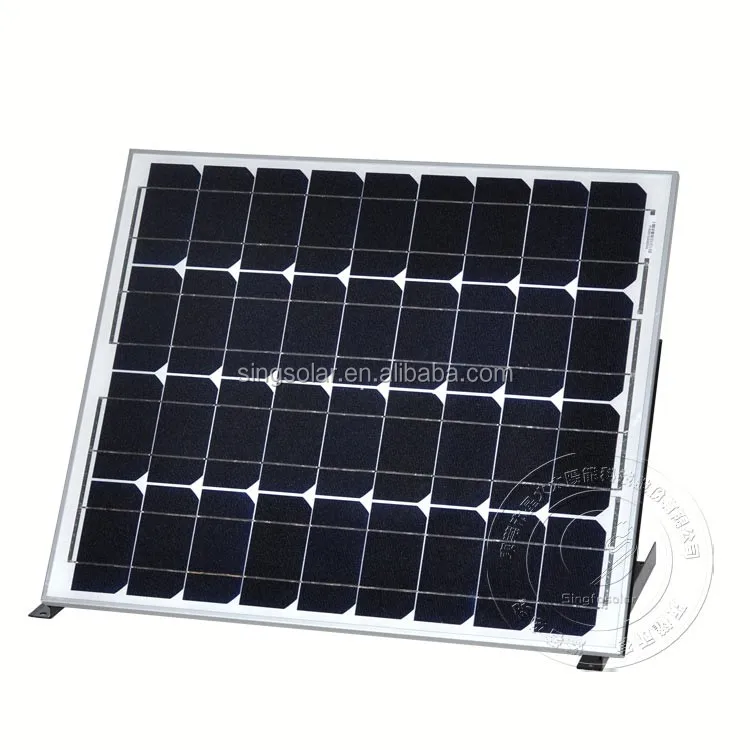

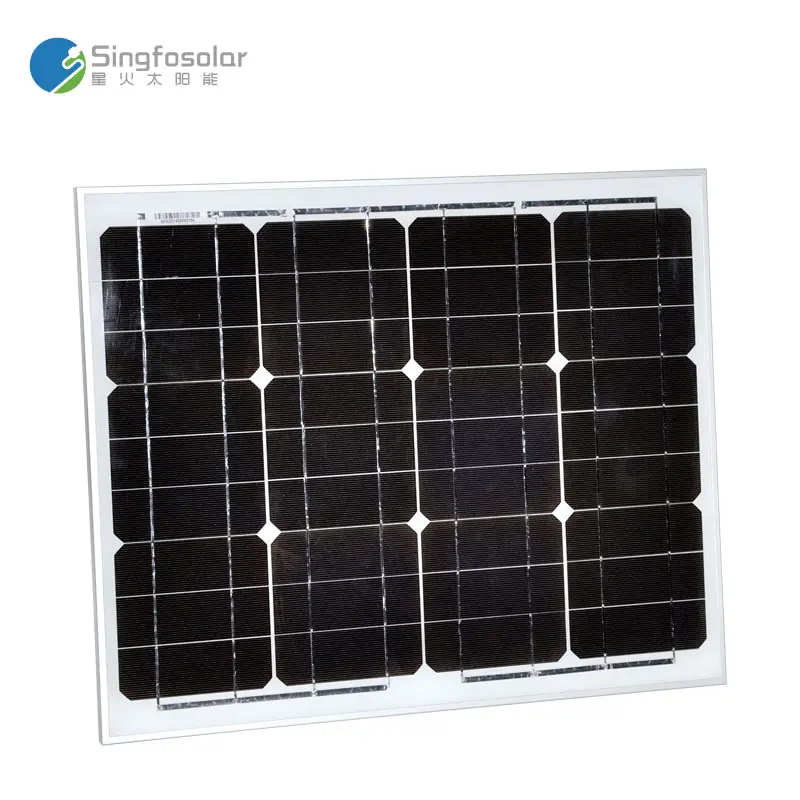

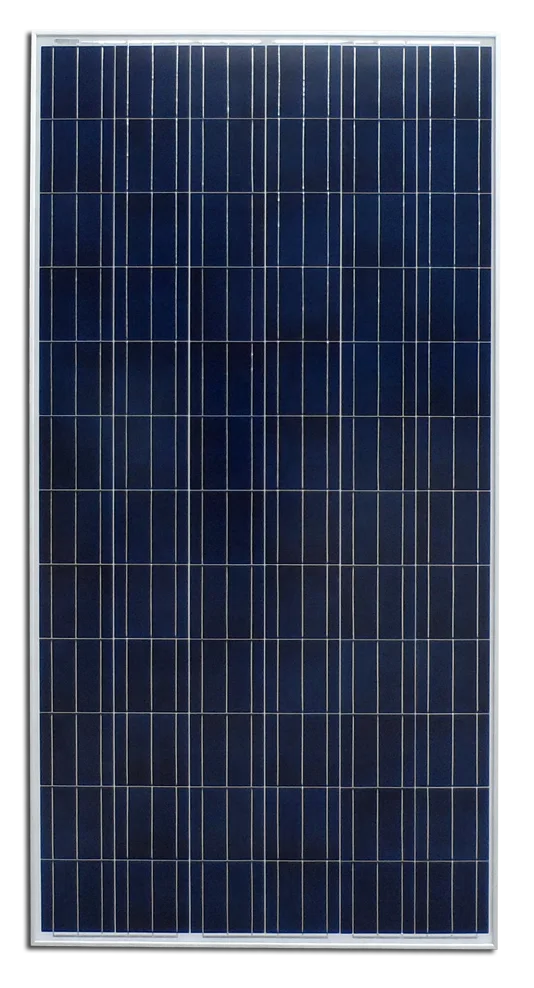

Wholesale Best Price 12v 10w Photovoltaic Module Solar Panel for Solar Power System
- Category: >>>
- Supplier: Singfo Solar Energy Ltd.
Share on (819264077):
Product Overview
Description
Product description
Nominal 12V DC for standard output
Polycrystalline Solar Panel from 1W to 230W
Strict quality control and power classification of modules
High efficiency with competitive price
Rugged design to withstand high wind pressure and snow load, easy installation
High transmission rate and low iron tempered glass, anti- aging EVA and high frame resistant TPT to laminate
25 year module output warranty.

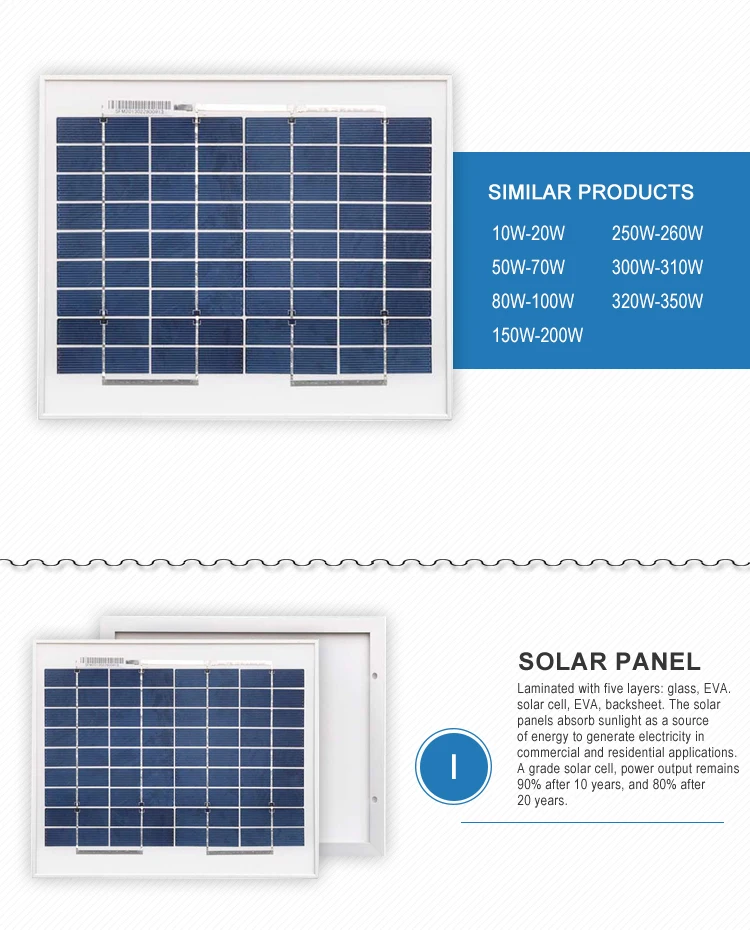

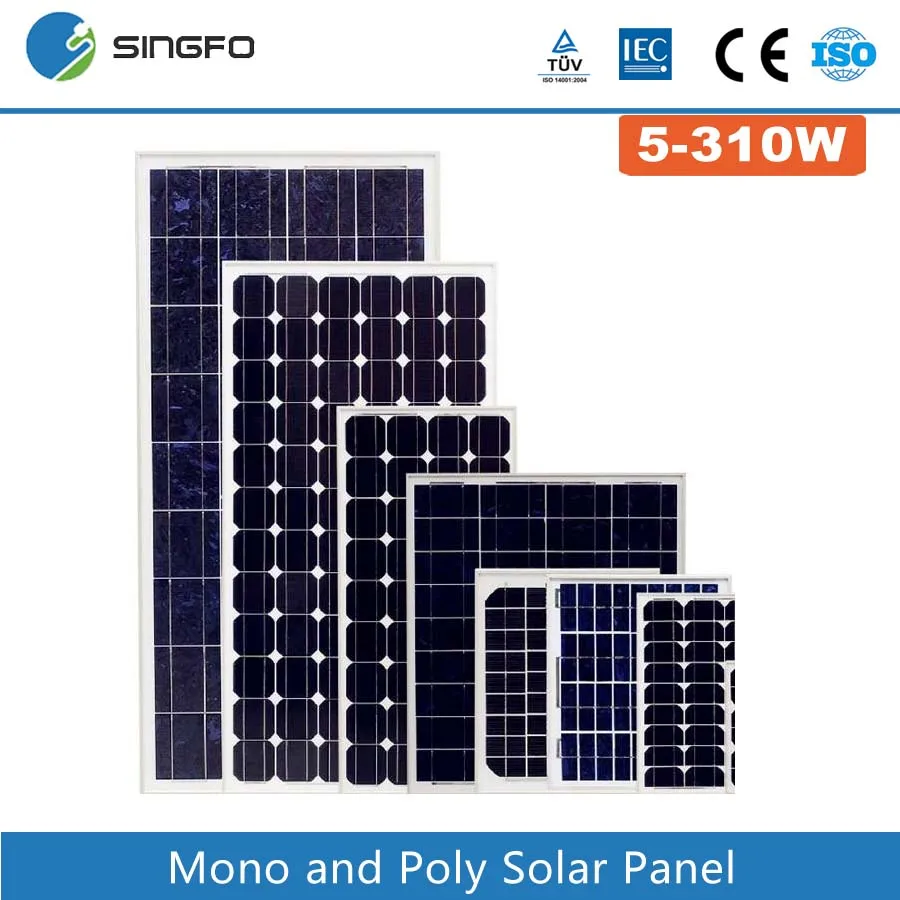

Mono crystalline and poly crystalline solar panel, solar panel Power range: we can customize for you according to your demands

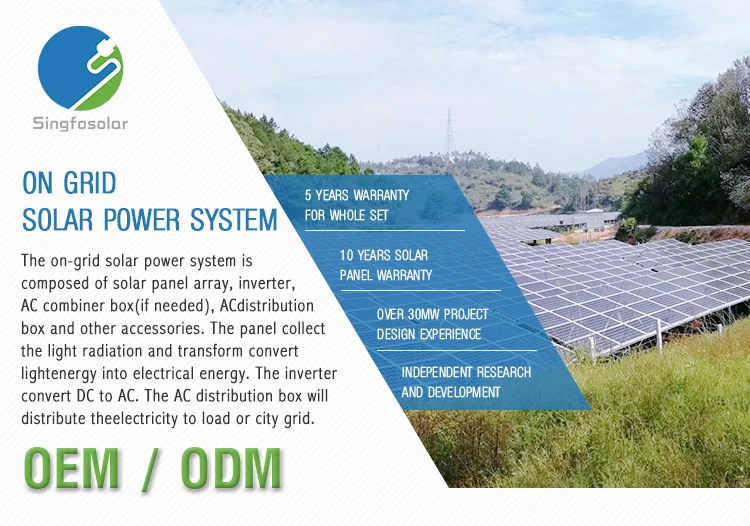

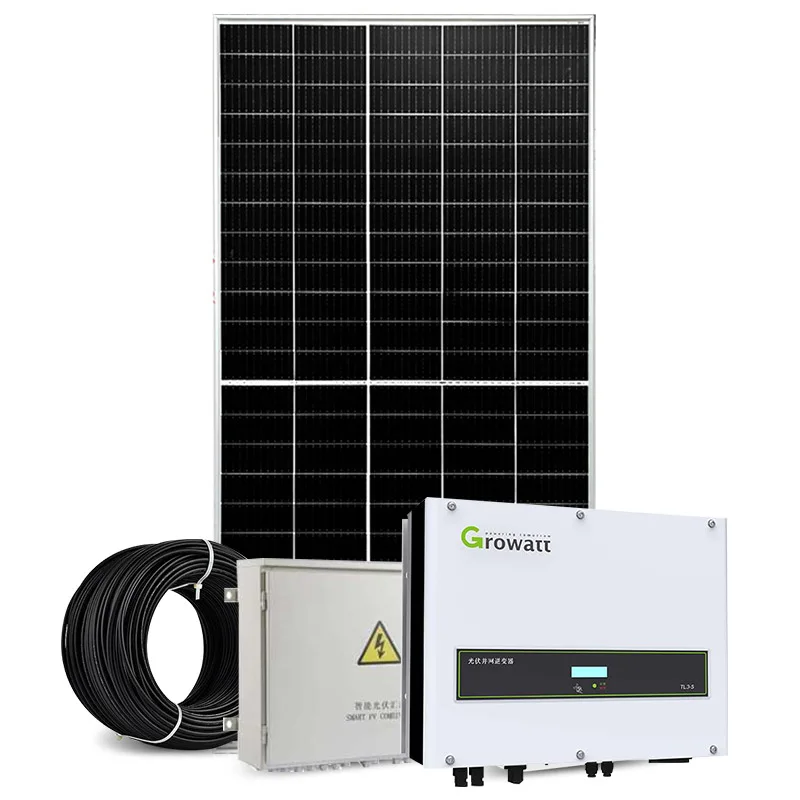

We can design grid solar system and off-grid solar system
Item | Specification |
Maximum power at STC(Pmax) | 10W |
Optimum operating voltage(Vmp) | 17V |
Optimum operating current(Imp) | 0.58A |
Open-circuit voltage(Voc) | 21.6V |
Short-circuit current(Isc) | 0.68A |
Short-circuit current temperature coefficient | (0.065±0.015)%/°C |
Open-circuit voltage temperature coefficient | -(80±10)mV/°C |
Peak power temperature coefficient | -(0.5±0.05)%/°C |
NOCT (Air 20°C; Sun 0.8kW/m wind 1m/s) | 47±2°C |
Operating temperature | -40°C to 85°C |
Maximum system voltage | 600V DC |
Power tolerance | ±3%n |
No. of cell and connectio | 36(4×9) |
Cell | Poly-crystalline silicon solar cells |
Weight | 1.1kg |
Company Information
Singfo Solar Energy Ltd.is a new energy source company integrating with research and developemnt,manufacture,technical consultation,and trading.We devote ourselves to solar energy application technology and promotion as well as popularization activities,achieving the goal of low-carbon life and green energy.
We have advanced production and quality testing equipment and repy on number of senior technical personnel and a management team in solar energy industry.we are specialized in producing solar cell modules.off-grid solar power system,and other accessories of solar energy application products such as controllers,inverters.

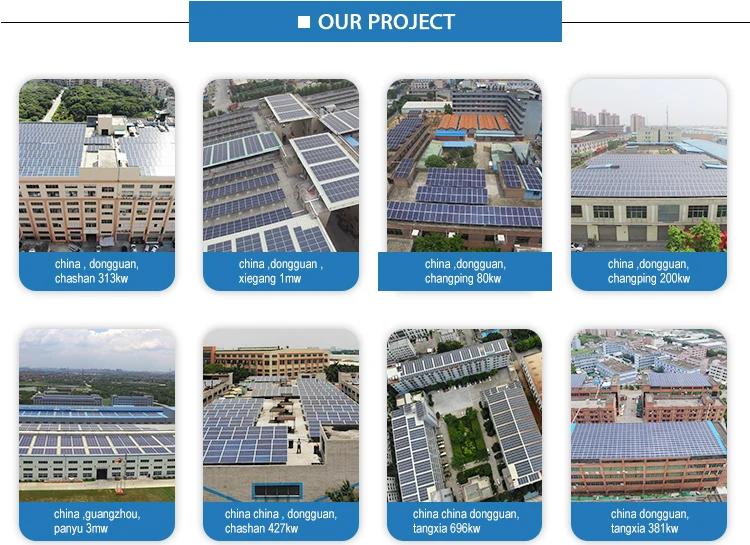

In addition,our company provides configuration information and technical support for assembly lines of solar cell modules and correlation equipment,developing the solar projects.We are in a rapid and stable process in solar energy industry.We make aeeforts to create a complete industrial chain of solar energy applications and promotion and also wished contributions to the green-power development of China and the world.

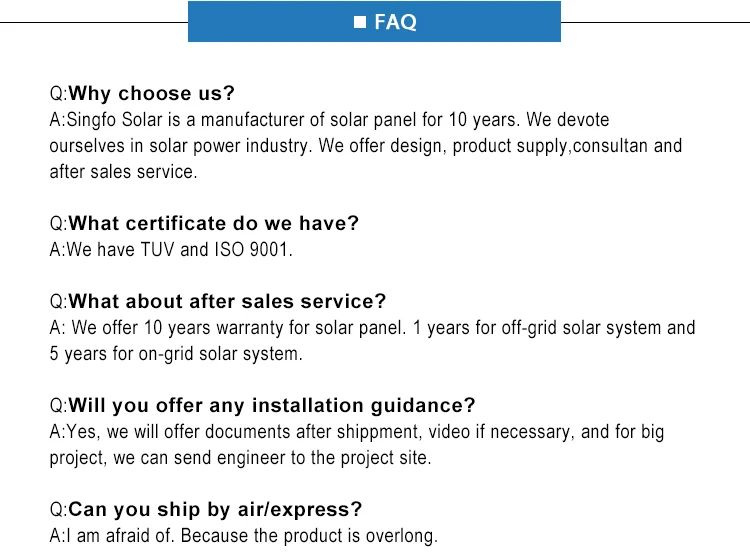

FAQ
