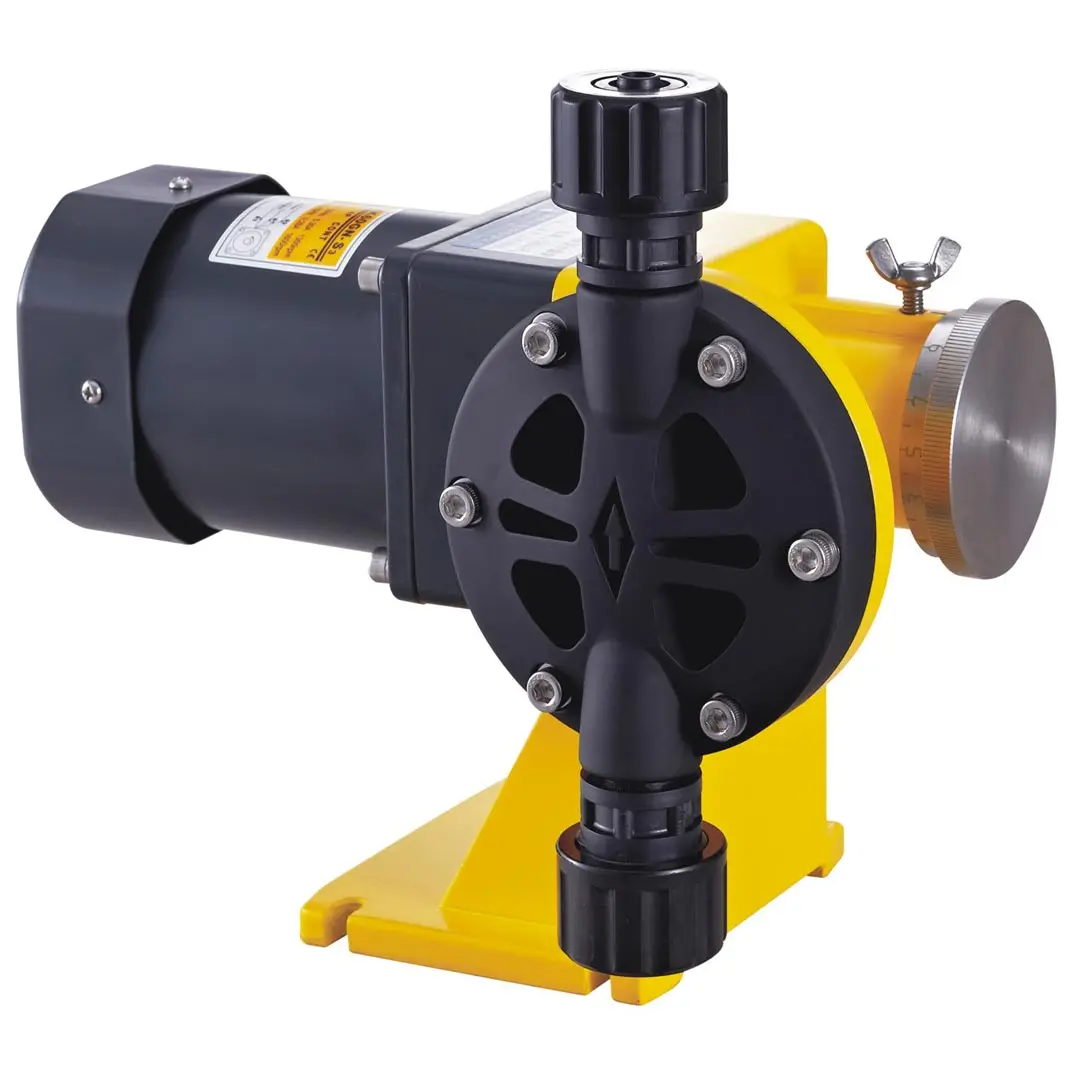

Small electric mechanical diaphragm metering pump (JBB)
- Category: >>>
- Supplier: Zhejiang Ligao Pump Technology Co. Ltd.
Share on (820692190):
Product Overview
Description
| Model | Flow l/h | Pressure Mpa | Pump Speed | Diaphragm specifications mm |
Motor Power W | Inlet diameter connection | ||
| PVC | PVDF | 304/316 | ||||||
| JBB15/1.0 | 15 | 1.0 | 100 | 60 | 60 |
6*9 PEHose clamp | Rc1/2'' Internal thread |
8*14 Nozzle sleeve welding
|
| JBB25/1.0 | 25 | 1.0 | 100 | |||||
| JBB40/0.7 | 40 | 0.7 | 150 | |||||
| JBB60/0.6 | 60 | 0.6 | 100 | 84 | DN15 Adapter sleeve |
10*16 Nozzle sleeve welding | ||
| JBB80/0.5 | 80 | 0.5 | 100 | |||||
| JBB100/0.4 | 100 | 0.4 | 150 | |||||
| JBB130/0.4 | 130 | 0.4 | 150 | |||||
