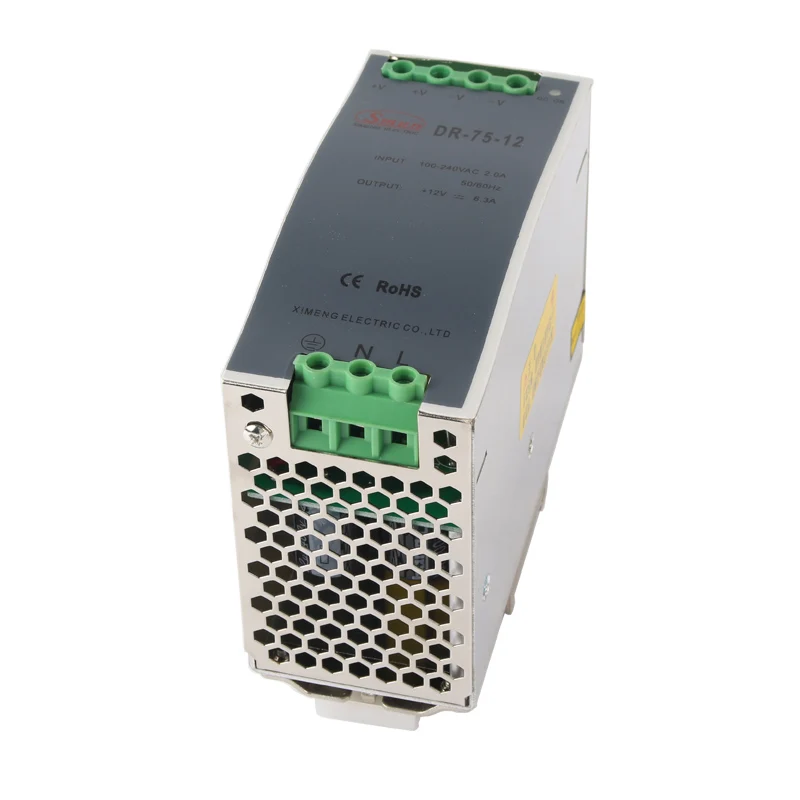

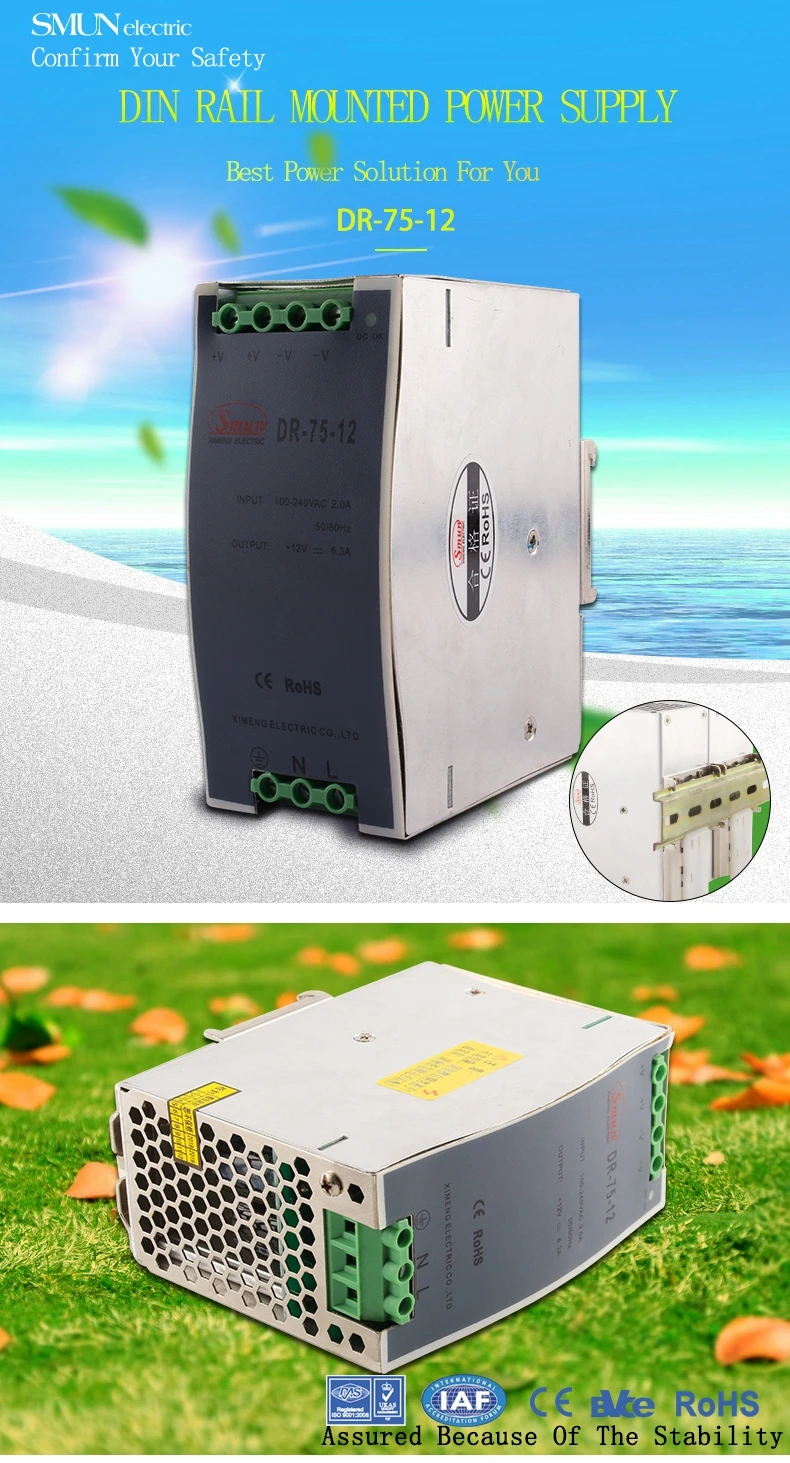

SMUN DR 75 12 Universal AC Input 75W 12V 6.3A DC Output Din Rail Power Supply
SMUN DR-75-12 Universal AC Input 75W 12V 6.3A DC Output Din Rail Power Supply
SMUN DR-75-12 Universal AC Input 75W 12V 6.3A DC Output Din Rail Power Supply
SMUN DR-75-12 Universal AC Input 75W 12V 6.3A DC Output Din Rail Power Supply

SMUN DR 75 12 Universal AC Input 75W 12V 6.3A DC Output Din Rail Power Supply

Share on (820740420):


Price:$10.00 - $12.30

Quantity:


Product Overview

Description



Model
 		DR-75-12DR-75-24DR-75-48
OutputDC output Voltage12V24V48V
Voltage tolerance±1.0%±1.0%±1.0%
Rated Current6.3A3.2A1.6A
Related Power75w75w75w
Wave&Noise100mVp-p150mVp-p240mVp-p
Adjustable range for DC Voltage±10%±10%±10%
Set up,rise,hold up time800ms  600ms  50ms
InputVoltage Range85 ~ 264VAC  47-63HZ 120-370VDC
Input Current4A/115VAC 0.5A/230VAC
Efficiency77%77%82%
AC inrush currentCold start current  15A/115V 30A /230VAC
Leakage current<0.5mA/240VAC
ProtectionOverloadRelated output power 105-135% start overload protection
Protection type: cutoff output, recovery after restart power
Over voltage13.8V-16.2V27.6V-32.4V55.2V-64.8V
Hiccup mode,recovers automatically after fault condition
EnvironmentWorking temp humidity-10~+60°C 20%~90%RH
Stor temp, humidity-20~+85°C 20%~90%RH Non-condensing
SafetyWithstand voltageI/P-O/P:1.5KVAC  1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
StandardSafety standardFit UL1012
ReferDesign refer to GB4943,UL60950,EN60950
EMC standardDesign refer to GB9254,EN55022 Class A
SizesizeL100*W56*H125mm
Package0.55kg, 40 pcs/22kg
