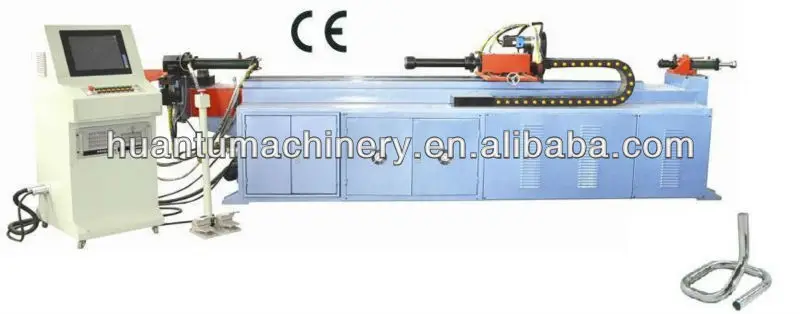

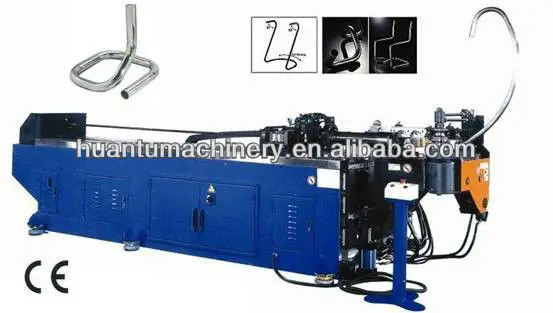

Fabrication vende maquina dobladora de tubos HT50NC, HT75NC tubo doblador NC con control de, Pipe Bender Machine
- Category: >>>
- Supplier: Shanghai Huantu Technical Industry Co. Ltd.
Share on (821121670):
Product Overview
Description
Fabricacion vende maquina dobladora de tubos HT50NC, HT75NC tubo doblador NC con control de, Pipe Bender Machine
Item | Name | Unit | Data | Remark | |
1 | Max bending capacity | mm | Φ89×8t |
| |
2 | Max bending radius | mm | 250 | Can according to customer’s requirement | |
3. | Min bending radius | mm | Depend on the pipe diameter | ||
4 | Max feeding length | mm | 3000 | Can according to customer’s requirement | |
5 | Max bending degree | Degree | 190 |
| |
6 | Control Panel |
| PLC + touch screen |
| |
7 | Bending unit | piece | 16 |
| |
8 | Working speed | bending speed | Deg/sec | 30 |
|
Rotary speed | Deg/sec | 160 | Rotary fast will be dangerous | ||
Feeding speed | mm/sec | 800 |
| ||
9 | Accuracy | feeding | mm | ±0.1 |
|
rotary | Degree | ±0.1 |
| ||
bending | Degree | ±0.1 |
| ||
10 | Rotary servo motor power | KW | 1.5 | Japan Mitsubishi | |
11 | Feeding servo motor power | Kw | 2 | Japan Mitsubishi | |
12 | Oil motor power | Kw | 11 |
| |
13 | Max storage units | group | 1000 | Can enlarge according to requirement | |
14 | Max pressure | MPa | 14 | Adjustable | |
15 | Hydraulic control system |
| Magnetic exchange valve | Japan Yuken | |
16 | Oil tank | L | 250 |
| |
17 | Machine weight | Kg | 5500 |
| |
18 | Machine size | mm | 5650×1350×1360 |
| |
19 | Working height | mm | 1300 |
| |
