mini hydraulic cylinders

Wantong Hydraulic Power Machinery Company , a welded hydraulic cylinder manufacturer in China, has over 25 years production experience in hydraulic equipment filed. In addition to welded cylinders, we can also provide tie rod cylinders, AC and DC hydraulic power units ,etc.

Due to our focus on quality management, our company has obtained ISO9001:2008 International Quality Management System Certification,and our hydraulic products have been widely used in the United States, Canada ,Finland, Australia and Germany,etc. If you have need of our products, please feel free to contact us .

 cylinders, ram hydraulic cylinder and hydraulic power units. Our skilled craftsmen, newest methods and technologies, quality control, competitive prices, on-time deliveries and quick order to ship times ensure highest quality of our products

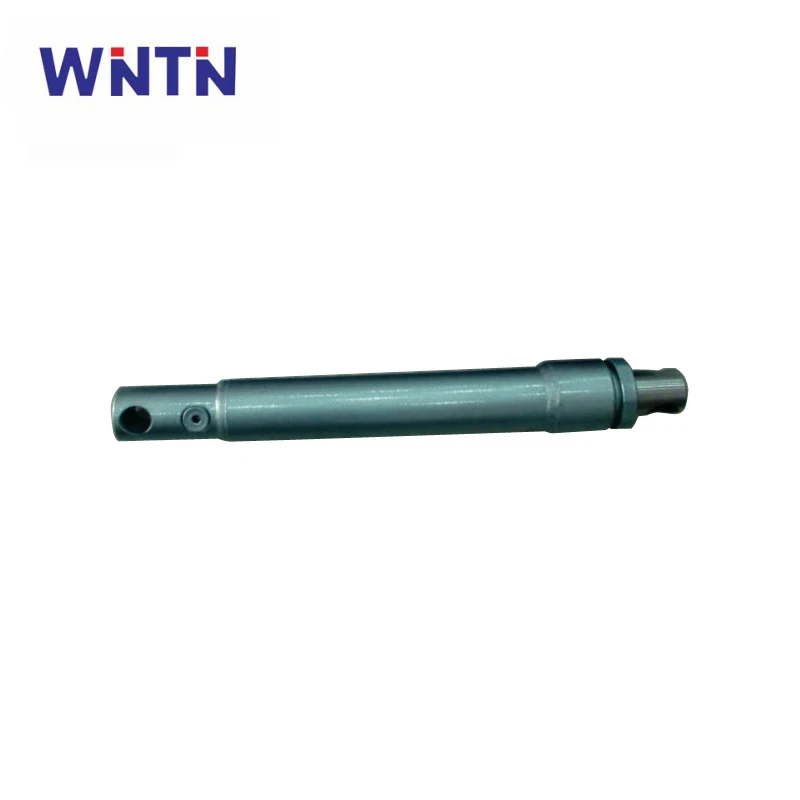

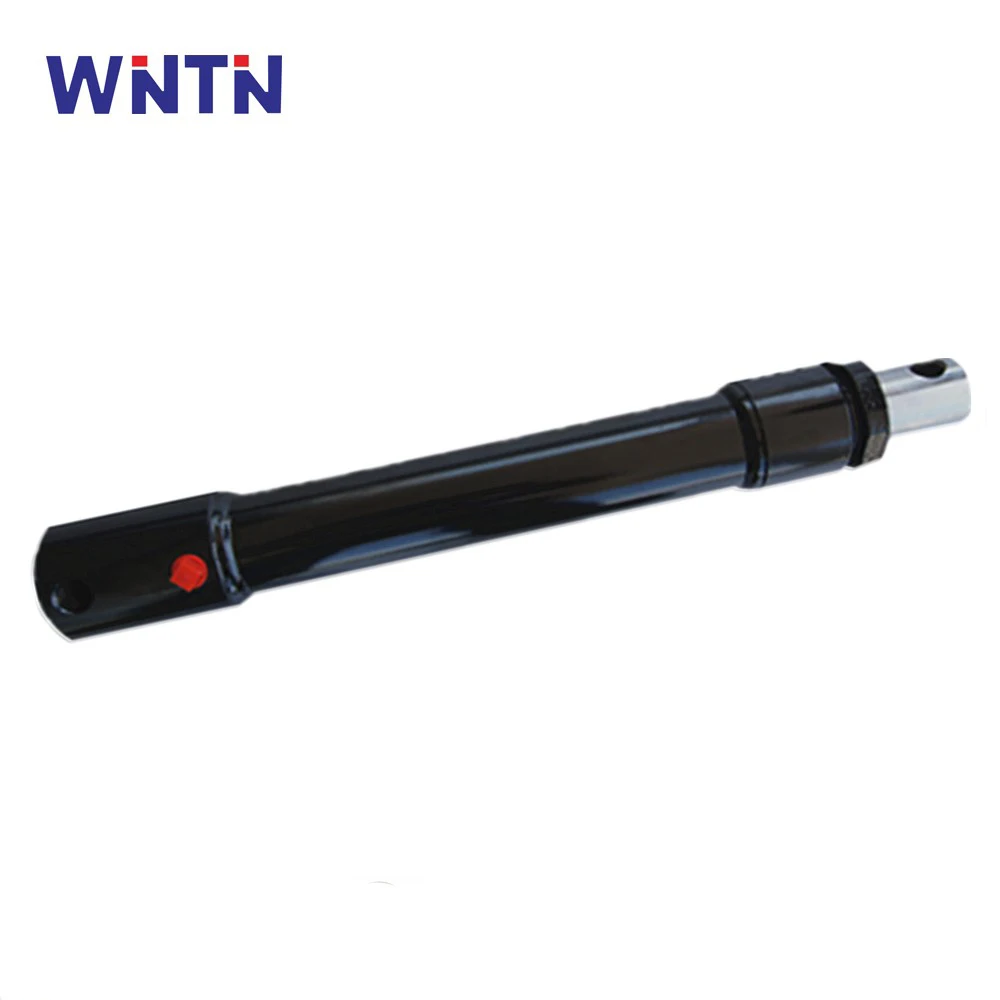

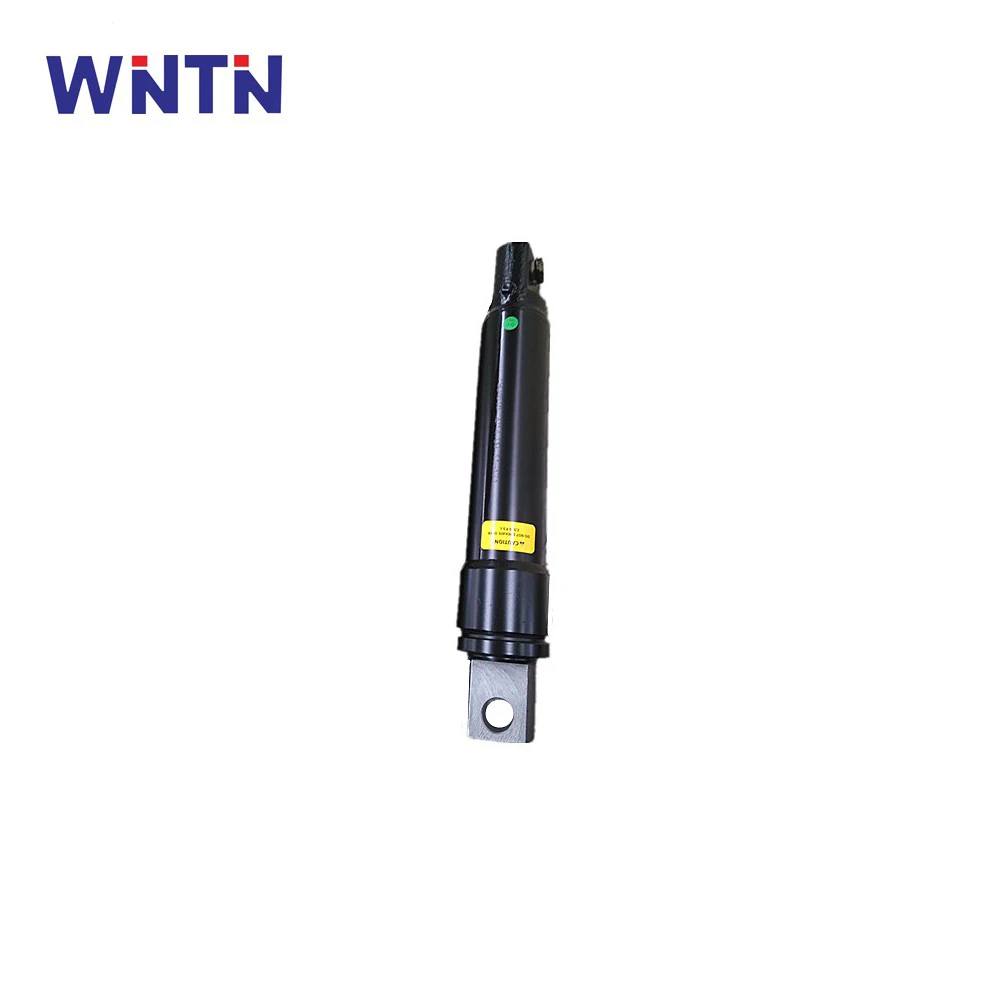

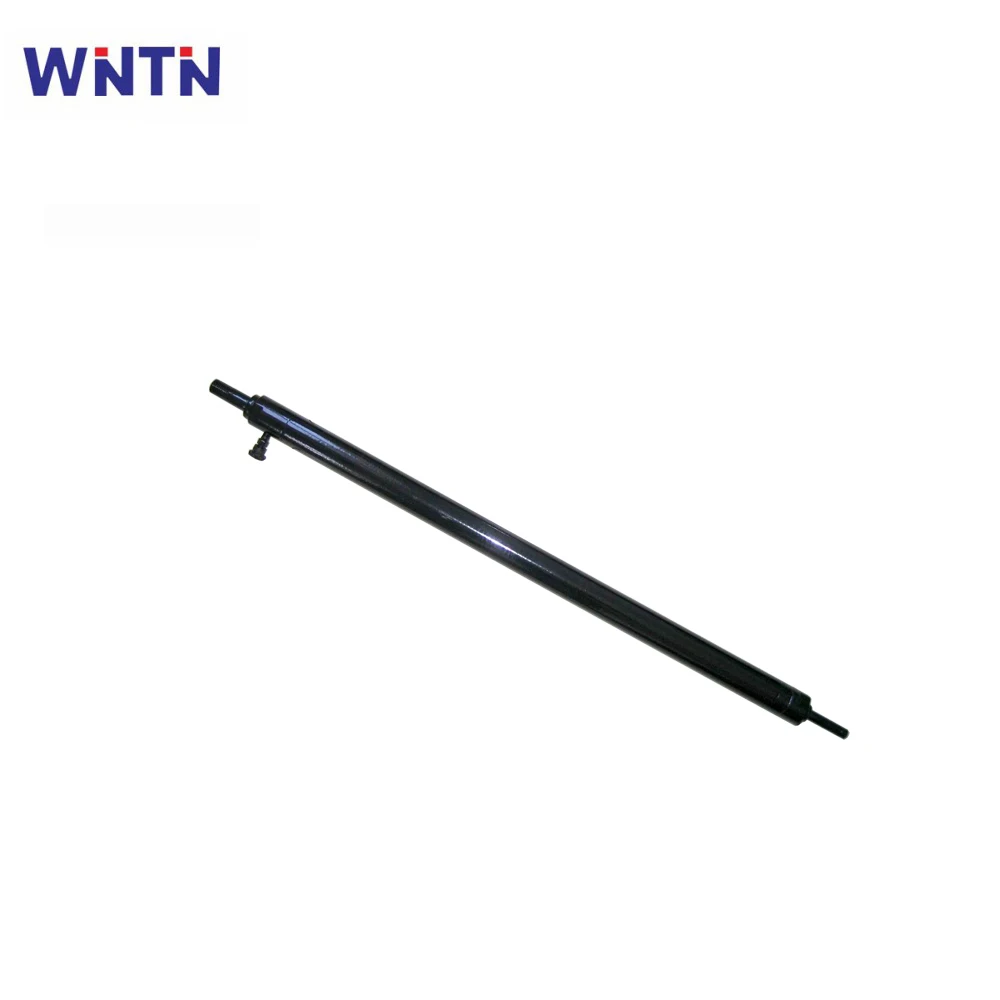

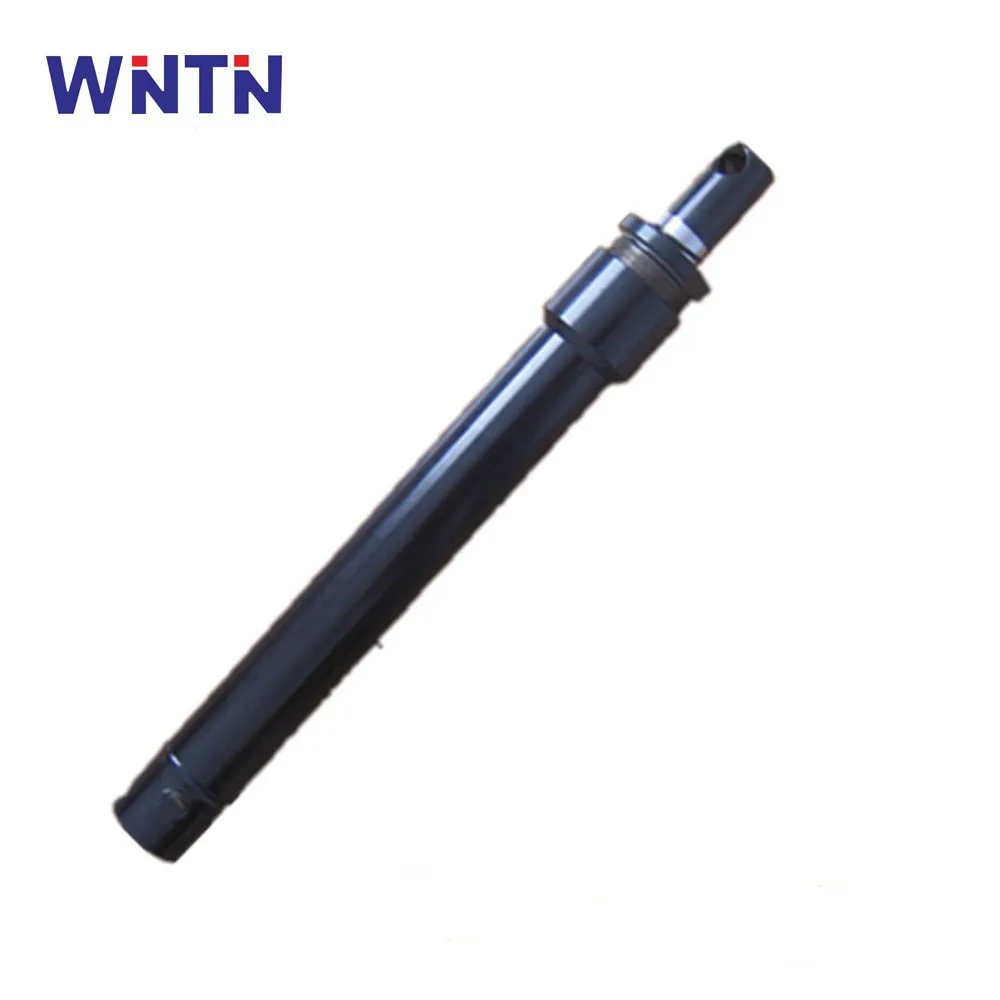

 Mini hydrualic cylinders description:

The mini hydraulic c cylinders we produce have the standard duty and heavy duty cylinder, bore size from 1"-8",the rated operated pressure is 3000psi or 4000psi, the proof pressure is up to 6000PSI
Gland-high grade ductile iron

Tube -cold drawn honed tube

Piston-high grade ductile iron

Piston seal-urethane seal

End cap--casting seel

Mounting style--pins and clips included

Gland seals- polyurethane U-cup

Rod wiper-urethane snap in

Paint color--semi-gloss black,grey,red

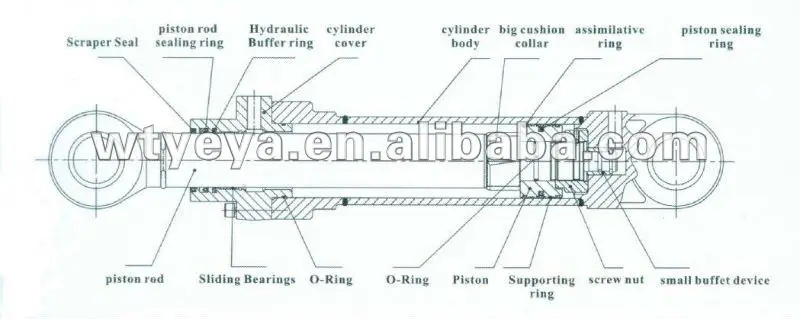

Mini hydrualic Cylinders Drawings:

 800 series

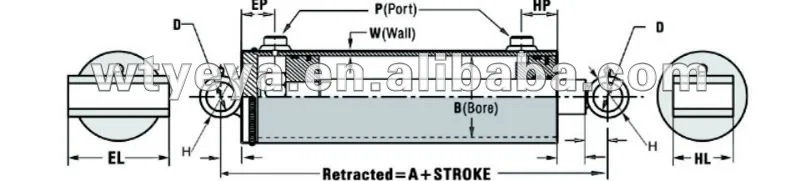

700 series

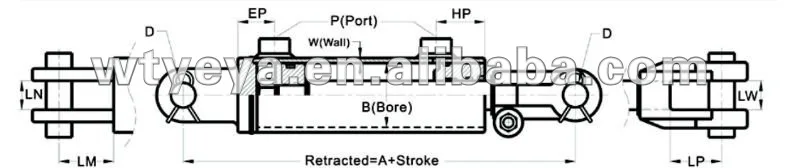

500 series

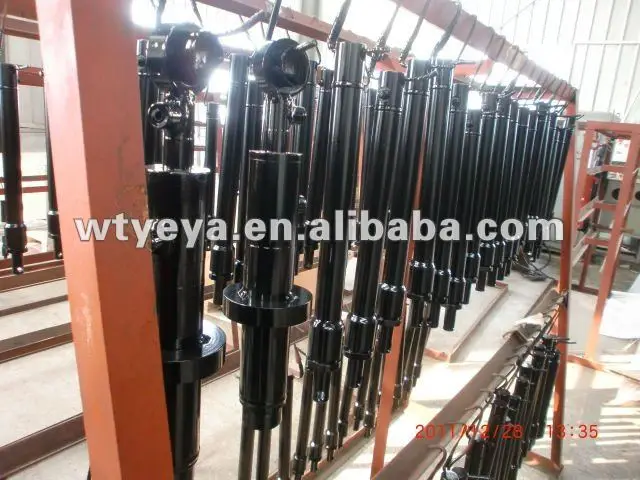

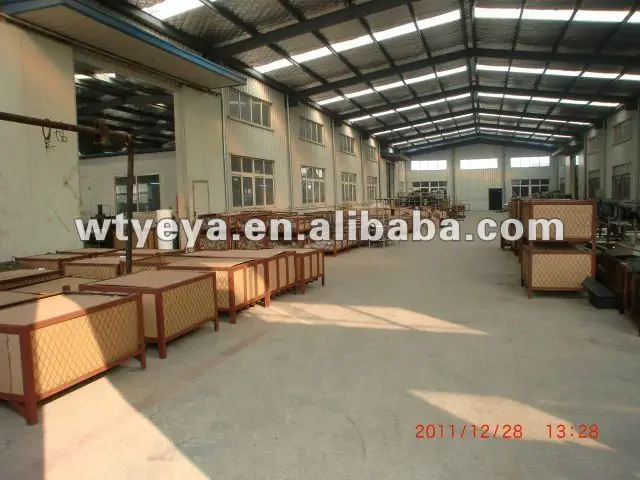

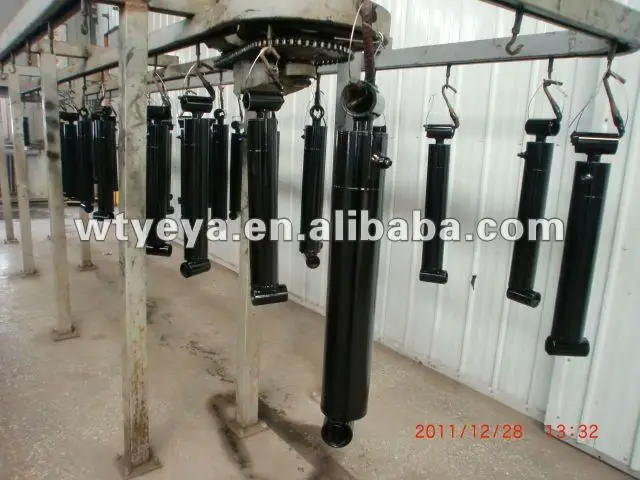

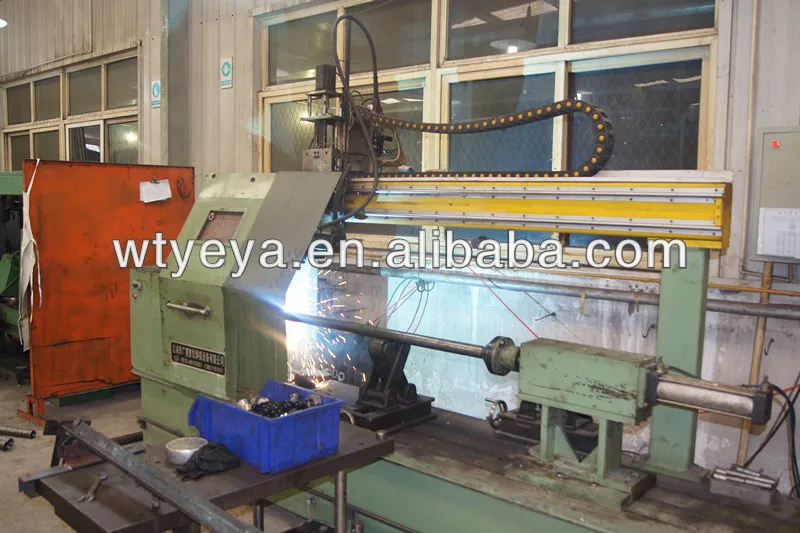

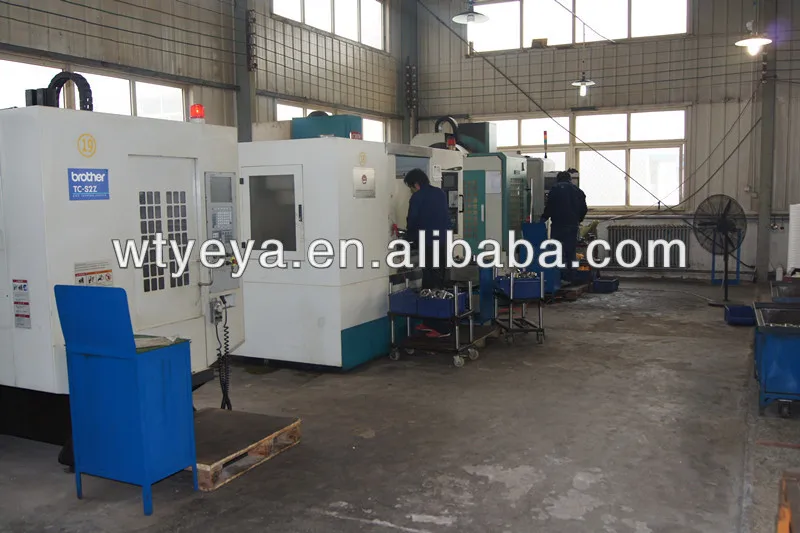

 Factory review:

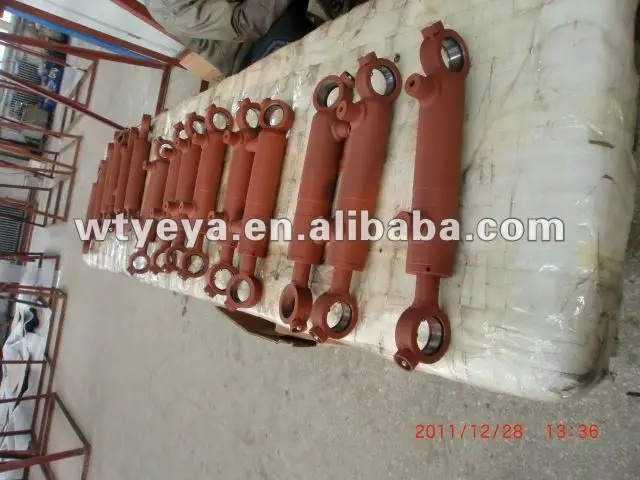

Our products:

Packaging:

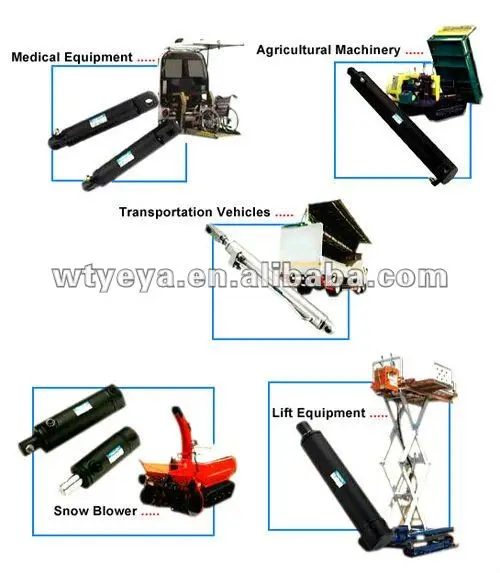

Application:

Visiting guests:

We also customize cylinder for our customer. Please provide us your request or drawings.
