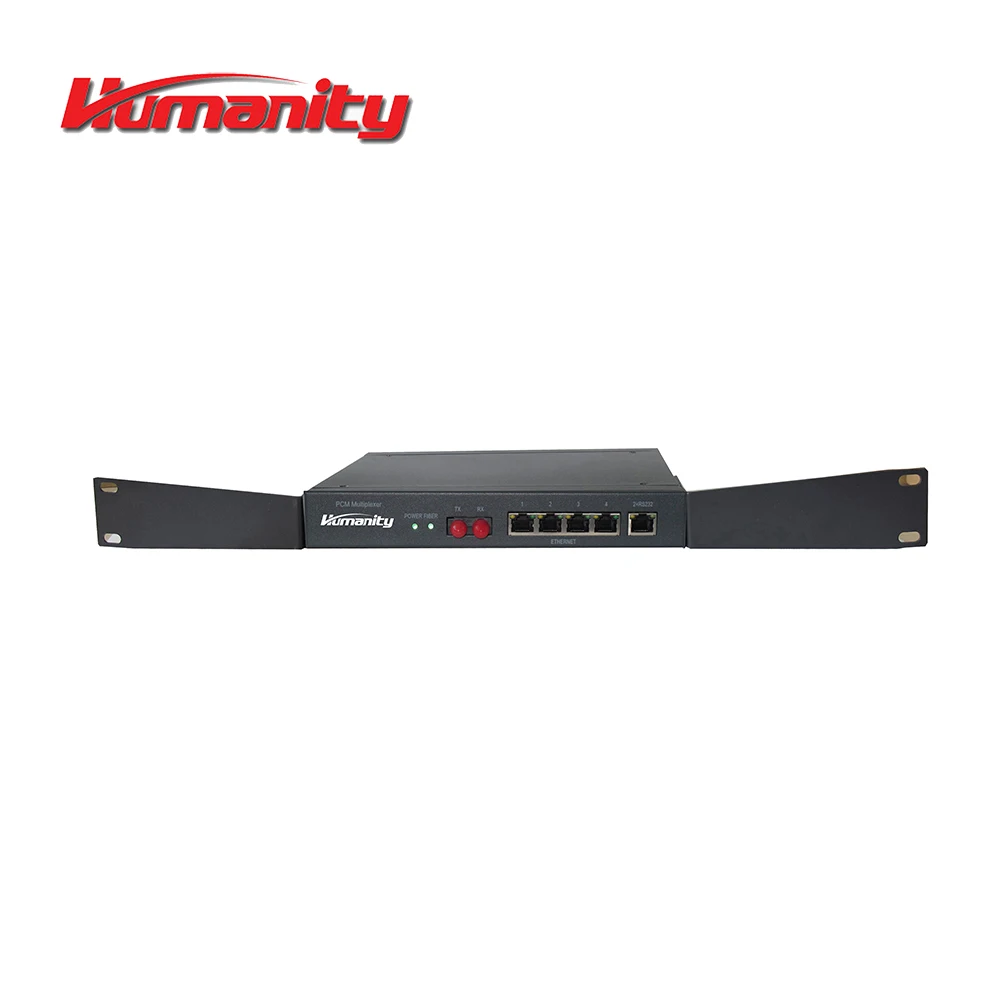

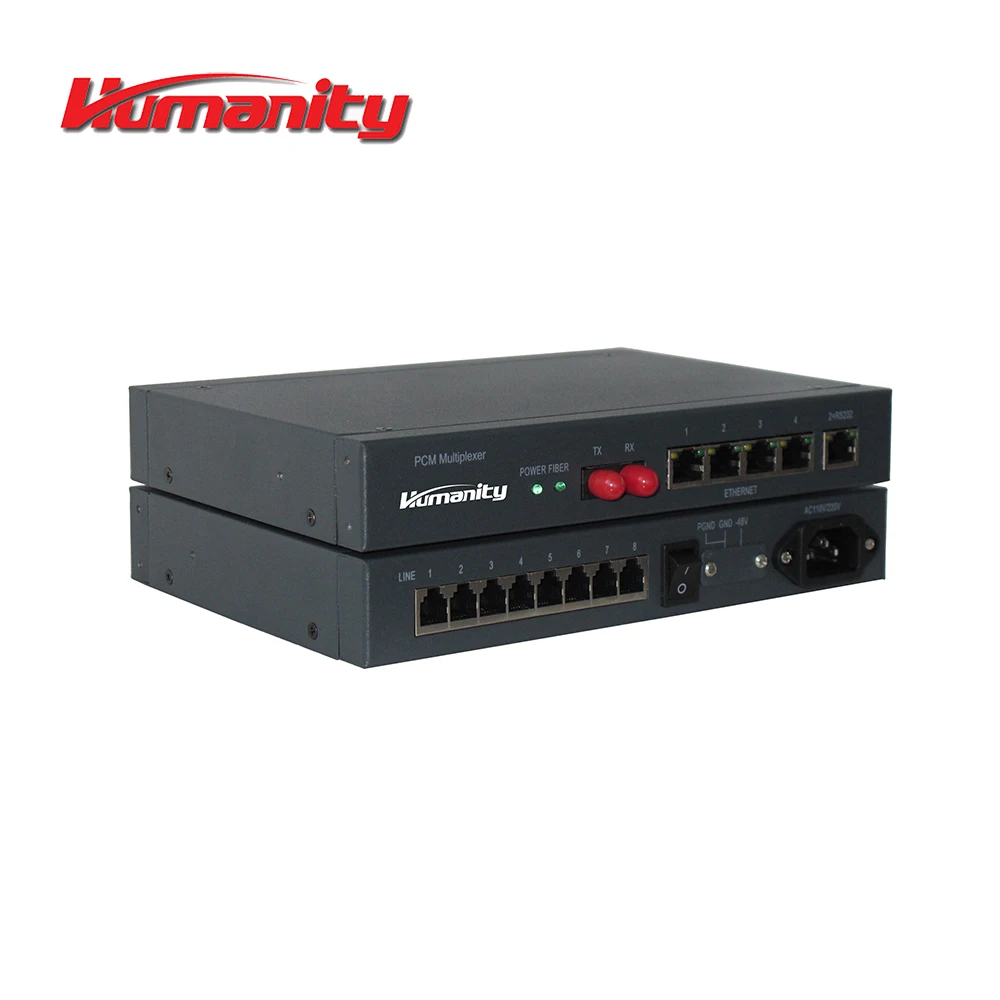

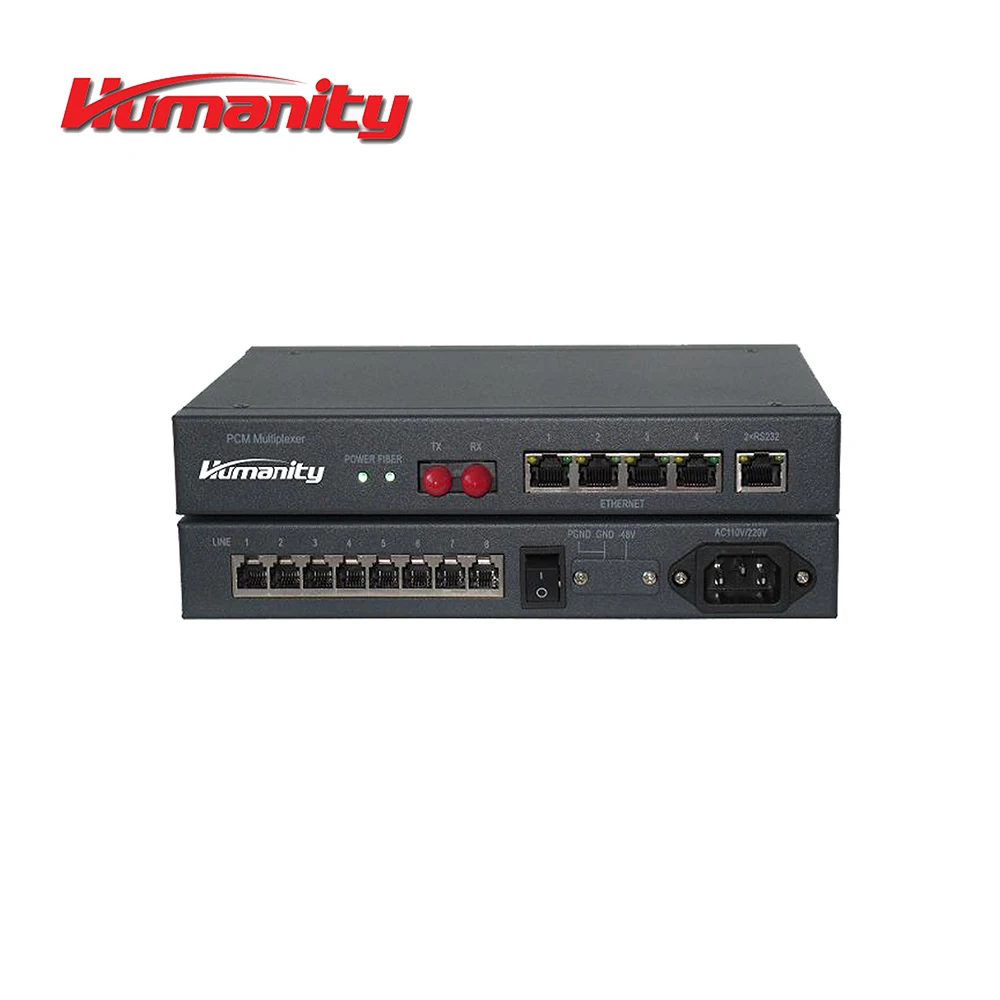

HM PN08 1~ 8ch FXO/FXS over Optic fiber PCM Multiplexer for 8lines over fiber solution
- Category: >>>
- Supplier: Beijing Human Information Technology Co. Ltd.
Share on (821319927):
Product Overview
Description
Product DescriptionHM-PN08 1~ 8ch FXO/FXS over Optic Multiplexer with Fiber to Telephone Port realizes the transmission of maximum 8 channel telephone (FXO/FXS) over fiber at the same time. Besides, 4*100M Ethernet and 2*RS232 over fiber are also available.
Main Features
-> Perfect network management function. Be able to configure and monitor the device easily.
-> Using a dedicated integrated circuit design, stable and reliable.
-> Perfect alarm and status indicator function.
-> The power supply adopts by module with anti-jamming ability and ensure long life.
Interface Parameters
Fast Ethernet interface:
-> Support 1024 MAC address list. The local data stream will not be sent to the remote.
-> Support minimum 64 bytes. The maximum 1916 bytes.
-> Support stream statistics for each Etehrnet interface such as error package quantity, totol package quantity etc.
-> Be able to set full/half duplex mode by network management
Optical interface:
-> Transmit Mode : Single/ Multi-mode
-> Module : Single/Dual Fiber
-> Interface : FC/SC/ST
-> Wavelength : 1310nm/1550nm
-> Distance : 2Km/40Km/60Km/120Km (Standard Setup : Single-mode/Dual Fiber/1310nm/FC/40Km)
RS232 Data Interface:
->Transmitting output voltage: ±15V
->Receiving input voltage: ±15V
->The maximum rate of transmitting and receiving: 38.4Kbps
General characteristics
| Voltage supply | DC-48V, tolerance range: -36V ~ -72V |
| AC220V, tolerance range: 165 ~ 265V | |
| Power consumption | ≤30W |
| Work temperature | 0 ~ 70°C |
| Relative humidity | ≤90% (25°C) |
| Overall dimensions | 220×165×35mm |

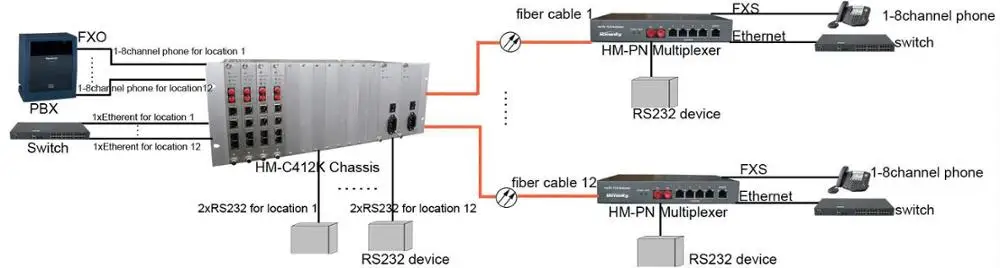

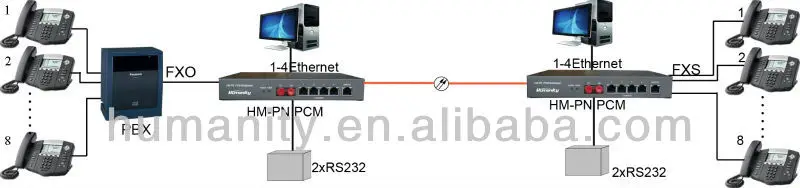

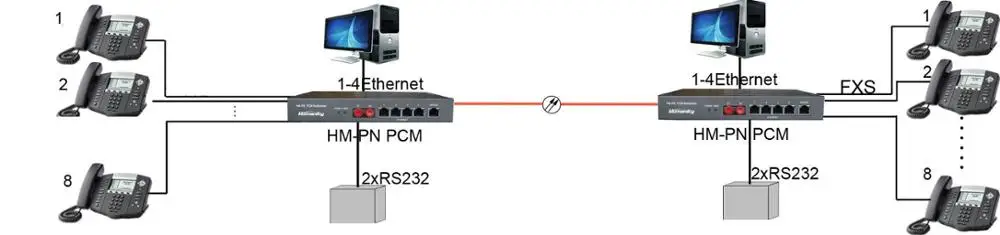

Application Diagram
