Fully automatic metal can tin labeling machine

The price is for reference only and needs to be confirmed with the seller again before placing the order.

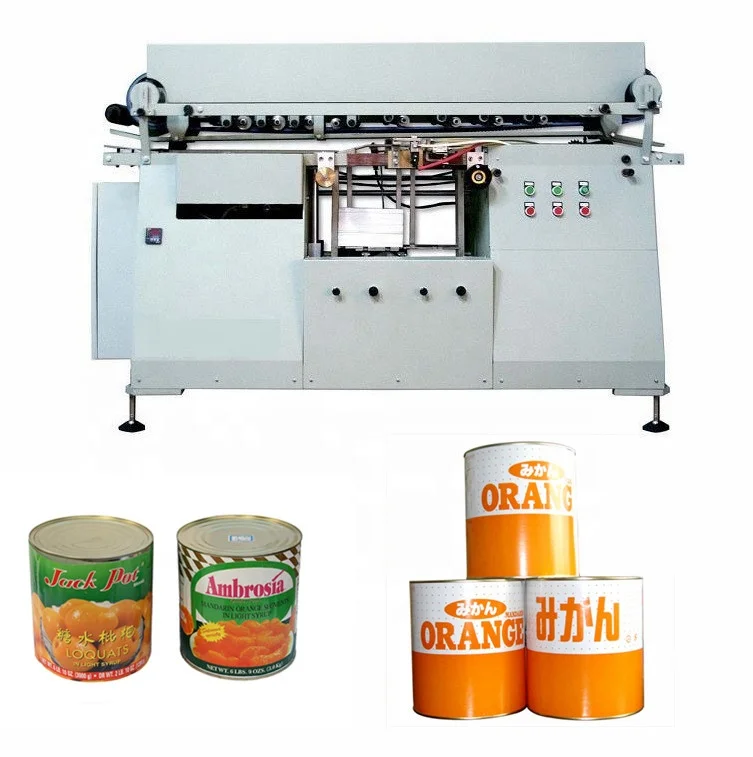

GT-01 Automatic metal can labeling machine/fully automatic metal can tin labeling machine

1. Characteristics:

This machine is used for metal tin labeling. The tin rolled into the machine, by the pressure in the tin rolling on the belt
drive, when the tin pass through the hot melt adhesive points, can be coated with a hot melt adhesive, along with the moving of
tin, the tin part with glue will press the front of the label and stick the label on, and began to be rolled in on the tin. At the
same time, the label end was glued by gluing mechanism. With the tin moving on, the label has been affixed to the tin on a roll.
Then get out of the machine driven by rolling belt.
This machine has alternately label supply mechanism, no need to stop the machine when add label.
The end glue supply is controlled by tin. It will not supply glue if without tin.
Machines using frequency control can be adjusted according to production requirement.
The machine is only to change a few parts for replacing different size tin, the label adhesive only in
two ends, with less glue and low cost.

2. Technical Parameters:
Labeling capacity 200-500 tins / min (different with the size of tins)
Suitable for tin size, diameter Φ45-114mm
Suitable for tin height (maximum) 270mm
Label Size Width 23-254mm
Length 117-380mm

Labeling glue: Hot melt glue +
Cold Glue
Power : three-phase 380V (or on request)
Electric power 2.62Kw
Compressed air 2-4Kg/m2, 10 L/ min
Overall dimension 1855mm × 750mm × 1250mm
Weight 650Kg
