veterinary instrument vessel sealing system bipolar electrosurgical unit for pet DK A with factory price

Product Overview

Description

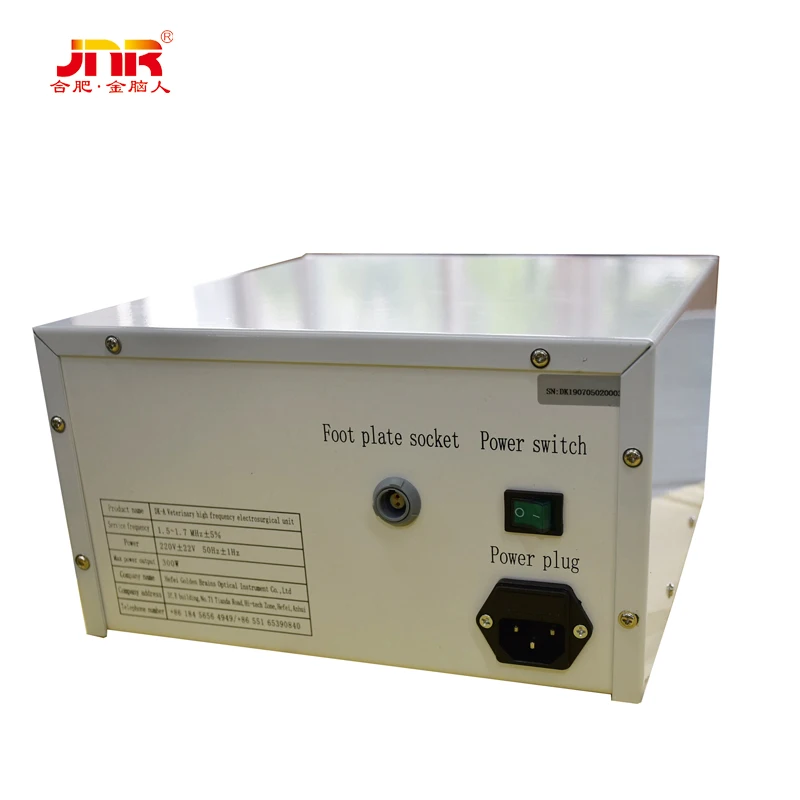

veterinary instrument vessel sealing system bipolar electrosurgical unit for pet DK-A with factory price



veterinary vessel sealing systems



1. bipolar electrosurgical instrument

2. 300W, big power( be adjustable)

3. Bipolar forceps, anus conductive rod(dont need shave)

4. cutter heads and lines can be sterilized by high temperature, high pressure

5. china leading R&D veterinary equipments manufacturer.





Technical parameters

1. Type of the electrosurgical unit: bipolar electrosurgical unit
2. Operating frequency: 1.6MHz
3. 400ΩRated load: 400Ω
4. Output power:  Unipolar cutting       0-300W
                              point coagulation     0-300W
                              bipolar coagulation  0-150W
5. AC input:  220 V±22V  50Hz±1Hz
6. the size for the bipolar electrosurgical generator: 24*23*13cm
7. Accessories: autoclavable
8. Gross weight: 9.48kg
9. Size of the package: 51.5*37*29cm



Features


1. veterinary electrosurgical cautery unit has three operating modes: single-pole cutting, unipolar coagulation, bipolar coagulation, the simple toggle, full-featured.
2.  unique design of the anus conductive rod, the operation does not require shaving, simple operation and satisfy pet owners.
3. 10 different power settings, strong power, stable output.
4. cutter heads can be re-used after be sterilized by high temperature and high pressure.
5. accurate, efficient soft tissue cutting and coagulation control is necessary for clinical operations of the modern animal.
6. UHF design, national patent products.

Product components



Input voltage: 220 V ± 22V  Input Current: 0.9A  Power frequency: 50Hz ± 1Hz
operating frequency: 1.5 ~ 1.7MHz  Rated load: 500Ω
output power: single-cutting 0 ~ 100W single condensate 0 ~ 100W dual condensate 0 ~ 50W

Clinical indications

coagulation (for skin, soft tissue, muscle capillary bleeding.)
cutting (skin incision, vocal cord surgery to remove abscess incision, the tumor cutting, mesangial cut off.)

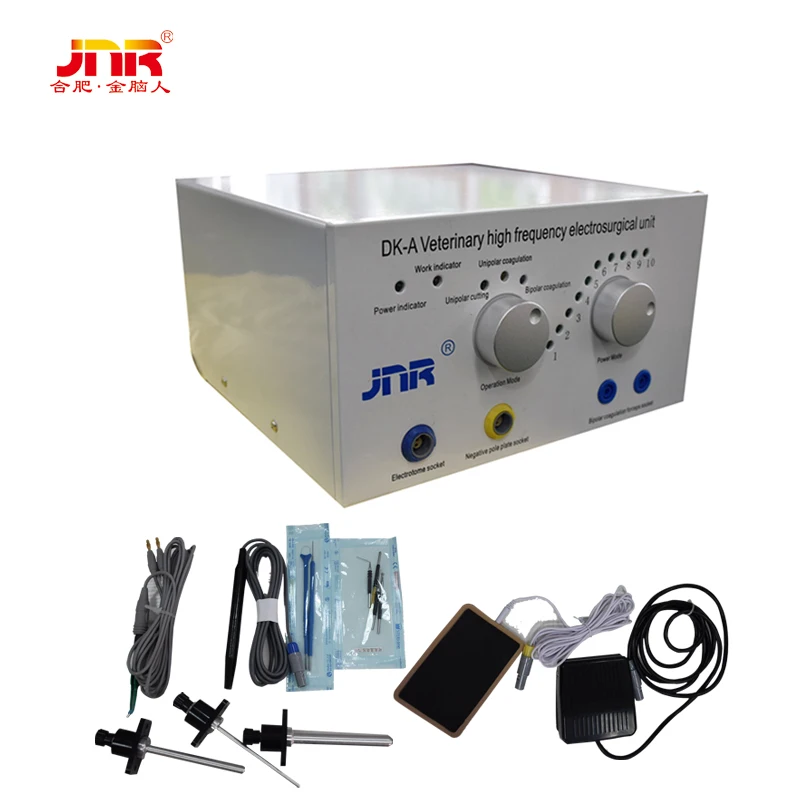

Components


Name	Quantity	Note
Host of high-frequency electric knife	1
High temperature and high pressure disinfection cutter head	6	Four(sterilized by high temperature and pressure)
Pedal switch	1
Negative plate	1
knife	1
Power line	1
Anal conductive rod	1
Double coagulation forceps	1
Double condensate line	1
