HIgh productivity semi QTJ4 26C hess beton hollow block forming machine
- Category: >>>
- Supplier: Yinan Huarun Tianyuan Machinery Co. Ltd.
Share on (822261021):
Product Overview
Description
Product Description

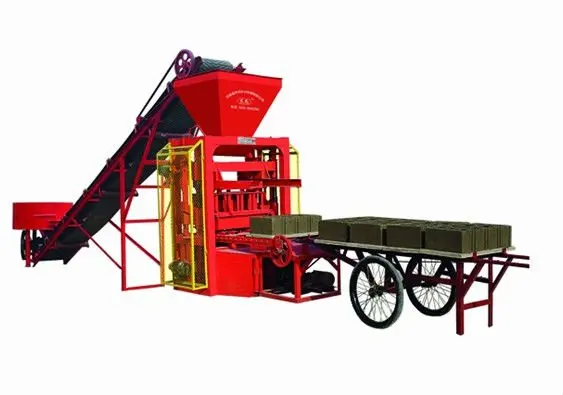

Simple Production Line Introduction
QTJ4-26C block machine is small machine which is easy install and operate.It could be automatic or semi automatic production line as per clients needs. Full line including Pan Mixer, QTJ4-26C block machine, and Molds and so on. Client could choose as per actual needs.
Specifications of QTJ4-326CHollow block machine | ||||||
Dimension of host machine | 1800*1500 *2000mm | |||||
Pallet size | 850x450x20~30mm | |||||
Total power | 10.45kw | |||||
Weight of the host machine | 3ton | |||||
Vibration force | 50KN | |||||
Molding cycle | 35-40S | |||||
Material Consumption | 40~60ton/day | |||||
Electric Consumption | 24kw.h/day | |||||
Water Consumption | 2.5ton/day | |||||
Worker | 4-5workers | |||||
Main Parts for QTJ4-26C & Capacity
Size(L*W*H) | QTY/Mould(pcs) | QTY/Hour(pcs) | QTY/8Hour(pcs) |
400×250×200mm | 3 | 270 | 2160 |
400×200×200mm | 4 | 360 | 2880 |
400×150×200mm | 5 | 450 | 3600 |
Main Features
The advantage of Molding Machine,
1- Automatic with Siemens PLC control system and Touch-operating Panel, Double Delta frequency converters, use less labor.
2-Hydraulic transmission,mechanical vibration, and hydraulic pressing and forming are adopted
3- Adopting the advanced forced material-feeding & distributing device, More durable.
4- It could make many kinds of color-faced pavement tiles, color-faced grass-planting bricks and curb bricks, as well hollow blocks and interlocking wall bricks by changing different molds.
5- Quality Insurance:
PLC and Motors from Siemens Brand, Hydraulic from Germany Brand Yk.Switches from Siemens or CHTN.
Molds are made of Manganese steel, long lifetime.
6- Certificate: ISO quality control, CE (MD+LVD).- European Quality.
Detailed Images

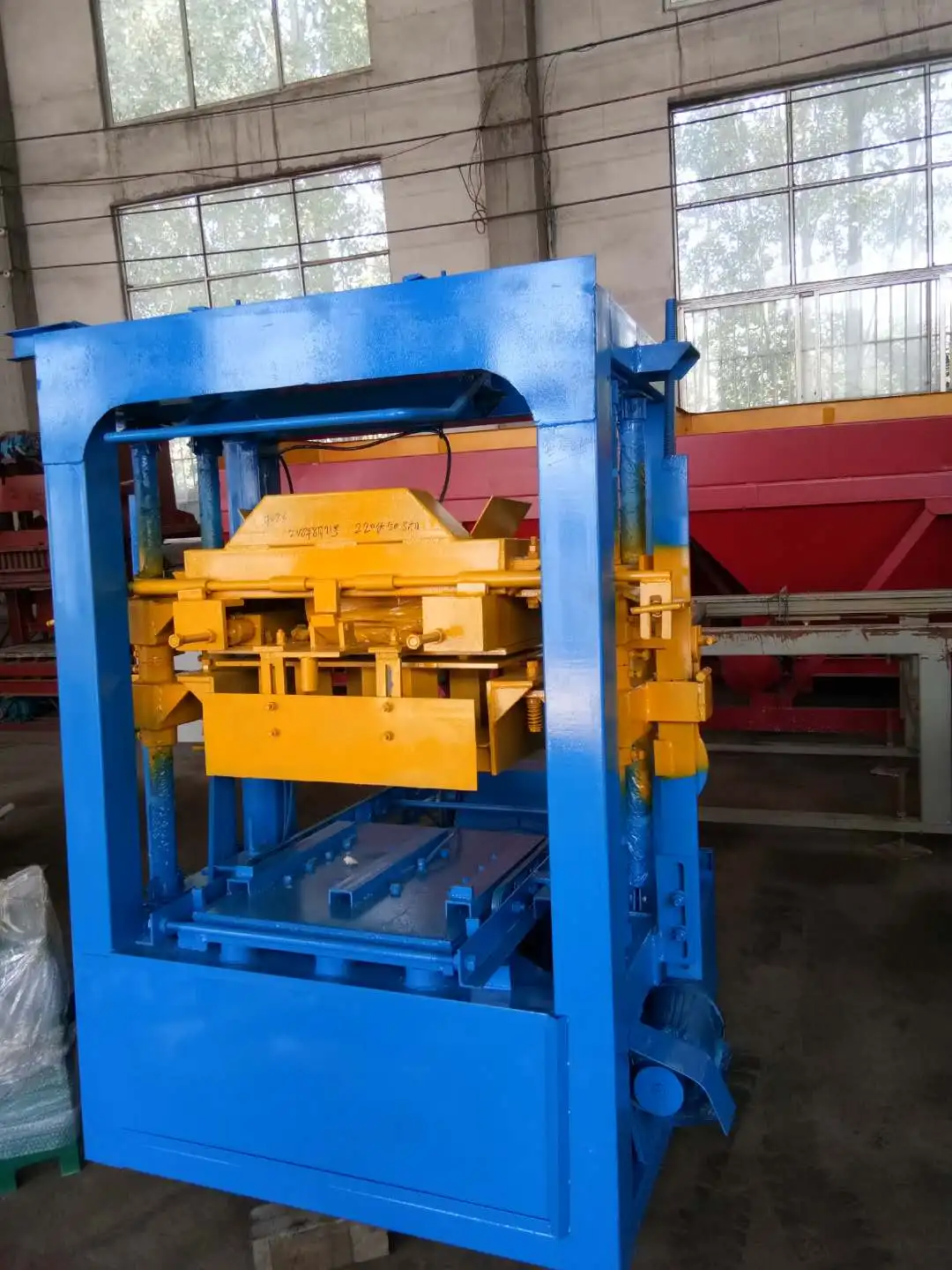

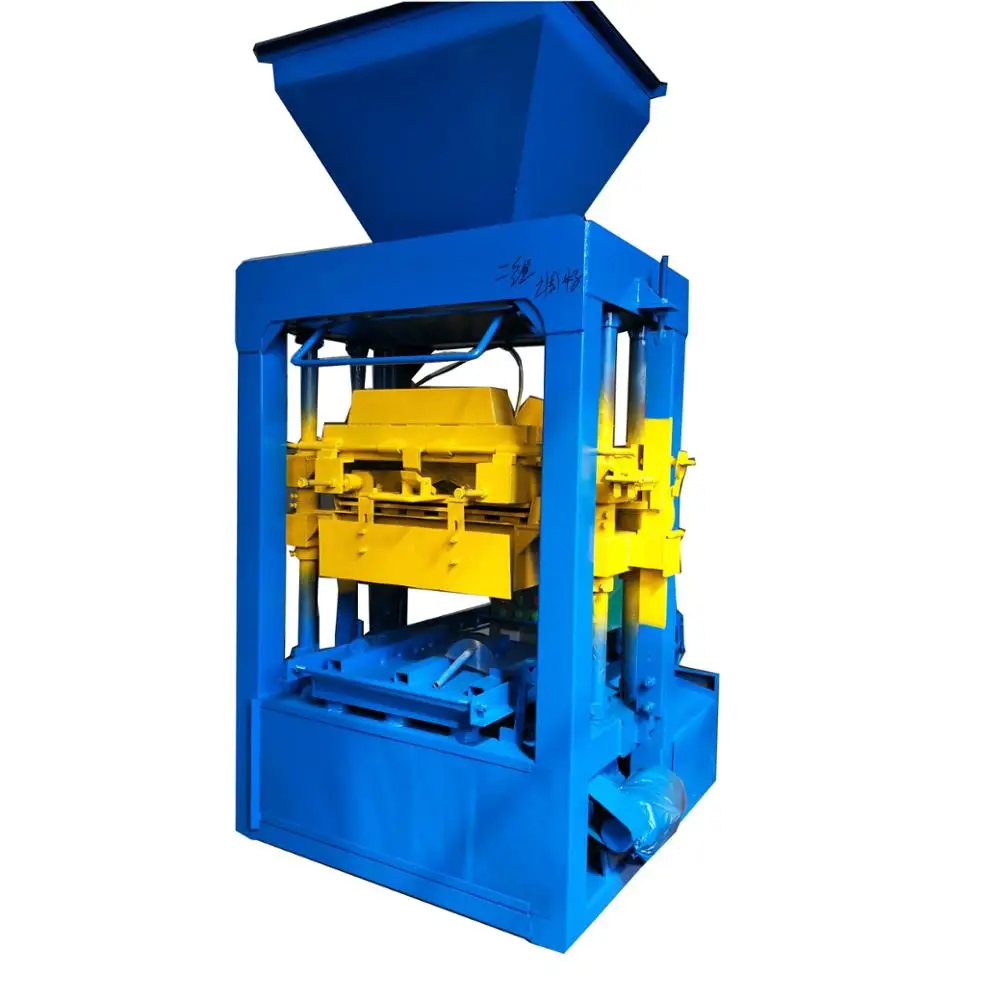

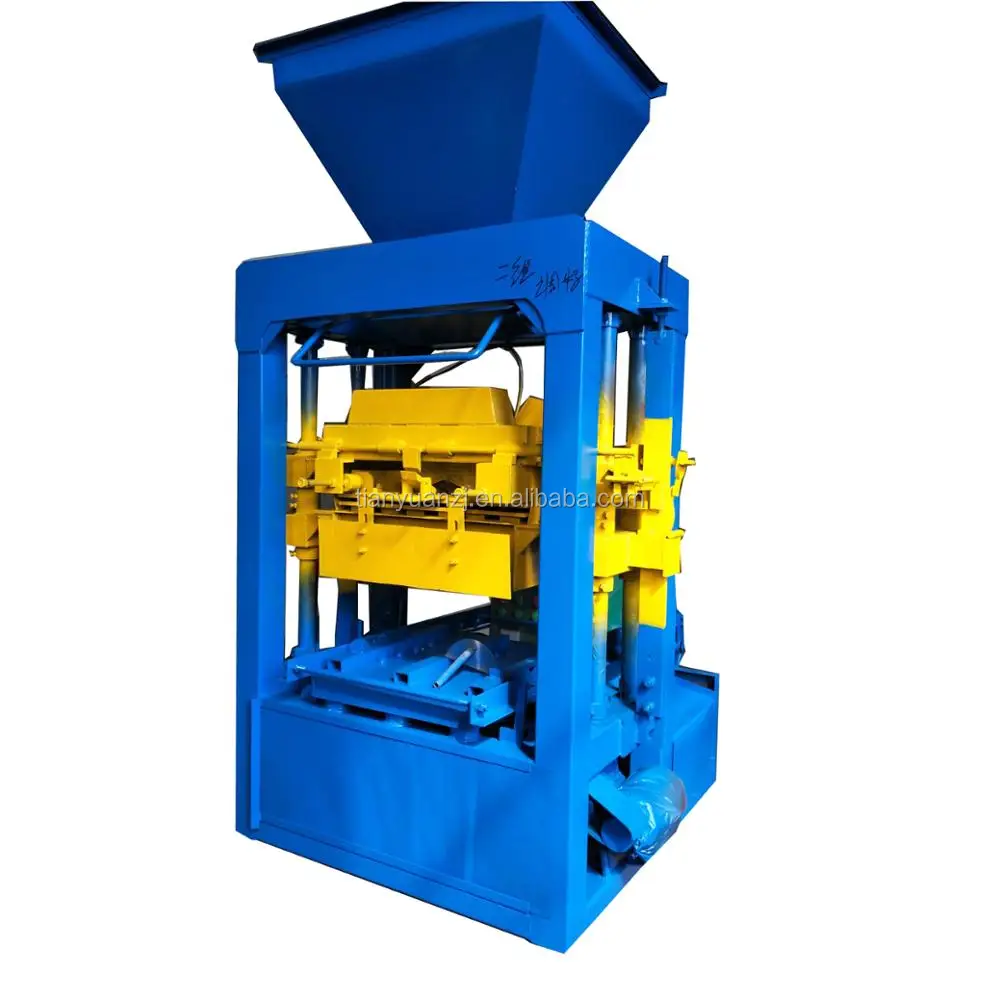

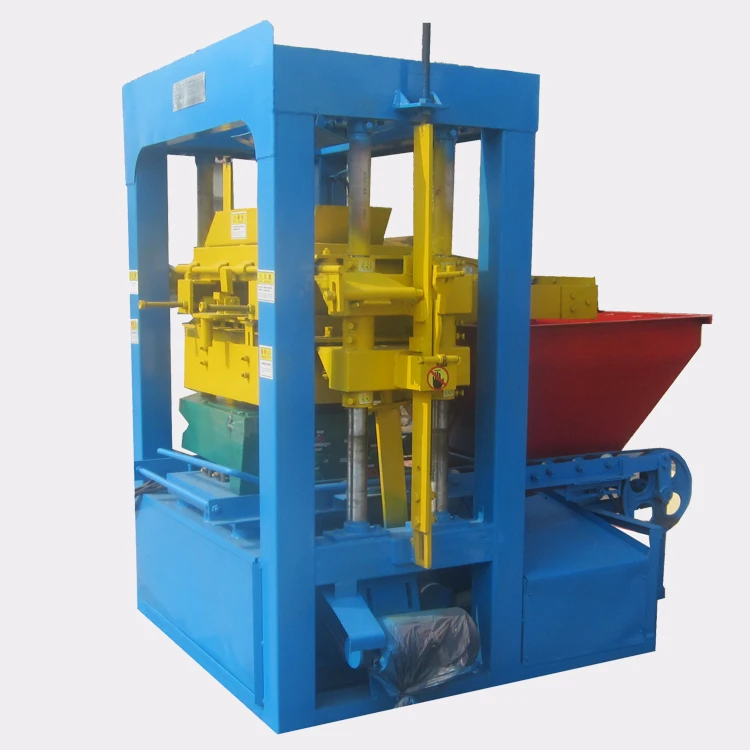

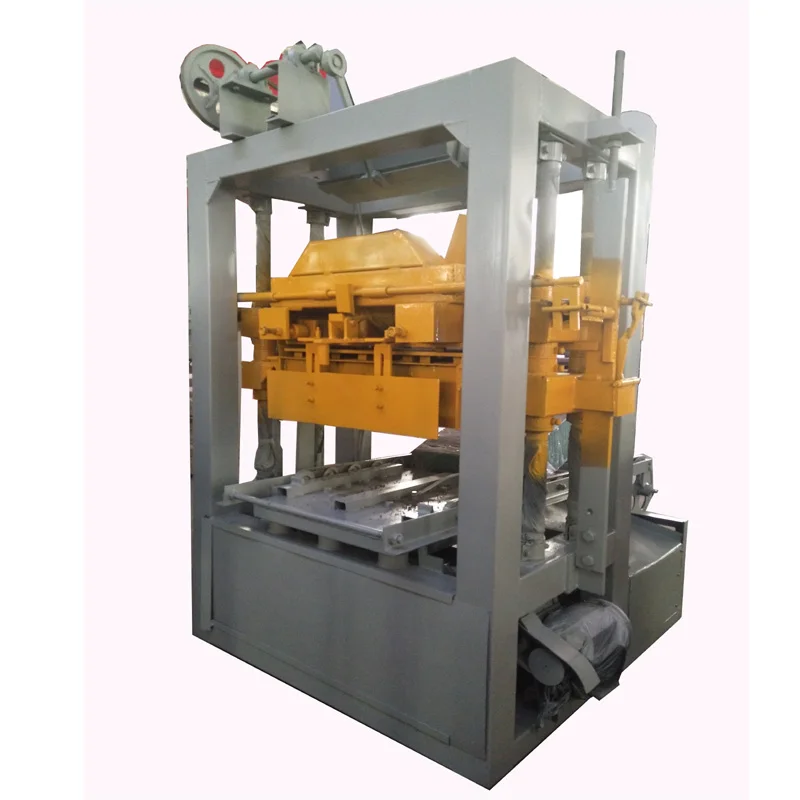

Main Press Machine
Name: QTJ4-26C block machine
Brand: Tianyuan brand
Original: China
It is the newest design semi automatic block machine .
More easy install and operate.
Machine parts

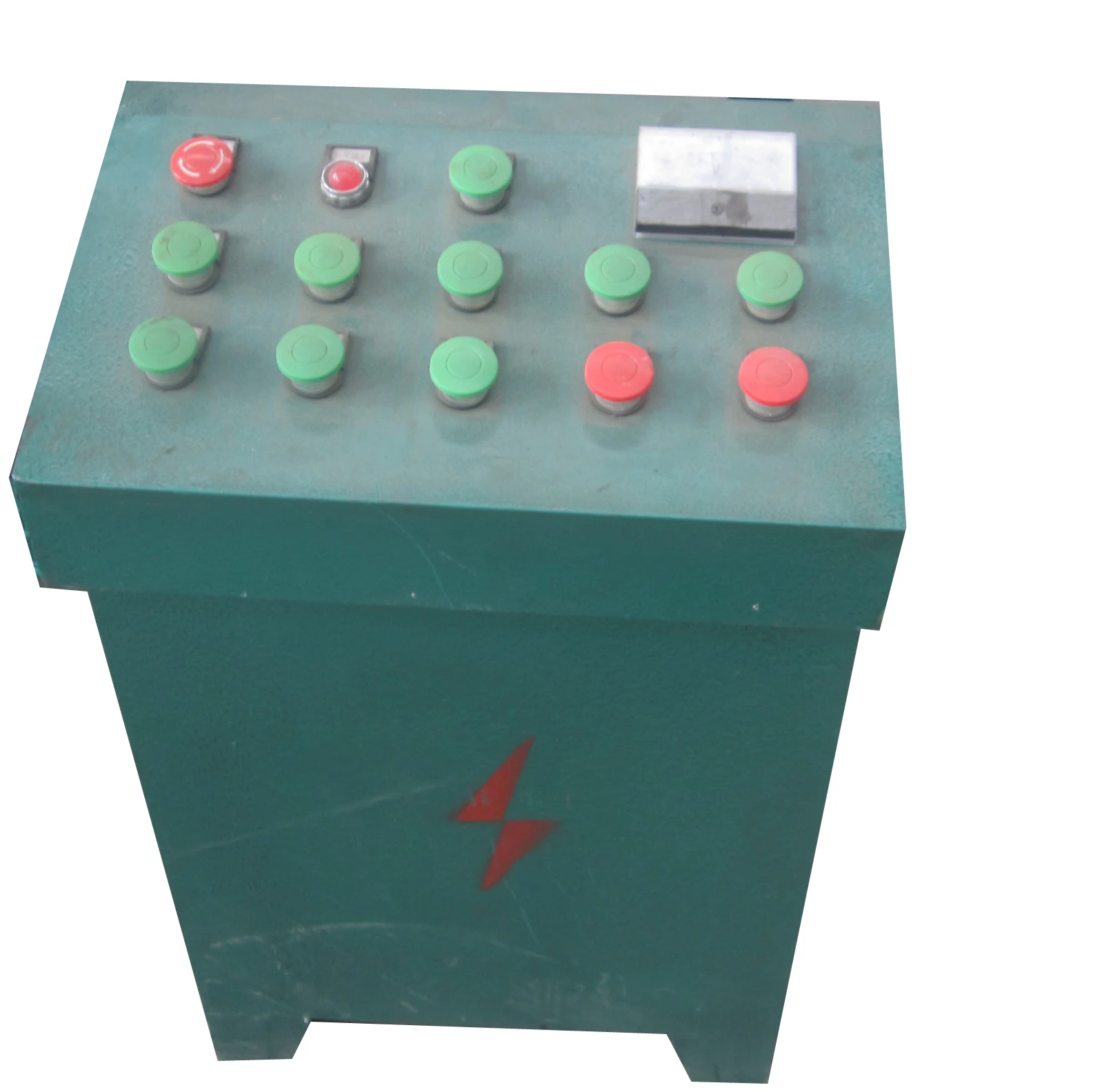

Name: control box
Brand: Tianyuan
Original: China
Control the running part by pressing the buttons.
Machine parts
Name: Pan concrete mixer
Brand: Tianyuan brand
Original: China
1.First start the motor, then feeding materials
2.More easy control .
Machine part

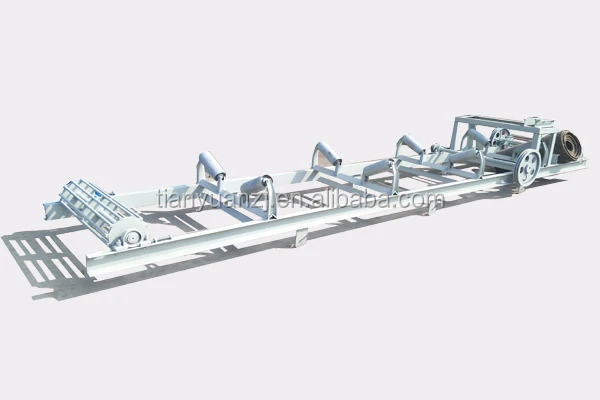

Name: Belt conveyor
Brand: Tianyuan.
Origin: China
Length: 6mm
Width:50mm
Power: 1.1kw
Mold.
The molds depends on clients actual needs.
We also could design for client.
Molds heated treatment, and carbonrizing.
Finished Products

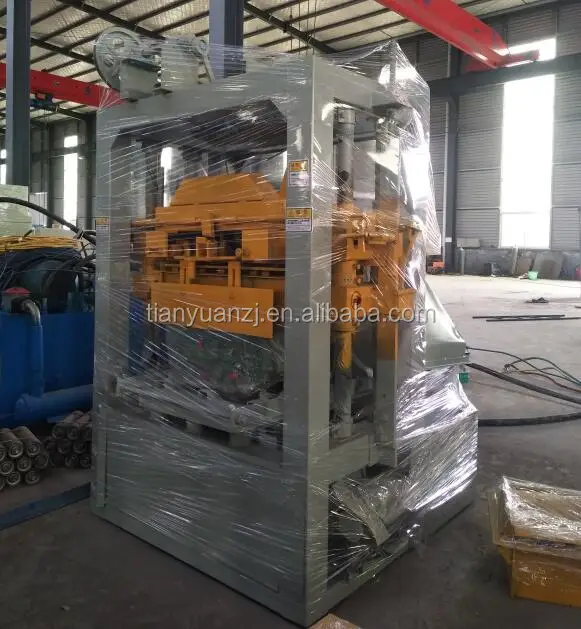

Packing & Delivery
Certifications
Our Service
Factory Office Building
√ Famous trademark of China
√Passed CE Mark
√ National enterprise abiding by contract and keeping good faith
√ National key high-tech enterprise
Oversea User
√ Top ten influential brand of China brick and tile industry
√ First place in production and sales of block machine and tile making machine in China
√ ISO quality system certificate enterprise
Service.
@:Free designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
@Warranty one year after delivery.
@ 24hours Online service for all life time.
RFQ
1. Delivery period and payment terms?
15-25days after advanced payment, 30% advanced by T/T, balance paid before loading
2. Packing method ?
Nude packing, or in plastic clothes, or in plywood box.
3. What’s motor and electric brand we choose for our machines ?
Siemens or Schneider brand, or Chinese famouse brand.
4. What kind of steel my machine and molds use ?
Q235B for machine, Mn steel for molds, more durable.
5. Will you send engineer to install for user ?
Yes, we have oversea service team, they supply service as per needs.
6. Are there any spare parts together with the machine ?
Yes, we will send spare parts together with machine, the user could use it for more than two years.
7. Do you supply free technical service during later production ?
Yes, we have online service 7x24hours.
Whatsapp: 0086 1500659 3716
15-25days after advanced payment, 30% advanced by T/T, balance paid before loading
2. Packing method ?
Nude packing, or in plastic clothes, or in plywood box.
3. What’s motor and electric brand we choose for our machines ?
Siemens or Schneider brand, or Chinese famouse brand.
4. What kind of steel my machine and molds use ?
Q235B for machine, Mn steel for molds, more durable.
5. Will you send engineer to install for user ?
Yes, we have oversea service team, they supply service as per needs.
6. Are there any spare parts together with the machine ?
Yes, we will send spare parts together with machine, the user could use it for more than two years.
7. Do you supply free technical service during later production ?
Yes, we have online service 7x24hours.
Whatsapp: 0086 1500659 3716
