Product Overview
Description
Product Overview

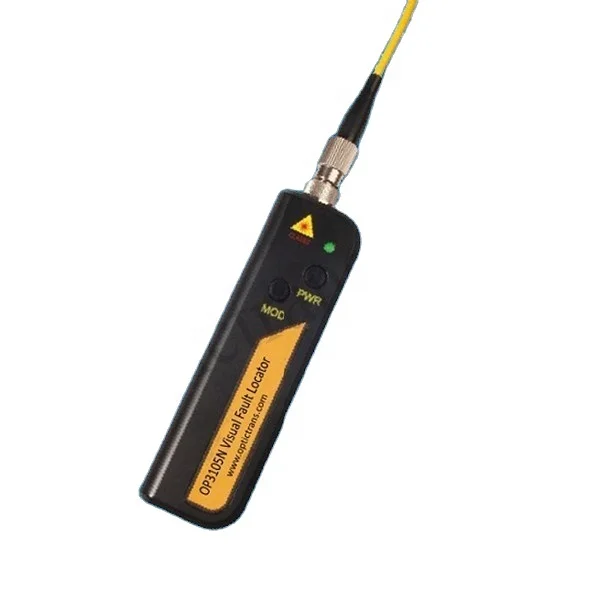

The OP3105N Economical VFL is an efficient and low cost basic fiber test tool, it provides a visible way to find fiber faults and identify fibers in an optical network during and after installation. It includes: Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone
End-to-end visual fiber identification
Product Features
(1) Constant & stable output power
(2) Special laser driver circuit design, to make sure the laser output power remains a constant power level as long as in an available battery voltage.
(3) Low battery warning, reminds users to change the battery timely.
(4) Long battery life (up to 40 hours with AAA batteries)
(5) Operates either in CW or Pulsed
(6) Pocket size and light weight, easy to use
Specifications
Parameter | OP310N Economical VFL |
Central Wavelength | 650nm±10nm |
Emitter Type | FP-LD |
Output Power | 1mw or 10mw |
Optical Connector | FC/2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
Operating Model | Both CW and Pulse(2Hz) available |
Power Supply | Two AAA alkaline batteries |
Battery Operating Time | 40hours Test with Panasonic LR6 AAA ALKALINE battery |
Operating Temperature | -10~+60 (°C) |
Storage Temperature | -25~+70 (°C) |
Dimension (mm) | 100*30*18 |
Weight | 37g |
Standard Packages
MODEL | INCLUDES |
OP3105N | OP3105N VFL, Two AAA batteries, User Manual, Cotton swabs and Soft Carrying case. |
