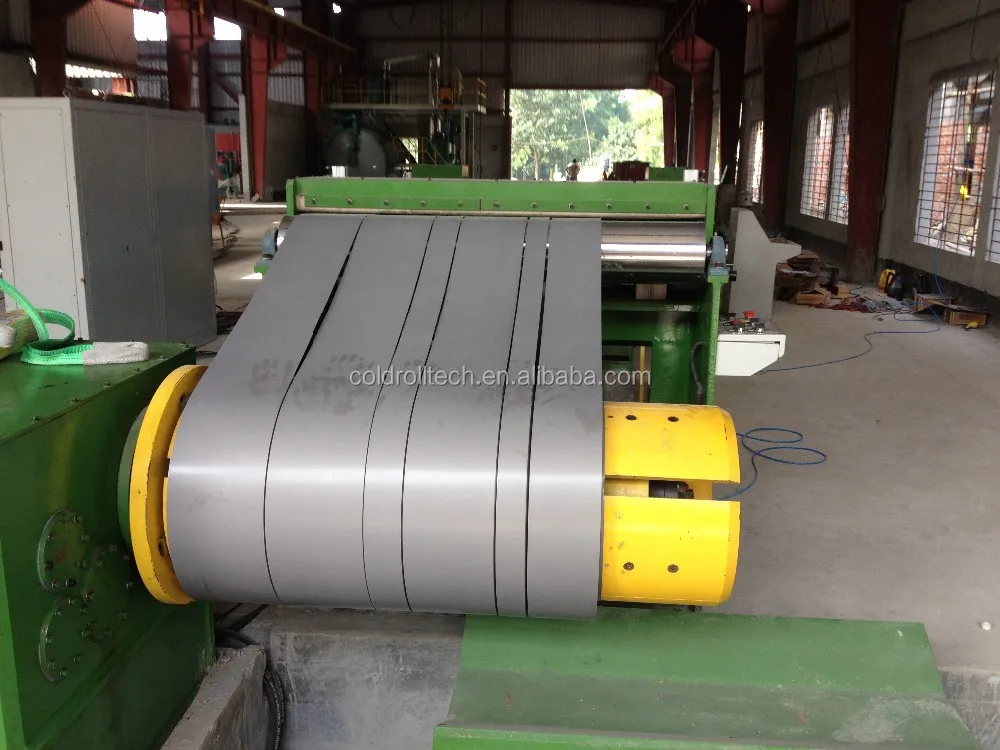

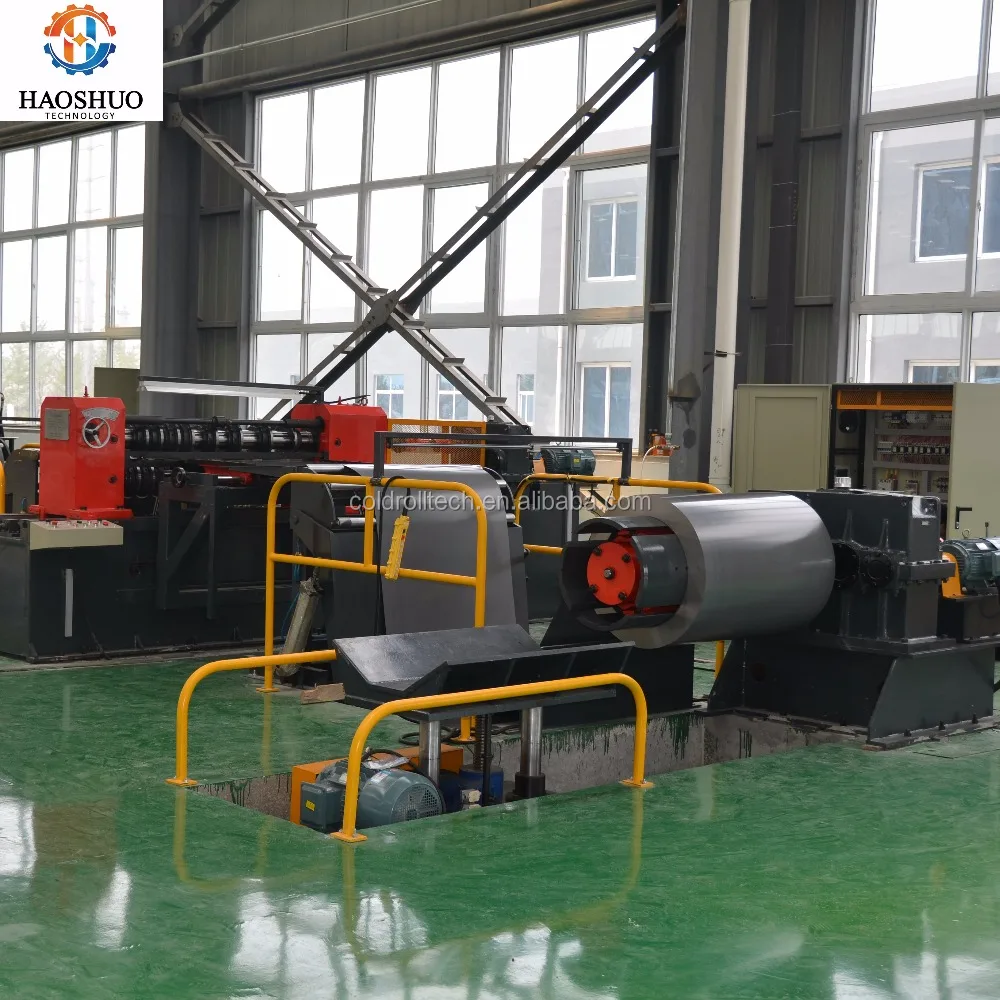

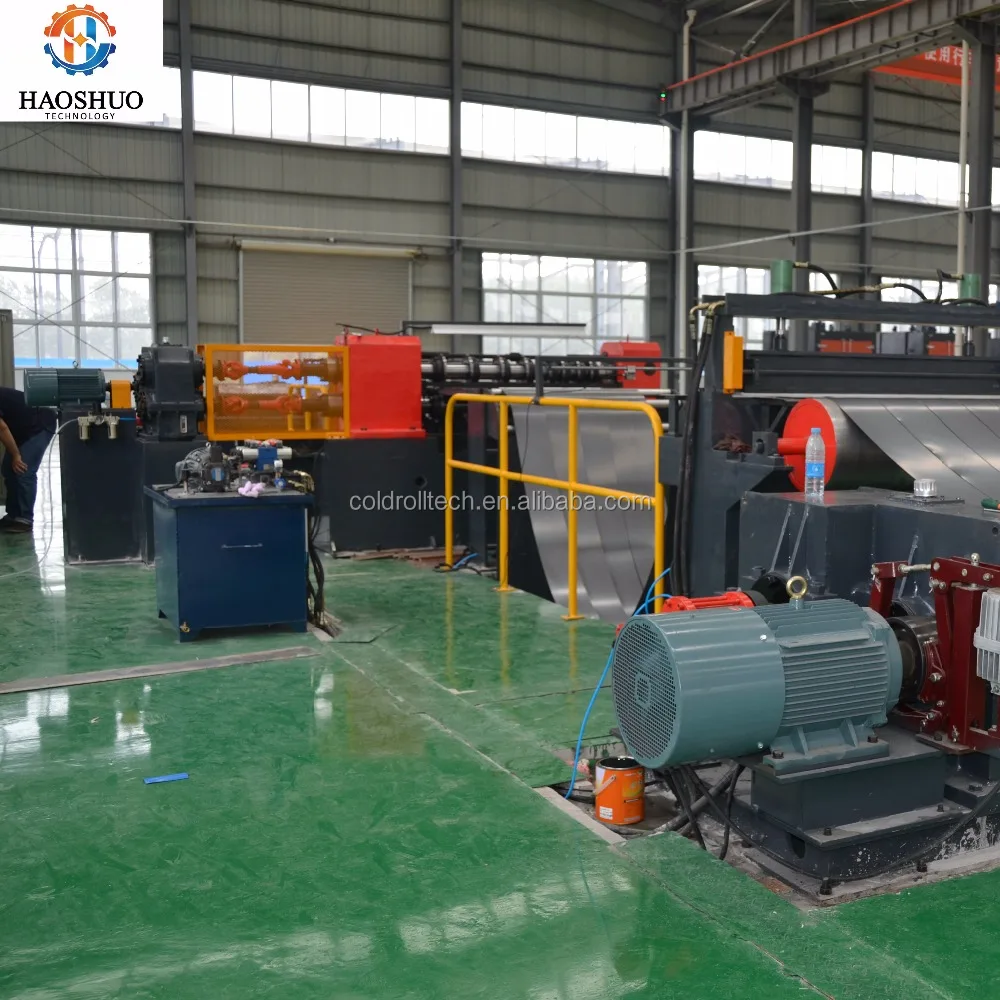

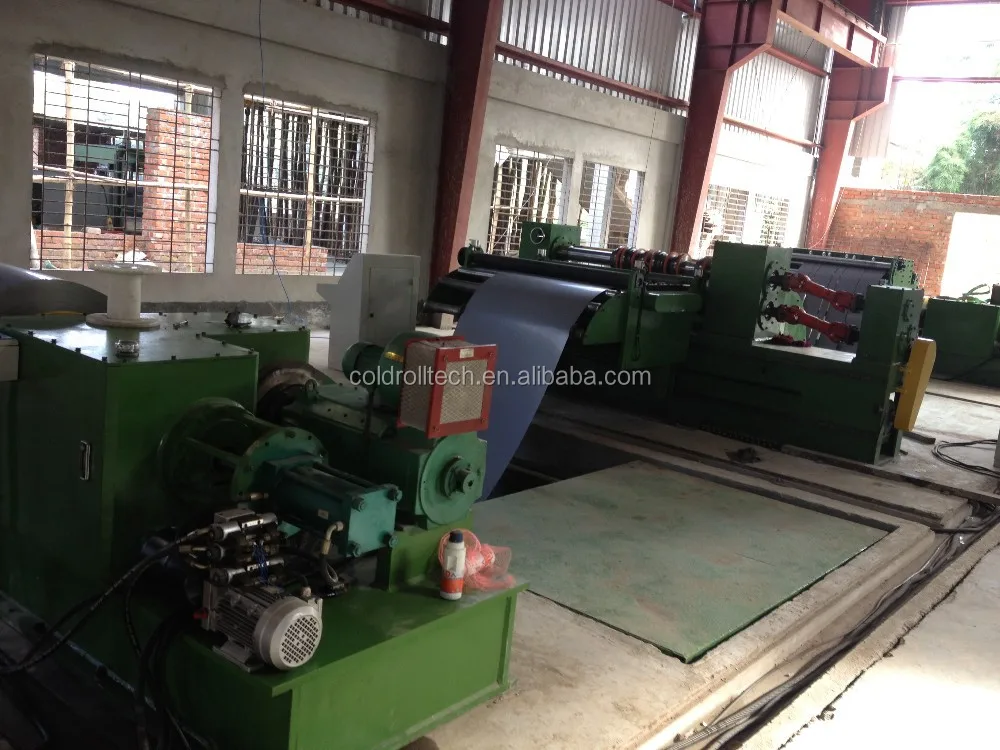

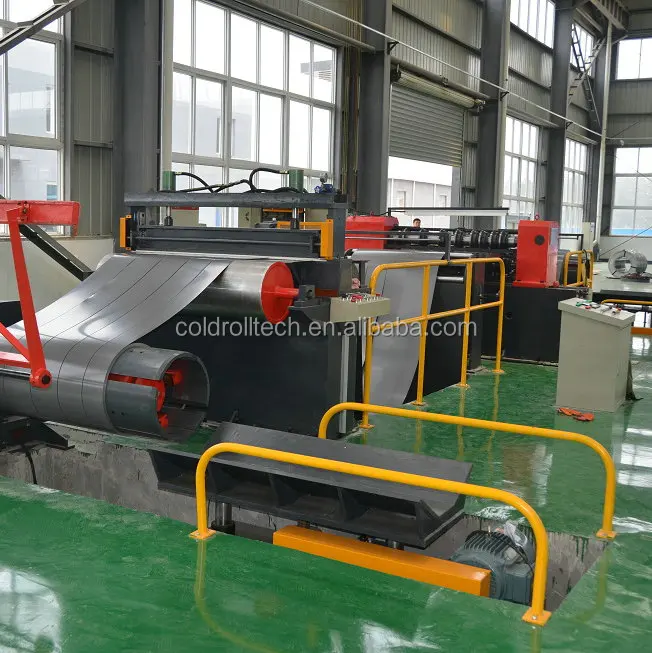

The silicon steel slitting machine is special equipment used for the silicon steel processing. It is necassarey machine in the transformer industry. The machine is suitable for 0.23-0.5mm silicon steel 1250mm width. It can slit the coils into narrow strips as per request. Whole line adopts PLC controlling VF speed ajusting, touch screen operating. All the electric elements and bearing and pneumatic parts are International famous brand products.

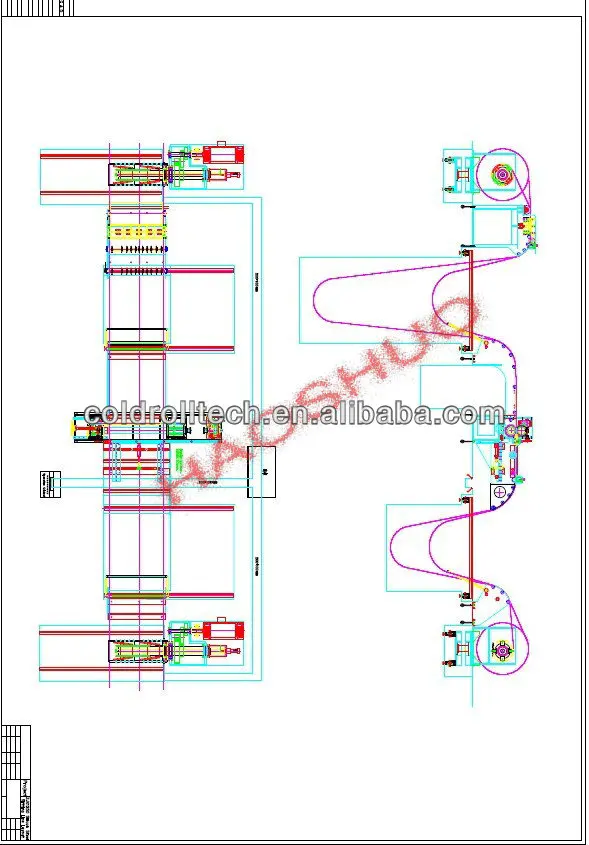

Machine Components:
1. One set coil car for coil loading
2. One set hydraulic DC powered decoiler(speedadjustable)
3. One set coil sheet feeding system
4. Two sets roll tables
5. One set slitter(VF speed controlling)
6. Two sets buffer pit moveable roll tables
8. One set tensioning system
9. One set hydraulic DC powered recoiler(speedadjustable)
10. One set coil car for discharging
11. One set controlling cabinet
Main Technical Data
1. Slitting width: 600-1250mm
2. Slitting thickness: 0.23-0.5mm
3. Slitting strip width: min. 40mm
4. Work speed: 0-60m/min adjustable
5. Max capacity of decoiler & recoiler: 5tons
6. Power supply: as per customer’s request
Main Elements Origin
1
DC motor
Jiangsu Wangpai Z4 motor
2
DC controller
PARKER590C
3
Inverter
Delta Taiwan
4
Pneumatic elements
Airtac Taiwan
5
Bearings
NSK Japan
6
PLC
Siemens German
7
Human-computer interface
Siemens German
We are the professional supplier of Transformer manufacturing machines and equipment. Our main products: silicon steel slitting machine, silicon steel cut to length line, foil winding machine, vacuum chamber, oven, resin casting machine, transformer testing equipment, etc.
Packaging & Shipping

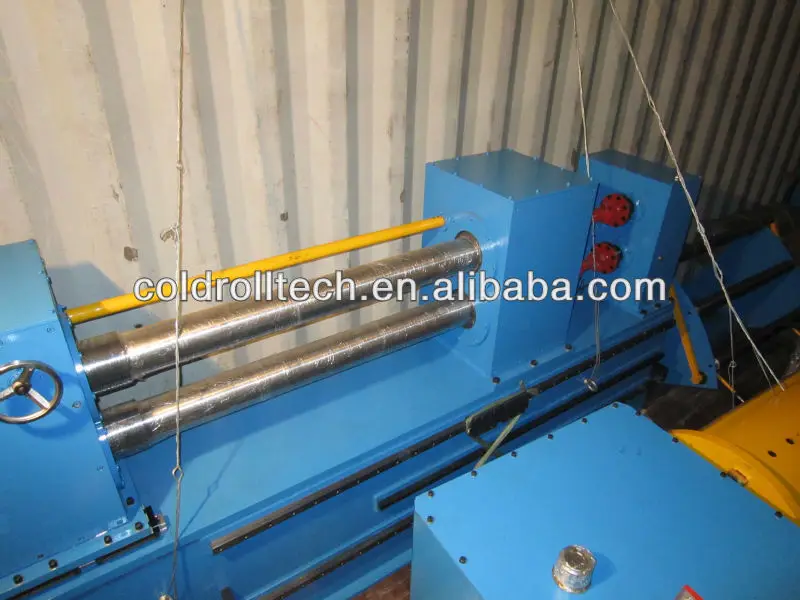

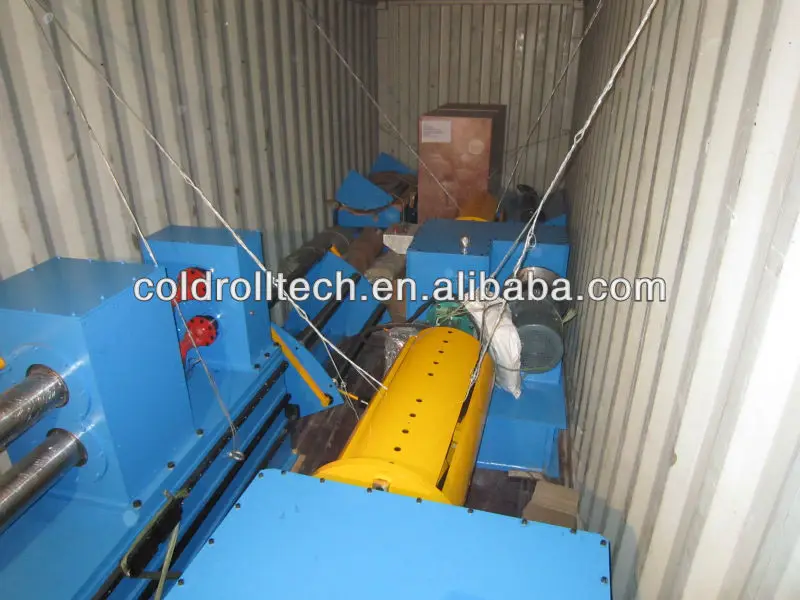

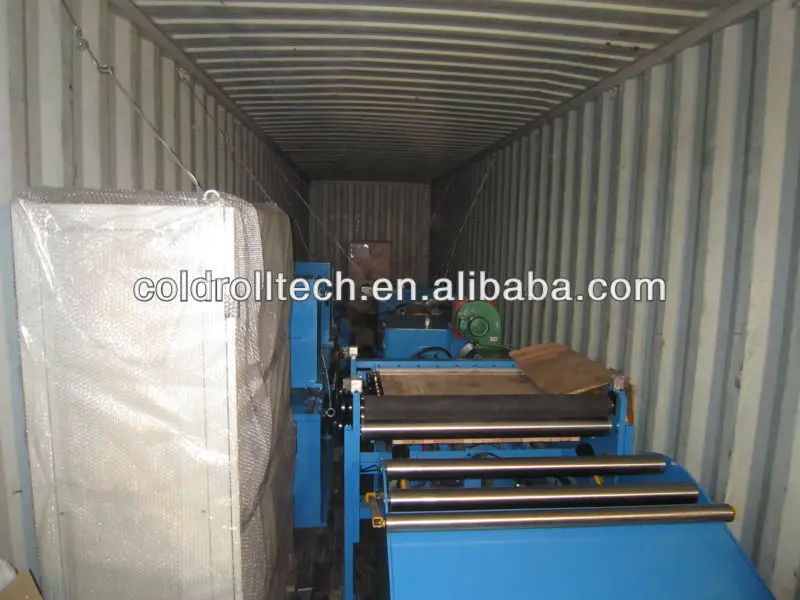

Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes.
Normally one machine needs one 40 feet container for shipping.
