Dynamic Mixing Vacuum Resin Casting Machine for epoxy resin encapsulation coils of dry type transformers

Product Application

The vacuum resin casting machine is specially used in the production of dry type transformers, bushings, dry type reactors, high voltage switch insulation, and related electrical products. It mainly consists of material tank, mixing tank, measuring device, vacuum casting tank, vacuum pump system, heating system, control system, etc. It is suitable for degassing, mixing and casting high polymer materials such as bisphenol-A, outdoor resin, polyurethane, etc.

Main Features

1) Perfect vacuum pump system ensure high production quality.

2) Reliable material measuring system for precision feeding.

3) Advanced heating technology for material pre heating and casting solidifying.

4) Automatic PLC control with touch screen operation.

5) Convenient operating with complete parameter indication, recording and alarm .

Name: Material tank

The tanks are made with high grade steel. Dynamic mixing, material tanks with vacuum system and pre heating device. Adopts imported electronic scale measuring devices fro prescision resin feeding. Mixing motor and reducer are use China famous brand products.

Name: Casting tank
The casting tank are made from high grade steel with smooth welding and treating. The door locking by staggered gears through cylinders. Efficient casting valves and observation windows are installed on the tank.

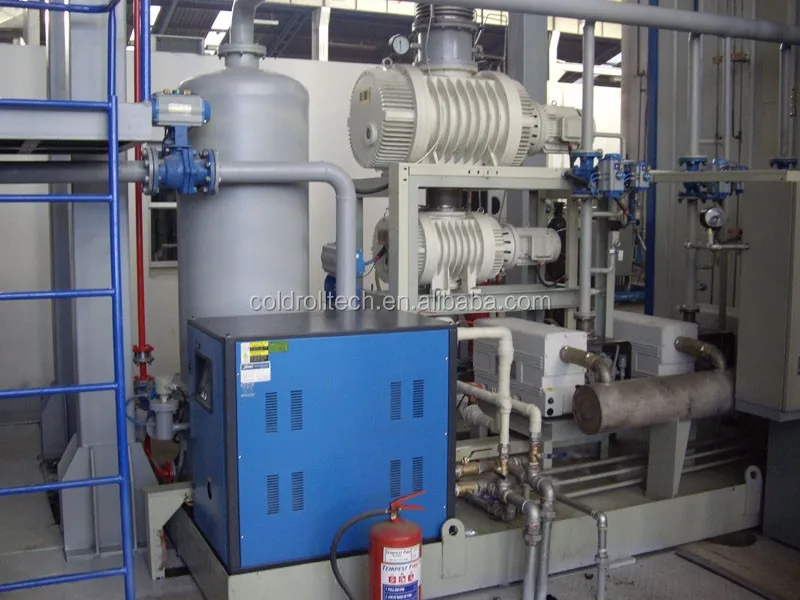

Name: Vacuum pump system

Pump Brand: Fore pump from Leybold Germany

                             Roots pump from Sunshine China
Adopts top brand vacuums ( fore pump and roots pump) for high quality vacuum processing. Efficient condenser for pump cooling.

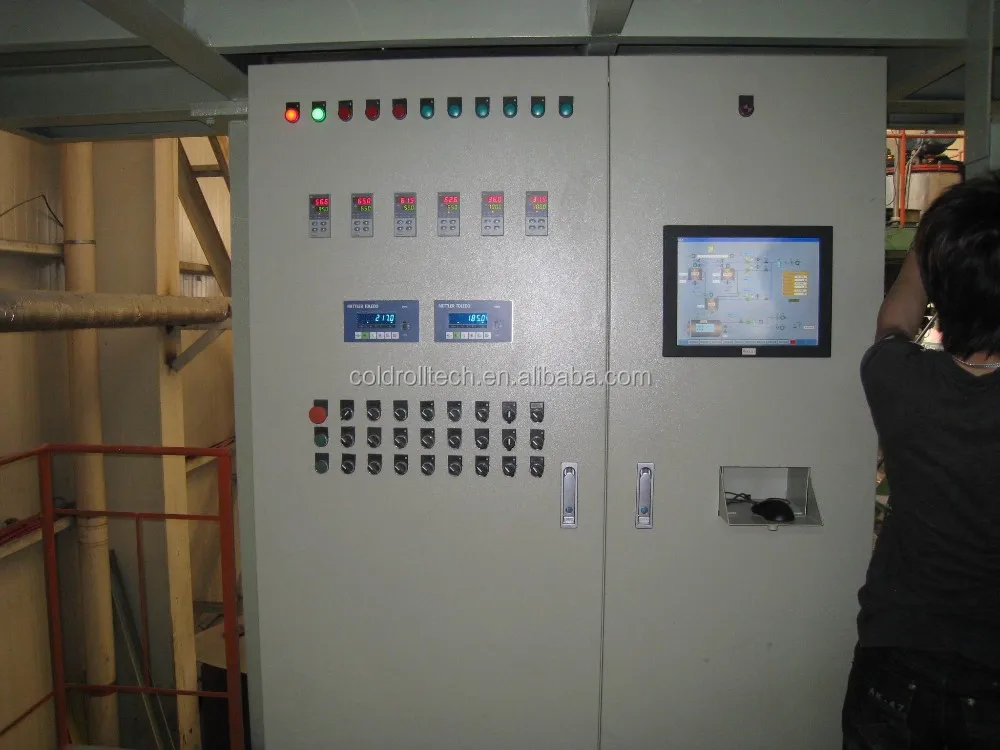

Name: Control Panel
Brand: Mitsubishi PLC, Schneider Electric Elements,

               VienView touch screen
Integrated control cabinet, PLC and HMI controlling.

All the process and parameter can be set, indicate, record on the system. And it has interlock protection and alarm devices.
