2CH inputs to 6CH outputs 3pin 5pin DMX In/Out 6CH DMX Distributor DMX Splitter

Product Overview

Description

DMX Controller,Light Controller,Stage Light Controller,Control Box,RGB LED Controller,DMX 512 Controller,LED Controller, LED Controller,RGB Controller,Controiller For LED Light, DMX Distributor DMX Splitter

DMX Light Console   SPI Artnet Ethernet DMX Console



DMX Splitter is required for stable signal transmission

 specially for a DMX chain with more than 32 DMX units or a distance of 150 meters



It serves as a signal distributor and booster. 2 DMX inputs to 6 DMX outputs, each equipped with 3 pin or 5 pin XLR connectors for compatibility in any DMX setup and 100% electrical isolation between all in/outputs. The booster function analyses the incoming DMX data and re-constructs it before boosting it allowing it to be pushed further down DMX lines without signal problems. With LED indicators for both signal and power, it is easy to detect error for individual channel,Ideal for fixed installation, mobile show, rental, etc



[FEATURES]
Stylish and durable aluminum housing;
DMX signal splitter and amplifier;
100% electrical isolation between all in/outputs;
100% electronic isolation between output/output;
LED indicator for signal and power ;
Termintor switch for DMX signal enhancements;
Easy installation: wall mount or desk top;
3pin or 5pin DMX In/Out,3pin or 5pin DMX Thru



[Specifications]
Two inputs to six outputs
Power input: AC230V 50Hz
                     AC110V 50Hz/60Hz
Consumption: 8W
Size: 280 x 150 x 70mm 1PC/CTN
Weight: 1.7kgS

Complete Electrical lsolation:

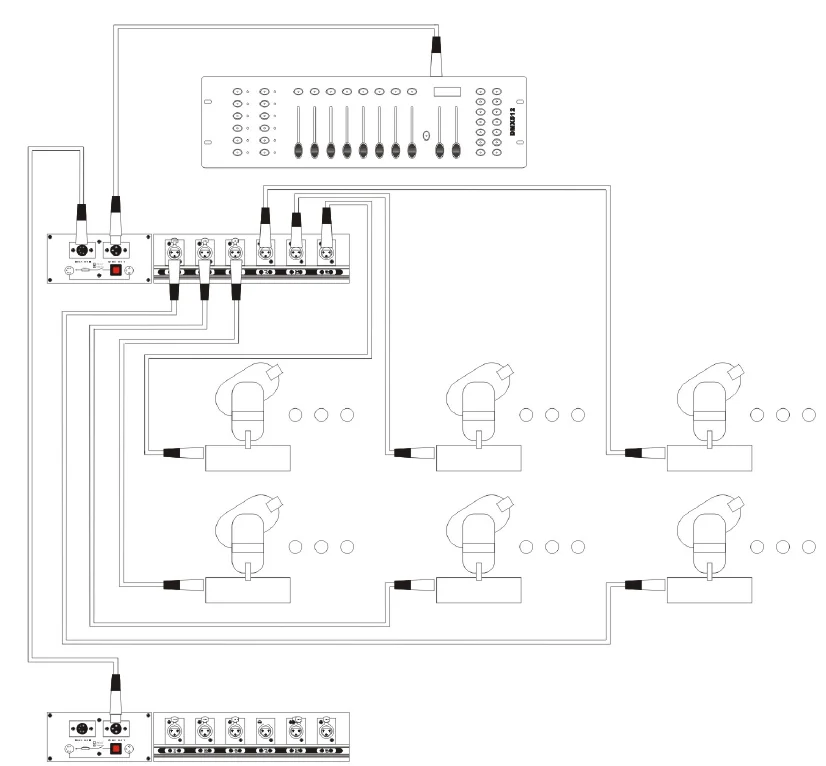

      DMX output:connect to the DMX receiving device

      DMX input:from the DMX transmitting device

Connector pin designaions shall be as follows:

Pin 1:signal common(shield)

Pin 2:dimmer drive complement (data 1-)

Pin 3:dimmer drive true (data 1+)

Pin 4: option second data link complement (not used)

Pin5:option second data link complement(not used)

Receiver can not more than 32 units on one out channel.
                  Use one terminator on the last receiver.

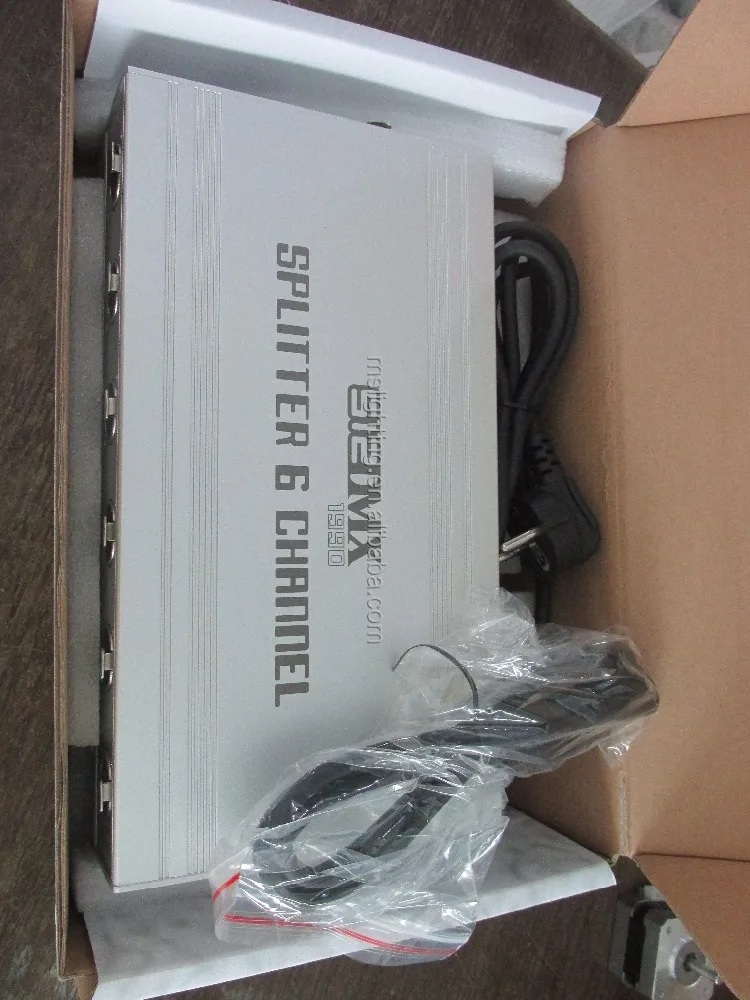

Packing Pic:

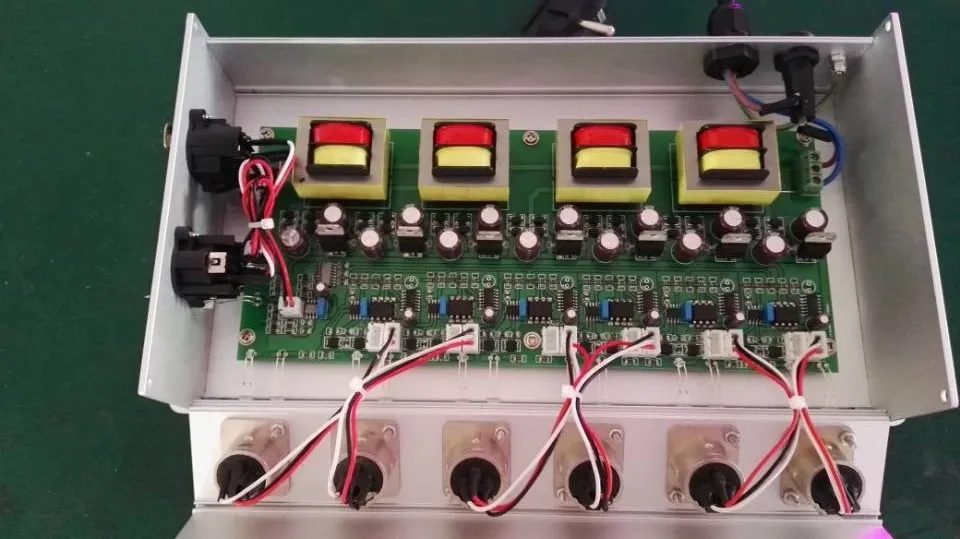

Inside Pic:
