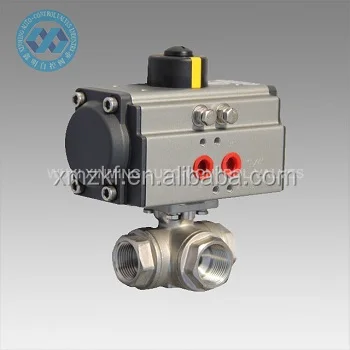

180 degree Pneumatic Actuator 3 way ball valve, 3 way ball valve with Pneumatic Actuator
- Category: >>>
- Supplier: Wuxi Xinming Auto-Control Valves Industry Co. Ltd.
Share on (826504937):
Product Overview
Description
High quality Pneumatic Actuated 3 way ball valve
Product Description
High quality Pneumatic Actuated 3 way ball valve
L type or T type

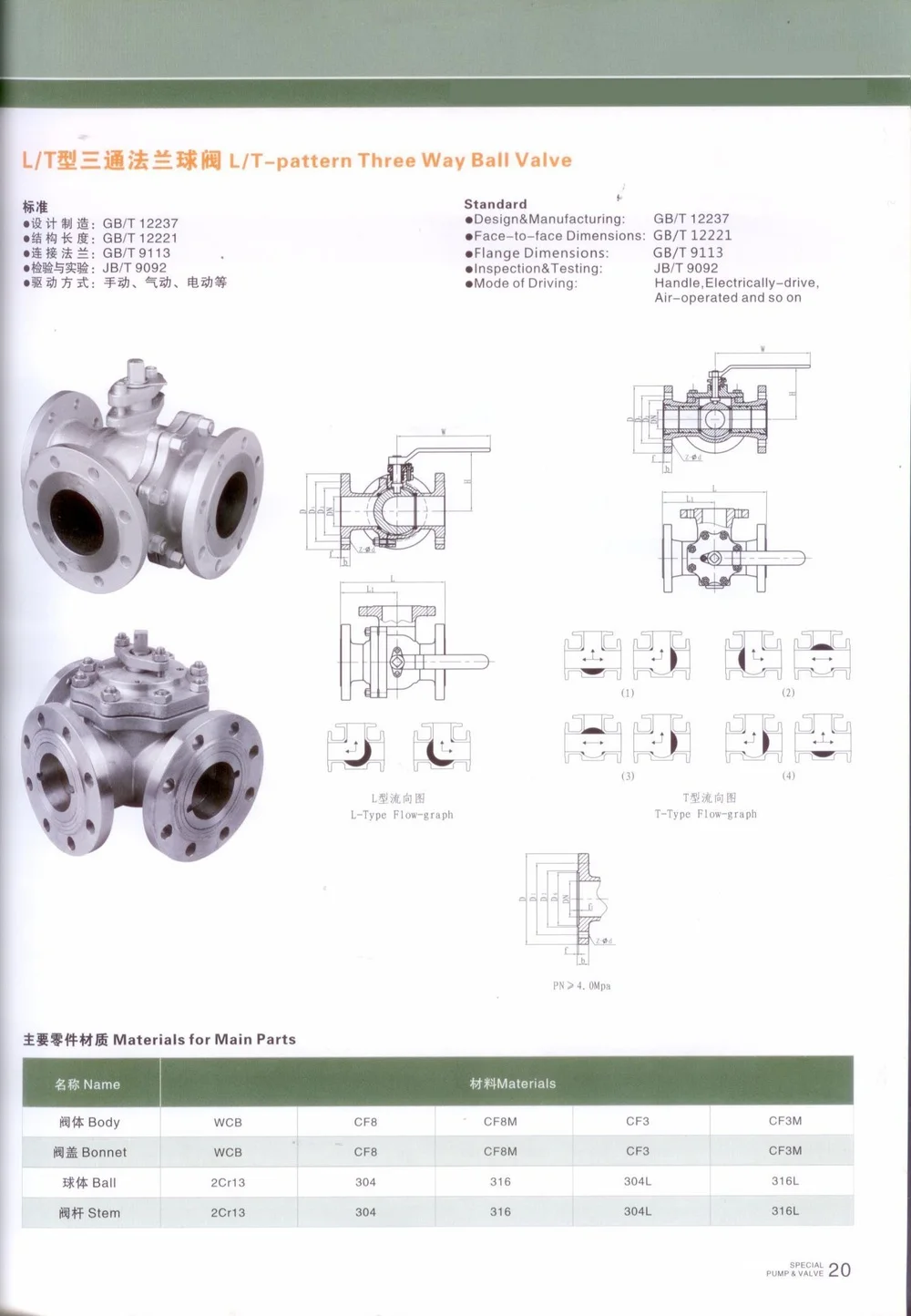

3 Way Pneumatic Ball Valve

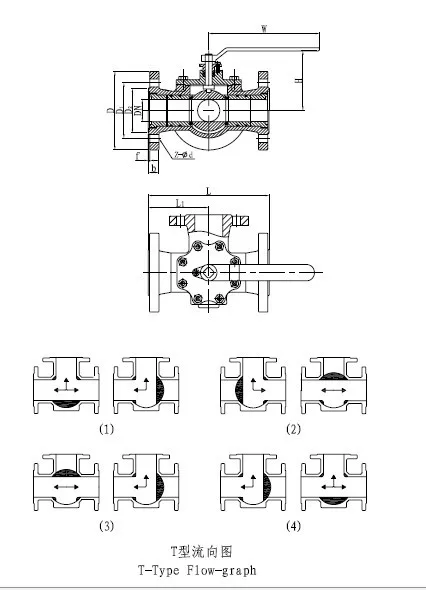

L type three way ball valve is used for pipelines to switch the flow direction, being able to switch on two flow lines perpendicular with each other. T type three way ball valve may be used to divide, combine or switch the flow direction. T type ball valve is able to switch on three flow lines or switch on two of the three flow lines. T type ball valve may realize two, three or four seats of the functions; however, the specific valve design must draw a distinction between them to realize different function.
Packaging & Shipping
High quality Pneumatic Actuator three-way ball valve
1) foam packing inside,one carton box outside
2) then put all carton box in one strong plywood case for sea transport
Port of departure: Shanghai, China
Lead Time:
Quantity(Units) | 1-50 | 51-1000 | 1001-10000 | >10001 |
Est. Time(days) | 15 | 25 | 60 | To be negotiated |
Our Services
High quality Pneumatic Actuator three-way ball valve(
- CE, ATEX and ISO certificate
- Strictly quality control
- Good quality at a favorable price
- Excellent After-service
- Fast delivery time
Pneumatic Actuator 3 way ball valve
