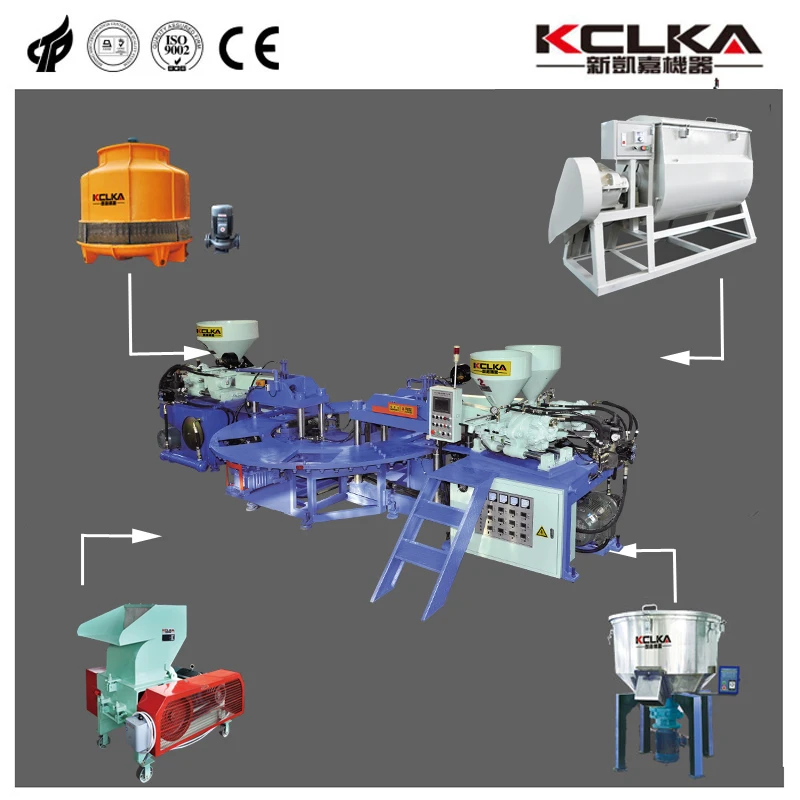

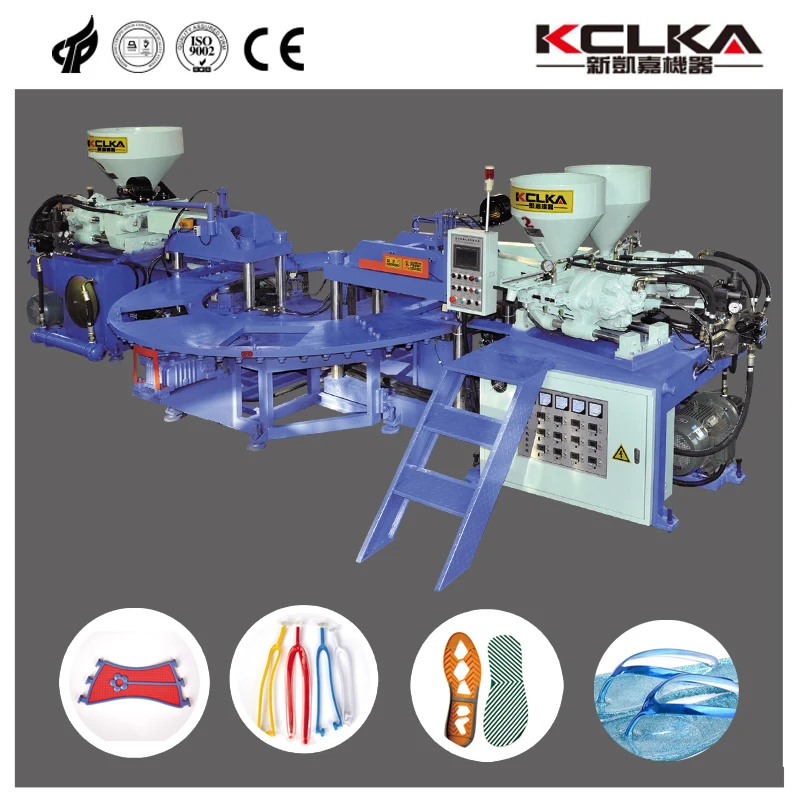

3 color PVC Upper/sole/strip Moulding Machine

Item

Unit

Specification

Model

EK-8806

Raw material

PVC,TPR

Work Stations

Station

6

Disk diameter

mm

φ2800

Screw diameter

mm

φ60,φ45x2

Screw speed

r/pm

0-155

Max Injection capacity

cm3

565, 240x2

Injection hydro cylinder diameter

mm

Φ110,φ95×2

Injection hydraulic

Mpa

80

Clamping force

Kn

100T

Clamping hydro cylinder diameter

mm

φ280

Power of motor

kw

15,11

Pump displacement

cc

53cc,41cc

Heating power

kw

16

Mould size L*W*H (max)

mm

400*400*130

Machine size

mm

6300*2850*1920

Machine weight

Kg

8500

Daily Production

Pairs/24 hours

6000-8000
