1300kN aluminium continuous cold chamber pressure die casting machine

Features and applications 0f 130Ton aluminium continuous cold chamber pressure die casting machine

1.130T Cold Chamber die Casting Machine

2.Suitable for aluminum,zinc and copper alloy

3.Computer-programmed control

4.4-rod pilot elastic framework for more faster and reliable

5.3-step hydraulic boosting and injecting system for more effective

6.Efficiency: maximum injection rate over 6m/s

7.Minimum boosting time less than 25ms

This cold chamber aluminum continuous die casting machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in the industries of automobiles, motorcycles, meters and instruments, household appliance hardware of daily necessities.

Computer-programmed control;hydraulic drive; crank expanding structure; 4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic ejector for lift-out, mould thickness can be controlled by hydraulic motor; 3-step hydraulic boosting and injection system that is constant and effective; injection rate over 6M/S and minimum boosting time less than 25ms.

The die casting machine is superior in performance, high in productivity and smooth in operation. It is advantageous in technology in China's mainland.

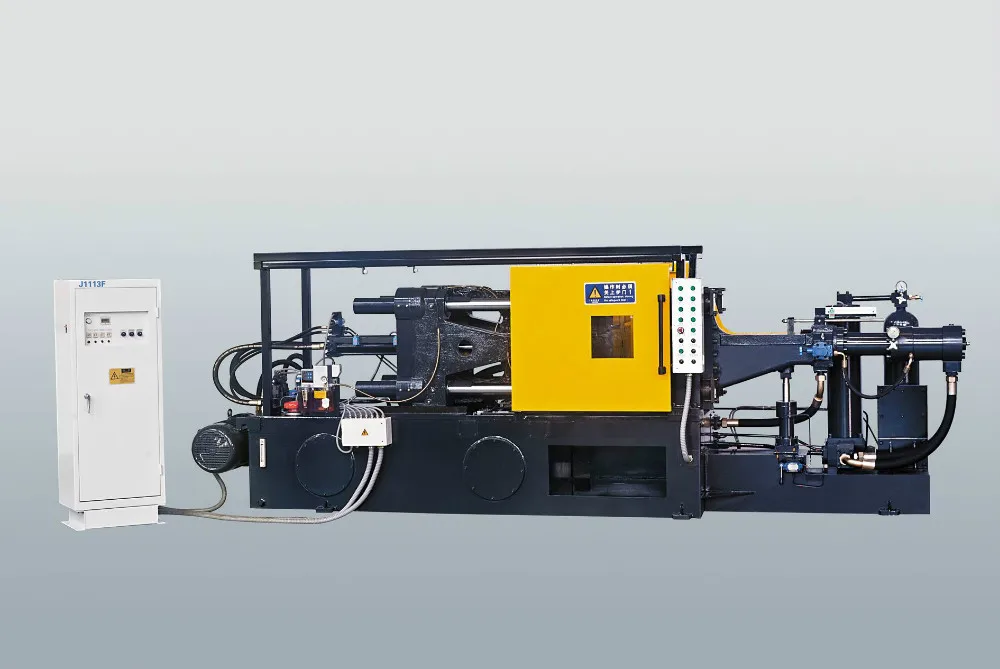

Here we can see the spare parts of J1113F cold chamber aluminum die casting machine, and also the the ready machine in our factory. We are one of the leading die casting machine suppliers in China. Since 1981, our machine running all over the domestic and the also the world now.

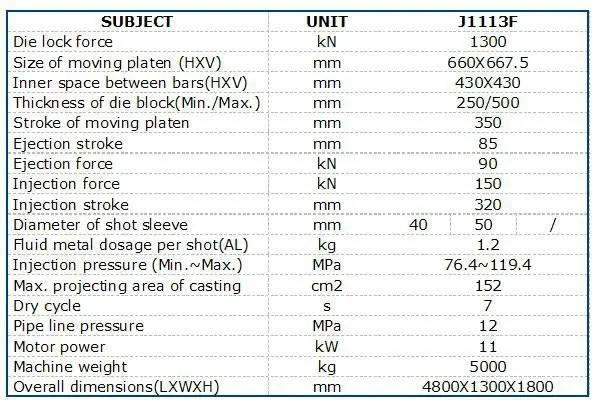

 Specifications and Parameters aluminium continuous cold chamber pressure die casting machine
