6X 55X Zoom Trinocular Stereo Microscope

Head

Trinocular viewing head, 45 degree inclined, 360 degree rotatable, ±6 Diopter Adjustable, Interpupillary distance adjustment 52-76mm

Eyepiece

High eye point and wide field eyepiece SWH10x/Φ23mm

Zoom Range

0.6X-5.5X

Zoom Raito

1:9.2

Total Magnification

Standard Magnification: 6X-55X; 3X-330X (with Optional auxiliary objective)

Working Distance

Standard working distance: 108mm

Stand with illumination

·Top and bottom LED illumination

·Top LED Illumination with angle and brightness adjustable

·Top and bottom illumination can work separately or simultaneously

·Wide power range AC90V~260V   47~63Hz

·Round post diameter: 25mm

·Focus adjusting range of holder is 50mm

·The diameter of the holder to hold microscope is 76mm

Eyepiece

Objective

Main Body

0.5X

0.7X

1.5X

2.0X

0.6X-5.5X

0.3X-2.75X

0.42X-3.85X

0.9X-8.25X

1.2X-1X

5X

Total Magnification

3X-27.5X

1.5X-13.75X

2.1X-19.25X

4.5X-41.25X

6X-55X

FOV (mm)

Φ36.7-Φ4

Φ73.3-Φ8

Φ52.4-Φ5.7

Φ24.4-Φ2.7

Φ18.3-Φ2

10X

Total Magnification

6X-55X

3X-27.5X

4.2X38.5X

9X-82.5X

12X-110X

FOV (mm)

Φ38.3-Φ4.2

Φ76.7-Φ8.4

Φ54.8-Φ6

Φ25.6-Φ2.8

Φ19.2-Φ2.1

15X

Total Magnification

9X-82.5X

4.5X-41.25X

6.3X-57.75X

13.5X-123.75X

18X-165X

FOV (mm)

Φ28.3-Φ3.1

Φ56.7-Φ6.2

Φ40.5-Φ4.4

Φ18.9-Φ2.1

Φ14.2-Φ1.5

20X

Total Magnification

12X-110X

6X055X

8.4X-77X

18X-165X

24X-220X

FOV (mm)

Φ23.3-Φ2.5

Φ46.7-Φ5.1

Φ33.3-Φ3.6

Φ15.6-Φ1.7

Φ11.7-Φ1.3

30X

Total Magnification

18X-165X

9X-82.5X

12.6X-115.5X

27X-247.5X

36X330X

FOV (mm)

Φ15-Φ1.6

Φ30-Φ3.3

Φ21.4-Φ2.3

Φ10-Φ1.1

Φ0.75-Φ0.8

Working Distance(mm)

108

195

145

50

35

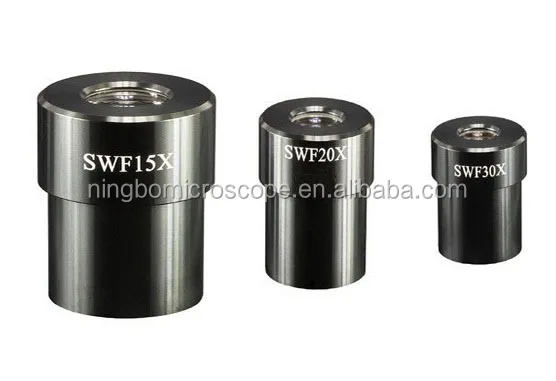

Eyepiece

WF15X, WF20X, WF30X

WF10X with micrometer 0.1mm

Auxiliary Objectives

0.5X, W.D.195mm

0.7X, W.D.145mm

1.5X, W.D.58mm

2.0X, W.D.35mm

CCD Adapter

C0.5, CCD adapter 0.5X

C1.0, CCD adapter 1.0X

DT01, digital camera adapter

PT01, photo adapter

CDM1.0, CCD adapter 1.0X with micrometer
