280Ton cold chamber pressure die casting machine for aluminum alloy

Product Overview

Description

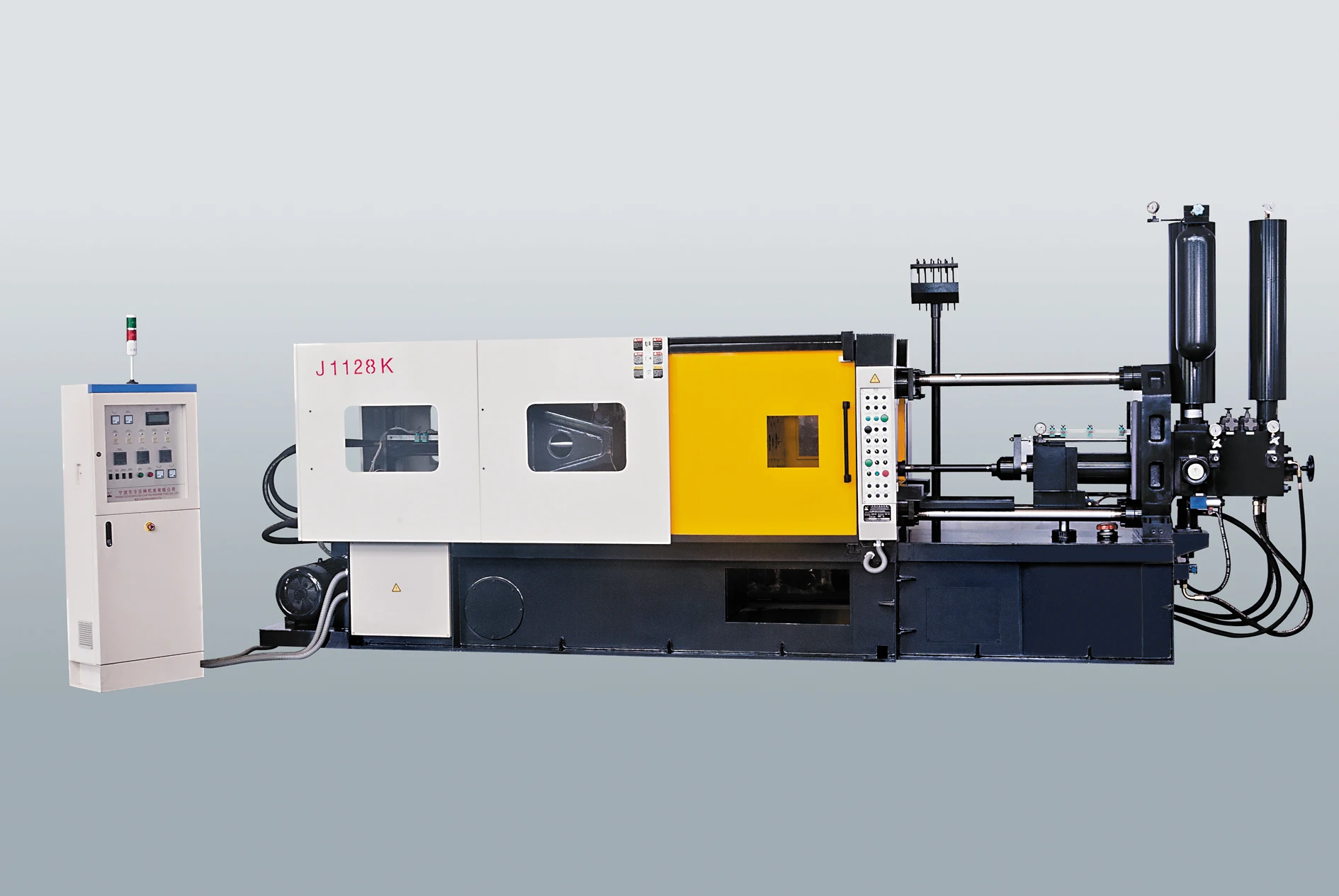

J1128K cold chamber die casting machine for aluminum alloy

1. Easy to handle



- Completely automatic process cycle and analysis function

- Permanent process monitoring via sensors

- Extensive security installations



2.Excellent performance

- High efficiency and reduced scrap

- High quality casting of complex and large parts

- Extremely stable value of the machine

- Multi-shift operation possible

 3.Flexible

 - Small or large casting clusters

- Non-ferrous metals including zinc, aluminium, bronze and brass alloys

- Moulding chamber easily adaptable for shell-, sand- and block moulds





We are engaged in offering a wide gamut of Casting Machine with market leading prices. Our products are widely demanded due to their longer functional life, high efficiency  and its reliable. These are applicable in various production industries and are  highly appreciated by our clients.





1.Features and applications of J1128K Cold chamber pressure die casting machine for aluminum alloy

•  Cast aluminum


• Suitable for aluminum,zinc and copper alloy


• PLC and person-machine interface


• 4-rod pilot elastic framework for excellent rigidity


• Proportional relief and flow control valves


• PLC and person-machine interface


• Efficiency: maximum injection rate over 6m/s


• minimum boosting time less than 20ms

2.Specifications of J1128K cold chamber pressure die casting machine



The cold chamber die casting machine is suitable for die casting of non-ferrous metal with high melting point, such as aluminum, znic and copper. It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.



This die casting machine is equipped with programmable logic controller (PLC) and Graphics operation terminal (person-machine interface) that are imported from Japan. The simple operating interface and proportional relief and flow control valves ensure easy operation of parameter and program setup. Die locking adopts crank expanding structure, 4-rod pilot elastic framework and has excellent rigidity, Advanced double-loop and 4-steps hydraulic injecting system that is constant and effective; maximum injection rate over 6m/s and minimum boosting time less than 20ms. The machine is superior in performance, and offers reliable an somooth operations, it owns trouble diagnosis and shooting function, it is an advanced type of die casting machine within our xountry at present.

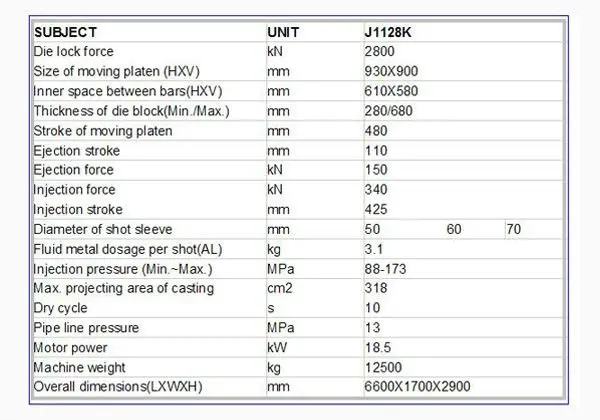

 3. Parameters of J1128K cold chamber aluminum die casting machine

SUBJECT	UNIT	J1128K
Die lock force	kN	2800
Size of moving platen (HXV)	mm	930X900
Inner space between bars(HXV)	mm	610X580
Thickness of die block(Min./Max.)	mm	280/680
Stroke of moving platen	mm	480
Ejection stroke	mm	110
Ejection force	kN	150
Injection force	kN	340
Injection stroke	mm	425
Diameter of shot sleeve	mm	50	60	70
Fluid metal dosage per shot(AL)	kg	3.1
Injection pressure (Min.~Max.)	MPa	88-173
Max. projecting area of casting	cm2	318
Dry cycle	s	10
Pipe line pressure	MPa	13
Motor power	kW	18.5
Machine weight	kg	12500
Overall dimensions(LXWXH)	mm	6600X1700X2900

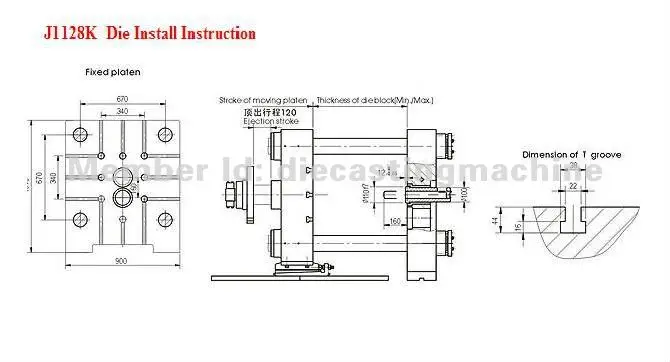

Pictures in detail about J1128K(to be continued)

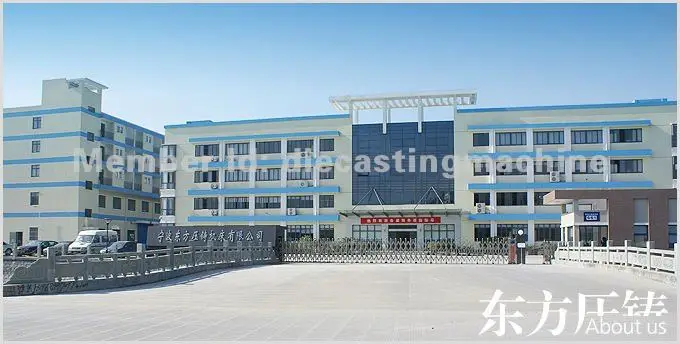

Our factory



if you want to know more details pls contact us.
