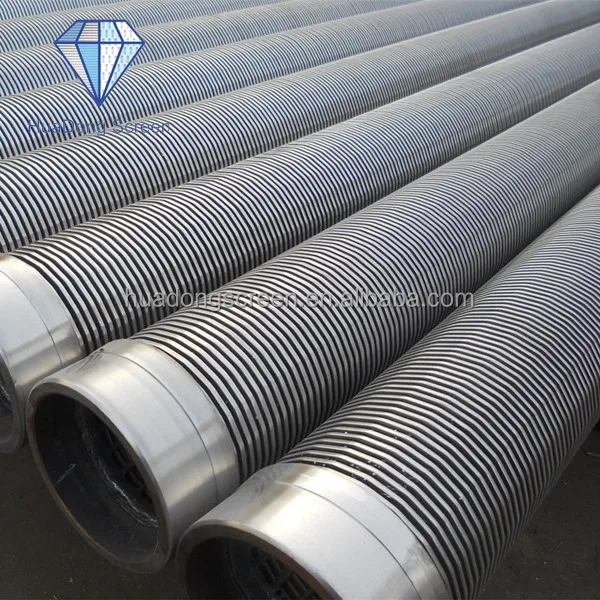

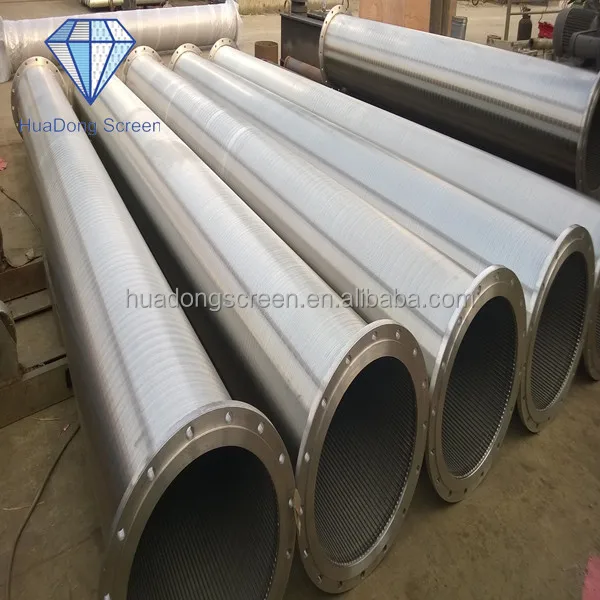

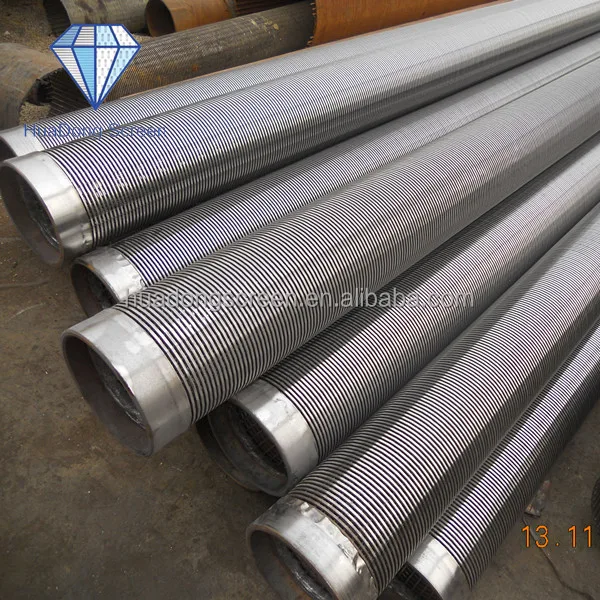

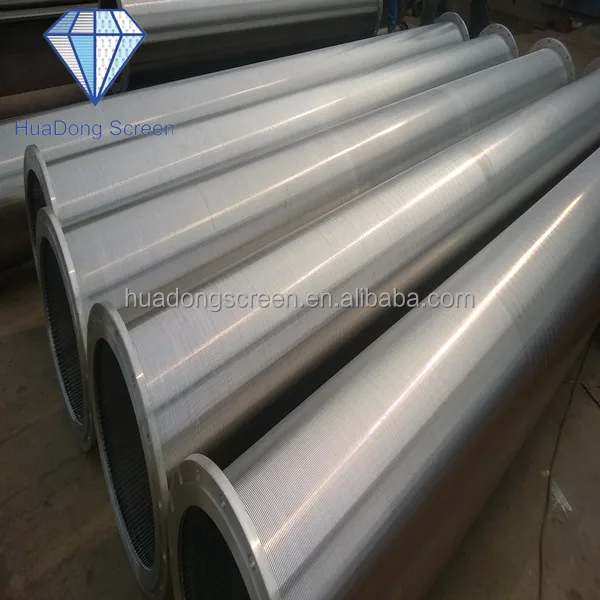

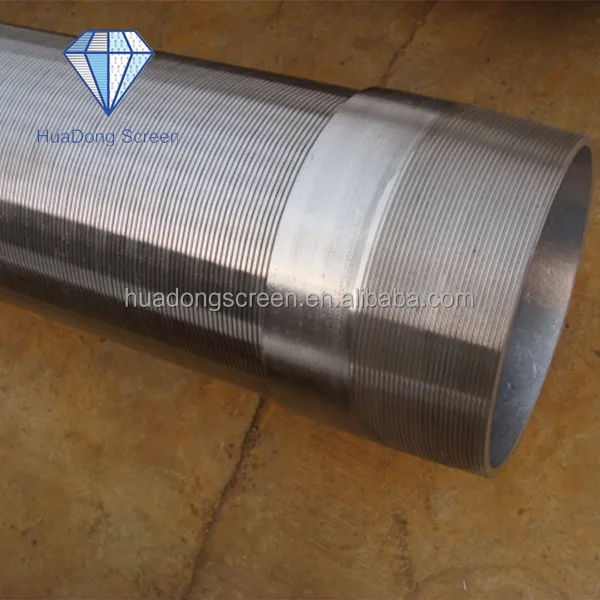

stainless steel water well screen filter used for drilling well

Product Overview

Description

stainless steel water well screen filter used dor drilling



About Huadong:

Huadong screen Co., Ltd is located in Henan Province Xinxiang Dakuai Industrial Park, which is collection of scientific research, production, manufacturing, sales and service as one of the major high-tech enterprise. We have a group of professional technical and sales staff and management team, extensive and stable business channel as well as the strong economic strength, international and domestic marketing ability.





Advantage:

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone

2.A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3.A uniform and efficient well development due to the continuous slot opening.

4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

SIZE (inch)	O.D (mm)	SLOT (inch)	LENGTH (m)	Collapse Strength (psi)	Tensile Weight (ton)	Wire size (mm)	RODS (mm)
4	117	0.040	3	395	6	2.2*3.0	3.8mm/22
4	114.3	0.040	3	395	6	2.3*3.0	3.8mm/22
6	168.3	0.040	3	252	8	2.3*3.5	3.8mm/32
8	219.1	0.010	3	399	10.5	3.0*5.0	3.8mm/48
8	219.1	0.020	3	370	10.5	3.0*5.0	3.8mm/48
8	219.1	0.040	3	323	10.5	3.0*5.0	3.8mm/48
10	273.1	0.010	3	206	11	3.0*5.0	3.8mm/50
10	273.1	0.020	3	191	11	3.0*5.0	3.8mm/50
10	273.1	0.040	3	167	11	3.0*5.0	3.8mm/50

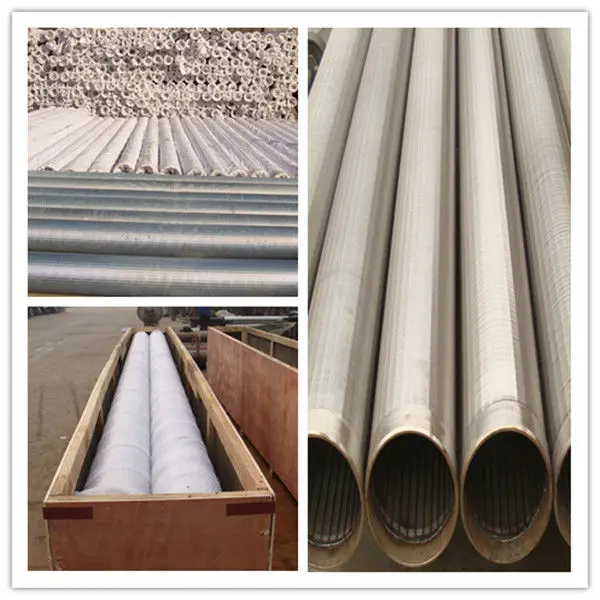

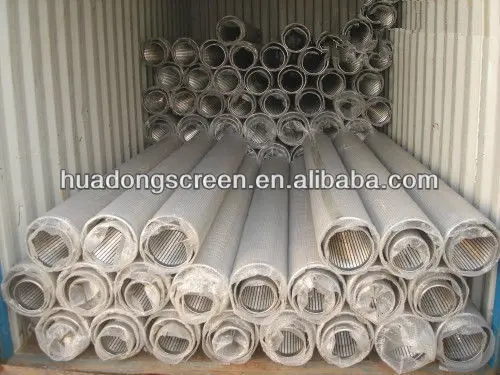

Packing details:



Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly

marked with:

Name & identification mark of manufacturer-HuaDong Brand

Batch number

Date of manufacture

Material

Safe heating & application temperature











application







The continuous-slot water well screen filter  is widely used for the construction of the building of the hydrologic geology, Coal Geology, chemical, geological, geothermal air conditioning, foundation precipitation, water source development, urban water supply and other walks of life.
