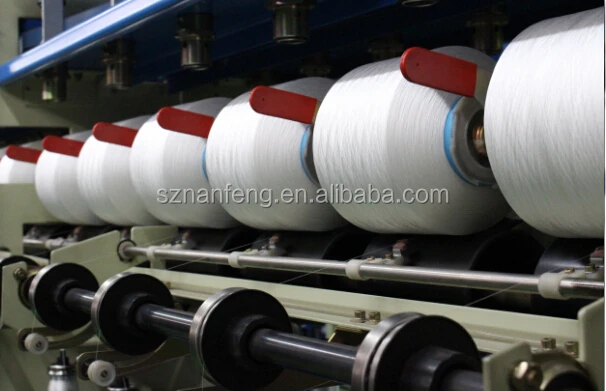

Chemical fiber two for one twister( MURATA TYPE)

No of spindles

256

Form of Spindle driving

Belt circulating drive

Size of feeding bobbin

L240~320×Φ42×Φ110

Spindle fixture

Magnetic fixture

Size of take-up bobbin

Φ160×Φ89×L165×L173

Start mode

Star-delta slow start

Spindle Gauge

225mm

Tensioner

Ball tension device

Max Spindle Speed

18000rpm.

Take-up tension

Adjusting the yarn angle in the roller

Normal Spindle Speed

15000~17000rpm

Power of Motor

7.5Kw×2 sets

Twist Range

350~3989T/M

Speed Control

INVERTERS( two 7.5KW)

Twist Direction

S or Z

Overall size

16410×750×1895 mm
