RFID smart Card Collector machine TCR 610P

Product Overview

Description

•

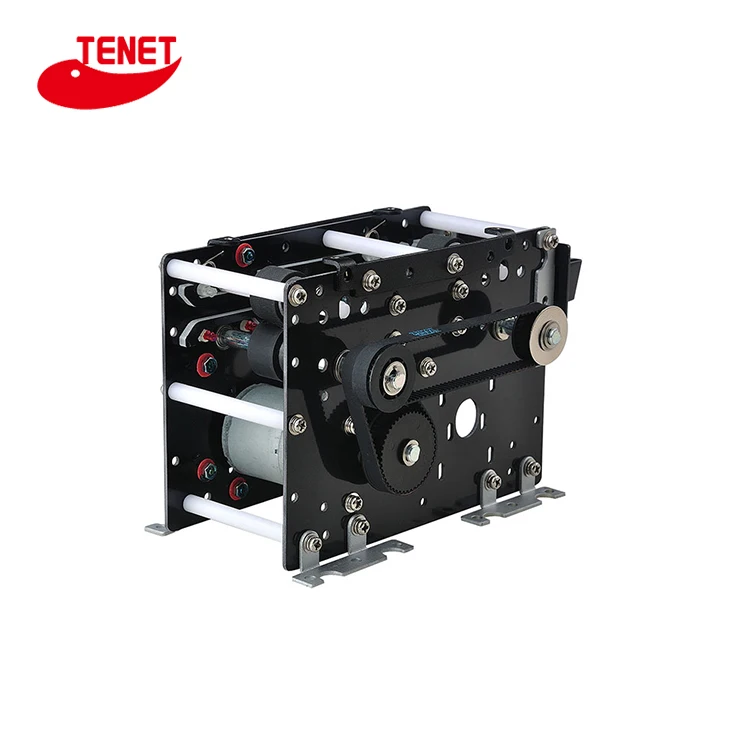

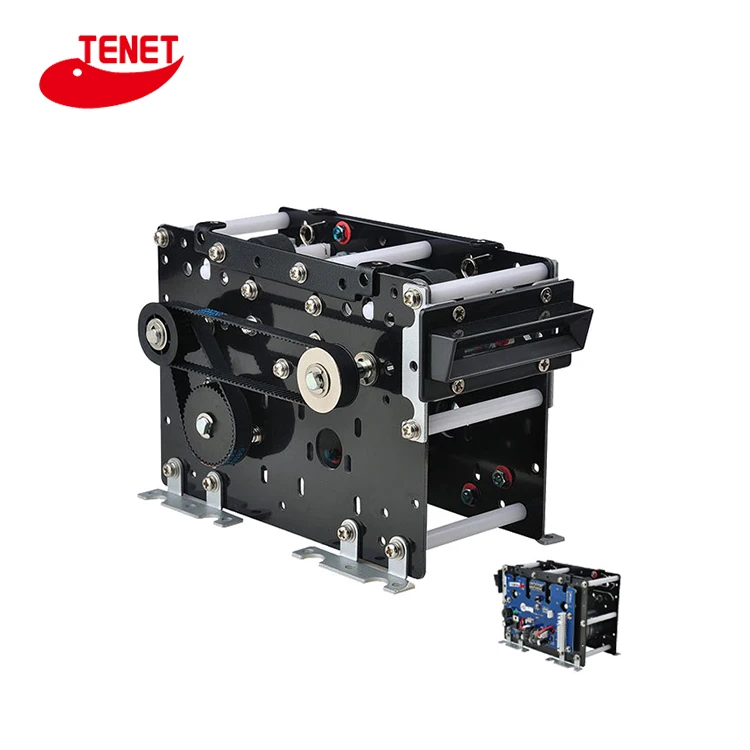

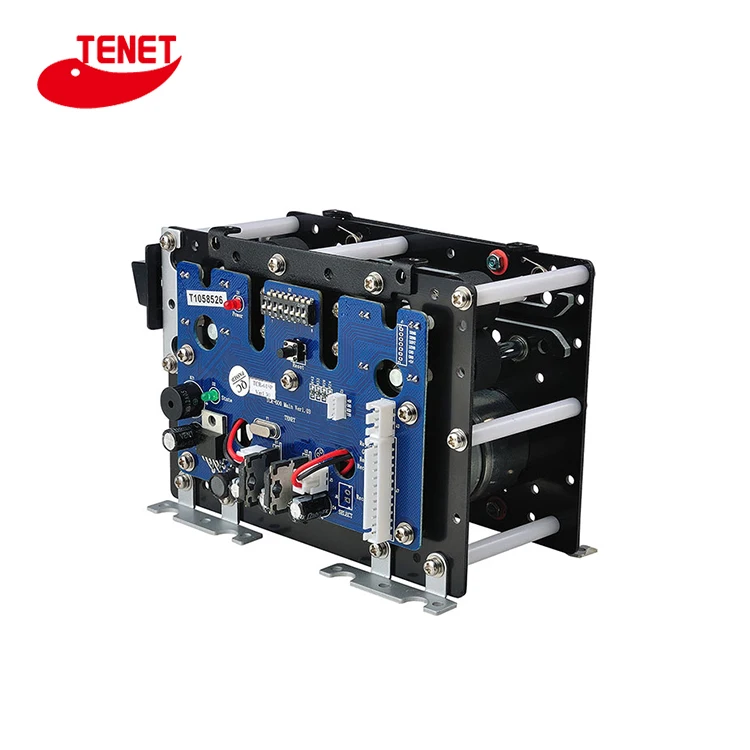

  RFID/ pvc/smart Card Collector machine





•


  TCR-610

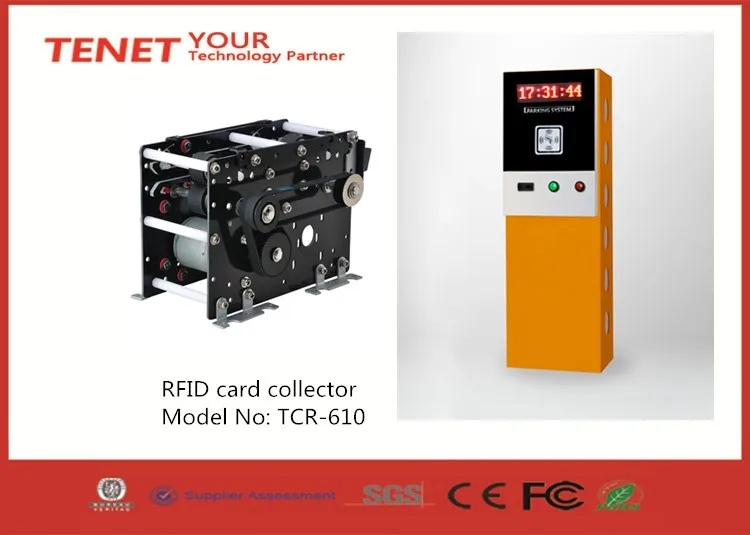

        It is a classical mechatronics product, which has become into industrial standard actually. Its usability and reliability get from customers’ long time suggestion and manufacturer’s improvement and accumulation. TCR card machine is mainly used in parking entrance card Collector,  all kinds of smart card vending and so on.



















  Main Characteristics










  •  Industrial design, adjust to high temperature and other bad environments;


  •  Simulated manpower friction card issuers ,better adaptability to various deformed cards;


  •  Watchdog of hardware and embedded operating system to ensure properly running;


  •  Speedy,receive and distinguish the cards very quickly;


  •  Connectable with the vehicle Or the people


  •  Provide both RS232 and I/O voltage control interface;


  •  Slide design to make installation and disassembling easier;


  •  Molded production to ensure high consistency of precision and quality.


  •  Collect Time: About 1.0s










  Main technical data





  •  Operating voltage: 24VDC (max current 2A, static current 0.1A)


  •  Operating temperature: -40°C to 85°C


  •  Operating humidity: 30-90% (comparatively)


  •  Use condition: install in bin


  •  All kinds of paper cards and PVC / Mylar cards


  •  Card material: Paper or Polyester card


  •


       Card Size Range :




        Card Width:           53 58 mm




        Card Length:         76 86 mm




        Card Thickness:    0.2 1.0 mm (Adjustable) (Default is 0.8mm)




    TCR-610P CN1 Interface Definition








































































    Pins	Signal Name	Description	Description
    1	0 Volts		power
    2	+24 V DC
    3	GND		Logic  0
    4	Receive	Card need to receive	Input required 200ms low voltage
    5	Reject	Card need  to reject	Input  required 200ms low voltage
    6	GND		Logic 0
    7	Enable	Enable working	Input 10K resistance push-up, required 200ms low voltage
    8	Time1	When the pin is logic high, T1=30s When the pin is logic low, T1=60s	Input 10K resistance push-up, required 200ms low voltage
    9	Received	Card Received to depot	Output Open-Collector  effective 500ms low voltage
    10	Get Card	Card Enter	Output  Open-Collector Low-Level effective
