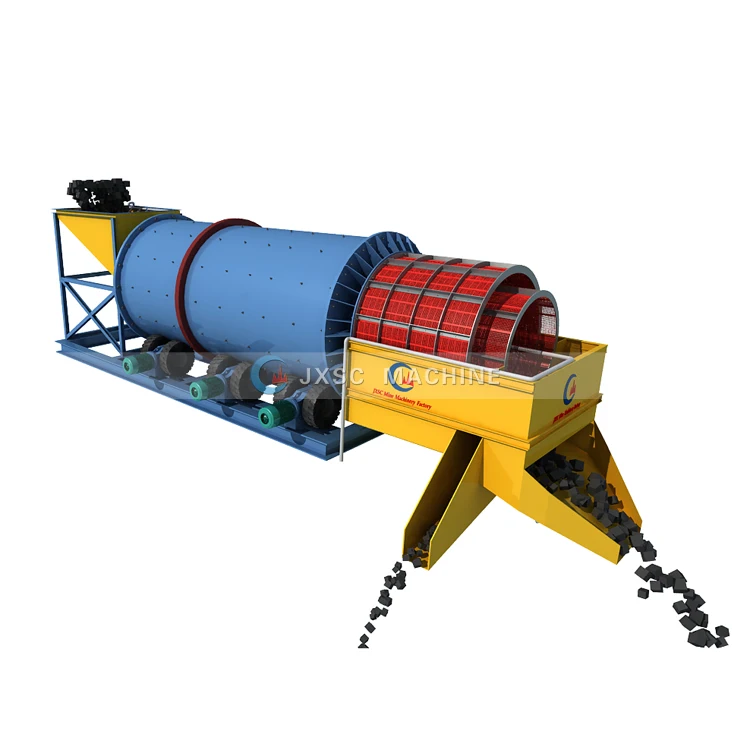

USA High Efficiency Mineral Processing Coltan 250tph Rotary Mobile Gold Wash Plant
- Category: >>>
- Supplier: Jiangxi Province County Mining Machinery Factory
Share on (831380388):
Product Overview
Description

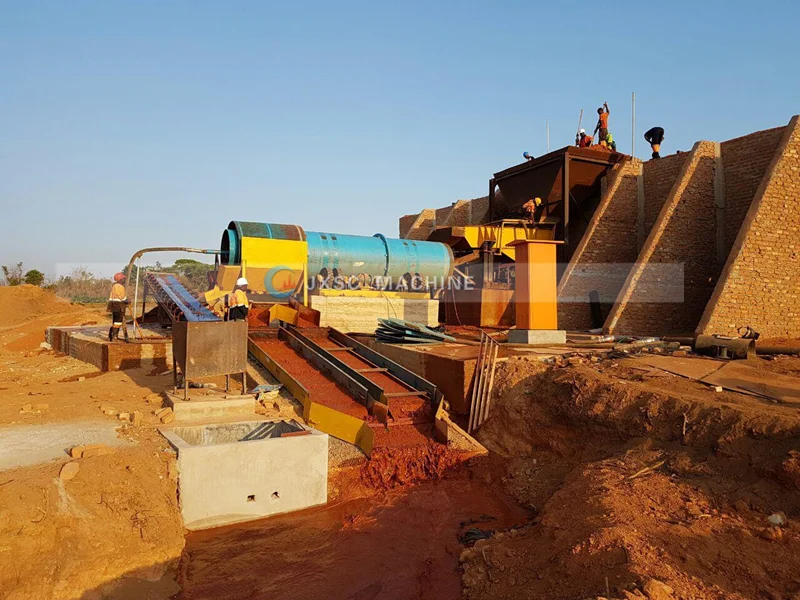

Customer Mine Site
Date: 2016
Place: Mozambique
Mineral: Alluvial Gold
Maximum Feeding Size: 200mm
Order Value amount :60,000 USD
Other machines:Hopper-> vibration feeder-> trommel scrubber washing machine-> sluice box
Mineral: Alluvial Gold
Maximum Feeding Size: 200mm
Order Value amount :60,000 USD
Other machines:Hopper-> vibration feeder-> trommel scrubber washing machine-> sluice box

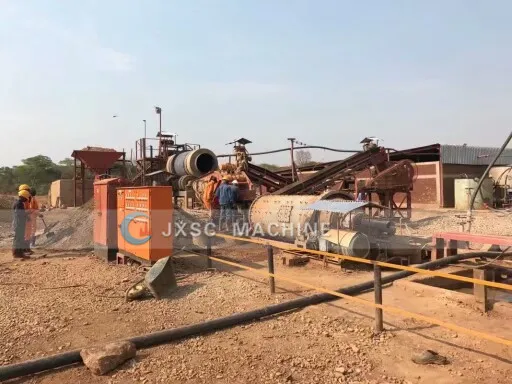

Year: 2013
Place: Lusaka, Zambia
Mineral: Hard Rock Gold
Maximum Feeding Size: 150mm raw ore with sticky clay
Order value: 80,000 USD
Other machines: Trommel scrubber, Vibrating Screen, Vibrating Screen, Shaking Table, amalgamator, induction smelting furnace, etc.
Product Description

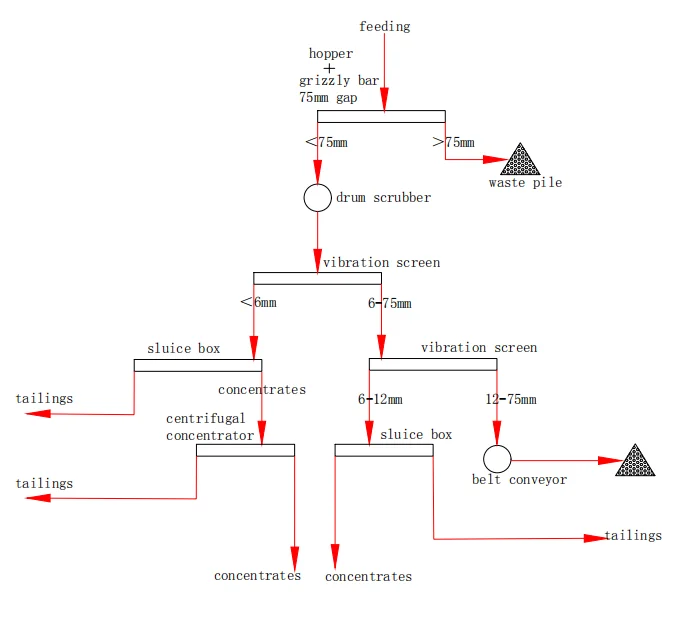

How the Gold Processing Plant Works:
1.Ore Feeding : use hopper with grizzly bar to regulate the feeding size to drum scrubber is below 75mm
2.Washing：use drum scrubber to remove the sticky clay from the gold bearing ore
3.Screening: use two stage vibrating screen to get three fraction output :-6mm,6-12mm,12-75mm
3.Screening: use two stage vibrating screen to get three fraction output :-6mm,6-12mm,12-75mm
4.Concentrating: use centrifugal concentrator to recovery -6mm gold partilcle ,6-12mm would go to sluice box .
Our Gold Wash Plant VS Other Manufactures' Gold Wash Plant
200TPH Alluvial Gold Wash Plant With Sticky clay and Nugget and Find Gold Presence

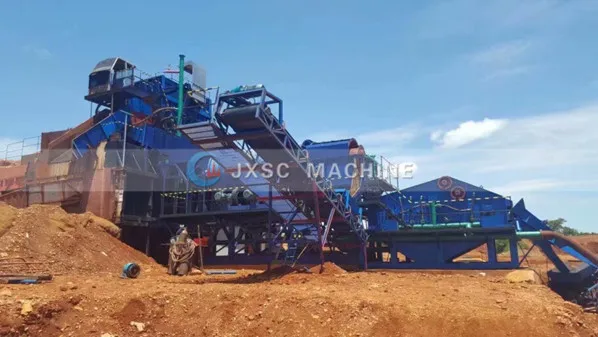

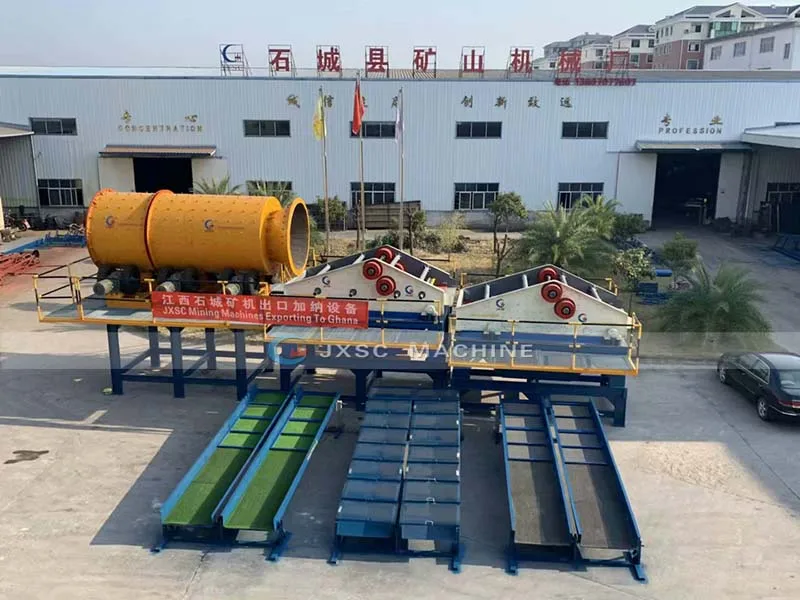

JXSC has supplied Ghana with a complete 200TPH clay alluvial gold washing plant and a complete set of machines, including:
-1 set of hopper with grizzly bar ,gap distance at 75mm
-1 set of vibrating feeder: the capacity is 200TPH, and the large stones are removed with grizzly bar
-1 set of drum scrubbers: 200tph capacity, for cleaning clay materials, lined with rubber plates, rubber tires
Driven, 2200mm diameter drum, 5m length drum
-2 sets of vibrating screen: JXSC-2045, each sets capacity 150-200TPH.
-2 sets of belt conveyors: each set has a width of 650mm and a length of 15m
-5 sets of sluice boxes: length 6m * width 1m
-2 sets of high-pressure water guns: used to spray raw materials when feeding to the hopper.
-1 set of large water pumps: provide water for hopper, feeder, drum scrubber.
-1 full set electric control panel
-1 complete set of cables
-1 full set of high steel structure for gold washing trommel, gold vibrating screen
-1 full set of walkways &Guardrail
-1 complete set of main engine parts
-1 set of hopper with grizzly bar ,gap distance at 75mm
-1 set of vibrating feeder: the capacity is 200TPH, and the large stones are removed with grizzly bar
-1 set of drum scrubbers: 200tph capacity, for cleaning clay materials, lined with rubber plates, rubber tires
Driven, 2200mm diameter drum, 5m length drum
-2 sets of vibrating screen: JXSC-2045, each sets capacity 150-200TPH.
-2 sets of belt conveyors: each set has a width of 650mm and a length of 15m
-5 sets of sluice boxes: length 6m * width 1m
-2 sets of high-pressure water guns: used to spray raw materials when feeding to the hopper.
-1 set of large water pumps: provide water for hopper, feeder, drum scrubber.
-1 full set electric control panel
-1 complete set of cables
-1 full set of high steel structure for gold washing trommel, gold vibrating screen
-1 full set of walkways &Guardrail
-1 complete set of main engine parts

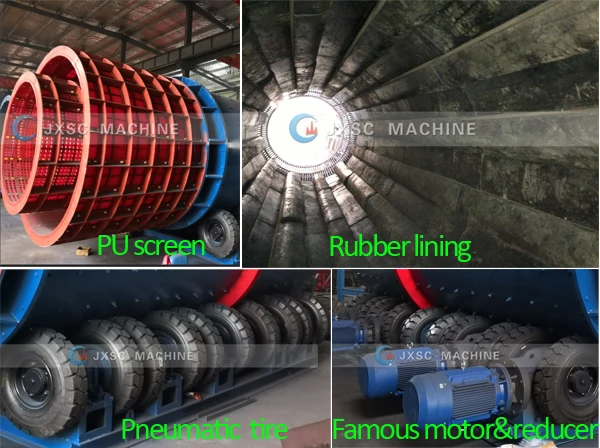

JXSC Gold wash plant- Trommel Scrubber (strongly recommended):
Advantage:
1. Polyurethane sieve with small sieve elements which can easily change
2. Rubber Plate or Lifter inside the scrubber
3. Natural Rubber Pneumatic Tire Driving
4. Huali & Simens motor and K-series Reducer

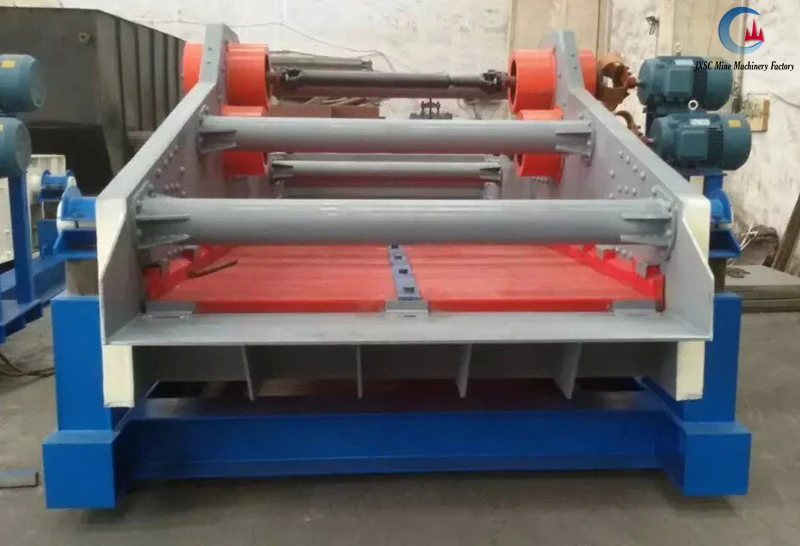

Vibrating Screen with PU Sieve
1.with two Top quality motors
2.Polyurethane Screen
3.Solid&Strong Frame
4.Under-sieve Hopper included

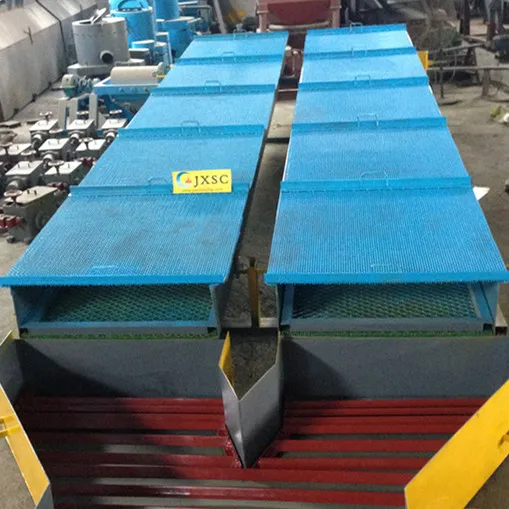

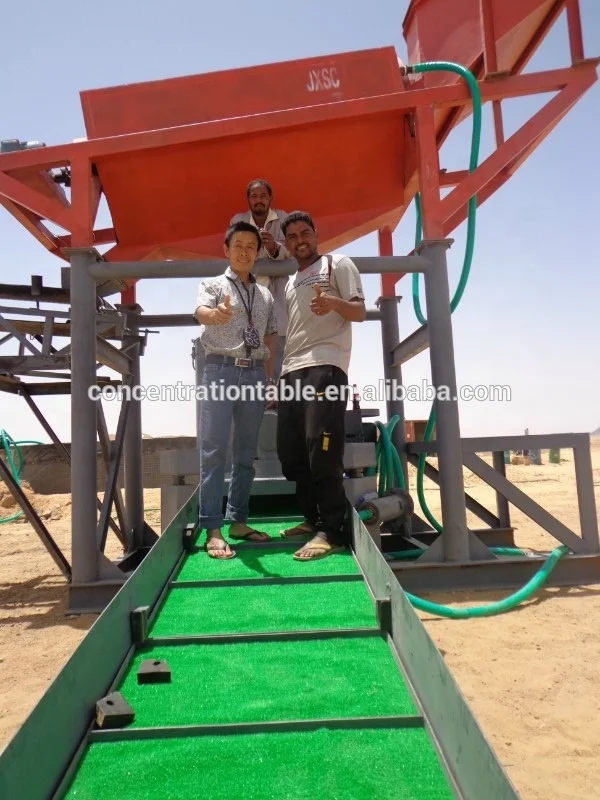

Sluice Box
1. With An-thief Metal Cover ,safe and sound
2. Adjusted Slope, more Flexible
3. High quality Plastic Mat Imported from JP
4. With Nuggut Discharge Chute

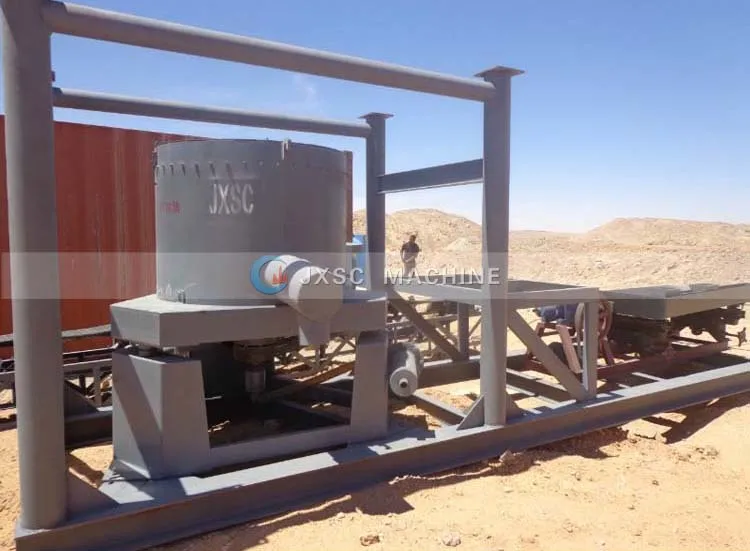

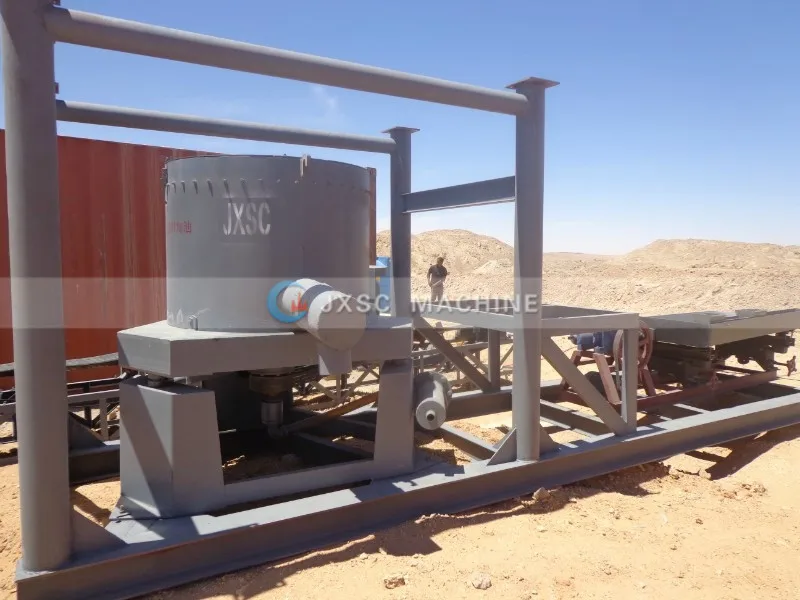

New Gold Centrifugal Concentrator
1.Siemens Brand Motor
2. Stainless steel Cone with Polyurethane Lining
3.With Hanging hydraulic shock absorption
4. New Type Back Washing System

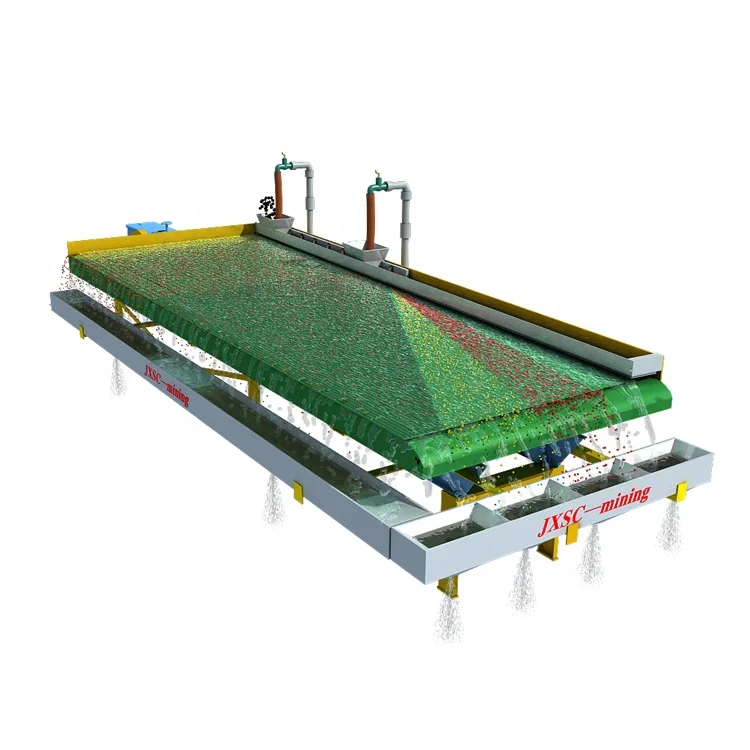

New Designed Shaking Table
1. Table Desk of Shaking Table Separation:
Made of emery,epoxy resin and fiberglass fabric. first-grade&most wear-resisting Emery can make the table wearproof, long life
time. More thicken fiberglass fabric can support the table more stable and stronger.
2. Feeding chute of Shaking Table Separation:
The chute is made of PP material,wearproof.,the old type is wooden which is more easy to be broken.
3. Collection Chute of Shaking Table Separation:
with PP collection chute can collect the concentrate and middling more conveniently, Old type is iron sheet or without this chute.
4. Electric Motor of Shaking Table Separation:
From China famous motor brand,.Also can make SIEMENS brand,customize motor as per request.
5.Channel Frame of shaking table:
#28 big channel frame,50cm more height than normal, so can collect the minerals more conveniently
6. Bearing of shaker table:
from China famous professional bearing manufacturer, Guaranteed quality, long life time.
7. Steel Plate of Gold shaking table:
Steel material,5 mm thick, more thicker than normal (usually 2-4 mm thick)
Made of emery,epoxy resin and fiberglass fabric. first-grade&most wear-resisting Emery can make the table wearproof, long life
time. More thicken fiberglass fabric can support the table more stable and stronger.
2. Feeding chute of Shaking Table Separation:
The chute is made of PP material,wearproof.,the old type is wooden which is more easy to be broken.
3. Collection Chute of Shaking Table Separation:
with PP collection chute can collect the concentrate and middling more conveniently, Old type is iron sheet or without this chute.
4. Electric Motor of Shaking Table Separation:
From China famous motor brand,.Also can make SIEMENS brand,customize motor as per request.
5.Channel Frame of shaking table:
#28 big channel frame,50cm more height than normal, so can collect the minerals more conveniently
6. Bearing of shaker table:
from China famous professional bearing manufacturer, Guaranteed quality, long life time.
7. Steel Plate of Gold shaking table:
Steel material,5 mm thick, more thicker than normal (usually 2-4 mm thick)
Technical Parameter of Gold Wash Plant
Model | Screen Size (MM) | Rotation Speed(R/Min) | Feeding size (mm) | Angle of inclination (degree) | Capacity (T/H) | Power (KW) |
RTX400 | ≤20 | 27.9 | ≤80 | ≤10 | 1-5 | 3 |
RTX600 | ≤25 | 27.6 | ≤80 | ≤10 | 5-10 | 5 |
RTX750 | ≤25 | 27.6 | ≤100 | ≤10 | 10-30 | 7.5 |
RTX900 | ≤25 | 27.6 | ≤100 | ≤10 | 30-50 | 11 |
RTX1200 | ≤25 | 17 | ≤160 | ≤10 | 50-70 | 15 |
RTX1500 | ≤50 | 16 | ≤230 | ≤10 | 70-100 | 30 |
RTX1800 | ≤50 | 16 | ≤230 | ≤10 | 100-150 | 37 |
RTX2100 | ≤50 | 16 | ≤230 | ≤10 | 150-180 | 45 |
RTX2400 | ≤50 | 16 | ≤230 | ≤10 | 180-250 | 66 |

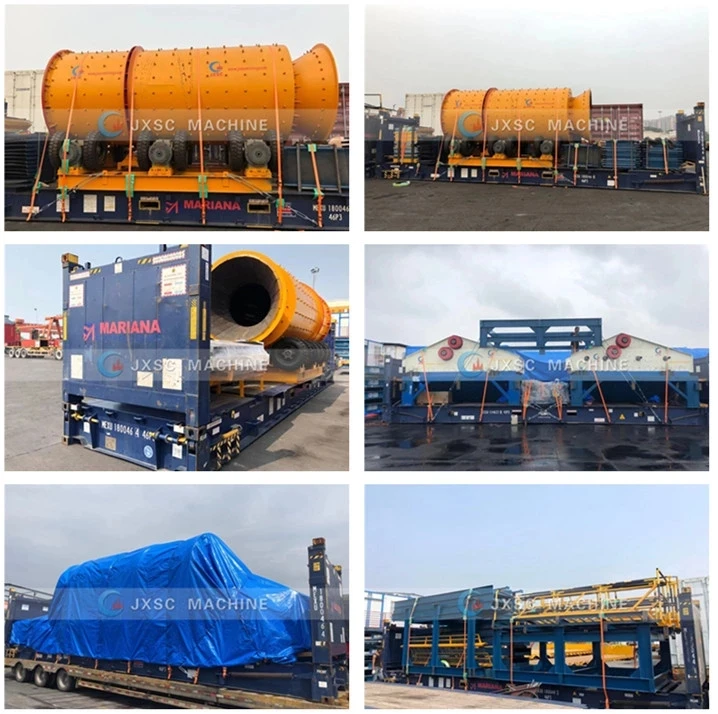

Packing and Delivery
Ways of Packing:
1. Standard parts packed in the wooden cases.
2. Big parts packed by plastic membrane.
3. The whole machine is loaded in the container.
Transportation:
1 .By sea or by air freight.
2. DHL/ UPS/ TNT/ FedEx
3. MSK/MSC/APL/EMC/WANHAI/KLINE
Our Service
Pre-sales service: 7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.
Company Profile

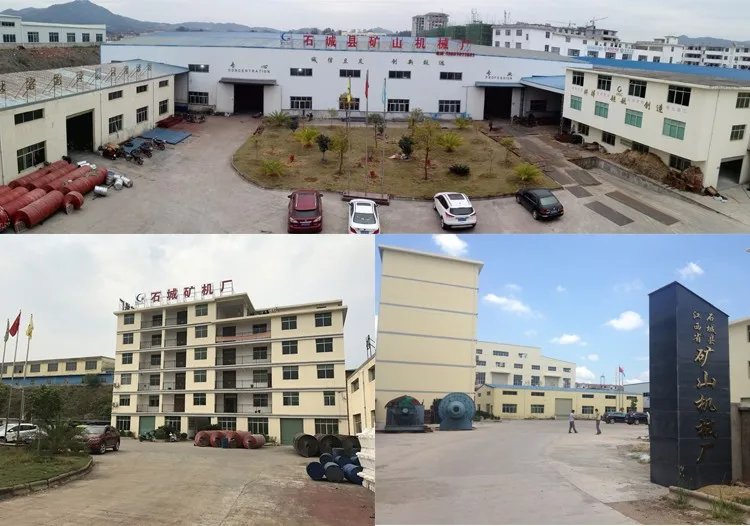

JIangxi Shicheng Mine Machinery Factory
is a reliable large mechanical equipment company which produces heavy mining machinery and integrates R&D, production, sales and door-to-door tracking service. We mainly produce crushing equipment, sand making equipment, and mineral dress equipment, also can satisfying customers with excellent service like project design, process design, standard and no-standard product design and production. ISO9001:2008 and EU CE certifications are available when place the order.
1.Over 34 years history FACTORY at mining machinery
Our Core Advantages as below:
1.Over 34 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
6.Over 20000 squres factory area, over 150 employees.
