YH5W 6 best price 6KV High voltage surge arrester
- Category: >>>
- Supplier: Zhejiang Fuerte Electrical Apparatus Co. Ltd.
Share on (835002510):
Product Overview
Description

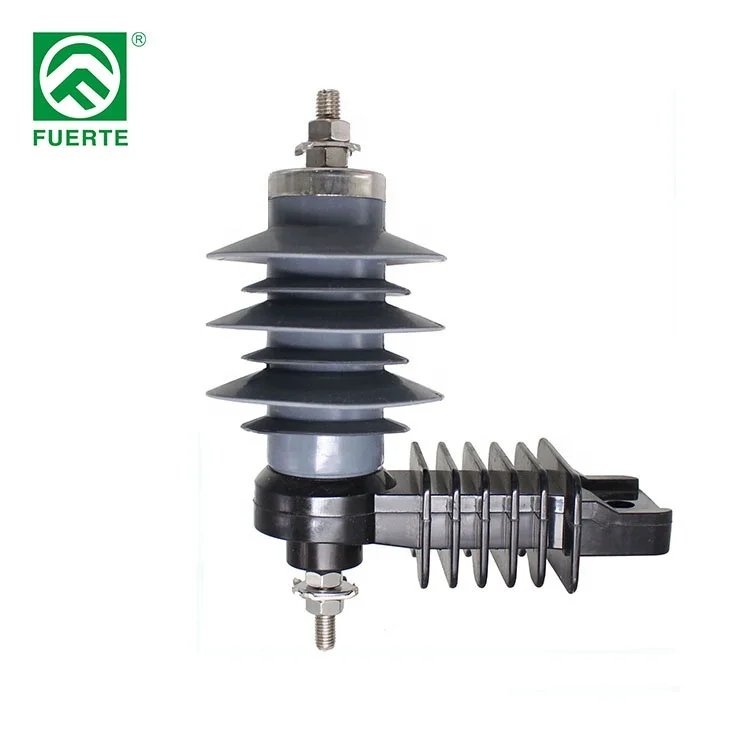

YH5W-6 best price 6KV High voltage surge arrester:
| Main Technical Specifications | ||
| Type | YH5W-6 | |
| Rated discharge current | kA | 5 |
| Line discharge class | Class | 1 |
| Rated voltage | kV | 6 |
| MCOV | kV | 5.1 |
| 1/4 us lightning current impulse | kV (crest) | 22.6 |
| 8/20 us lightning current impulse | kV (crest) | 18 |
| 30/60 us switching current impulse | kV (crest) | 16.8 |
| 2 ms rectangular current impulse withstand | A | 150 |
| 4/10 us high current impulse withstand | kA (crest) | 65 |
| Creepage distance | mm | 320 |
| Standard | IEC60099-4 | |
| Type test report | ||
Standard configuration:surge arrester body with disconnector,insulating bracket. If necessary,Other accessories can be chosen such as mounting bracket, bird-guard cap,conductor,terminal and line clamp. | ||
