YH10W 33 Metal oxide silicone rubber housed type of 10KA 33KV lightning arrester
- Category: >>>
- Supplier: Zhejiang Fuerte Electrical Apparatus Co. Ltd. [Zhejiang China]Zhejiang
Share on (836619982):
Product Overview
Description

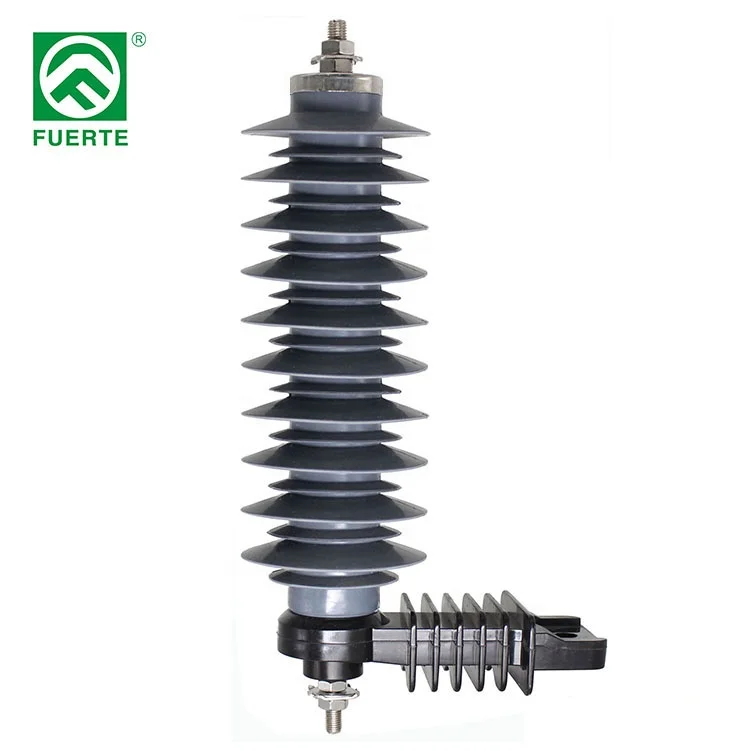

YH10W-33 Metal oxide silicone rubber housed type of 10KA 33KV lightning arrester:
| Main Technical Specifications | ||
| Type | YH10W-33 | |
| Rated discharge current | kA | 10 |
| Line discharge class | Class | 1 |
| Rated voltage | kV | 33 |
| MCOV | kV | 27.5 |
| 1/4 us lightning current impulse | kV (crest) | 112 |
| 8/20 us lightning current impulse | kV (crest) | 99 |
| 30/60 us switching current impulse | kV (crest) | 86.7 |
| 2 ms rectangular current impulse withstand | A | 250 |
| 4/10 us high current impulse withstand | kA (crest) | 100 |
| Creepage distance | mm | 890 |
| Standard | IEC60099-4 | |
| Type test report | KEMA | |
Standard configuration:surge arrester body with disconnector,insulating bracket. If necessary,Other accessories can be chosen such as mounting bracket, bird-guard cap,conductor,terminal and line clamp. | ||
