China PACO high efficiency 12V 2000w Single 12V/24V DC Sine Wave Inverter Power Inverter with Charger for new car

Product Overview

Description

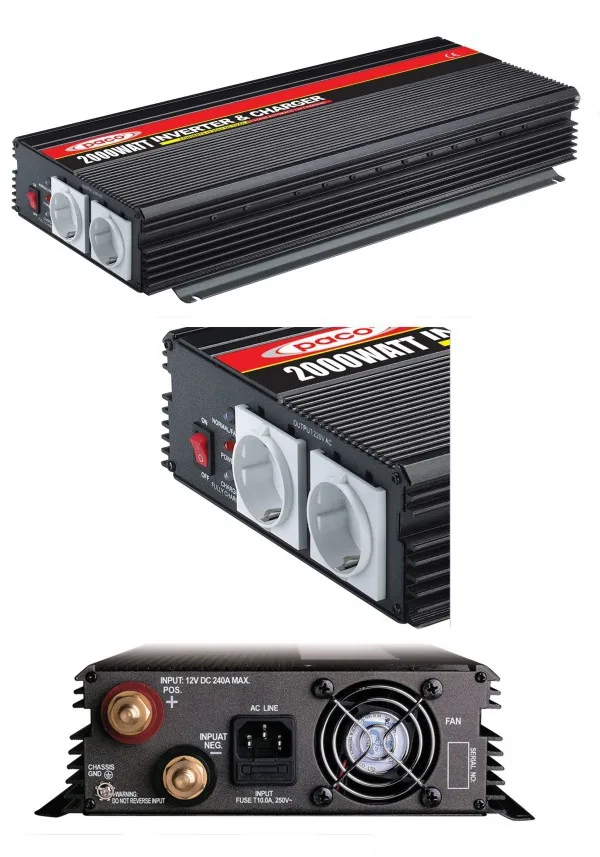

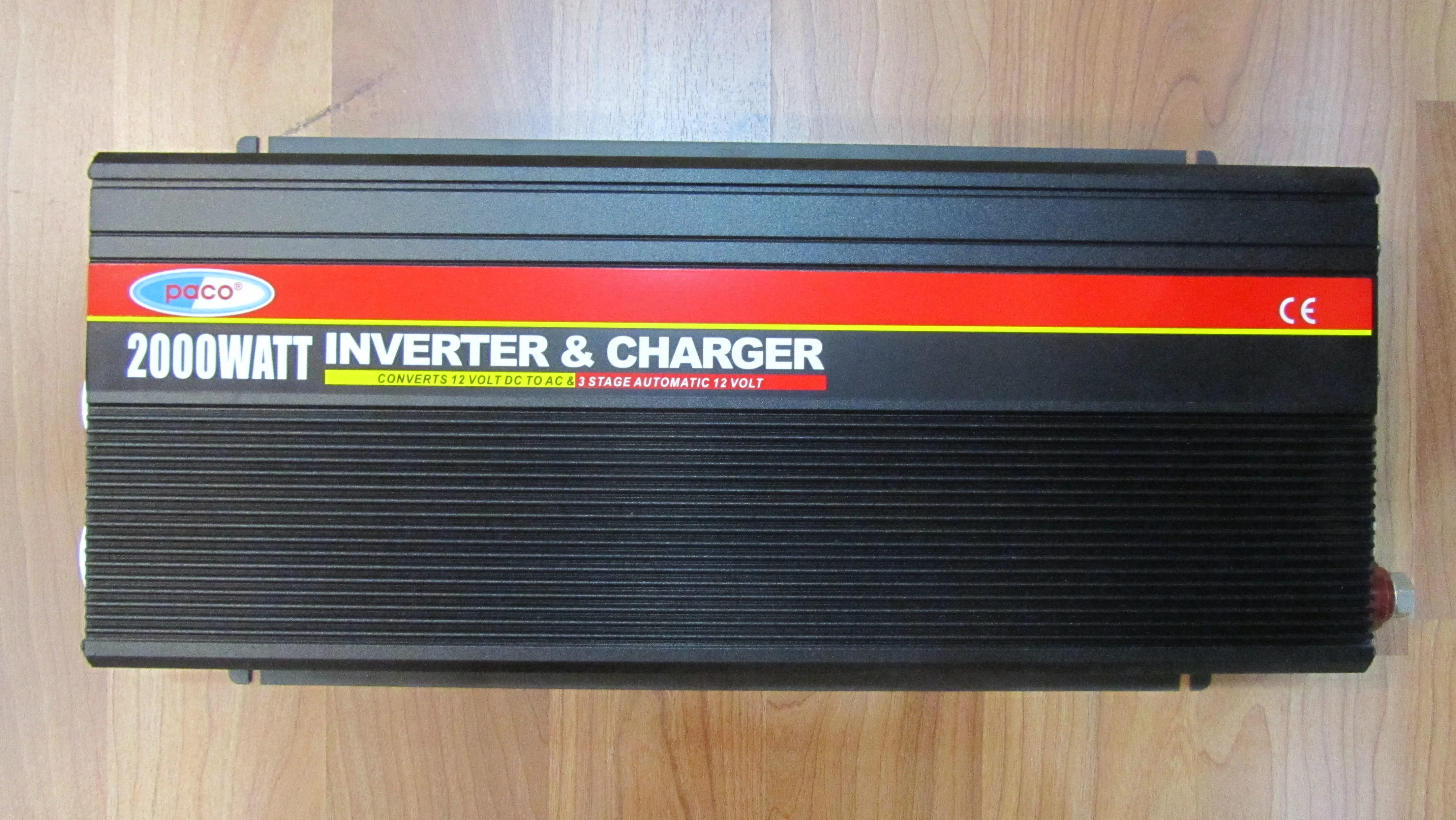

China PACO 12V 2000w power Inverter With Charger

1. Standard output
2.Input & Output fully isolation
3.CE/RoHs approved





Function and characteristic

1. Input range of 12V DC to 24V DC;
2. Output voltage range of 115V AC or 230V AC;
3. For use in cars, boats, trucks, trailers and mobile homes;
4. Take the power inverter to camping and get AC power for lamps, radios or TVs.
5.In an emergency such as blackout, attach the power inverter to your car battery or portable battery and get power to run your appliances;
6.Ultra-Compact Metal Housing
Small and rugged; stored easily in any tool box, briefcase or glove compartment.
7.Low-Battery Alarm/Shutdown
Automatically detects low voltage and shuts down to preserve your battery.
8.Integrated Fuse Protection
Protects your battery and power inverter from damage due to outlet overload.
9.Illuminated On/Off Switch
Shows power inverter under operating and battery charged sufficiently.

Power Inverter Specification


Ideal	Model	PIC2000
INVERTER	DC Input Voltage (Rated)	12V DC, (10-15V) / 24V DC, (20-30V)
	AC Output Voltage	230V AC or 115V AC
	Output Frequency	50Hz or 60Hz
	Output Frequency	Intelligent Pwm +/- 5%
	Output Power (Continuous Watts)	2000w,8.7A
	Output Power (Peak Watts for 0.5 sec)	4000W
	Output Waveform	Modified Sine Wave
	Low Battery-Voltage Alarm (Volts)	10.5V, +/- V /  21V, +/-0.5V
	Low Battery-Voltage Shutdown (Volts)	10V, +/- 0.5V, 20V, +/- 0.5V
	Thermal Shutdown	65 ℃ +/- 5℃
	Efficiency	85~90%
	Cooling Fan	Automatic temperature controlled
	Overload	Shut down & Alarm
	Battery Polarity Reverse	By Fuse
	Output Short	Output short Circuit Protection
	Replaceable Fuse	Standard Auto Circuit Prtection
	Fuse Quantity & Size (12V)	12 x 25A
	Fuse Quantity & Size (24V)	12 x 10A
	Fuse Location	External
	Connection cable	25 mm2 / 1100mm
	Ideal Battery size (12V Inverter)	85-400 Ah
	Ideal Battery size (24V Inverter)	50-200 Ah
CHARGER	Rated Input	230V AC / 110V AC
	Input Frequency	50Hz or 60Hz
	Rated Output (12V Charger)	12V DC,20,000mA
	Rated Output (24V Charger)	24V DC, 10,000mA
	Minimum Start Voltage	4.5V / 9V
	Current Fuse Rating (Internal)	250V AC, F3.15A
	Current Fuse Rating (External)	250V AC, T10.0 A
	Fuse Quality & Size	5 x 20mm
	Type	3 Stage Automatic
	Charge Control (12V Charger)	Bulk 5000mA/ 10,000mA (Up to 14.7V) / Absorption  14.4 V / Float 13.8V
	Charge Control (24V Charger)	Bulk 5000mA (up to 29.4V) / Absorption 28.8V / Float 27.6V
	Thermal Protection lon (fan ON)	65 ℃ +/- 5℃
	Efficiency	App. 85%
	Battery Type	For Charging 12V / 24V lead acid battery ONLY
	Performance	Micro-processing switching mode
	Input Short	Input short circuit protection
	Output Short	Output short circuit protection
	Output Polarity Reverse	Output Polarity Reverse Circuit protection
Automatic Switch / Transfer Time		AC line to inverter, Inverter to AC Line/ Transfer time 10ms
Dimension (L x W x H)		525 x 242 x 76mm
Weight		6.5kg
Container 20FT (PCS)		976

















Package & Delivery:



1. Exported standard colorful carton packing, or according to your request.

2.35-45 working days upon receive the deposit
















Term



MOQ: 100 sets

Port: Zhongshan

Payment term: L/C, T/T, D/A, D/P, Western Union, MoneyGram, Paypal

Supply Ability: 10000 pieces per month



Main Products



1. Power Inverter

2. 7-stage switch mode automatic battery charger

3. Power Inverter with Charger

4. Solar Charge Controller

5. DC to DC Converter

6. Solar Lantern

7. Automatic Voltage Regulator

8. Portable Cooler & Warmer







About us



Ligao (Zhongshan) electrical appliance Co., LTD is one of the most specialized manufacturers of electrical appliance with over 20 years of experience.

Conducted by ISO9001:2000 and gain UL, GS, CB, CE, and E-mark approvals.



We believe company Lives by Quality,

We provide the best quality products, considerate services, and competitive prices!



Company Information:



Investment on Manufacturing Equipments:                US$5 Million - US$10 Million

Factory size:                                                              40,000 Square Meters

Production line Workers:                                           400 people

R&D engineer:                                                           5-10 people

QC Staffs:                                                                  5-10 people

Sales Team:                                                              10 people











One year warranty.

OEM & ODM is AVAILABLE!

Excellent Pre-sales and After-sales service system.
