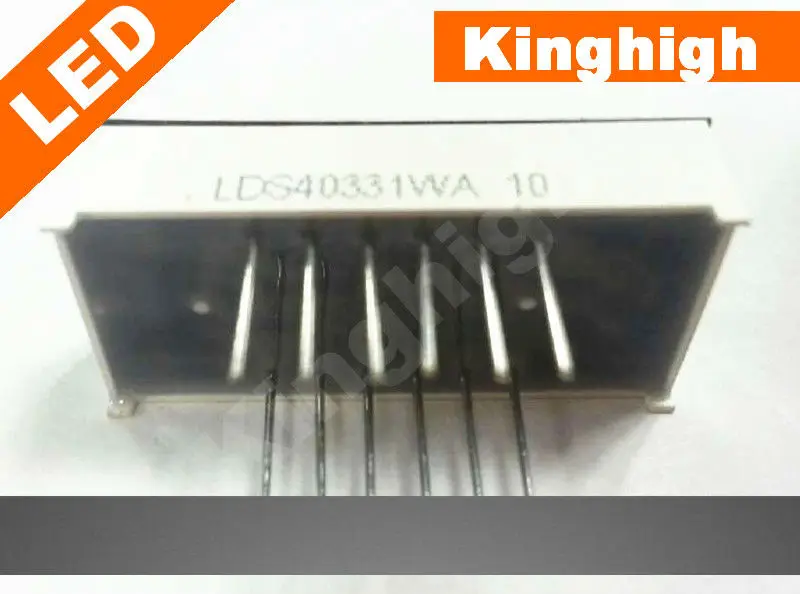

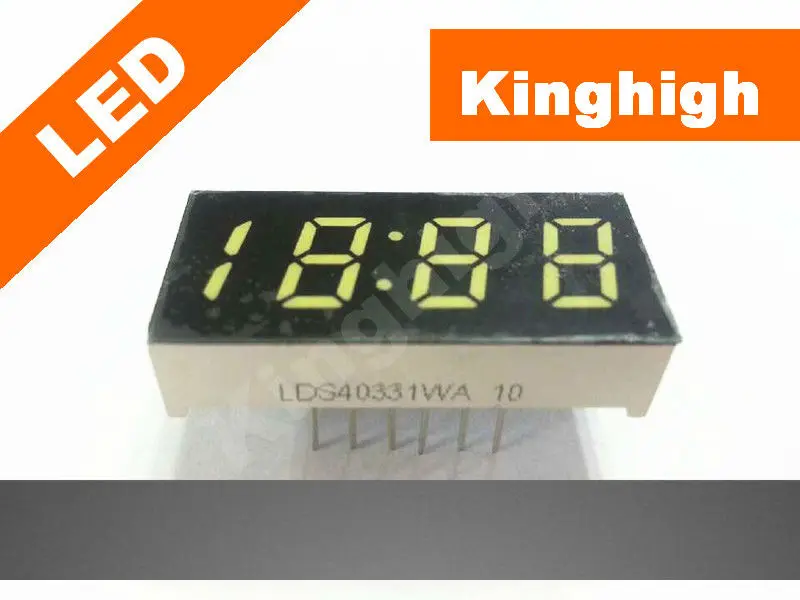

LED Display Car Clock Display White 0.33 Inch 18:88 Digital Clock Display Screen
LED Display Car Clock Display White 0.33 Inch 18:88 Digital Clock Display Screen
LED Display Car Clock Display White 0.33 Inch 18:88 Digital Clock Display Screen
LED Display Car Clock Display White 0.33 Inch 18:88 Digital Clock Display Screen
LED Display Car Clock Display White 0.33 Inch 18:88 Digital Clock Display Screen

LED Display Car Clock Display White 0.33 Inch 18:88 Digital Clock Display Screen

Share on (837574104):


Price:$1.14

Quantity:


Product Overview

Description


LED Display Car Clock Display White 0.33 Inch 18:88 Digital Clock Display Screen







 Data Detail:



ABSOLATE MAXIMUM RATINGS   Ta=25°c

 PARAMETERWHITE Green UNIT

Power dissipation per segment

 75  mw
 Peak forward current per segment* 80  mA
 Continuous forward current per segment* 15  mA
 Reverse voltage per segment 5  V
 Operating temperature range  -35----+80 °c
 Storage temperature range  -35----+85 °c
    Solder temperature 1/16 inch below seating plane for 3seconds at 260°c

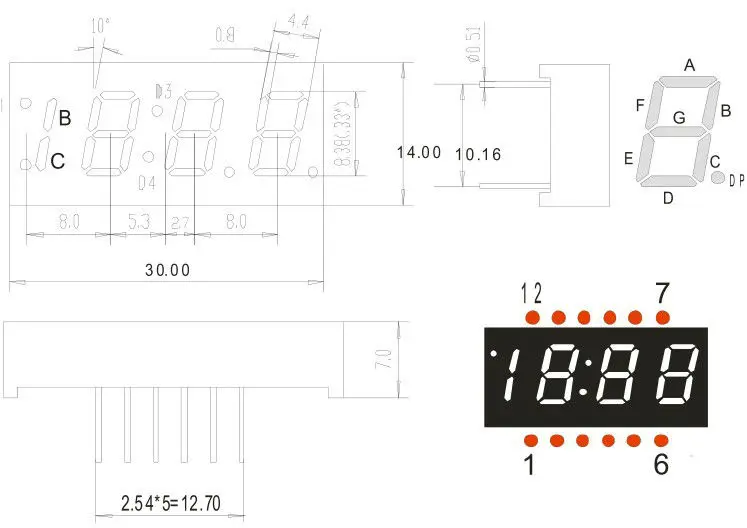

Outline Drawing:












*NOTE: IF ANY INQUIRY, PLS FEEL FREE TO CONTACT, THANKS!

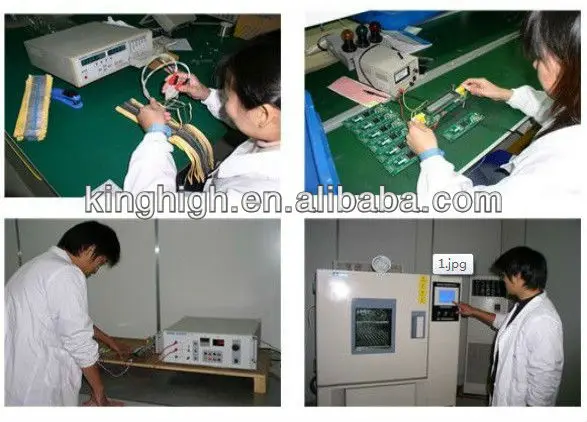

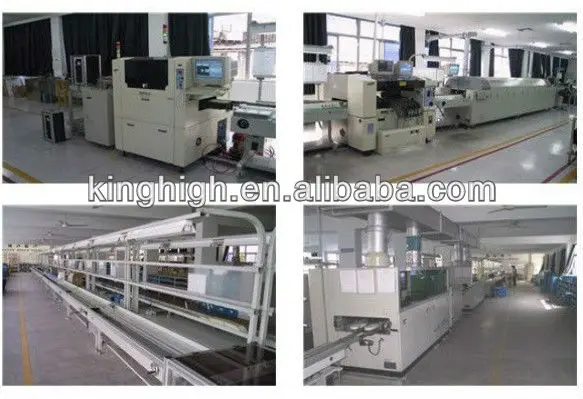

About KingHigh:

KingHigh, a high-tech enterprise dedicated to the control panel industry.

We mainly provides services for industries of automotive, communications, meters and industrial control.

We will continuously strengthen our main business, enlarge our business scale,

and make new brilliant achievements in the control panel field!

High product quality, reasonable price and excellent customer service is our tenet.
