It’s simple use, work stable, design for industrial use to detect the dew point of gas.
It’s our new product, the dry contact will be connected when dew point is up to lower limit and disconnected when dew point is up to upper limit.
The dew point signal must be a 4-20 mA current signal.
Function:
Set
3 buttons
Display
3 pcs of 0.8’’ LED
Detect range
4-20mA
Display range
-80°C ~ 20°C
Connection
Screw
Control
Output signal when dew point is up to lower limit and release when dew point is up to upper limit.
Output
Relay (dry contact)
Performance Indices:
Type
XJZ-3S5
Installation
Panel-mounted
Install hole size
92*92
Panel size
96*96
Ambient temperature
-25°C ~ 55°C
Ambient humidity
0% ~ 99%

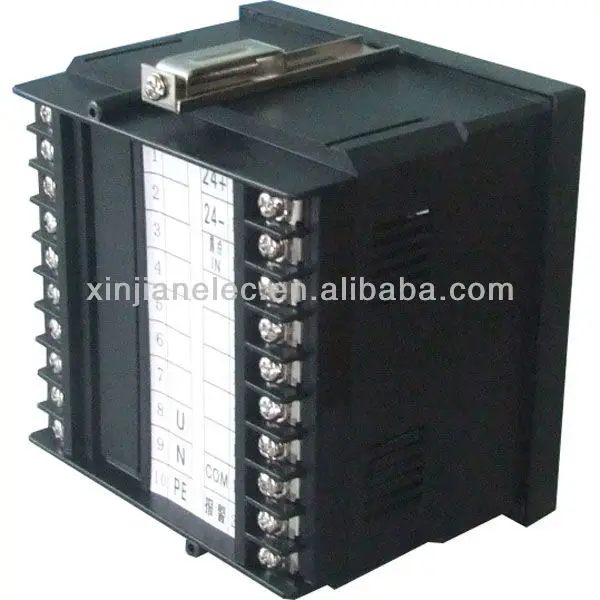

back of display
