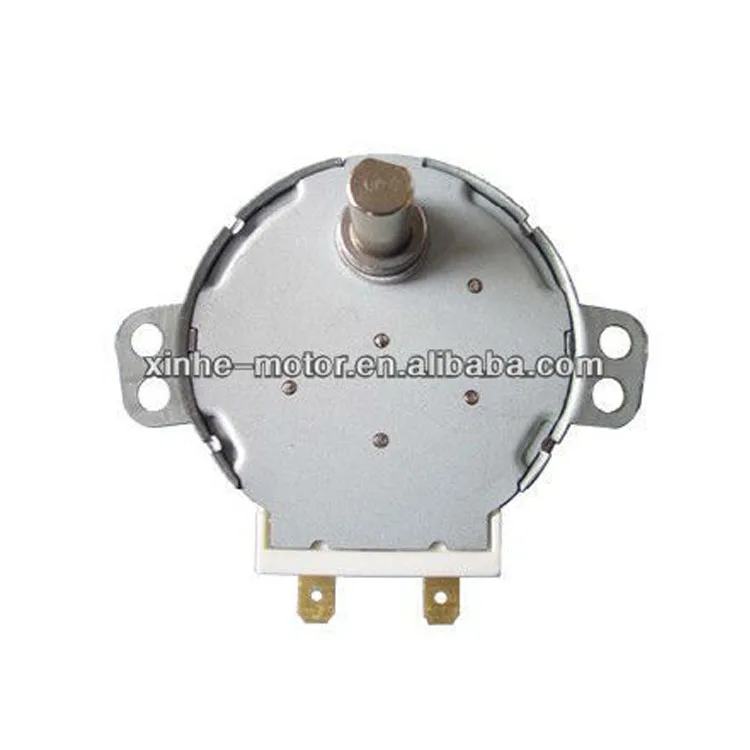

Washing machine spare parts AC 50mm synchronous motor 3w

Product Overview

Description



 This product is widely use for kinds of washing machine,shower...

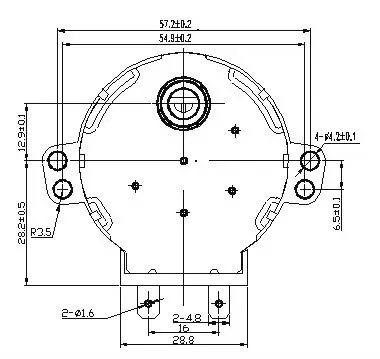

    Structure Curve:

1.Frequency: 50Hz-60Hz
2.Voltage: AC220V-240V
3.Input Power: ≤4W
4.Speed:4-4.8rpm
5.Input Current:≤20mA
6.Dielectric strength:1800v/s
7.Isulation resistance:100
8.Insulation class:E
9.Temperature:≤75K
10.Output torque:5kgf.cm
11.Noise:≤40dB(A)
12.Rotation Direction: CW or CCW
13.Low start:The input torque is not less than 70% standard value under frequency & 85%reted voltage.



Remark: The above technical datas are only for reference, which can be customized according to

different requirements after evaluation.







Shenzhen xinhe motor Co., Ltd is dedicated to the design and production of AC &DC motors, which are widely used in  household appliances, electric toys and power tools .And we can also can design the motors according to the client’s requirements.

our company is located in shenzhen city and Our factory with The total factory area is about 7500 square meters. We owns high technology support and advanced production equipment. And we have a team of specialists in engineering, manufacturing, quality control, production management and technology development.

 Our company comprehensively promotes ISO9001:2001 management systems and are  exporting our motors to many countries with different applications ,like Europe, America, Middle East , East Asia, South America market. With competitive price and good quality, we hope to build a long term business relationships with every partner on the mutual benefit.
