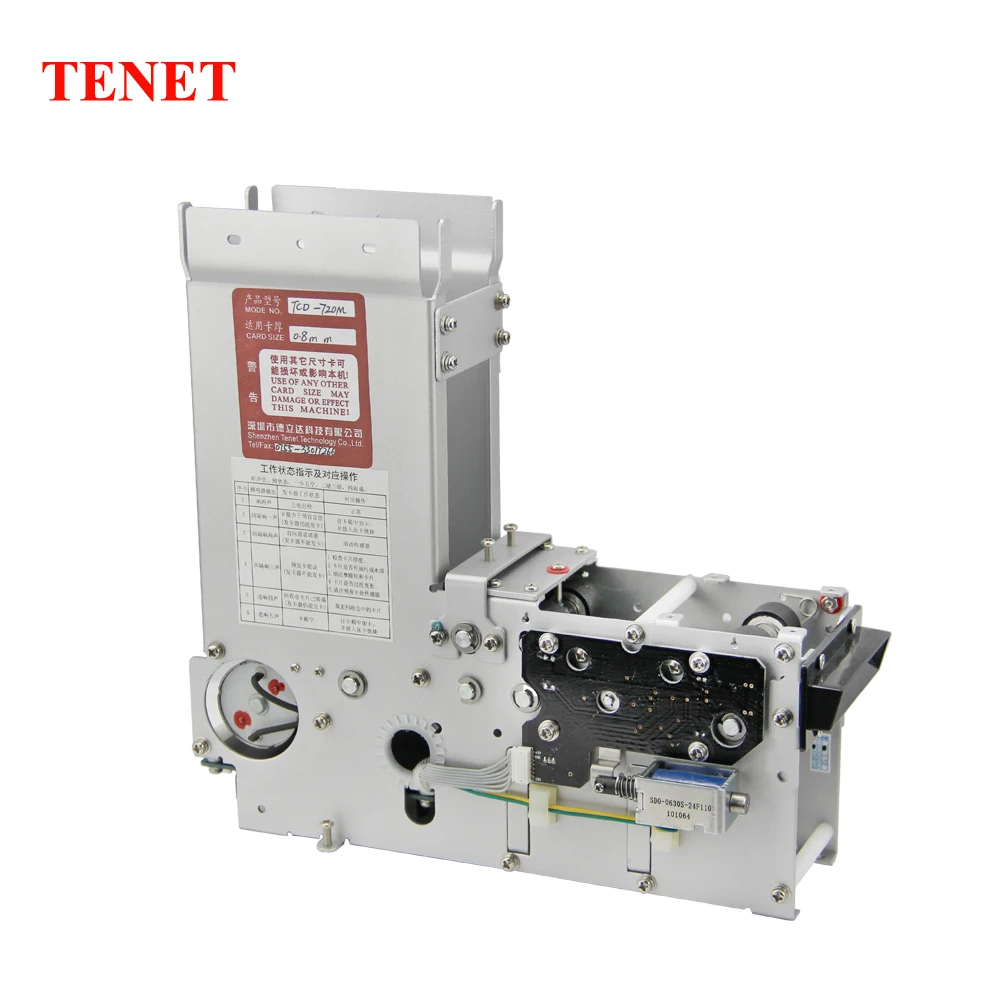

RFID card/Smart Card Dispenser TCD 720 for TCP/IP Parking

Product Overview

Description

RFID card/Smart Card Dispenser TCD-720 for TCP/IP Parking



Estelle Zhou      Skype:live:2355271221

                              whatsapp:+8613510326491





Instructions

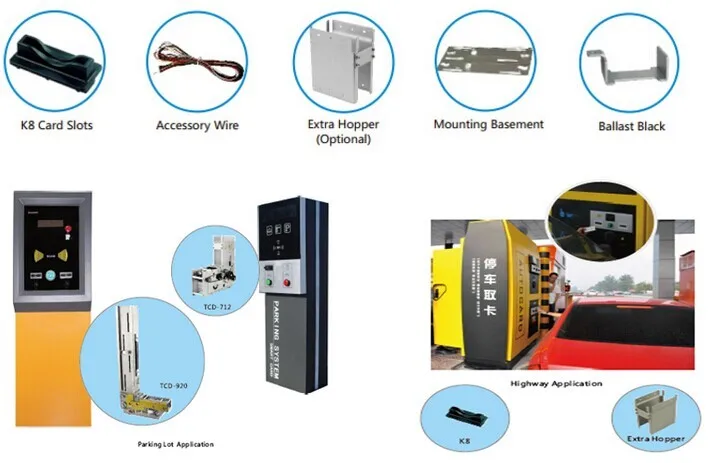

      It is a classical mechatronics product, which has become into industrial standard actually. Its usability and reliability get from customers’ long time suggestion and manufacturer’s improvement and accumulation. TCD card machine is mainly used in parking entrance card dispenser, phone card automatic vending machine, ticket vending machine, all kinds of smart card vending and so on.





Main technical data



•  Operating voltage: 24VDC (max current 2A, static current 0.1A)
•  Operating temperature: -20°C to 85°C
•  Operating humidity: 30-90% (comparatively)
•  Use condition: install in bin
•  Card available: width: 54+/-0.5mm
•                        Length: 85+/-0.5mm
• Thickness: 0.3-2.5mm (adjustable)
•  Card material: Paper or Polyester card
•  Net weight of card dispenser: 2.0kg (including the briquette)
• Time of issuing: max0.5s
• Capacity of stacker: 150pcs (0.8mm), 100pcs available when an extra stacker is needed



Control Interface



This dispenser provides both I/O and RS232 interface of power level. PWL control interface is led by standard 12pin (2.54mm) socket CN3of the control board, RS232 control interface is led by the standard 3pin (2.54mm) socket CN7.

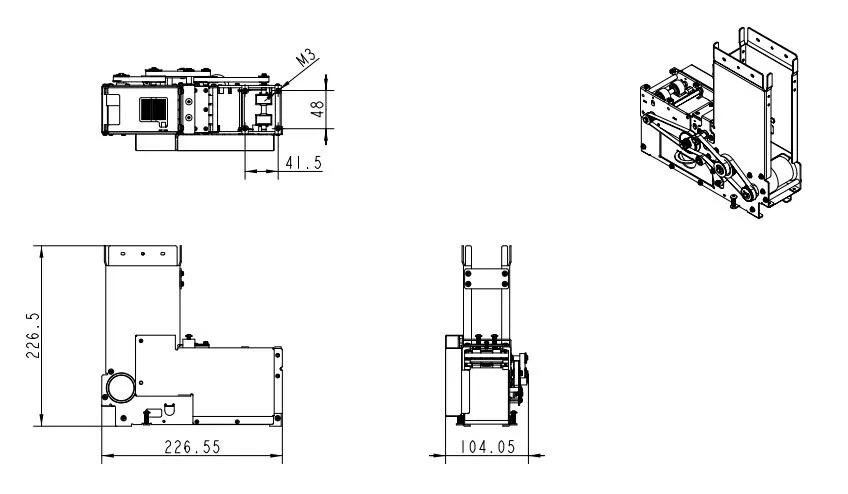

Measures of TCD-720Card Dispenser

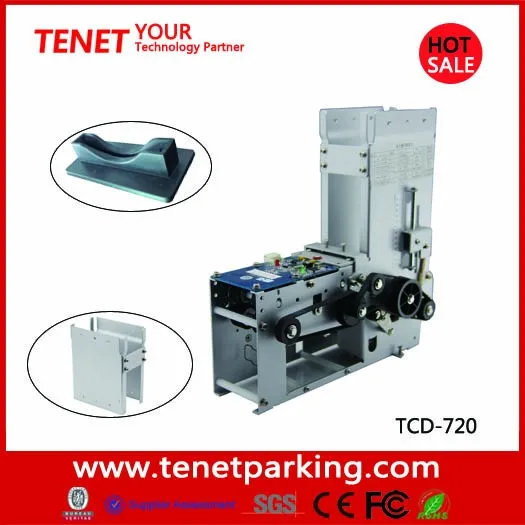

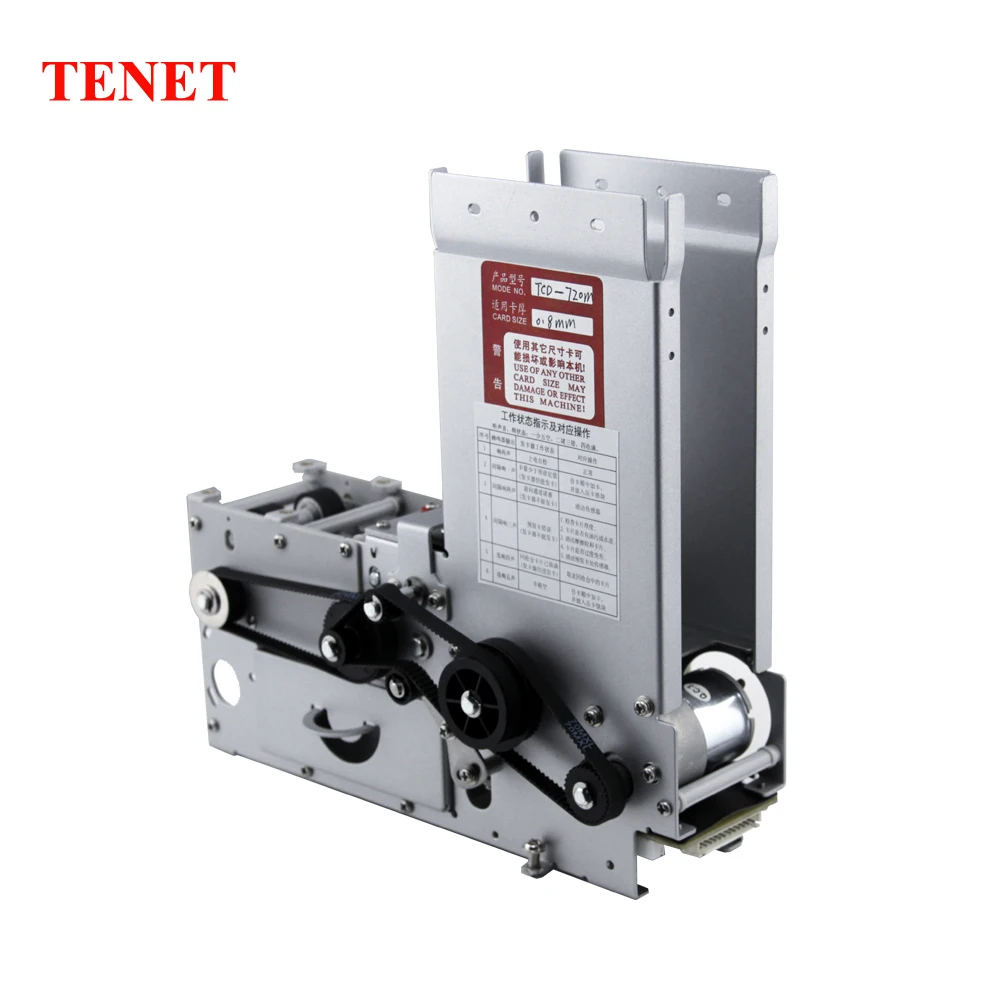

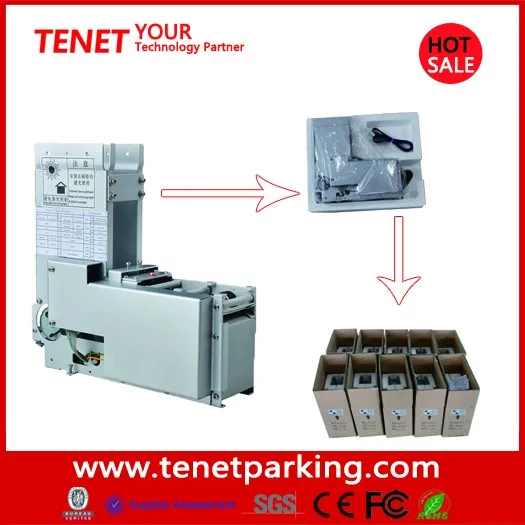

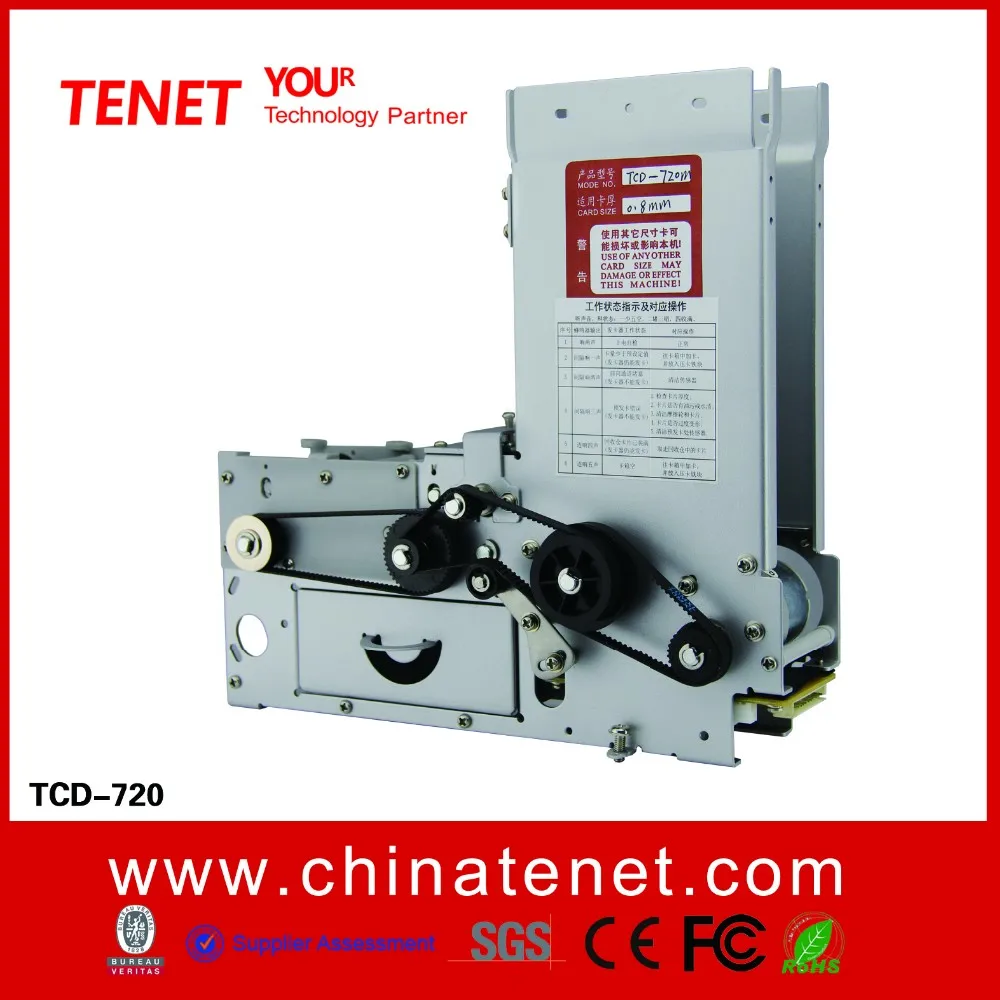

Pictures of TCD-720Card Dispenser









After-services
