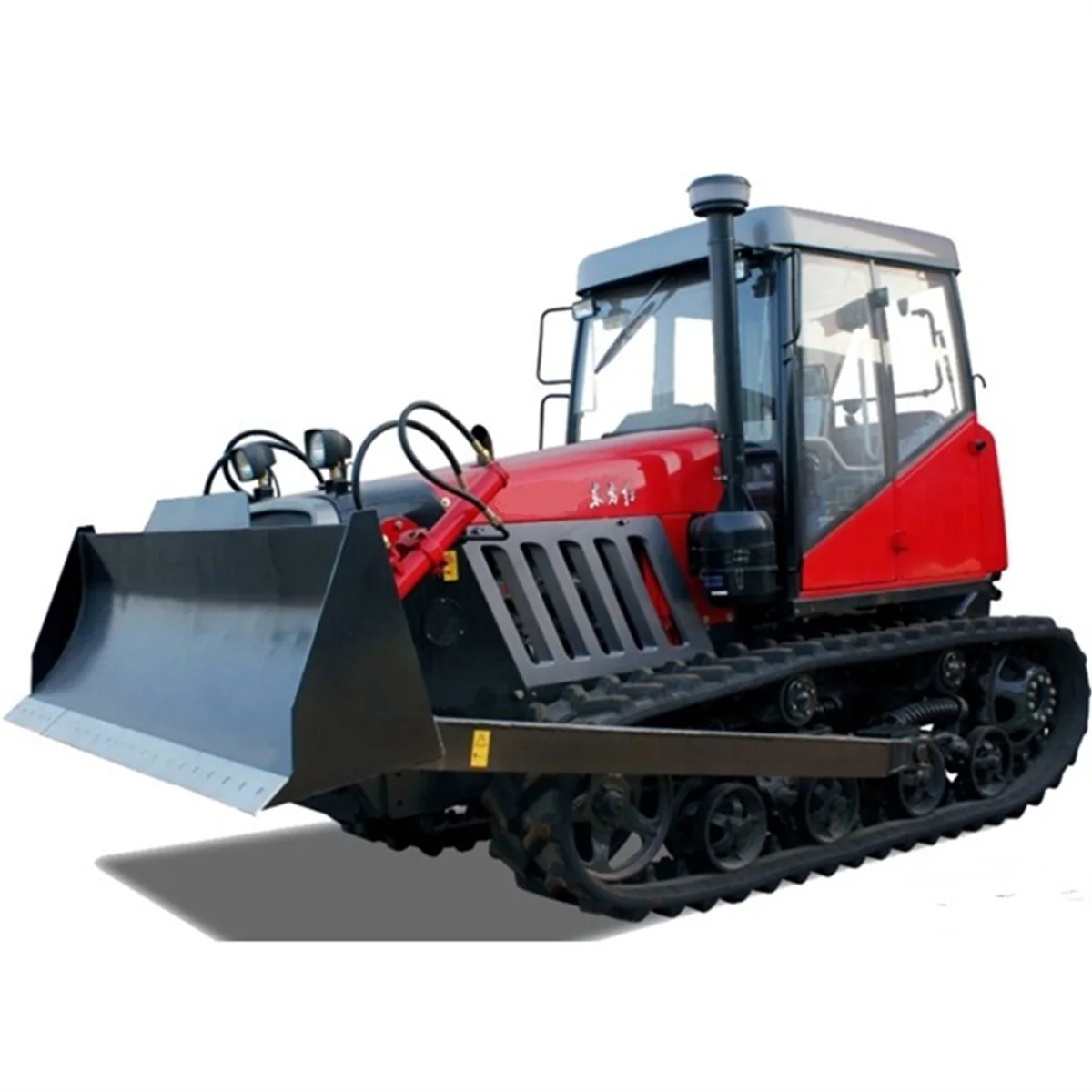

YTO C1302 Crawler Agriculture Tractor

Product Overview

Description



YTO C1302 Crawler Agriculture Tractor

1. Why choose us?
FOTMA is the leading and professional supplier in China for 16hp-440hp tractors and various kinds of agricultural implements!
FOTMA has over than 15 years experience with tractors and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 12 year Gold Member at Made In China!
FOTMA is 13 year Gold Member at Alibaba!

2. Product description
YTO crawler tractor is a vehicle that runs on continuous tracks. Compared with wheeled tractor, it is in contact with a large surface area, and consequently, exerts a much lower force per unit area on the ground. This enables crawler tractor to be used on soft, low friction and uneven ground.

YTO, a Chinese crawler tractor brand, has accumulated decades of experience in the production of tractors. Hence, it knows how to build reliable tractor. In order to meet your various needs, we offer 40-60hp crawler tractor, 70-90hp crawler tractor and 100-130hp crawler tractor for you to choose from. All our products are ergonomically designed for ease of operation. In addition, the newly-designed closed cab can be equipped with an air conditioning system so as to provide the drivers with a high level of comfort. Wide track and rubber track are also available to suit different requirements. As a result, our crawler are extensively used in gardens, farm lands, earth works and more.

In addition to crawler tractors, we also manufacture wheeled tractor, tractor implement, motor grader, and so on. Our products are reliable, durable, efficient and eco friendly, and thus they have received the E-mark, CE and EPA certificates. Today, YTO tractors are other products are in great demand in countries like Kyrgyzstan, Kazakhstan, Poland, Turkey, Indonesia, Mexico, Serbia, Japan, to name a few.
Give us an opportunity to show you how we can help with any of your farming equipment or construction machine needs.

3. Features
1. Tractor with optimized design and new appearance, which is mainly used for plowing and harrowing operations and is also suitable for earth-moving operation.
2. Dry-type double-disc disc-spring-compressed 14-inch main clutch, which is equipped with damping spring and has long service life.
3.6+2 transmission equipped with engagement sleeve for shifting operation, which has reliable performance. And reduces the force required to operate it.
4. Multiple-disc dry-type steering clutch of which the friction discs are made of new material and have long service life, and floating-type belt brake which enables reliable braking operation.
5. Simple-supported beam structure for final drive, which has the advantages including high supporting strength and high reliability.
6. Fully-enclosed cab, which can be equipped with air conditioner at the request of customer.
Rubber crawler available as an option for increasing the trafficability.

4. Technical parameters

Model	C1302 Crawler Tractor
Overall dimensions(L*W*H)mm
Without dozer blade	5344*1835*2786
With dozer blade	5367*2462*2786
Wheel Base (mm)	2774
Track(mm)	1435
Track shoe with (mm)	390
Serving mass (kg)
Without dozer blade	7300
With dozer blade	7550
Ground Pressure (kPa)
Without dozer blade	46.75
With dozer blade	48.35
Speed, tractive force, forward gears(6F+2Rengagement sleeve transmission)
Gear I (km/h)/ tractive force (kN)		3.71/52.9
Gear II (km/h)/ tractive force (kN)		6.6859/32.5
Gear III (km/h)/ tractive force (kN)		7.798/32.2
Gear IV (km/h)/ tractive force (kN)		8.996/27
Gear V (km/h)/ tractive force (kN)		10.591/22
Gear VI (km/h)/ tractive force (kN)		13.917/14.3
Reverse speed gear I (km/h)		3.314
Reverse speed gear II (km/h)		6.289
Diesel engine model		LR6A3Z-22 diesel engine
Rated power (Kw)		95.6
Rated speed (r/min)		2200
Dozer blade		Fixed straight blade
H*W (mm)		850*2462
Depth into soil (mm)		>290
Max. Lifting height (mm)		>625

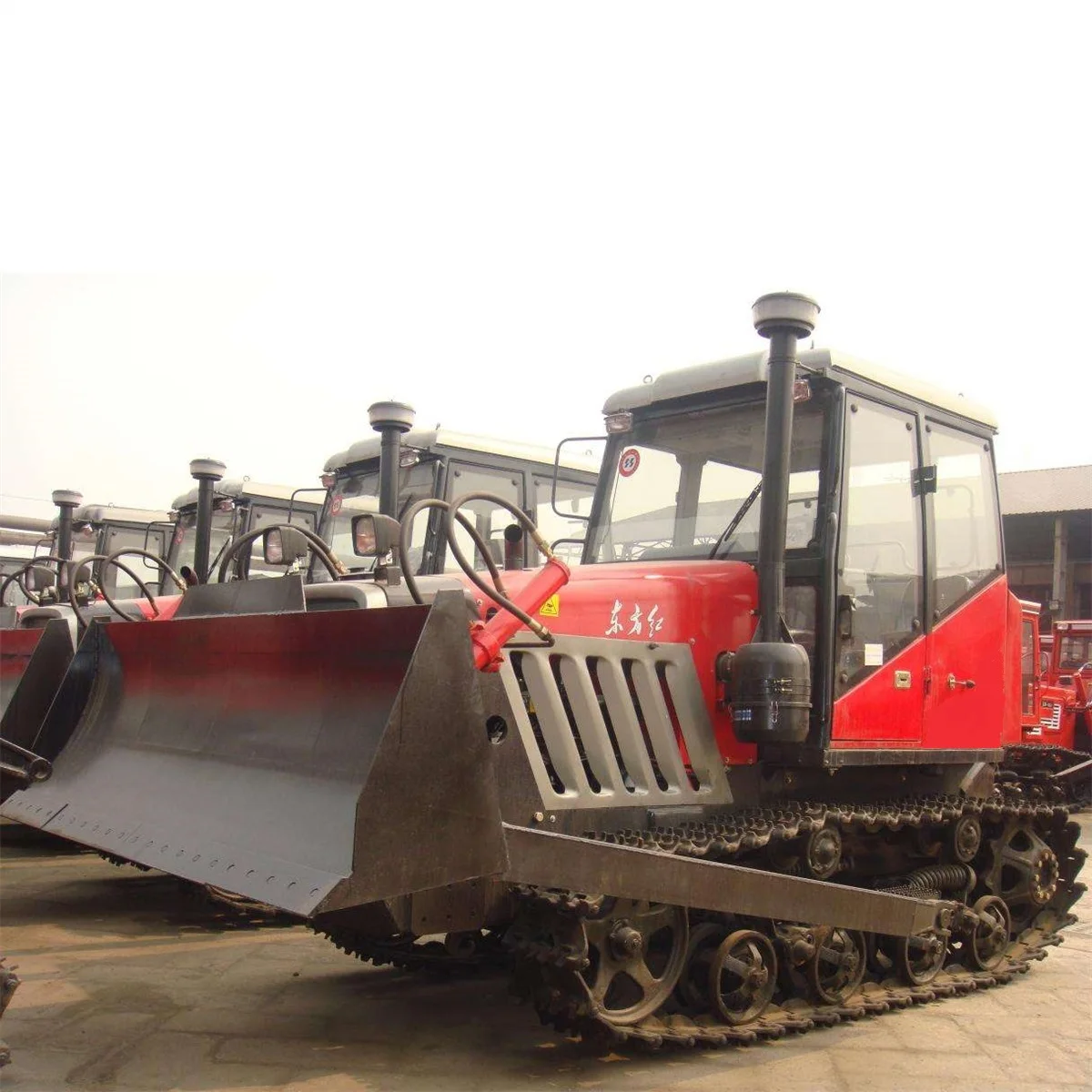

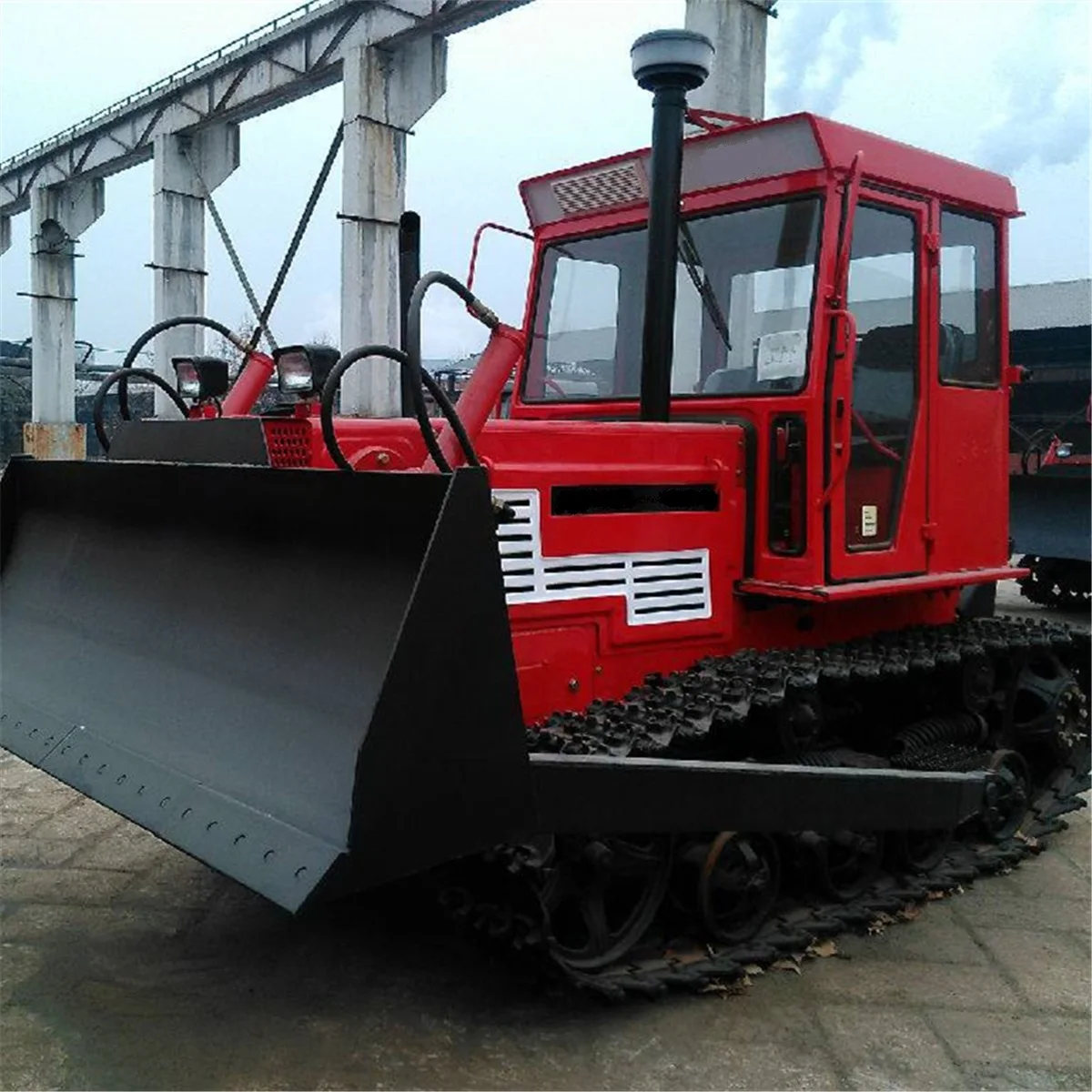

5. Photos





6. Agricultural implements



7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight,  Paypal, Westunion etc.

8. Shipment
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
