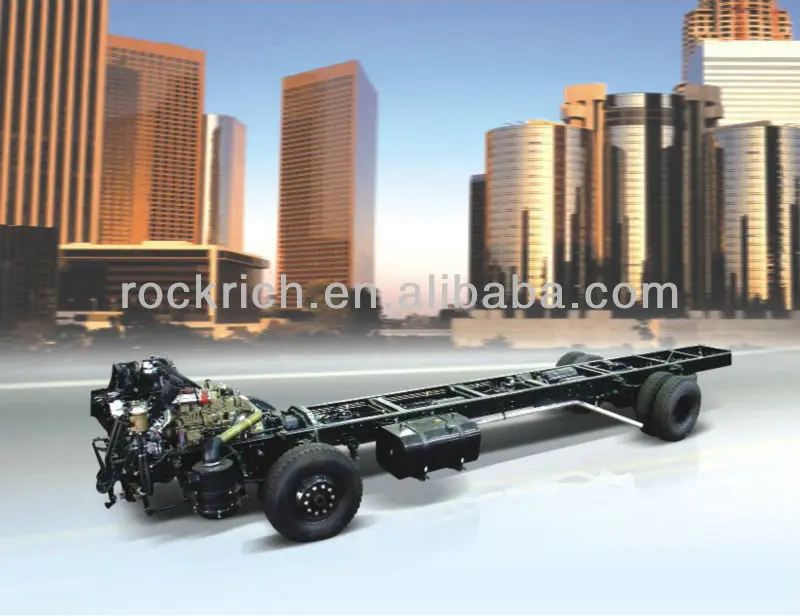

12m bus frame chassis hino front engine bus chassis EQ6120KSND
- Category: Bus Parts & Accessories >>>
- Supplier: Shiyan Rockrich Industry & Trade Co. Ltd.
Share on (841343103):
Product Overview
Description
Product Description
Size | |||
length*width(mm) | 11450X2500 | ||
front/rear suspension(mm) | 2350/3300 | ||
wheelbase(mm) | 5800 | ||
front/rear track(mm) | 2050/1865 | ||
Weight |
| ||
Curb weight (kg) | 6500 | ||
G.V.W (kg) | 17500 | ||
Max speed(Km/h) | 90 | ||
max climbing | 28% | ||
Engine | |||
engine position | Front/Rear | ||
model |
J08E-WW, 250HP | ||
type | Turbocharged, inter-cooling. | ||
manufacturer | Shanghai Hino Engine Co., Ltd. | ||
Exhaust standard | Euro V | ||
specified power (Kw/r/min) | 184/2200 | ||
Max torque (N.m/r/min) | 900/1500 | ||
Transmission | |||
model and control way | FAST Fuller 6 gears transmission, 6DS130TA | ||
Input torque (N.m) | 1300 | ||
Clutch | |||
Type | Diaphragm ,spring type | ||
Diameter of friction plate (mm) | Φ430 | ||
Power-assist type | Hydraulic air power-assist | ||
Diameter of branch pump for power-assist | Φ100 | ||
Air Pipe | |||
exhaust pipe position | Come out from right rear wheel | ||
Front axle | |||
type and manufaturer | beam straucture. Dongfeng Dana Axle | ||
loading capacity | 6.5T | ||
Rear axle | |||
Type and manufacturer | 11T rear axle, Dongfeng Dana Axle | ||
Loading capacity | 11T | ||
Ratio | 5.571 | ||
Steering | |||
steering type | LHD steering wheel, power steering monolithic machine | ||
MAX turning angle | inner wheel 43° | ||
outer wheel 34° | |||
