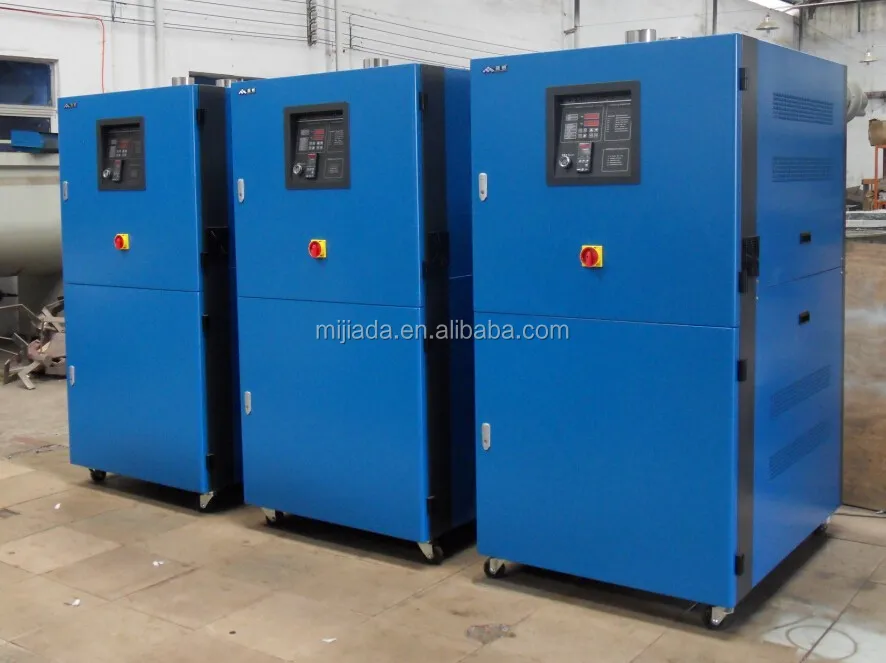

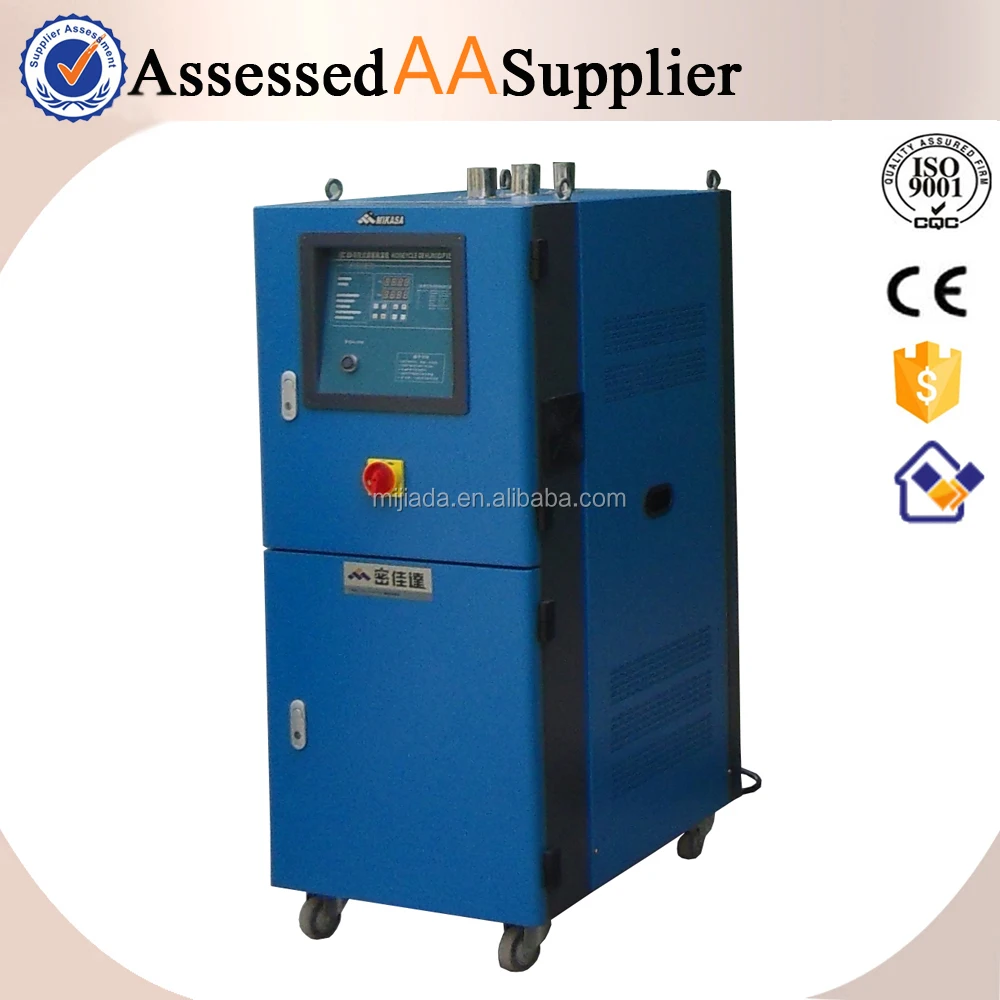

Honeycomb Dehumidifying Dryer:
Features of honeycomb dehumidifying dryer:
1. with PID temperture control system which has a screen to Set regeneration temperature and display actual temperature.
2. adjustable revolution control of honeycomb wheel.
3. dew point of honeycomb to -50°Corlower in ehabnced configuration.
4. optional PLC for LCD touch HMI.
5. optional dew point meter capable of monitoring the dehumidifciation AT any time.
6. compact size,easy to move and use at any workstation.
7. Two-condenser design ensuring lower return air temperature and dew point.
Specifications of honeycomb dehumidifying dryer:
|
Model |
Drying air flow (3m/hr) |
Power of drying blower(kw) |
Power of regeneration blower(kw) |
Power of regeneration heater(kw) |
Dia. Of outer&inter pipe(inch) |
Overall Dimrnsion (cm) |
W. (kg) |
|
KD80H |
80 |
0.75 |
0.2 |
3.9 |
2" |
128×55×82 |
120 |
|
KD130H |
130 |
1.1 |
0.2 |
3.9 |
2" |
128×55×82 |
140 |
|
KD160H |
160 |
1.5 |
0.4 |
5.4 |
2.5" |
153×66×105 |
215 |
|
KD220H |
220 |
2.2 |
0.4 |
5.4 |
2.5" |
153×66×105 |
225 |
|
KD300H |
300 |
3 |
0.75 |
7.2 |
3" |
170×70×126 |
240 |
|
KD400H |
400 |
3.8 |
0.75 |
7.2 |
3" |
170×70×126 |
280 |
|
KD500H |
500 |
5.5 |
1.9 |
10 |
4" |
180×90×130 |
290 |
|
KD700H |
700 |
5.5 |
1.9 |
10 |
4" |
180×90×130 |
300 |
All specifications above are for reference only due to constant research and improvement,welcome the provision of drawing or samples.

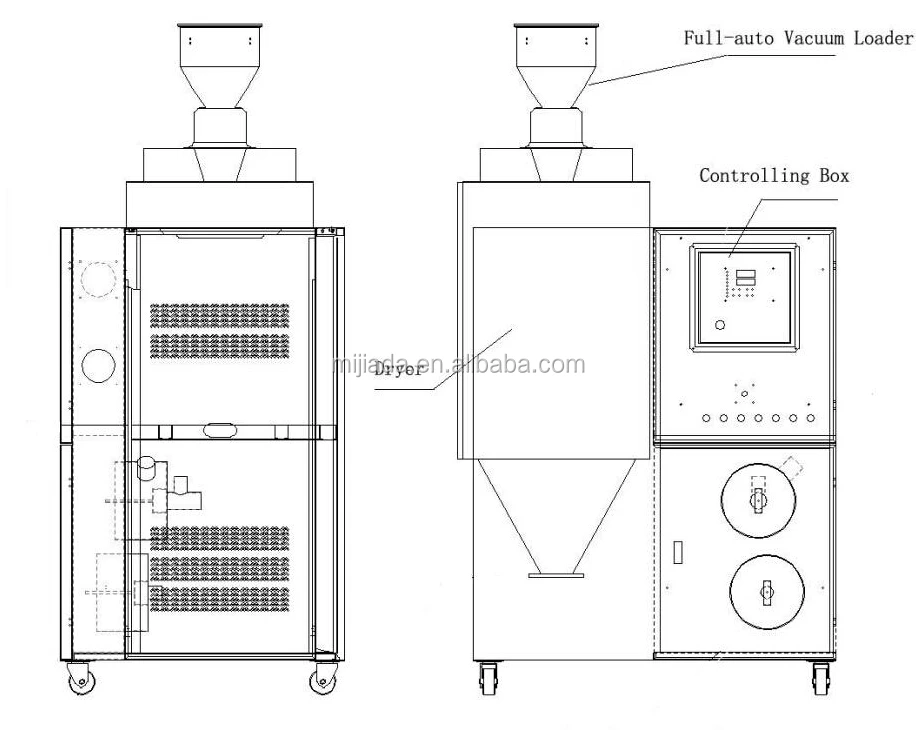

Constructional drawing of Plastic Honeycomb Dehumidifying dryer

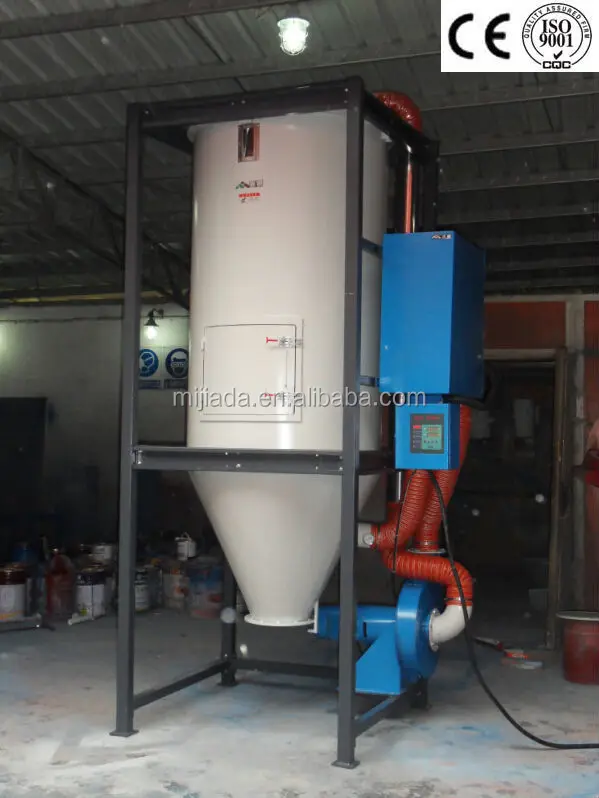

Dehumidifying Dryer Combines with Separated Hopper Dryer :

-------------------------------------------------- Plastic Hopper Dryer: ---------------------------------------------------
Feature:
1. Uniform Hot air distribution: High heat, significantly shorten drying time;
2. Accurate temperature control: Temperature regulator with high accuracy to eiminate error;
3. Time & labor saving: isolated tank and hopper, easy material cleaning, simple and quick material changing;
4. Reliable design: elegant and solid, easy to install, multiple safeguards to ensure operational safety;
5. Increased injection speed: direct blanking to shorten material welt time and increase injection rate.
Specifications of plastic hopper dryer:
|
Model |
Capacity (kg) |
Heater (kw) |
Blower (w) |
Overall Dimensions (cm) |
Model suitable |
Weight (kg) |
|
MHD-12E |
12 |
1.8 |
50 |
65*40*85 |
1 oz |
25 |
|
MHD-25E |
25 |
3 |
90 |
75*50*105 |
3oz |
35 |
|
MHD-50E |
50 |
3.9 |
100 |
90*55*120 |
5-8 oz |
45 |
|
MHD-75E |
75 |
3.9 |
250 |
95*60*130 |
8-10oz |
50 |
|
MHD-100E |
100 |
6 |
250 |
100*70*140 |
10-20oz |
70 |
|
MHD-150E |
150 |
6 |
350 |
110*75*160 |
15-20oz |
80 |
|
MHD-200E |
200 |
12 |
350 |
120*85*170 |
20-30oz |
120 |
|
MHD-300E |
30 |
15 |
500 |
145*100*185 |
25-30oz |
120 |
|
MHD-400E |
400 |
18 |
750 |
150*105*200 |
30-40oz |
230 |
|
MHD-600E |
600 |
21 |
750 |
150*105*220 |
40-50oz |
250 |
|
MHD-800E |
800 |
27 |
950 |
150*110*240 |
50-60oz |
300 |
|
MHD-1000E |
1000 |
30 |
1100 |
185*135*270 |
Over 60oz |
400 |
Standard Hopper Dryer
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

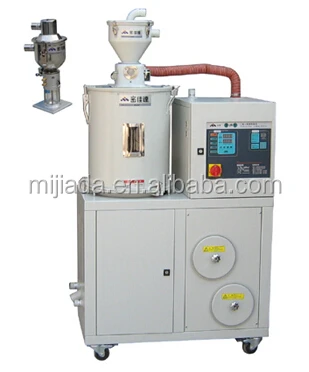

3 in 1 Dehumidifying Dryer
Features:
1.Design integrating the dehumidifying,drying and auto feeding functions;
2.Microcomputer PID control system capable of automatic controlling the operation;
3.Up-blow drying hopper for high dehumidifying efficiency;
4.Two-stage molecular sieve dehumidifying tank, dew point up to-40°C;
5.Compact size,easy to move and install,simple to clean;
6.Closed feeding system avoids moisture regain after material is dried;
Specifications of Dehumidifying-Drying-Feeding Unit(3-in-one-unit)
|
Model |
KD-25 |
KD-50 |
KD-100 |
|
Electric Heater(kw) |
3 |
3.9 |
6 |
|
Feeding Blower Motor(kw) |
0.75 |
1.1 |
1.1 |
|
Drying Blower Motor(kw) |
0.2 |
0.25 |
0.37 |
|
Overall Dimensions |
850×485×1470 |
8850×485×1470 |
850×485×1470 |
|
Weight(kg) |
80 |
85 |
90 |


Standard Hopper Dryer Hopper Dryer with Microcomputer control Hot-air Circulating Dryer

3 in 1 Dehumidifying Dryer Microcomputer Cabinet Dryer Honeycomb Dehumidifying Dryer

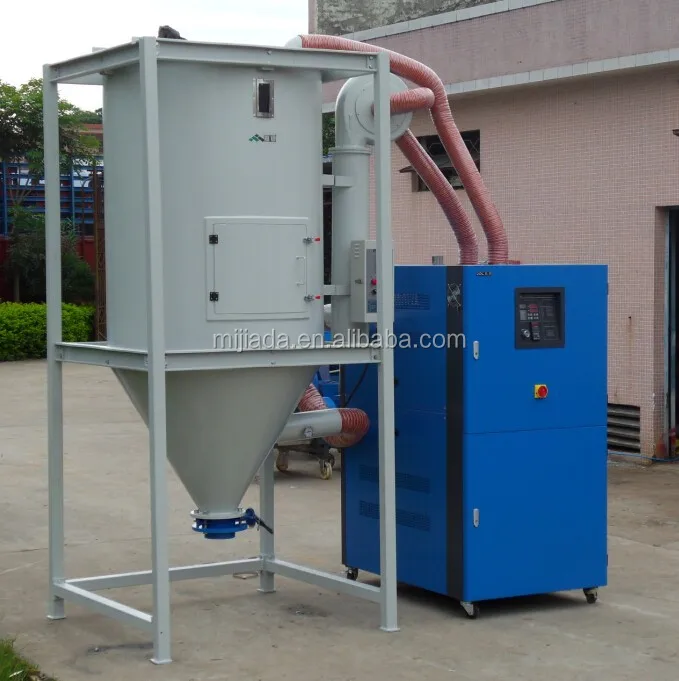

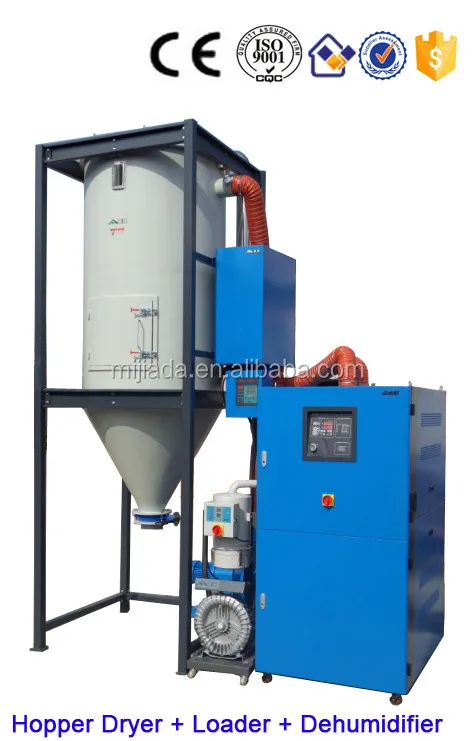

Hopper Dryer Combines with Dehumidifying Dryer:

Hopper Dryer with Foot Frame:
Pre-sale service:
1) provide detailed information, picture, video & quotation for customer;
2) free testing;
3) Professional suggestions.
Guarantee and Repair:
Guarantee: 1 Year in common using condition (except damageable and aitificial)
Repair: 1) We provide technical guidance all life.
2) Within the guarantee period, we will offer customers replacements free of charge for the broken parts.
Installation:
We provide technical guidance, and also we can offer our technical engineer to buyer's factory for installation If buyers require. Ticket, board and lodging and some related local expenses in Buyer's country for buyer's account.
Guangzhou Jiayin Machinery Pte., Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte.,Ltd) is one of the pioneers in auxiliary plastic forming equipment industry in China, specializing in research, design, manufacture and distribution and service of such equipment with the technology and experience accumulated over 20 years. To view our more information, please back to our home pag.
How about the quality of your product?
-- Our products manufactured strictly according to national and international standard.
-- We have CE ,ISO certification
-- We take a test on every product before delivery.
How about price of this product?
-- We can give the lowest price than market one.
-- We do quotation as soon as possible for any customer.
-- Discount can be given according to quantity.
What is the MOQ?
-- 1 set.
If you can be custom-made?
-- We can make products according to customer's requiments.
What is the voltage?
-- 30V 50hz 3 phase.(we can change it according to customer's requirement, charging fee)
