cabin control overhead crane
Feature Description of cabin control overhead crane
1.Introduction
This crane mainly consists of strong bridge beams,trolley-travelling mechanism,crab and electric appliances,and could be classified into several working duties,e.g. A5,A6,A7,according to the working frequency and pure working time.
2.Control method
Remote control, pendent line with push button , cabin control
3.Design and construction rules
All the standards required for the crane is according to China Standards.
4.Painting
Primer and finishing paint
Color:according to your requirements
Average thickness:about 100microns
5.Standard capacity
5tons,10tons,16/3.2tons,20/5tons,32/5tons,50/10tons,75/20tons,100/20tons,100/30tons,
125/30tons,150/30tons,160/32tons,200/50tons,400/80tons,560/250tons.
Drawings of cabin control overhead crane
Parameter of cabin control overhead crane
| Lifting Capacity T | 5 | 10 | 16/3.2 | 20/5.0 | 25/5.0 | 32/5.0 | 50/10.0 | 400/80.0 | |||
| Span M | 10.5-31.5 | 28 | |||||||||
| Lifting height M | Main Hook | 16 | 16 | 16 | 12 | 12/11.0 | 16 | 12 | 22 | ||
| Aux Hook | 18 | 11 | 14/13 | 18 | 16 | 24 | |||||
| Speed M/min | hoist | Main hook | A5 | 12.5 | 8.5 | 7.9 | 7.2 | 7.3 | 7.8 | 5.9 | 2.92 |
| A6 | 15.5 | 13.3 | 13 | 9.7 | 9.8 | 9.5 | 7.8 | ||||
| Aux hook | 14.5 | 12.7 | 12.7 | 19.5 | 13.2 | 9.24 | |||||
| Trolley travelling | 37.2 | 43.8 | 44.6 | 44.6 | 37 | 42.4 | 38.5 | 37.2 | |||
| Bridge travelling | A5 | 89.8 /92.3 | 89.8-91.9 | 84.7-87.6 | 84.7/ 87.6 | 85.5/88 | 74.2-87.6 | 74.6 | 25.9 | ||
| A6 | 116.2/ 117.4 | 112.5-116.8 | 112.5 | 112.5/ 101.4 | 112/ 101.4 | 86.8-101.4 | 87.3 | ||||
| Weight Kg | Trolley | A5 | 2126 | 3424 | 6227 | 6856 | 7185 | 10877 | 15425 | 142.3 | |
| A6 | 2224 | 3562 | 6427 | 7180 | 7856 | 11652 | 15765 | ||||
| Total Weight | A5 | 12715-31405 | 14270-34405 | 19128-39428 | 19947-41497 | 20795-42796 | 26901-52748 | 35317-64880 | 359000 | ||
| A6 | 12991-31596 | 14719-34699 | 20045-41315 | 20984-44225 | 22632-16324 | 28061-55272 | 36075-67242 | ||||
| Max Wheel Load KN | A5 | 74-125 | 102-160 | 141-205 | 163-231 | 185-255 | 237-327 | 333-450 | 7500 | ||
| A6 | 75-126 | 104-162 | 145-211 | 167-239 | 189-263 | 242-335 | 336-457 | ||||
| Rail recommended | Trolley | 15kg/m | 43kg/m | ||||||||
| Bridge | 43kg/m | QU70 | QU80 | QU120 | |||||||
| Power Source | 380V 50HZ 3Phase | ||||||||||
European Production Technology of cabin control overhead crane

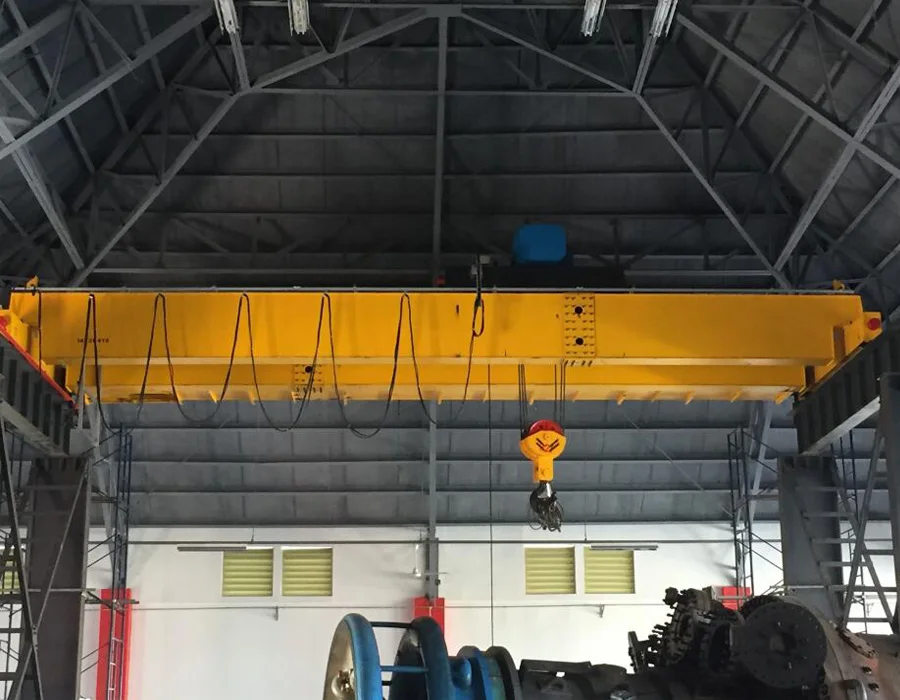

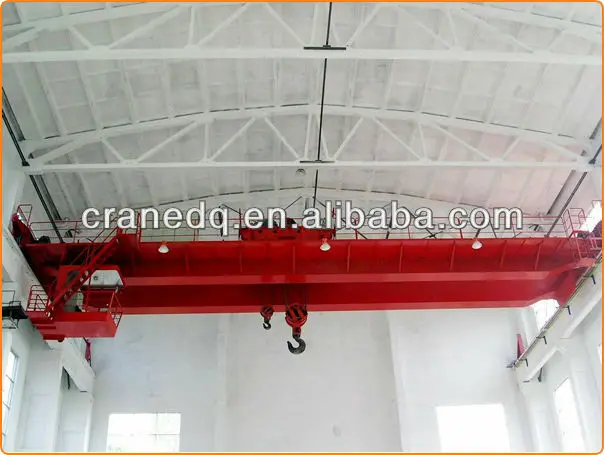

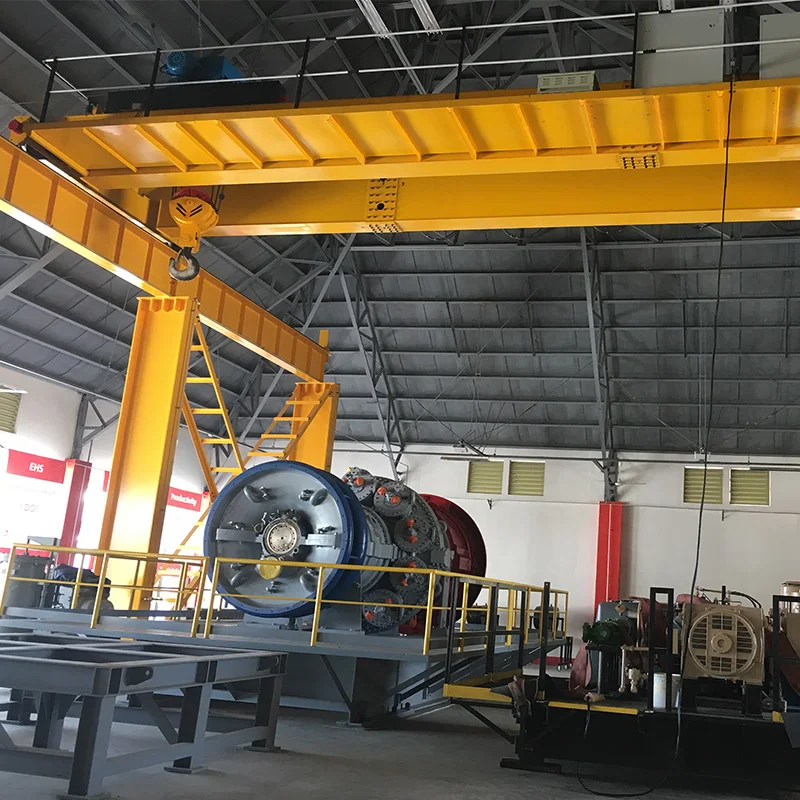

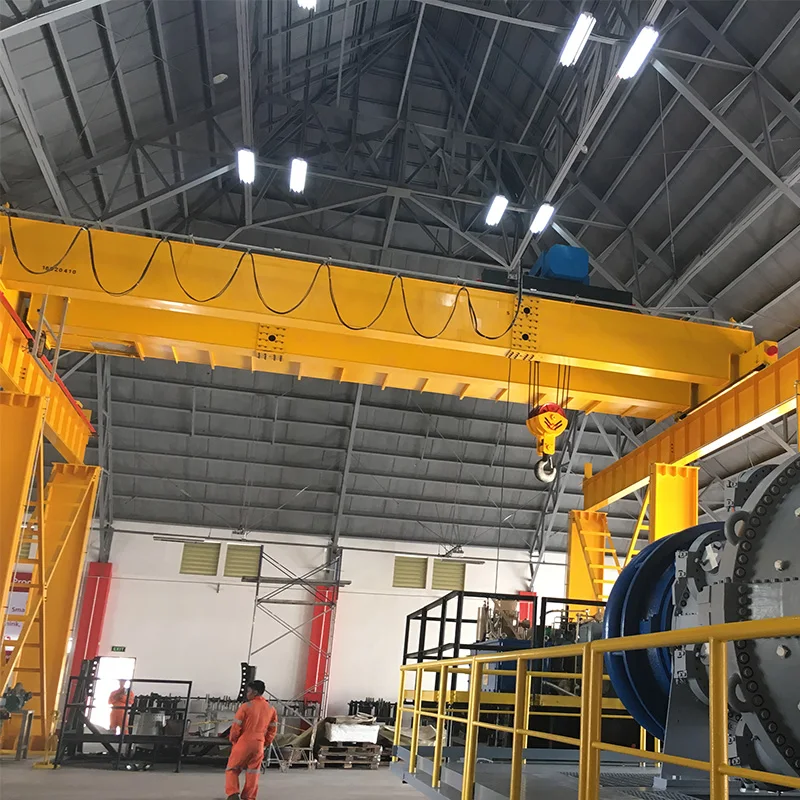

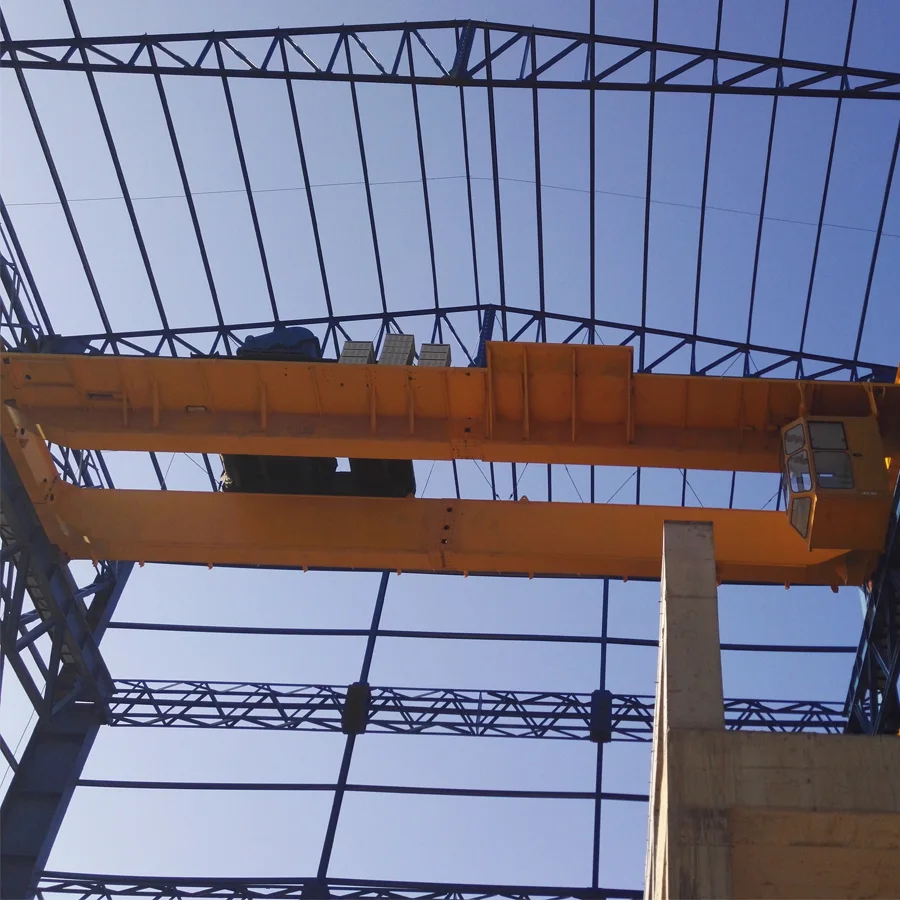

Product Picture of cabin control overhead crane
Please note :custom requires available
For the Design and Quotation, please let us know the following details:
- Capacity?
- Lifting height?
- Span?
- Industrial voltage?
- Using Environment
