hot chamber die casting machine zamak moulding injection machine
US $23850-$29270
180Ton /1800KN die casting machine machine for aluminum die casting
- Category: Die Casting Machine >>>
- Supplier: Ningbo Dongfang Die-Casting Machine Tool Co. Ltd.
Share on (843314249):
Product Overview
Description
Cold chamber Die casting machine
The cod chamber die casting machine is Easy Handling
- Completely automatic process cycle and analysis function
- Permanent process monitoring via sensors
- Extensive security installations
The cold chamber die casting machine is Secure Investment
- High efficiency and reduced scrap
- High quality casting of complex and large parts
- Extremely stable value of the machine
- Multi-shift operation possible
The cold chamber die casting machine is High Level of Flexibility
- Small up to large casting clusters
- Non-ferrous metals including zinc, aluminium, bronze and brass alloys
- Moulding chamber easily adaptable for shell-, sand- and block moulds

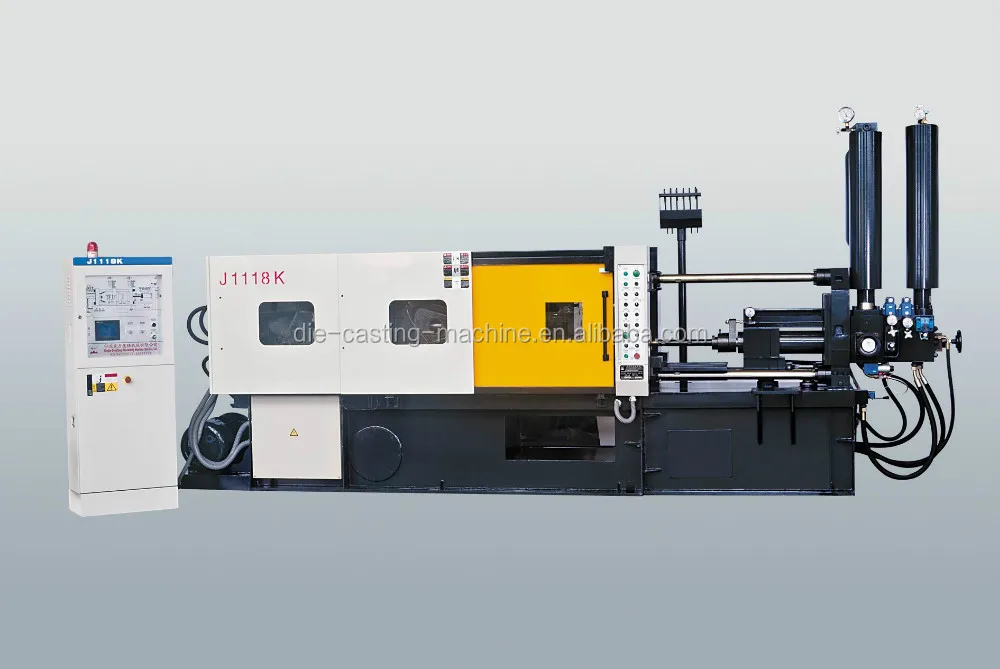

J1118K 180ton Cold chamber machine for aluminum die casting
Quick to know J1118K
- aluminum die casting
- PLC and person-machine interface
- 4-rod pilot elastic framework for excellent rigidity
- Advanced double-loop and 4-step hydraulic injecting system
- Relief and flow control valves
- Efficiency: maximum injection rate over 6m/s
- minimum boosting time less than 20ms
The machine is widely used for mass production of foundry goods from nonferrous metals such as aluminum, zinc and copper in various industries including automobiles, motorcycles, meters and instruments, household appliances, and daily-use hardware.

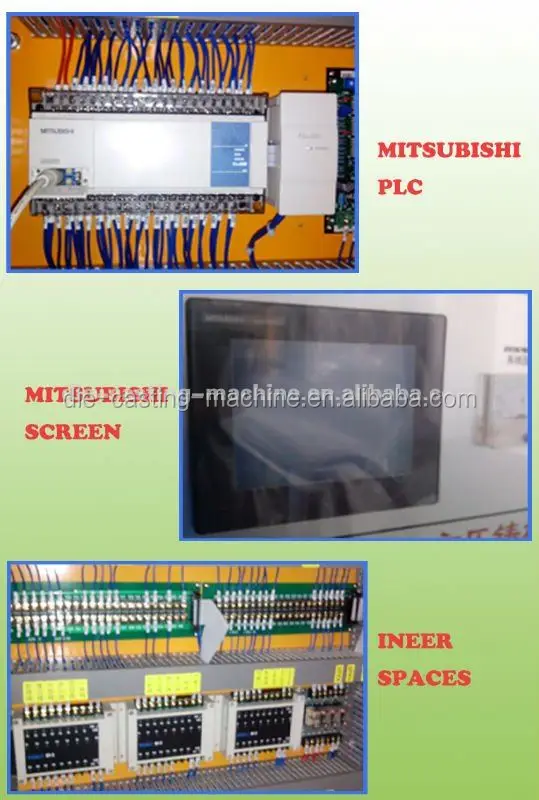

The machine is equipped with programmable logic controller(PLC)and graphic operating terminal (person-machine interface) that are imported from Japan. The simple operating interface and proportional relief and flow control valves ensure easy operation of parameter and program setup.Die locking adopts crank expanding structure, 4-rod pilot elastic framework and has excellent rigidity. Advanced double-loop and 4-step hydraulic injecting system that is constant and effective; maximum injection rate over 6m/s and minimum boosting time less than 20ms. The machine is superior in performance, and offers reliable and smooth operations. It owns trouble diagnosis and shooting function, and represents the leading technology in China.
Pictures in detail(to be continued)
Parameters of J1118K 180ton cold chamber die casting machine
|
SUBJECT |
UNIT |
J1118K |
||
|
Die lock force |
kN |
1800 |
||
|

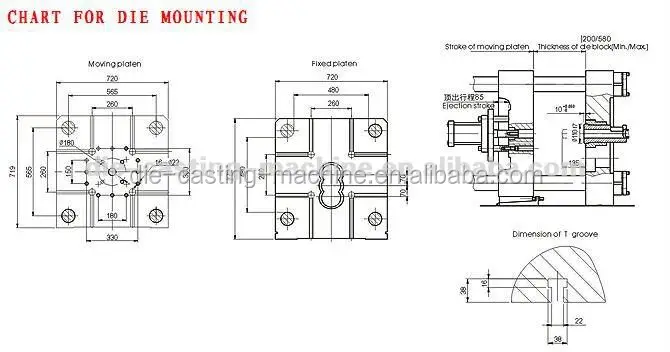

Size of moving platen (HXV) |
mm |
720X719 |
||
|
Inner space between bars(HXV) |
mm |
480X480 |
||
|
Thickness of die block(Min./Max.) |
mm |
200/580 |
||
|
Stroke of moving platen |
mm |
385 |
||
|
Ejection stroke |
mm |
85 |
||
|
Ejection force |
kN |
109 |
||
|
Injection force |
kN |
350 |
||
|
Injection stroke |
mm |
230 |
||
|
Diameter of shot sleeve |
mm |
50 |
60 |
/ |
|
Fluid metal dosage per shot(AL) |
kg |
1.9 |
||
|
Injection pressure (Min.~Max.) |
MPa |
81.3-117 |
||
|
Max. projecting area of casting |
cm2 |
221 |
||
|
Dry cycle |
s |
7 |
||
|
Pipe line pressure |
MPa |
13 |
||
|
Motor power |
kW |
15 |
||
|
Machine weight |
kg |
7000 |
||
|
Overall dimensions(LXWXH) |
mm |
5600X1280X2560 |
||

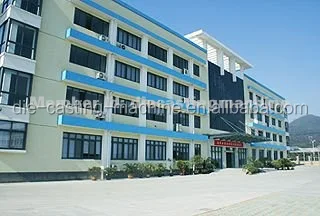

About Us
In Ningbo Dongfang Die-casting machine Tool Co.,Ltd., the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 37 years, we always have perisistently pursue to provide perfect hot/ cold chamber die casting machine and sincere service.
* With a history of over 37 years * Factory Area : 40,000 square meters
*Employees : More than 500 *Production Capacity : 10,00-sets yearly capacity
*Company owed Tech & Research center * Main Machines: 100sets
