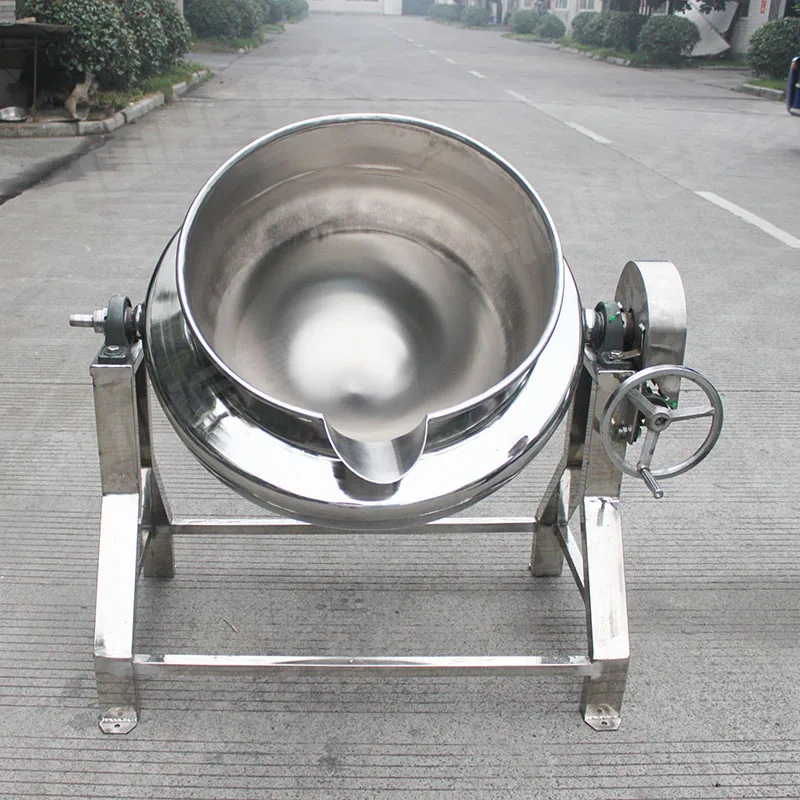

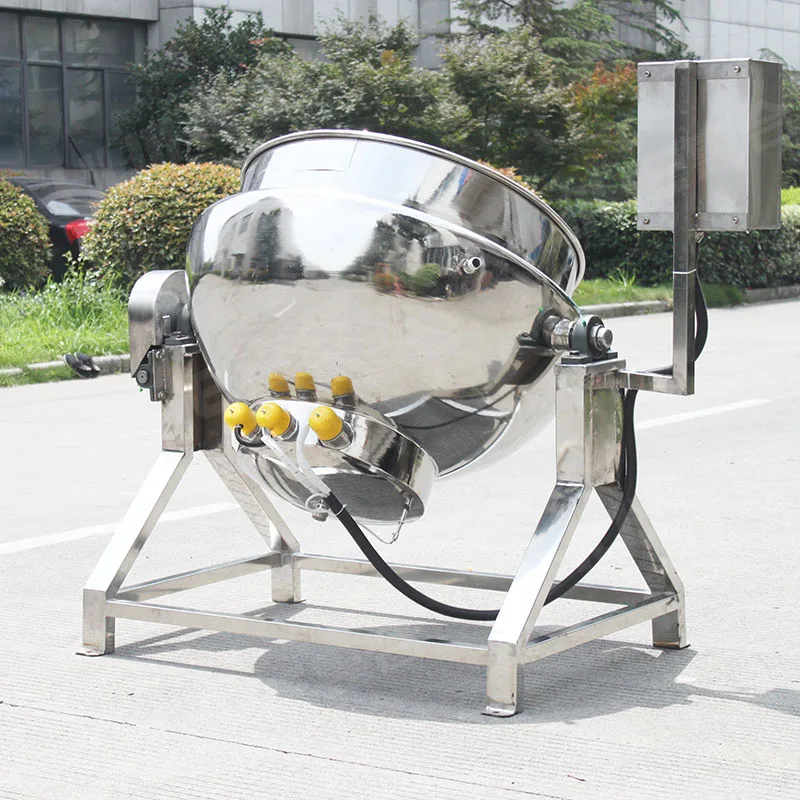

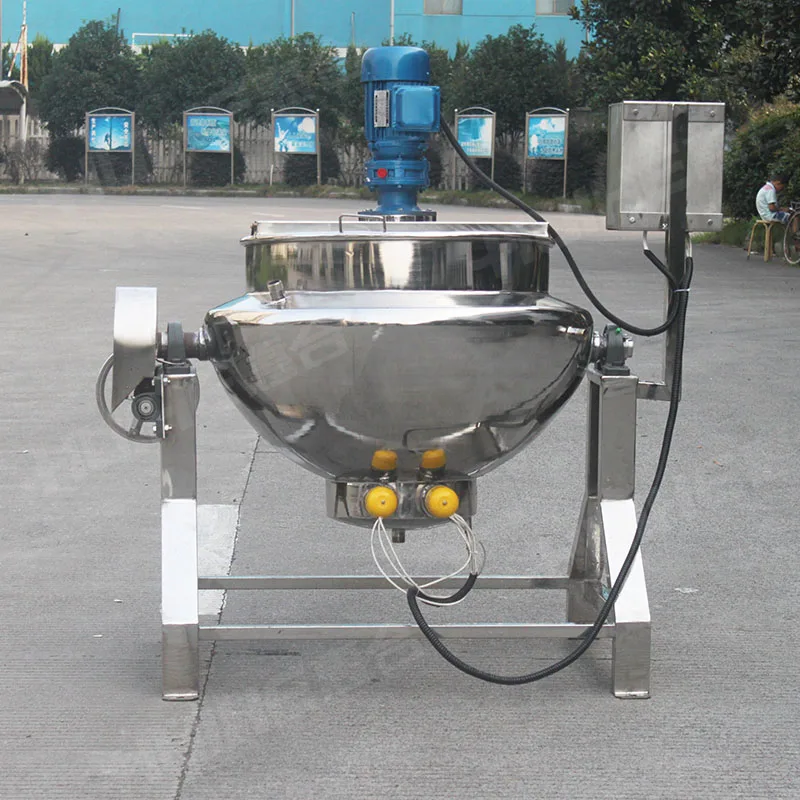

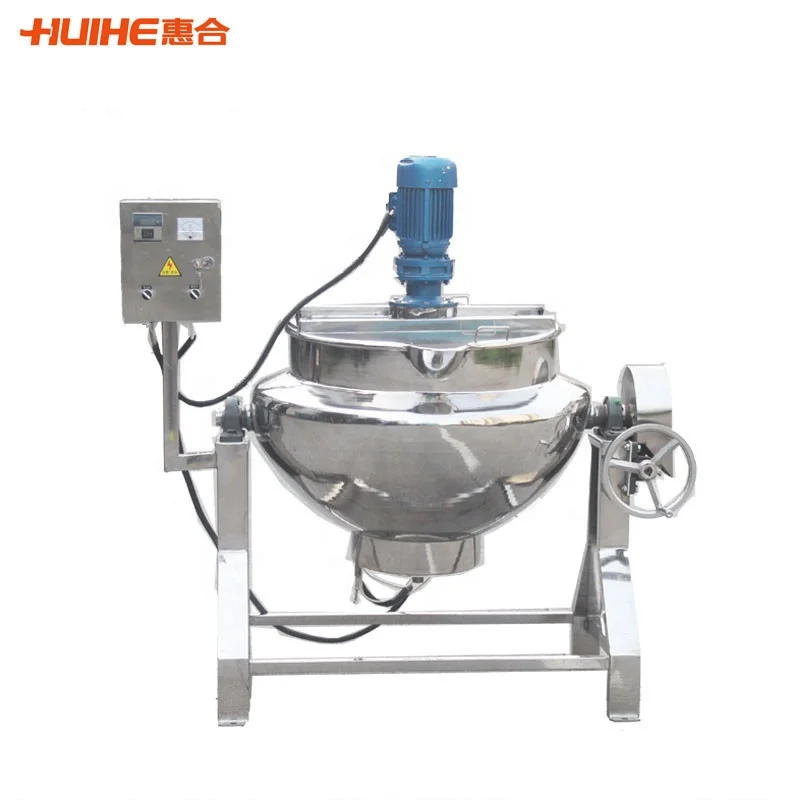

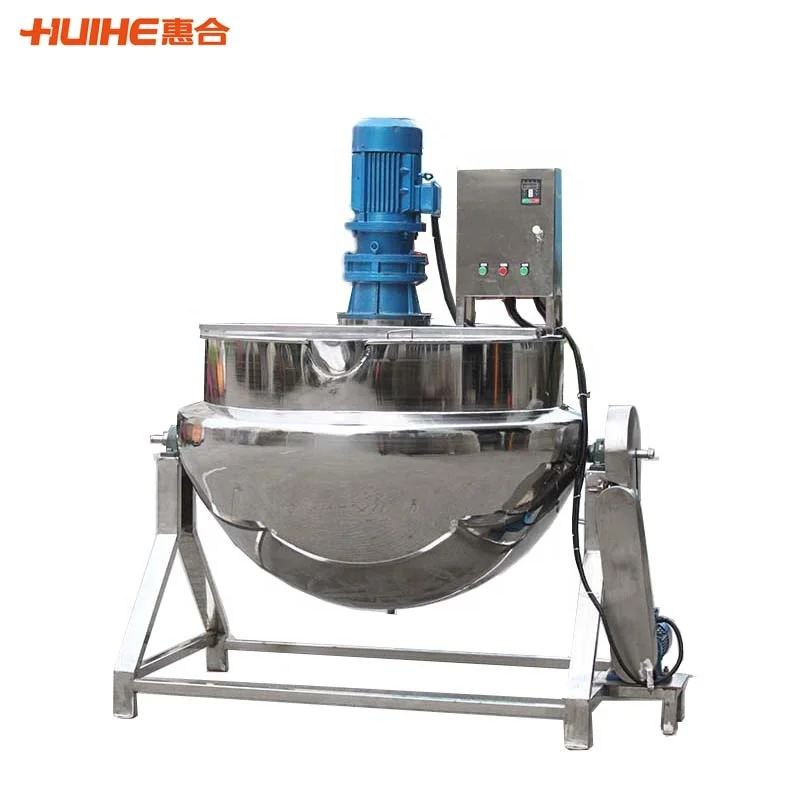

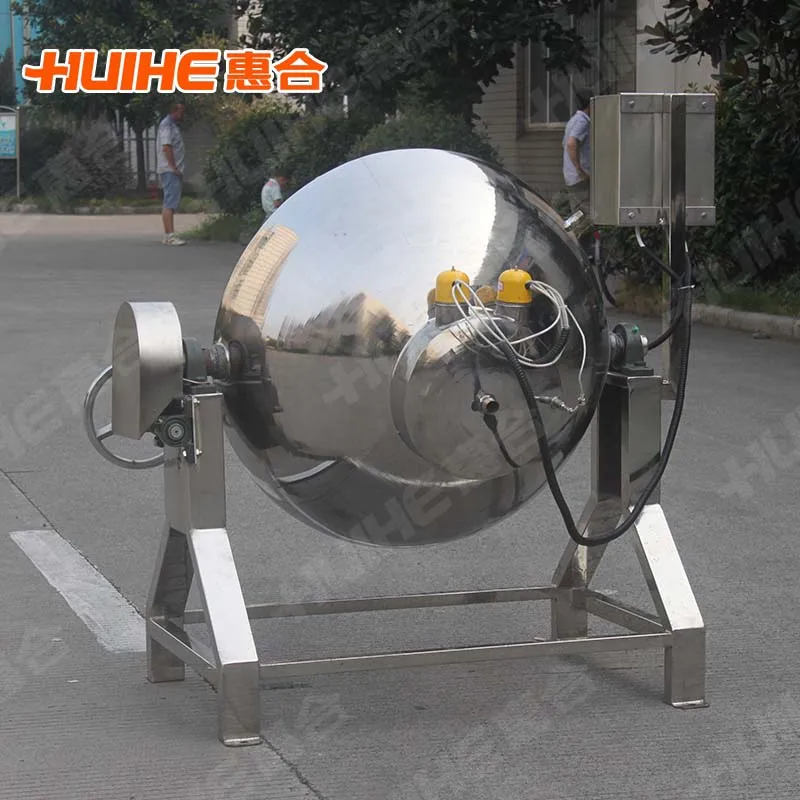

300 Liter Electric Heating Jacketed Cooking Kettle
- Category: >>>
- Supplier: Hangzhou Huihe Food Technology Co. Ltd.
Share on (844786802):
Product Overview
Description
PRODUTION INFOMATION
Name: jacketed cooking kettle machine
Capacity: 50L-1000L

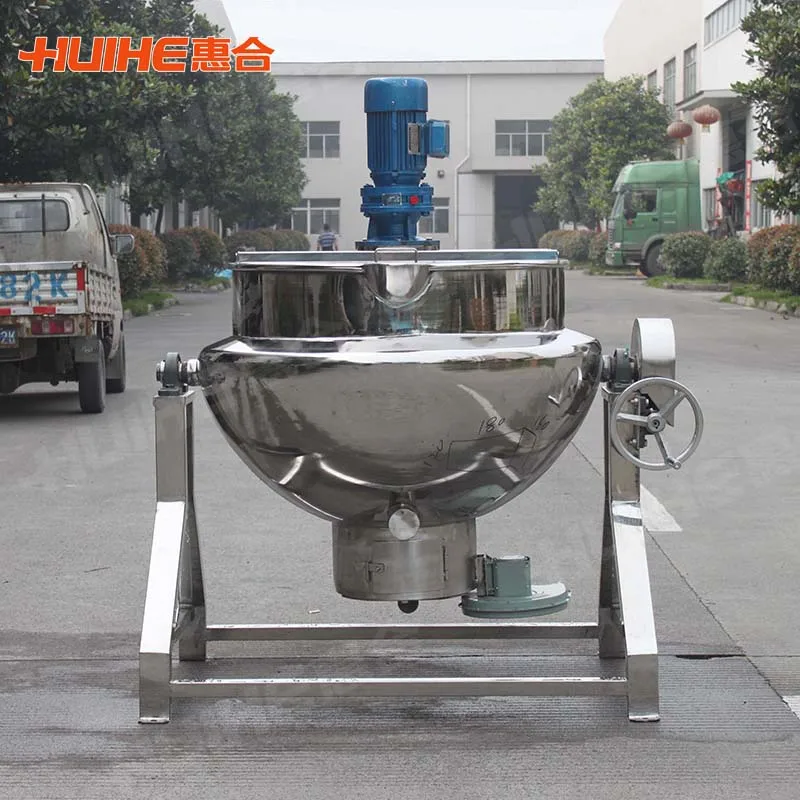

With Agitator and jacket
Material: SS304 and SS316

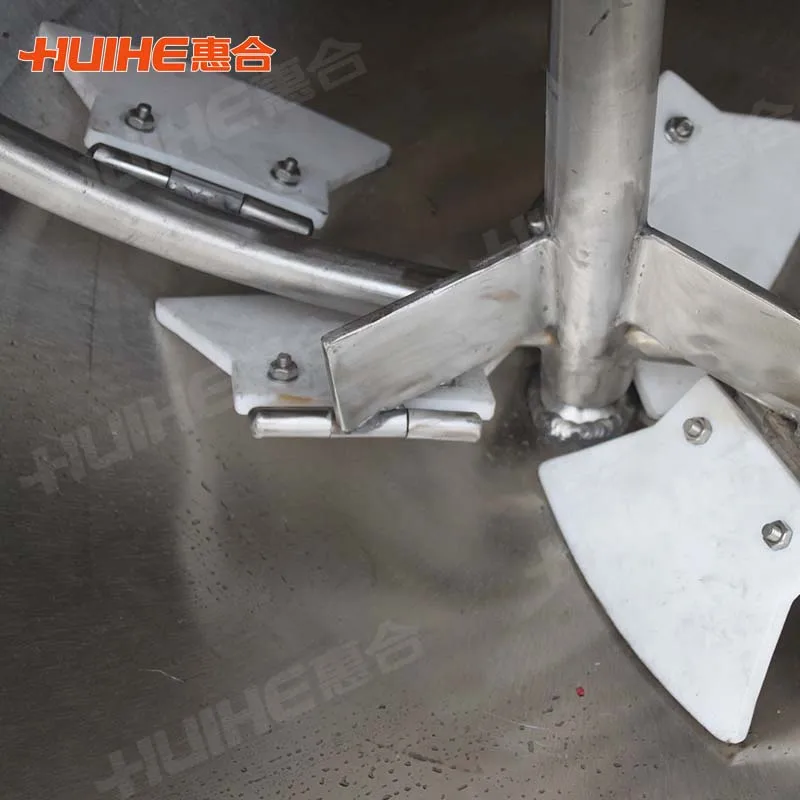

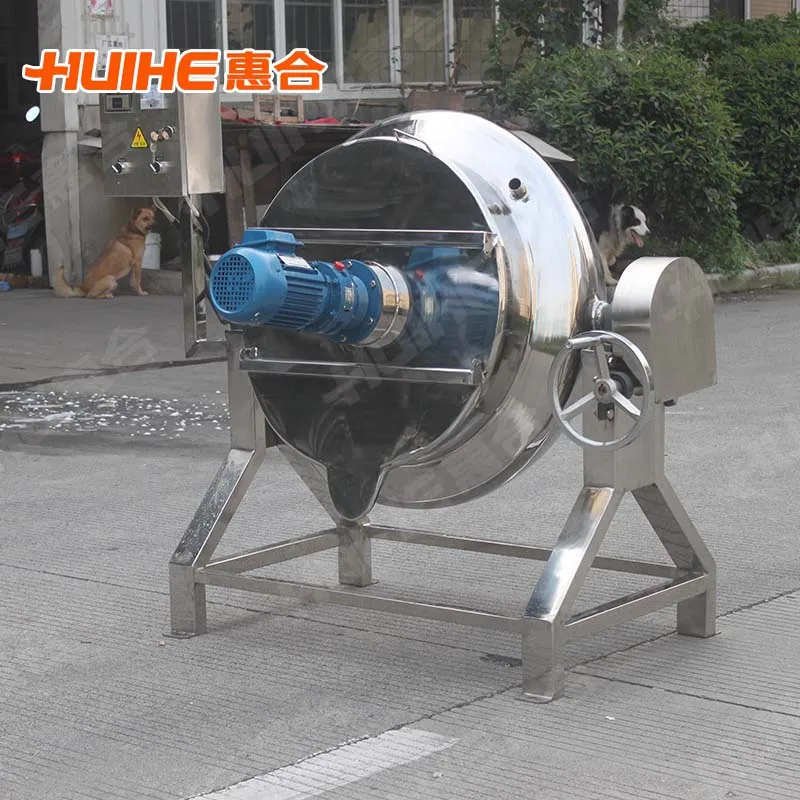

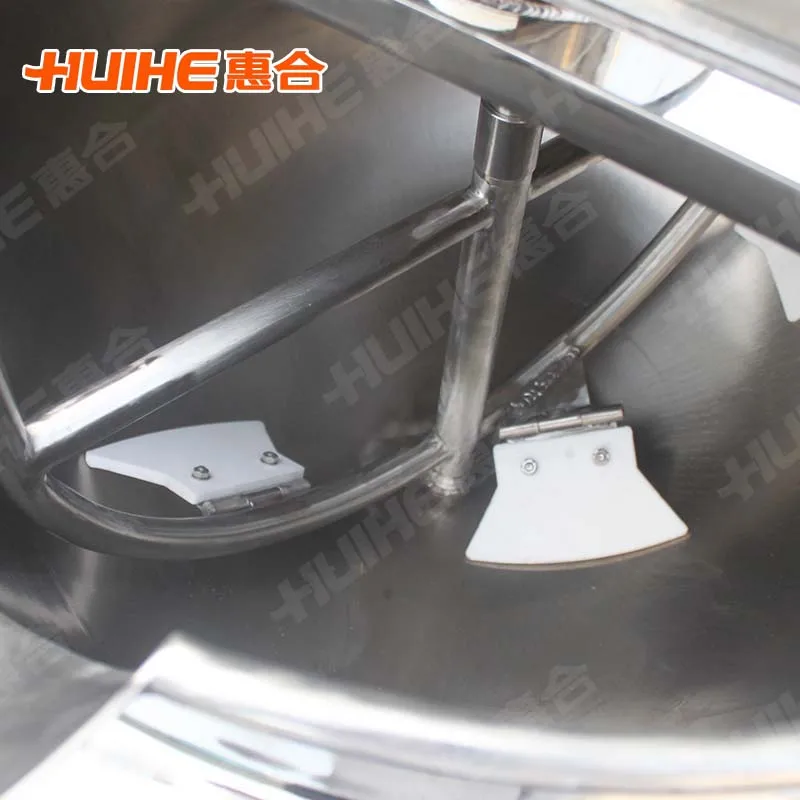

1. The mixer motor speed 8 RPM ,the motor with some ball joint that move away for cleaning. As the blades.
2.Inner layer 4mm (stainless steel (304) 4mm)
3.Insulation layer 2mm(stainless steel (304) 2mm)
4.the base of kettle is 5mm(stainless steel (304) 5mm)
5.interlayer working pressure:0.3mp
6.evaporative power:30kg/h
7.heating area :0.4m2,The max temperature is:270
8.Consumption of energy :33kg/h
9. Dimension: 720*600*830mm,weight:170kg.

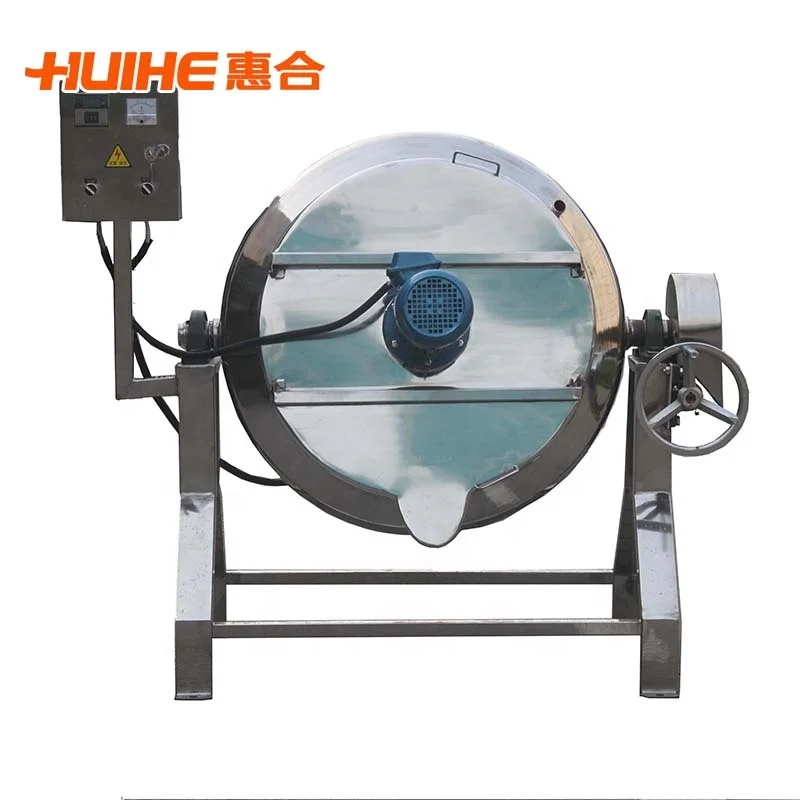

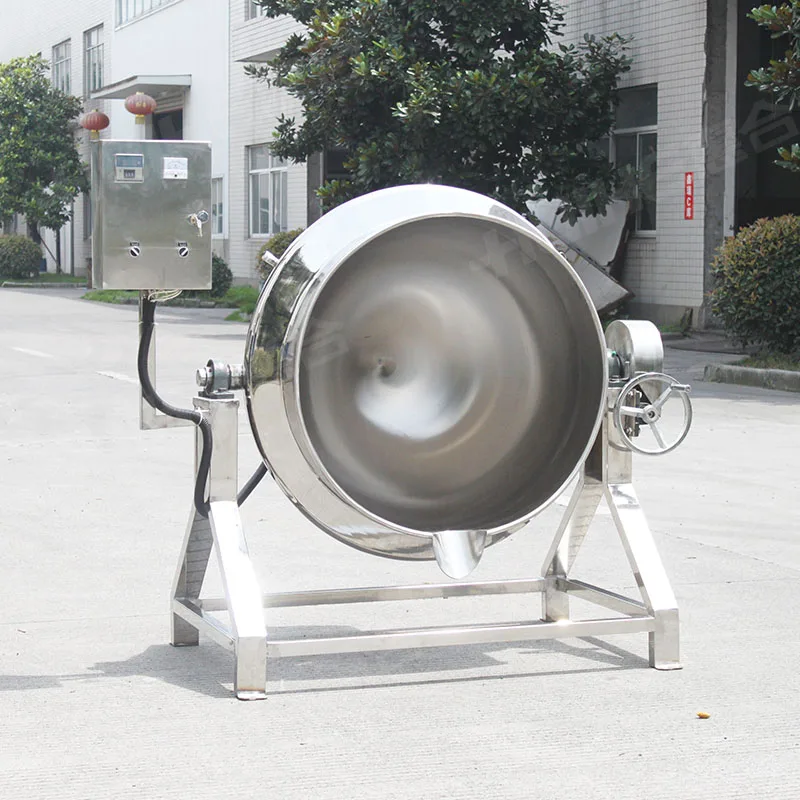

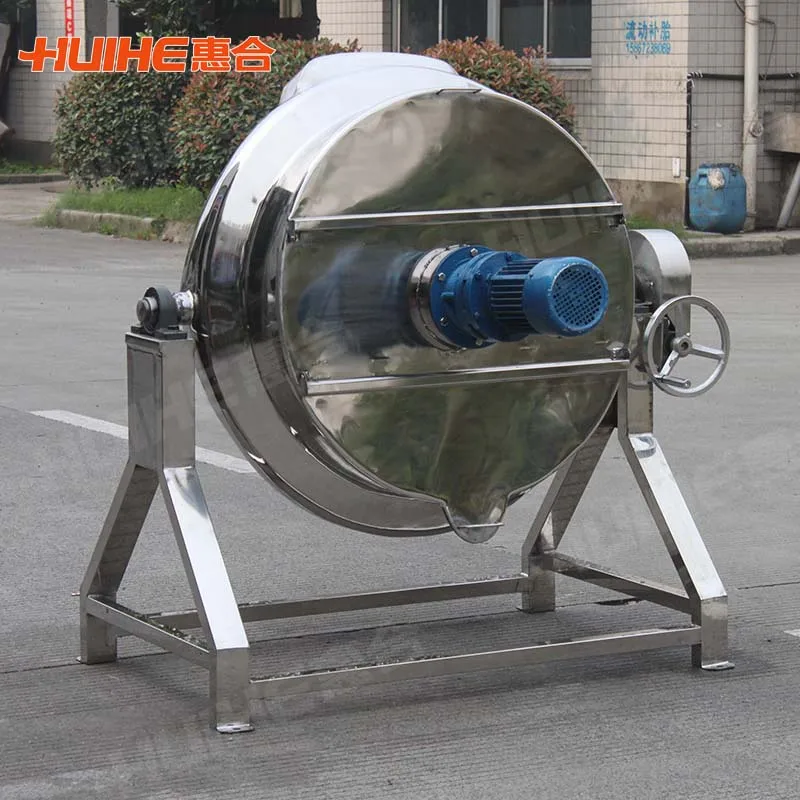

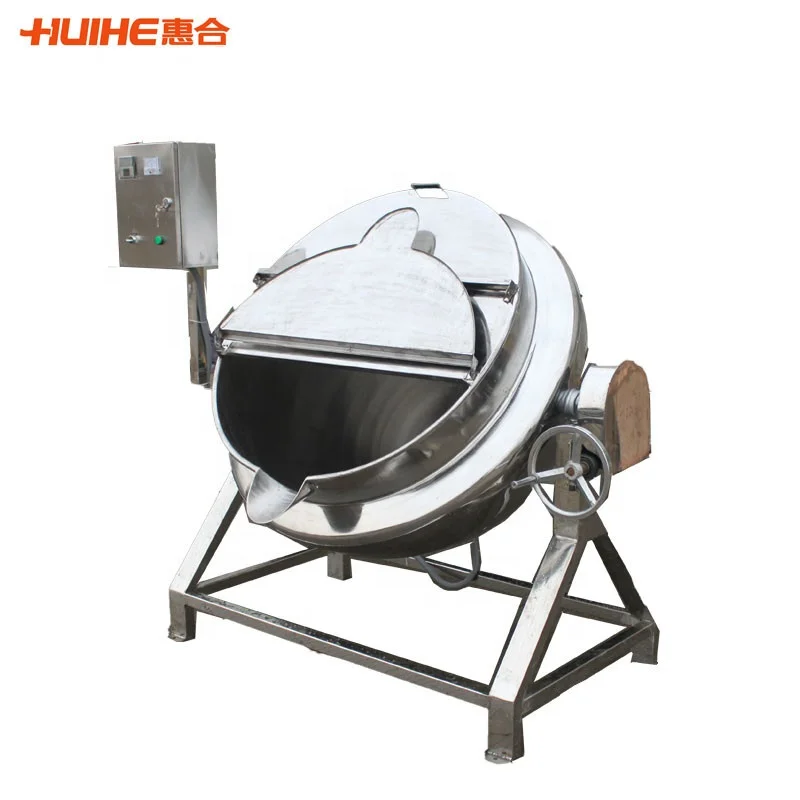

10. Heating ways: Tilting&Agitation Jacketed Kettle(cooker, kettle, boiler)
the heating medium is heat transfer oil.
(burner is the highly-efficient &energy saving) we will finished installation with the kettle. Then ship to you.
Model | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
Caliber(mm) | Φ600 | Φ700 | Φ800 | Φ900 | Φ1000 | Φ1100 | Φ1200 | Φ1400 | Φ1500 |
Depth of Pot (mm) | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 |
Heating area(m2) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 |
Amount of heat-conducting oil(L) | 30 | 36 | 45 | 60 | 70 | 80 | 100 | 200 | 250 |
Working pressure | ≤0.09Mpa(can be adapted according to customers’ requirement) | ||||||||
Stirring speed | 36 r/min(can be adapted according to customers’ requirement) | ||||||||
Stirring power(kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
Notes:
1. The stirring power in the chart is standard configuration. Any specific requirements, please let us know.
2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’ requirement.
3. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material, working pressure, temperature, specific requirements, etc.
Technical Requirements of Jacketed Kettle
1. File support: the structural size drawing of the device (PDF) and instructions are available.
2. Required by operated function, the following criteria are adopted to design, manufacture and test
A. << Standards for quality control of pharmaceutical production (Revised 1998)>> terms of Chapter IV 31-37;
B. << The Steel Pressure Vessel (GB150-1998)>>;
C. << The Steel Welding Normal Pressure Vessel (JB/T 4735-1997)>>;
D. << Food Machinery Safety and Heath (GB 16798-1997)>>.
