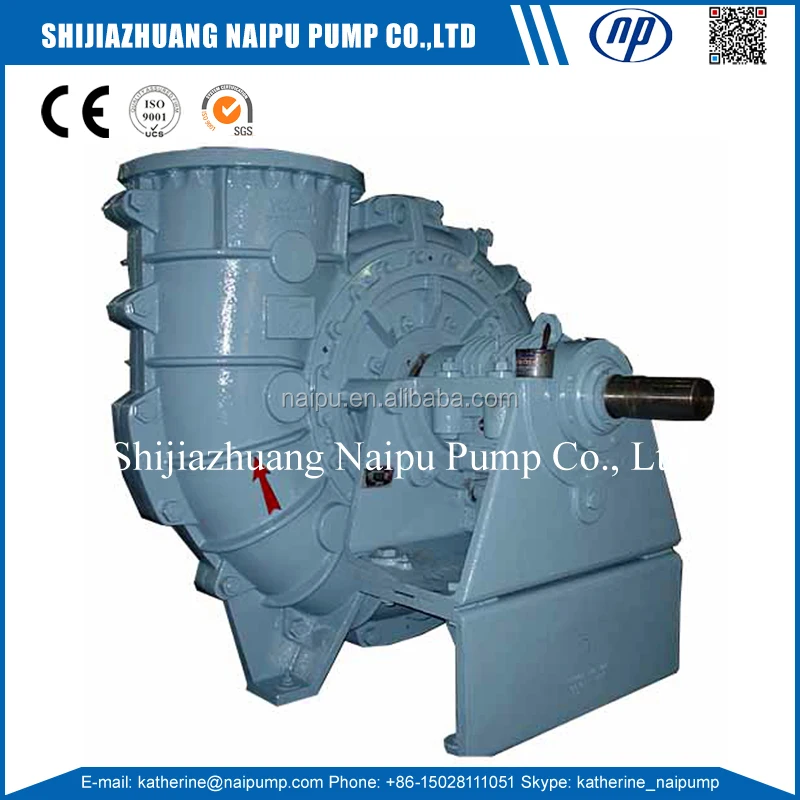

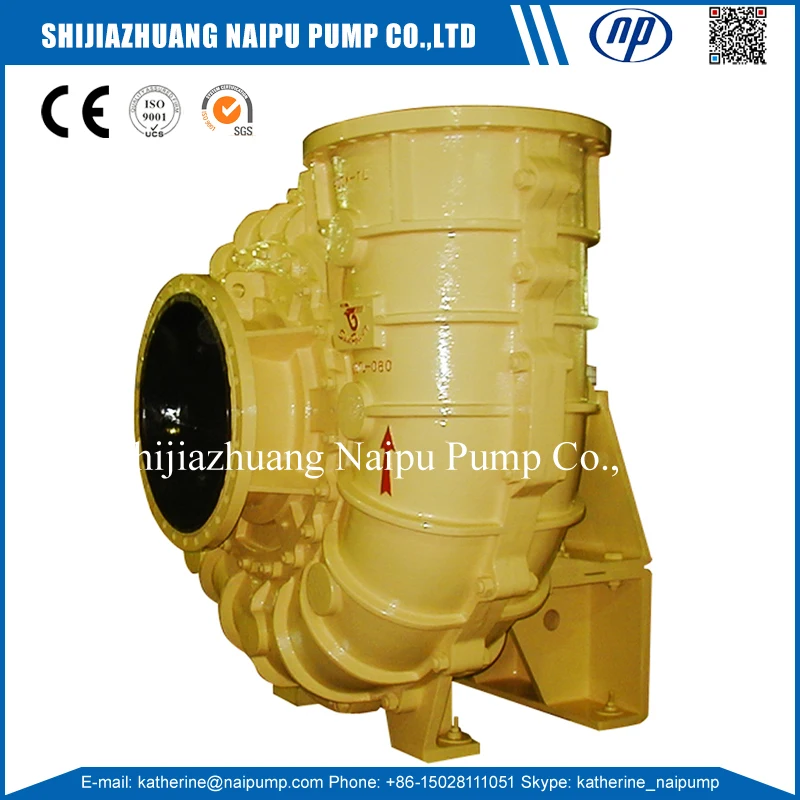

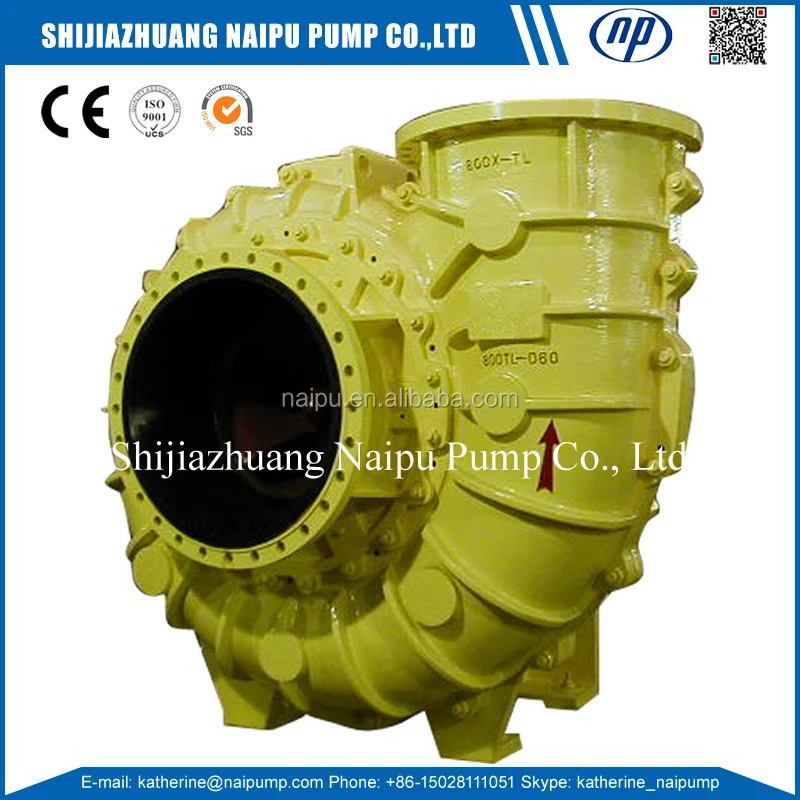

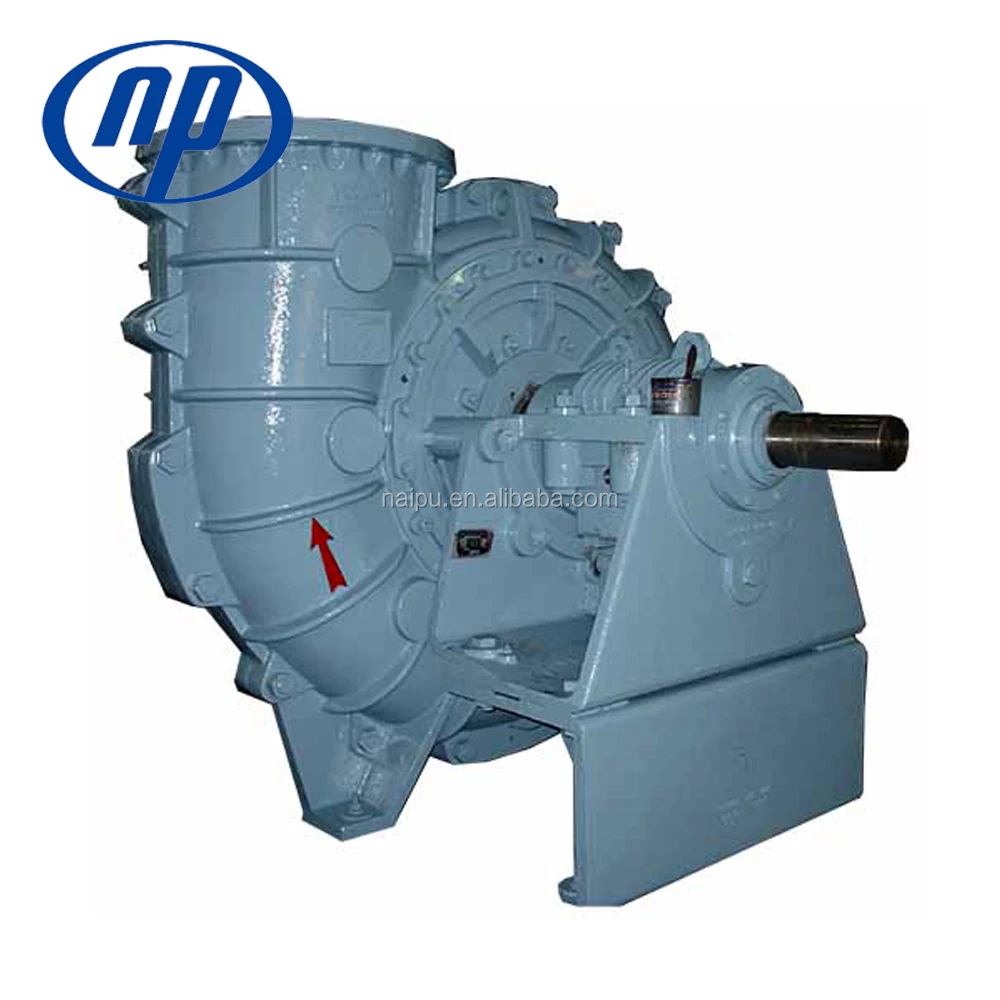

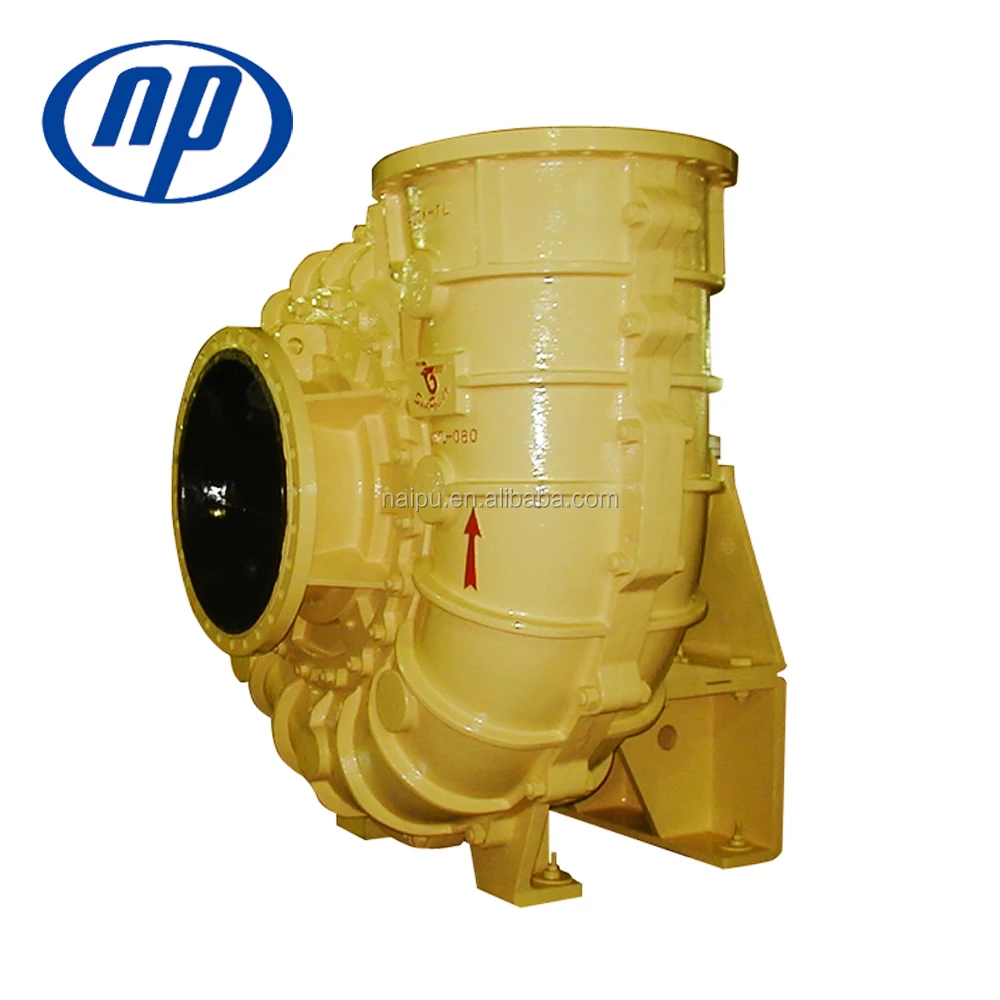

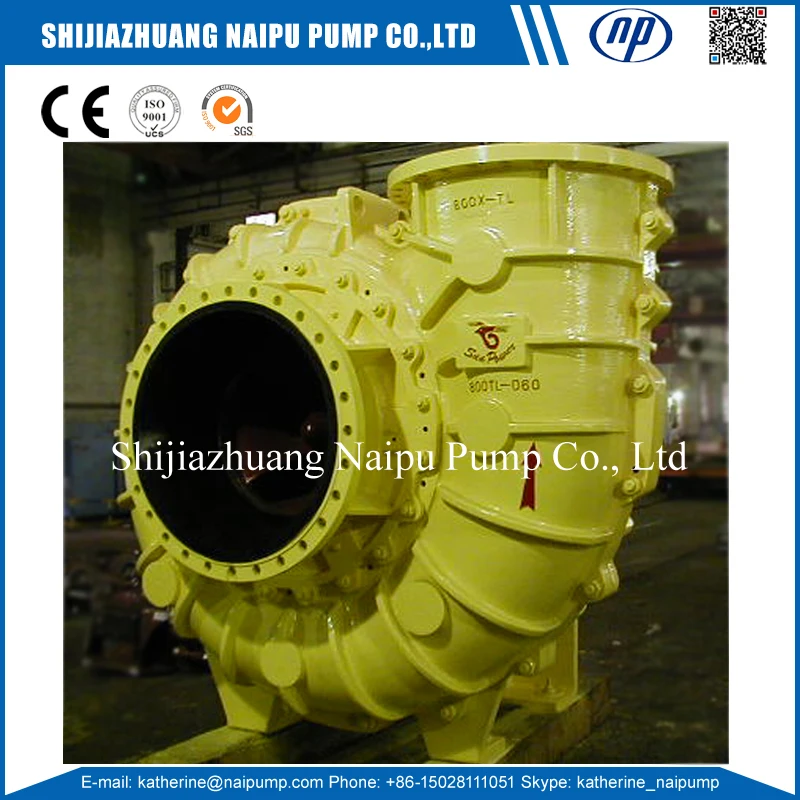

TL(R) Type Heavy Duty FGD Slurry Pump for Desulfurizing Processing
Product Description
The desulphurization pump are mainly used to handle slurry with smoke in absorption tower of electric power station, that is thermal power plant FGD (Flue Gas Desulfurization) Project.
Desulfurization Pump Description:
1) The pump restricting parts adopt the advanced flow simulation technology to guarantee the reliable pump design and the high operating efficiency.
2) The anti-corrosion & anti-wear metal and rubber materials which are specifically developed for FGD pumps have been proved by the practice that, they can ensure the longlife pump operation.
Through adjusting the bearing components to change the impeller position in the pump chamber alltime highefficient operation of the pump can be achieved. The pump is characterized by the back knock-down structure which is simple and advanced.
3) It is easy to maintain and repair and it is on need dismantling inlet and outlet water pipes. The containerized mechanical seal specially used for the desulphurization process is adopted and its operation is reliable.
Slurry Pump Material Selection:
Naipu have developed a new kind of specialized material which possesses the duplex stainless steel's anti-corrosive property and the high chrome white iron's anti-abrasive property in FGD process.
In the rubber pump casing, impeller, suction cover/cover plate are all made of specialized anti-wear and anti-corrosive material: the material of front liner, back liner and back liner insert are natural rubber having excellent anti-corrosive property.
In metal pump casing, impeller, volute liner, suction plate and back plate are all made of specialized anti-wear and anti-corrosive material, the suction cover are made of ductile iron with rubber.
Type | Capacity (m3/h) | Head (m) | Speed (r/min) | Maximum efficiency η(%) | NPSH (m) | Outlet diameter (mm) | Inlet diameter (mm) |
350X-TL(R) | 1600 | 25 | 960 | 82 | 4.5 | 350 | 400 |
400X-TL(R) | 2500 | 25 | 725 | 83 | 5.0 | 400 | 450 |
500X-TL(R) | 3750 | 25 | 725 | 85 | 5.0 | 500 | 500 |
600X-TL(R) | 6300 | 25.5 | 620 | 88 | 5.5 | 600 | 700 |
700X-TL(R) | 6840 | 26 | 485 | 87 | 6.0 | 700 | 800 |
800X-TL(R) | 9360 | 31 | 485 | 90 | 7.0 | 800 | 900 |
900X-TL(R) | 15000 | 30 | 485 | 90 | 8.5 | 900 | 1000 |
1000X-TL | 10440 | 15 | 485 | 89 | 7.0 | 1000 | 1200 |
Detailed Images
Certifications
CE, SGS, ISO9001 Certification
Naipu Slurry Pump Models
NPAH(R) | L(R), M | HH | SP(R) | G | AF Series |
1.5/1B-NPAH(R) | 20A-L | 1.5/1 C-HH | 40PV-SP(R) | 6/4D-G | 2QV-AF |
2/1.5B-NPAH(R) | 50B-L(R) | 3/2D-HH | 65QV-SP(R) | 8/6E-G | 3QV-AF |
3/2C-NPAH(R) | 75C-L | 4/3E-HH | 100RV-SP(R) | 10/8F-G | 6SV-AF |
4/3C-NPAH(R) | 100 D-L | 4/3X-HH | 150SV-SP(R) | 10/8S-G | 8SV-AF |
6/4D-NPAH(R) | 150E-L | 6/4F-HH | 200SV-SP | 12/10G-G |
|
6/4E-NPAH(R) | 300S-L | 6/4X-HH | 250TV-SP | 14/12G-G |
|
8/6E-NPAH(R) | 10/8 R-M | 6S-H |
| 14/12T-G |
|
8/6R-NPAH(R) | 10/8 E-M | 8/6S-H |
| 16/14 G-G |
|
10/8F-NPAH(R) |
| 8/6X-H |
| 16/14TU-GH |
|
10/8X-NPAH(R) |
| 6S-HP |
| 16/14H-GH |
|
12/10ST-NPAH(R) |
| 8/6S-HP |
| 18/16G-G |
|
14/12ST-NPAH(R) |
| 8/6X-HP |
| 18/16TU-GH |
|
16/14TU-NPAH(R) |
|
|
|
|
|
20/18G(TU)-NPAH(R) |
|
|
|
|
|
Related Products
Naipu pump produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.
 |  |
| 6/4 ZJ Slurry Pump | 8/6 ZJ Pump |
 |  |
| E044 | E062 |
Company Information
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps and spare parts. Which own Mould Workshop, Casting Workshp, Machining Workshop and Assembly Workshop.
Various requirement for materials in the market, Naipu offering wet end part material as following. Metal MA05, A07, A12, A33, A49, A61 and etc. Rubber R08, R26, R33, NR55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium and etc.
Given customer's special request for abrasion and erosion in pumping environments, we can supply the material according to customer's material formula or sample to meet your need.
Naipu is willing to undertake any OEM(Original Equipment Manufacture) order for pump and mining equipment accoring to the drawing or sample.
Packaging & Shipping

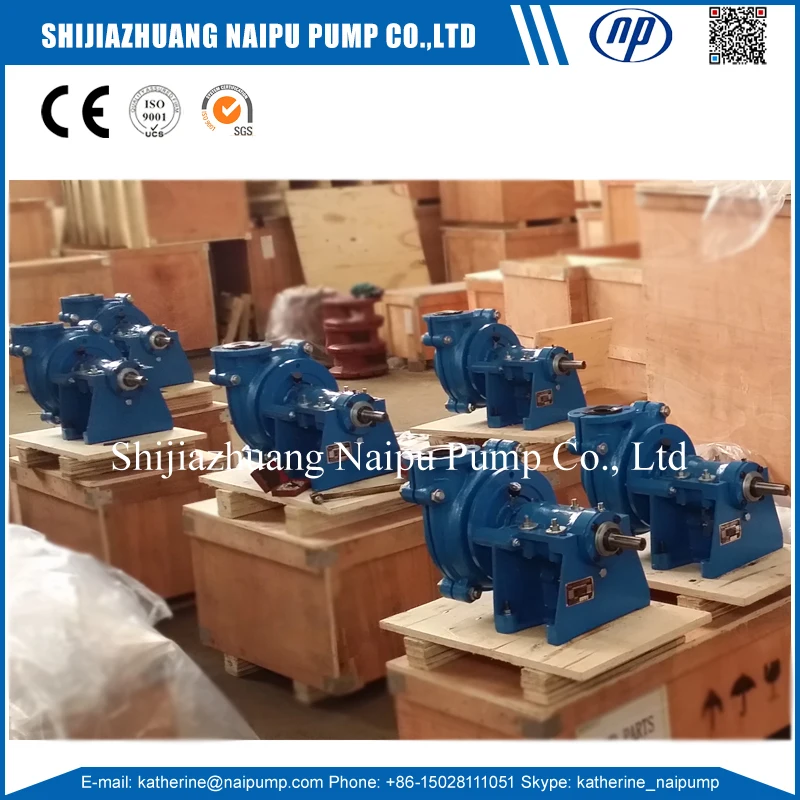

Packaging details
1. Outside package: standard export wooden cases.
2. Inner package: Stretch film.
