Soybean milk, TOFU production equipment soybean grinding separator.
- Category: >>>
- Supplier: Shanghai Tiangang Machine Manufacture Co. Ltd.
Share on (846453104):
Product Overview
Description
Soybean milk, TOFU production equipment - soybean grinding separator.
Application: Soybeans grinder machine. Suitable for make soy milk, tofu etc. Application to the unit canteens, restaurants and small food processing plants.
Features: Made of Stainless Steel ,Soybean grinding, with thickly flavored bean paste emerging all at once, Okara removal accomplished in a single operation, and flaky Okara discharged at the same time.
Features: Made of Stainless Steel ,Soybean grinding, with thickly flavored bean paste emerging all at once, Okara removal accomplished in a single operation, and flaky Okara discharged at the same time.

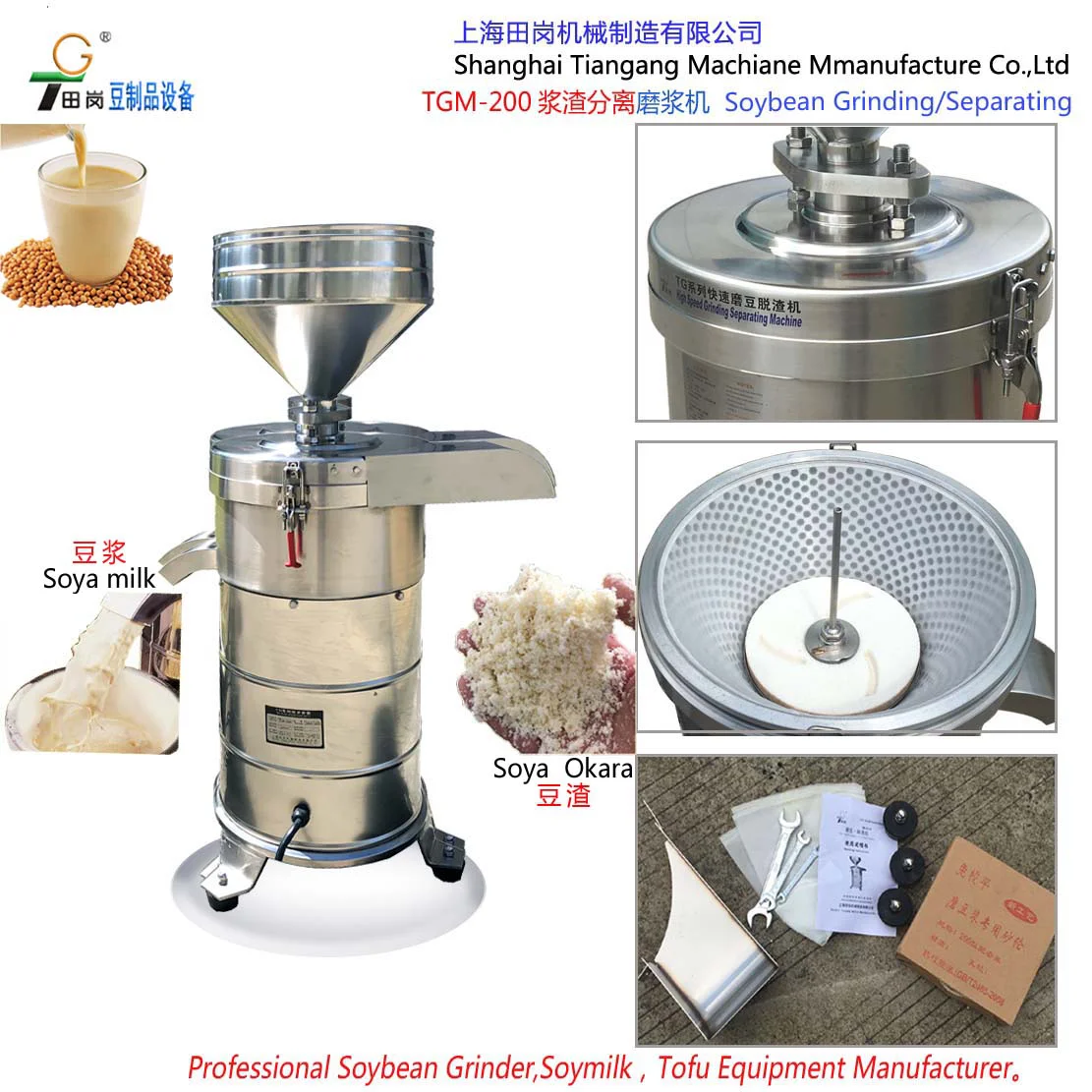

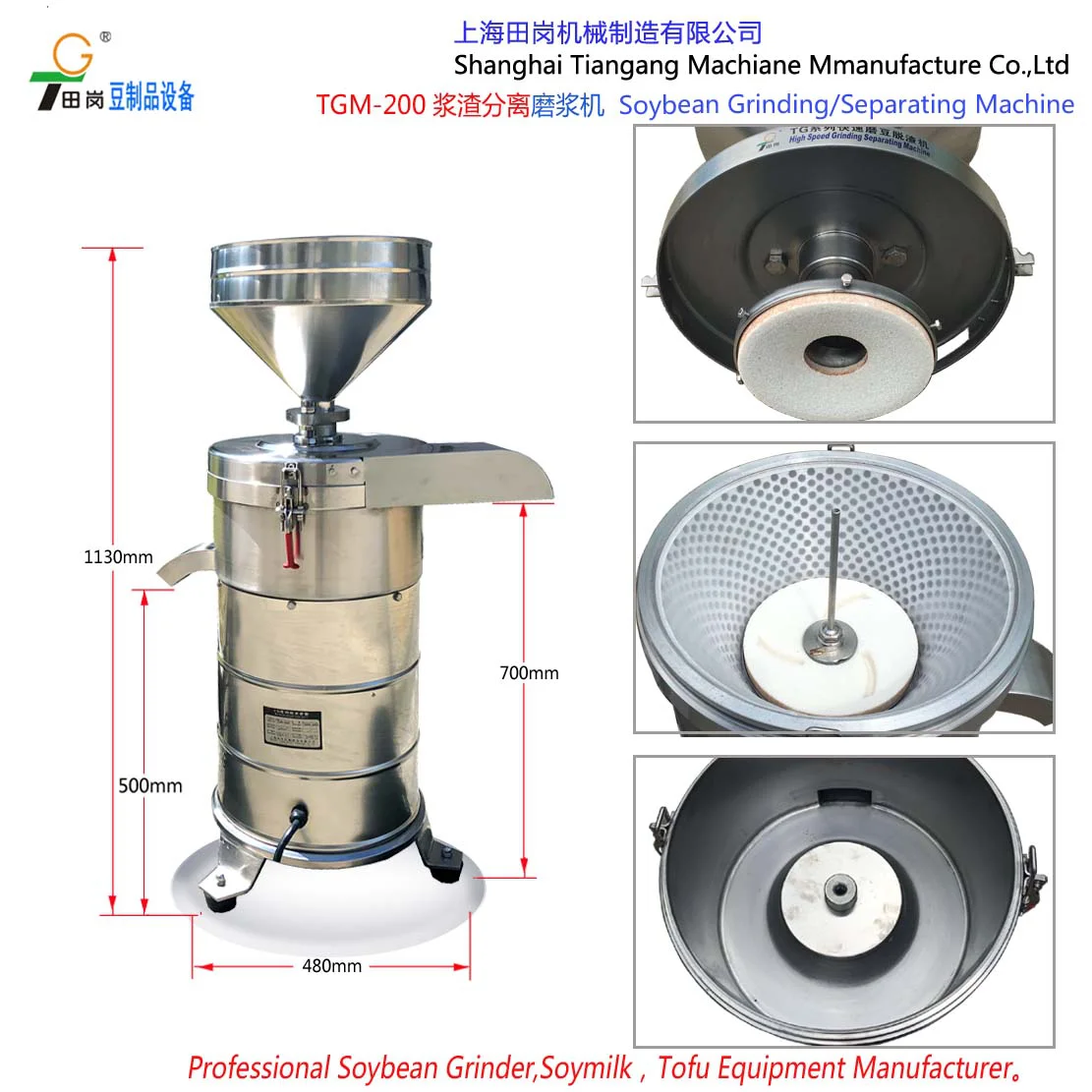

TGM-200 Main Data ：
Voltage:380V/50Hz;Power:5KW;
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:100-175kgs/hr（Dried soybean calculation）
Diameter of grinding stone :200mm；
Material of grinding stone:white corundum；
Weight:96kgs；Size: 480*600*1150mm;
Gross Weight:105kgs；Packing size:530*470*1250mm；
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:100-175kgs/hr（Dried soybean calculation）
Diameter of grinding stone :200mm；
Material of grinding stone:white corundum；
Weight:96kgs；Size: 480*600*1150mm;
Gross Weight:105kgs；Packing size:530*470*1250mm；
Brief Introduction.
1. The unique feed mechanism, special grinding device for the bore and motor, effectively solve the problem of water leakage of the equipment.
2. The well-designed grinding chamber can make the slurry flow smoothly, less material accumulation and easy cleaning.
3. Practical and unique adjustment mechanism of fine and fine pitch, convenient adjustment and reliable locking.
4. The specially formulated grindstone has long service life and high output.
5. Clean and sanitary, the whole working flow channel from feeding, grinding to discharging is made of all stainless steel;
2. The well-designed grinding chamber can make the slurry flow smoothly, less material accumulation and easy cleaning.
3. Practical and unique adjustment mechanism of fine and fine pitch, convenient adjustment and reliable locking.
4. The specially formulated grindstone has long service life and high output.
5. Clean and sanitary, the whole working flow channel from feeding, grinding to discharging is made of all stainless steel;
Application:
It is suitable for soy beans and soy beans after soaking, soaking soft goods, grinding and other functions.
It is suitable for soy beans and soy beans after soaking, soaking soft goods, grinding and other functions.
TGM-100 Main Data ：
TGM-100 Main Data ：
Voltage:220v/50Hz;Power:750w;(Can be customized)
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:15-20kgs/hr（Dried soybean calculation）
Diameter of grinding stone :95mm；
Material of grinding stone:white corundum；
Weight:22kgs；Size: 320*360*720mm;
Gross Weight:28kgs；Packing size:300*320*800mm
Voltage:220v/50Hz;Power:750w;(Can be customized)
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:15-20kgs/hr（Dried soybean calculation）
Diameter of grinding stone :95mm；
Material of grinding stone:white corundum；
Weight:22kgs；Size: 320*360*720mm;
Gross Weight:28kgs；Packing size:300*320*800mm
TGM-100B Main Data ：
Voltage:220v/50Hz;Power:750w;
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:15-20kgs/hr（Dried soybean calculation）
Diameter of grinding stone :95mm；
Material of grinding stone:white corundum；
Weight:26kgs；Size: 460*600*1150mm;
Gross Weight:36kgs；Packing size:460*320*1200mm；
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:15-20kgs/hr（Dried soybean calculation）
Diameter of grinding stone :95mm；
Material of grinding stone:white corundum；
Weight:26kgs；Size: 460*600*1150mm;
Gross Weight:36kgs；Packing size:460*320*1200mm；
TGM-130B Main Data ：
Voltage:220v/50Hz;Power:1500W;(Can be customized)
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:35-65kgs/hr（Dried soybean calculation）
Diameter of grinding stone :125mm；
Material of grinding stone:white corundum；
Weight:45kgs；Size: 360*480*880mm;
Gross Weight:53kgs；Packing size:380*420*1020mm；
Speed:2880 R.P.M ；Filter:100 mesh ,
Capacity:35-65kgs/hr（Dried soybean calculation）
Diameter of grinding stone :125mm；
Material of grinding stone:white corundum；
Weight:45kgs；Size: 360*480*880mm;
Gross Weight:53kgs；Packing size:380*420*1020mm；
TGM-200B multi-function food grinding machine
Uses: Make sesame sauce, peanut butter, chili sauce and soy milk, rice syrup, and other foods soaked in soft items.
Technical Parameters:
Power supply: 380V/50Hz; power: 4KW; speed: 1430 R.P.M
Production: 80-150kg / hour; grinding wheel diameter: 200mm
Weight: 96kgs;Size: 480*520*1150mm,
gross weight: 105kg ;package size: 530*480*1250mm
Technical Parameters:
Power supply: 380V/50Hz; power: 4KW; speed: 1430 R.P.M
Production: 80-150kg / hour; grinding wheel diameter: 200mm
Weight: 96kgs;Size: 480*520*1150mm,
gross weight: 105kg ;package size: 530*480*1250mm
TGM-300 Main Data ：
This device of wet grinding equipment which is a novel stainless steel ,used in the food class materials for wet milling processing of wet grinding., such as rice, soybeans, corn, etc soybeans and soaked soft foods grinding.
Voltage：380v/50Hz,Power:7.5kW;Motor Speed：1440r/min;Capacity：beans 300kgs/hr;
Grinding stone Diameter:300mm;
Weight:180kg；Size: 540*580*1250mm;
Gross Weight:195kgs；Packing size:520*540*135mm
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.

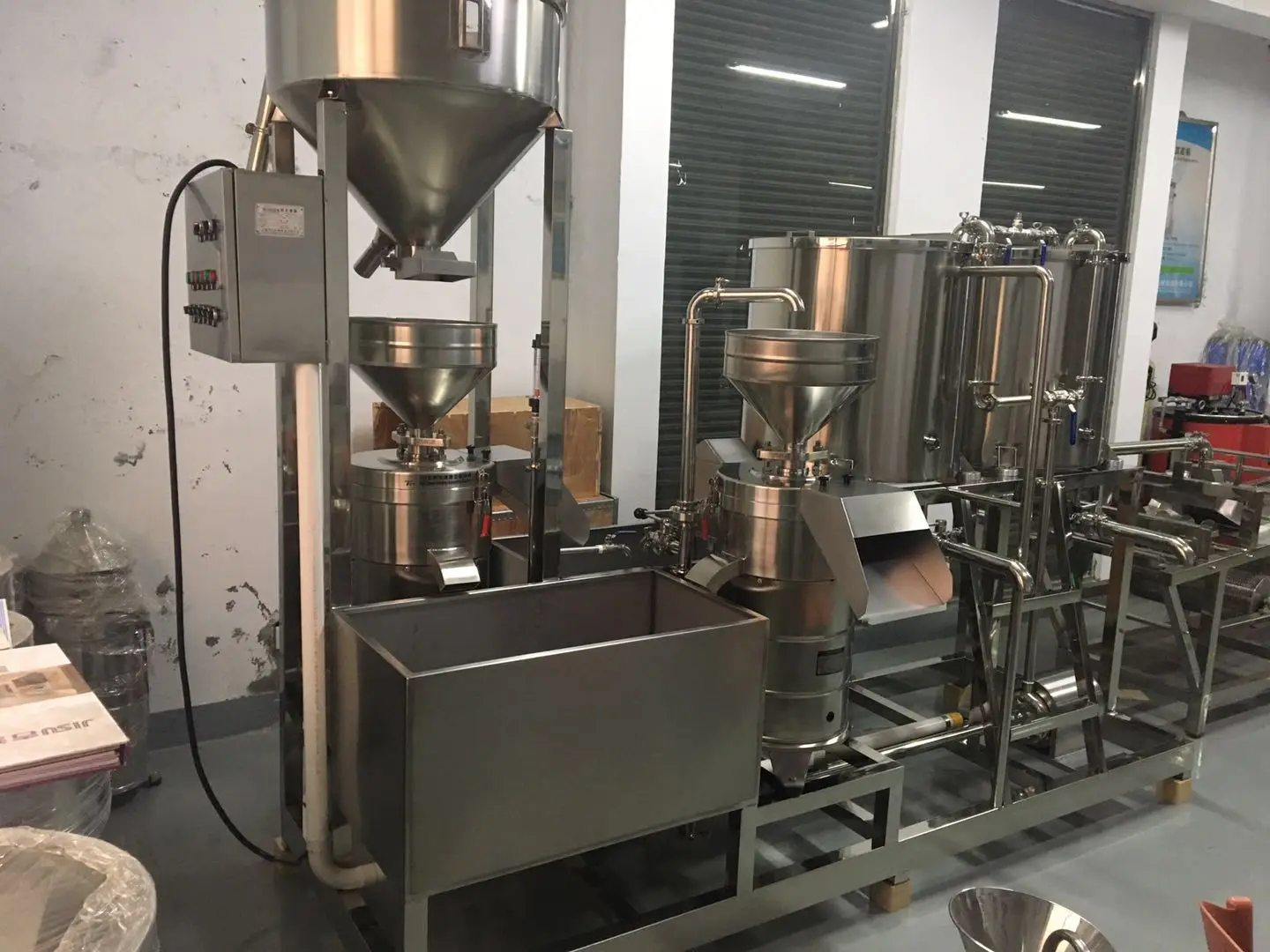

Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
