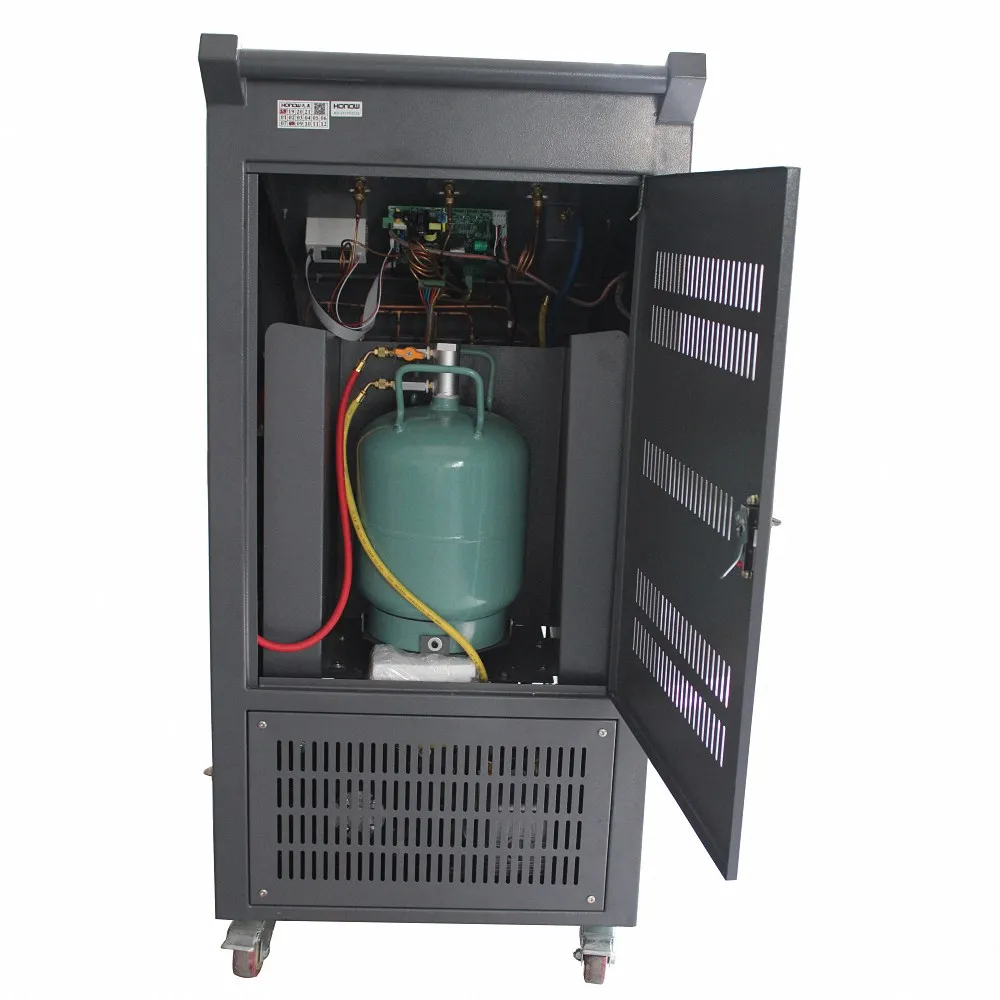

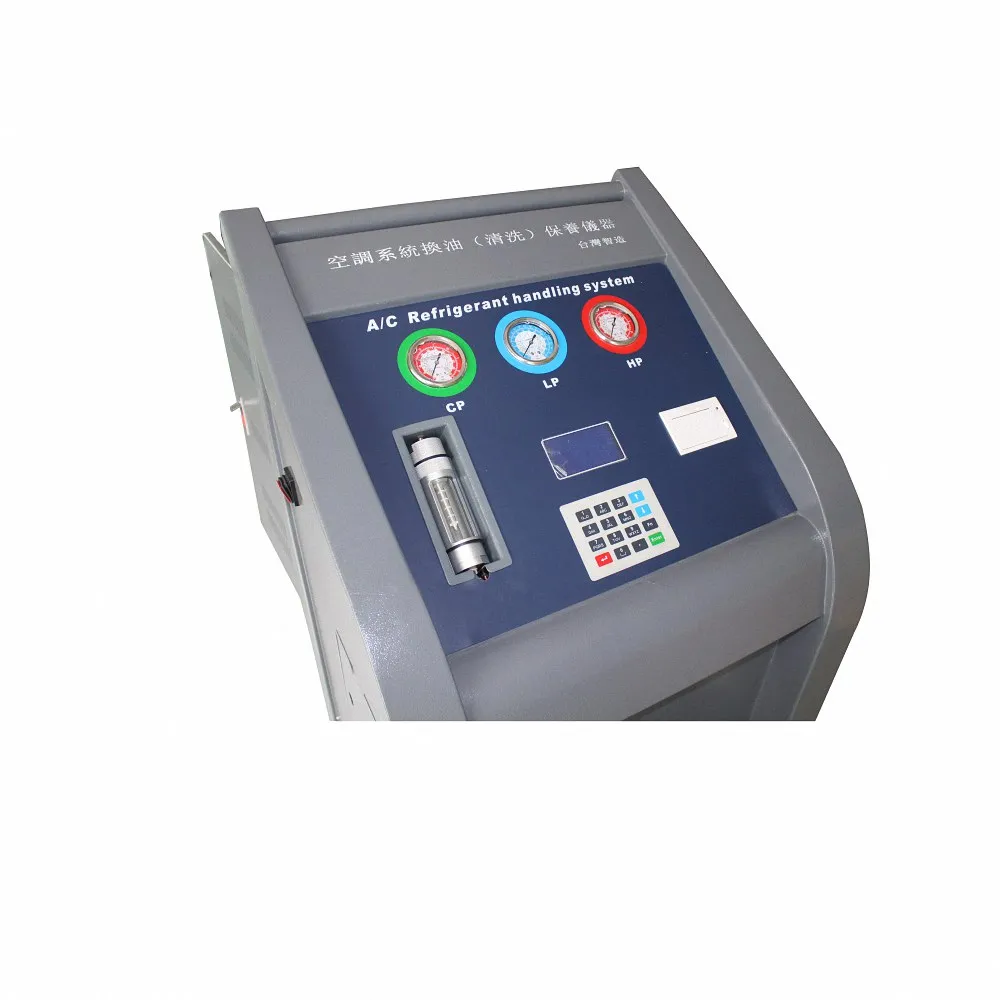

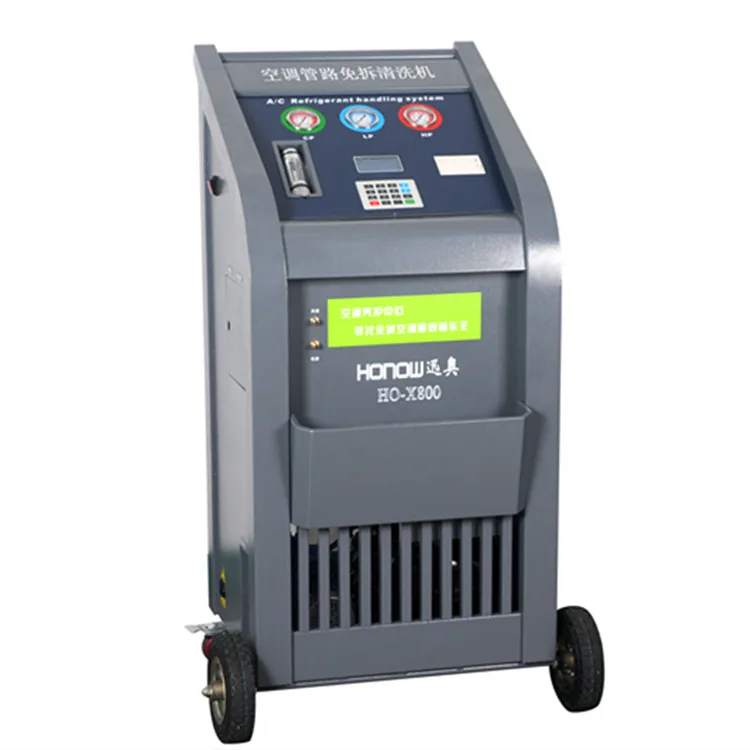

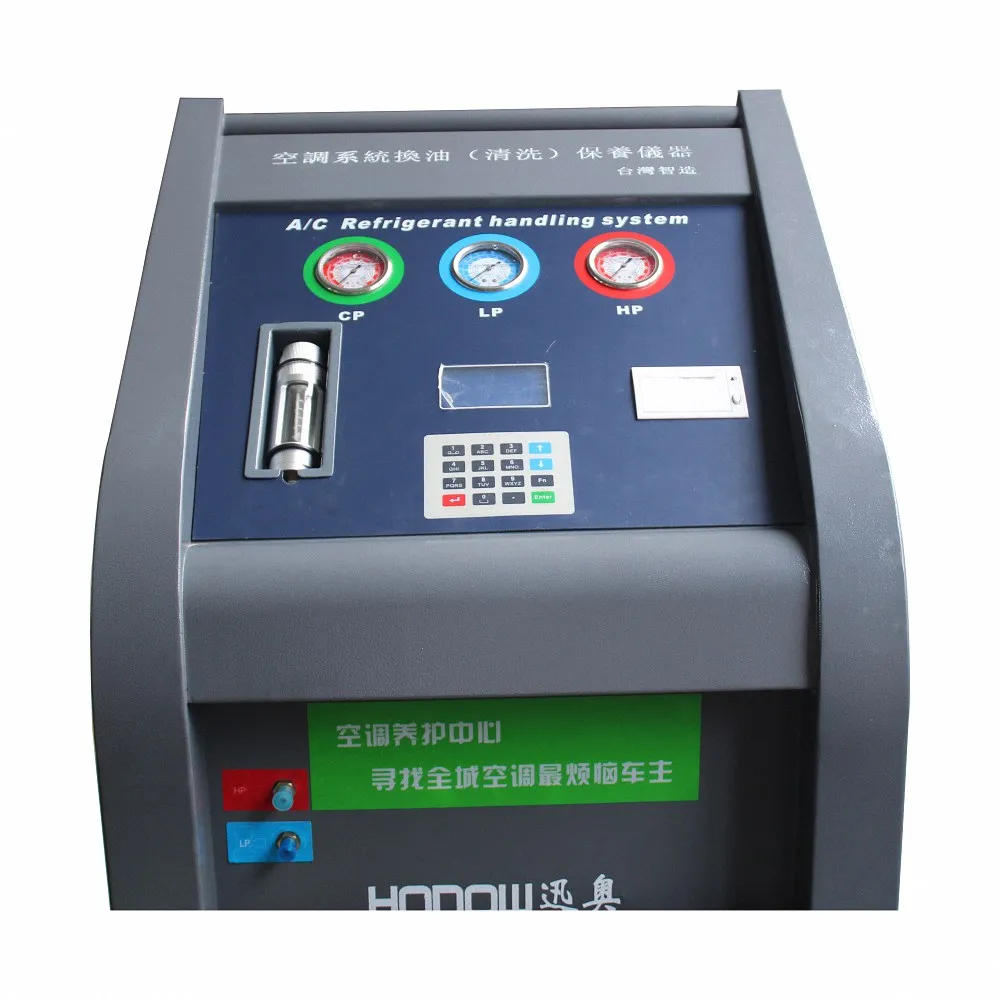

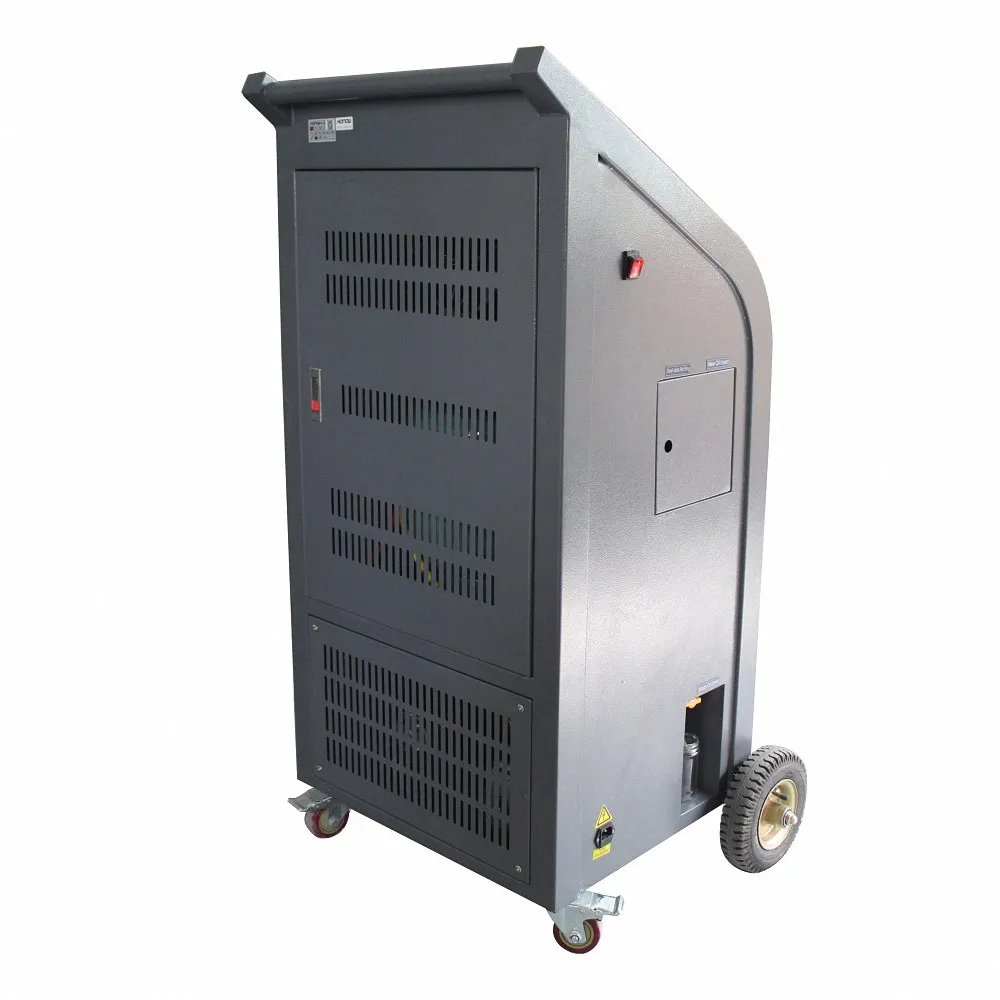

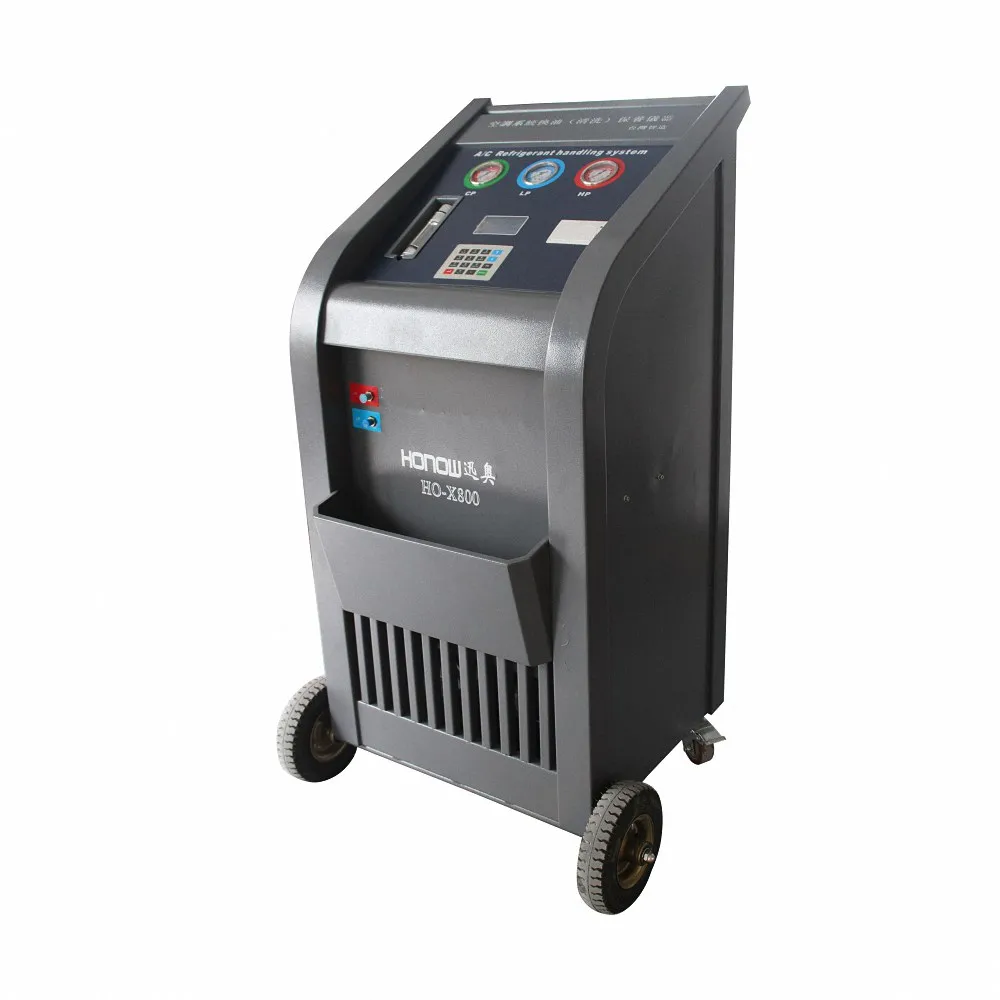

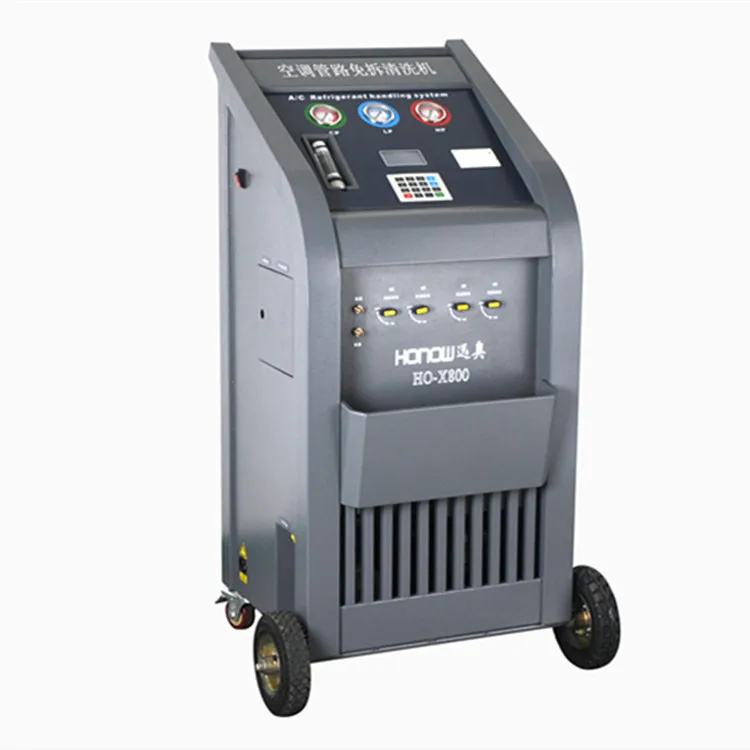

A/C refrigerant recovery& recycling machine, A/C cleaner machine

Product Overview

Description





Main functions

1. Leakage diagnosing and detecting in the refrigeration system

2. Pipeline flushing

3. Refrigerant reclaiming

4. Refrigerant recycling

5. Vacuuming

6. Refrigerant filling

7. Refrigerant oil supply



Main Features:

1. It can reclaim and recycle, hunt leakage, vacuum, charge refrigerant, and supply refrigerant oil.

2. Specific interface for small container of coolant supply.

3. Large-screen menu in both of the Chinese and English language, and intelligent operator interface.

4. Simple pipeline connection. Operation starts once the hose of the machine is connected to the interface of the air conditioner yet to be tested.

5. Data print.

6. High-precision electronic scale weighs the refrigerant filling and reclaiming.

7. Its purification & filtration system efficiently ensures recovery of used refrigerant.

8. It employs high-duty vacuum pump.

9. It adopts unique automatic protection design to prevent liquid attack and ultra-high pressure explosion.

10. With cleaning



Parameter:

Application refrigerant: R134a

Cylinder capacity:14kgs

Recovery speed: Gaseous:350g/min  liquid:500g/min

Charge speed: 1500g/min

Vacuum speed: 500g/Min

Compressor : 1/2HP

Vacuum pump: 2.5L double stage

Precision of electronic scale: ±5g

Environmental temperature: -10°C-50 °C
Input voltage (V) : 220

Rated frequency (Hz): 50

Dimension(cm): 81x69x142cm

Net Weight: 100kg
