With or Without Gusset Tubular Wire Rope Tube Thimbles

Product Overview

Description

With or Without Gusset Tubular Wire Rope Tube Thimbles





1. Usage: rigging hardware, riggings, wire rope thimbles, tube thimbles,wire rope tube thimbles,tubular wire rope thimbles, tube thimble with gusset, tube thimbles without gusset



2. Wire Rope Size: 10mm- 52mm



3, Material: carbon steel, stainless steel or alloy steel



4. Surface: self colored,H.D.Galv.,powder paint,or paint after Galv.



5. We have other standard products: JIS, BS, US, European, Australia, Italy



6. OEM, ODM is available



7.Our Service: Competitive price, short delivery time with excellent after-sales service.

8.You can reach me by email, Alibaba TradeManager, telephone or SKYPE Morly.Zhou for more detail.

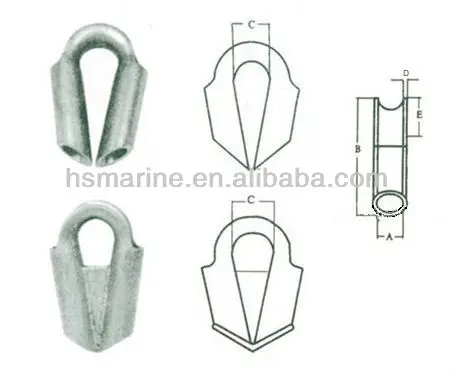

Technical Specification





Model No.	Rope Dia. (mm)	Dimension (mm)					Weight (kg)
		A	B	C	D	E
PT12	10	12	90	23	4.0	8	0.25
PT15	12	15	105	27	5.0	10	0.42
PT17	14	17	115	27	4.0	10	0.50
PT19	16	19	120	32	6.0	12	0.60
PT22	18	22	140	35	6.0	15	0.75
PT25	22	25	180	45	6.3	16	1.40
PT28	24	28	180	45	7.0	16	1.75
PT30	26	30	195	47	7.0	18	2.00
PT35	32	35	215	60	7.0	22	2.40
PT45	38	45	260	70	7.0	27	3.30
PT55	52	55	298	85	7.0	32	5.50







More Photos of tube thimbles





yellow powder painted tube thimbles without gusset

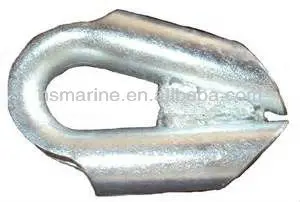

galvanized tube thimble with gusset

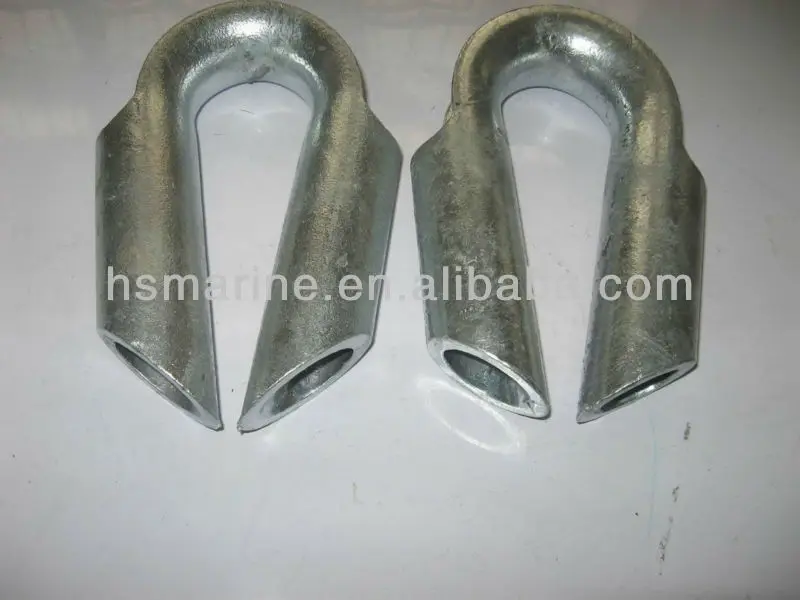

galvanized tube thimble without gusset

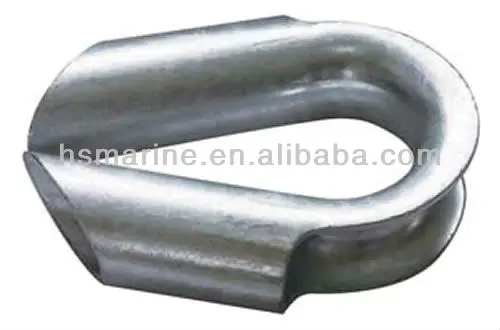

 galvanized tube thimble without gusset

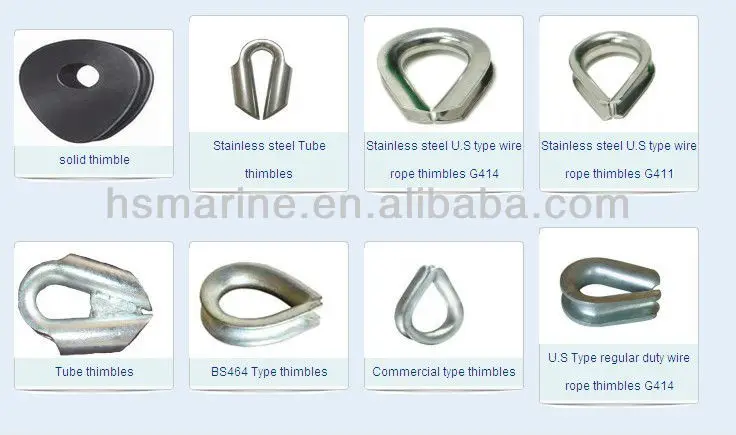

We also supply
