Product Overview
Description

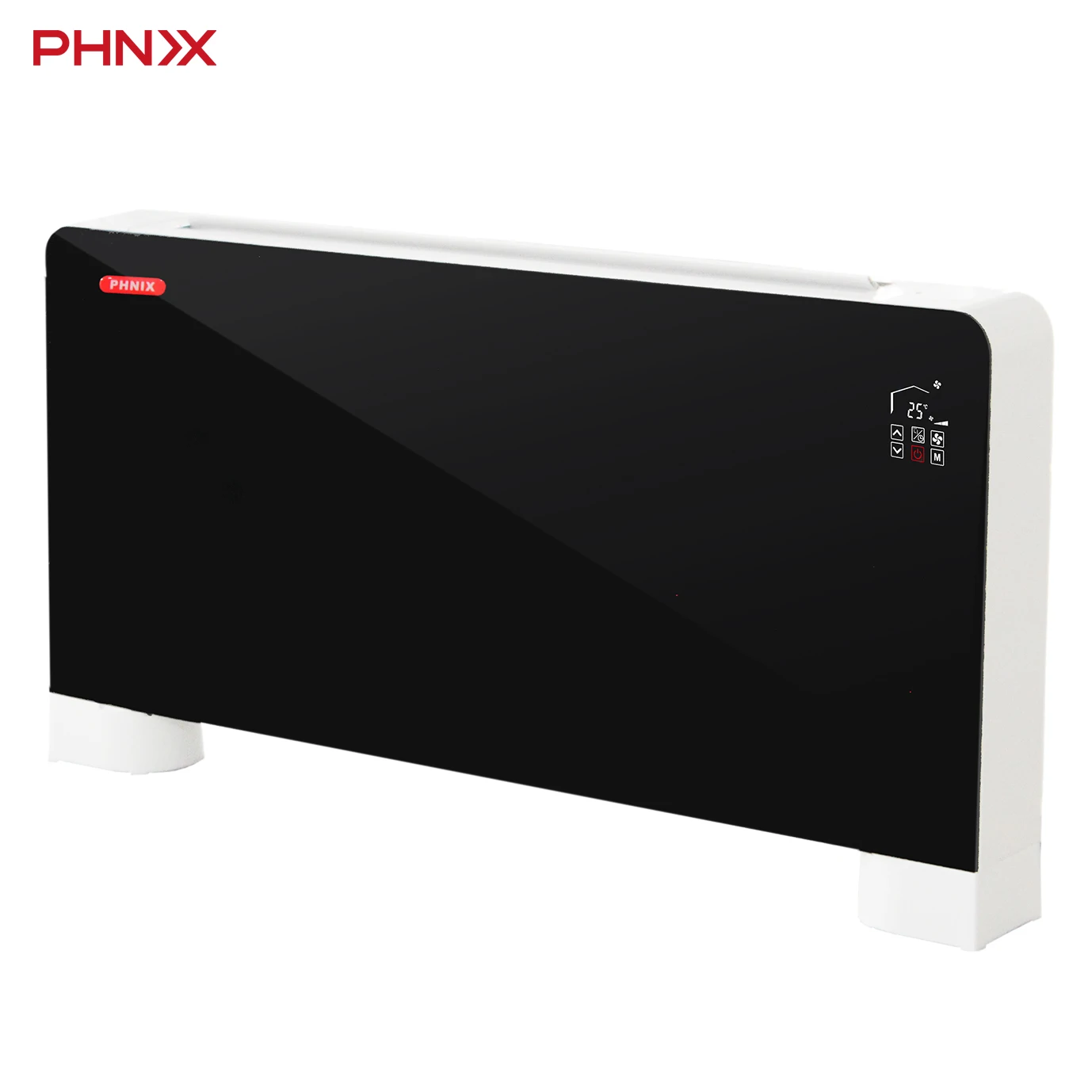

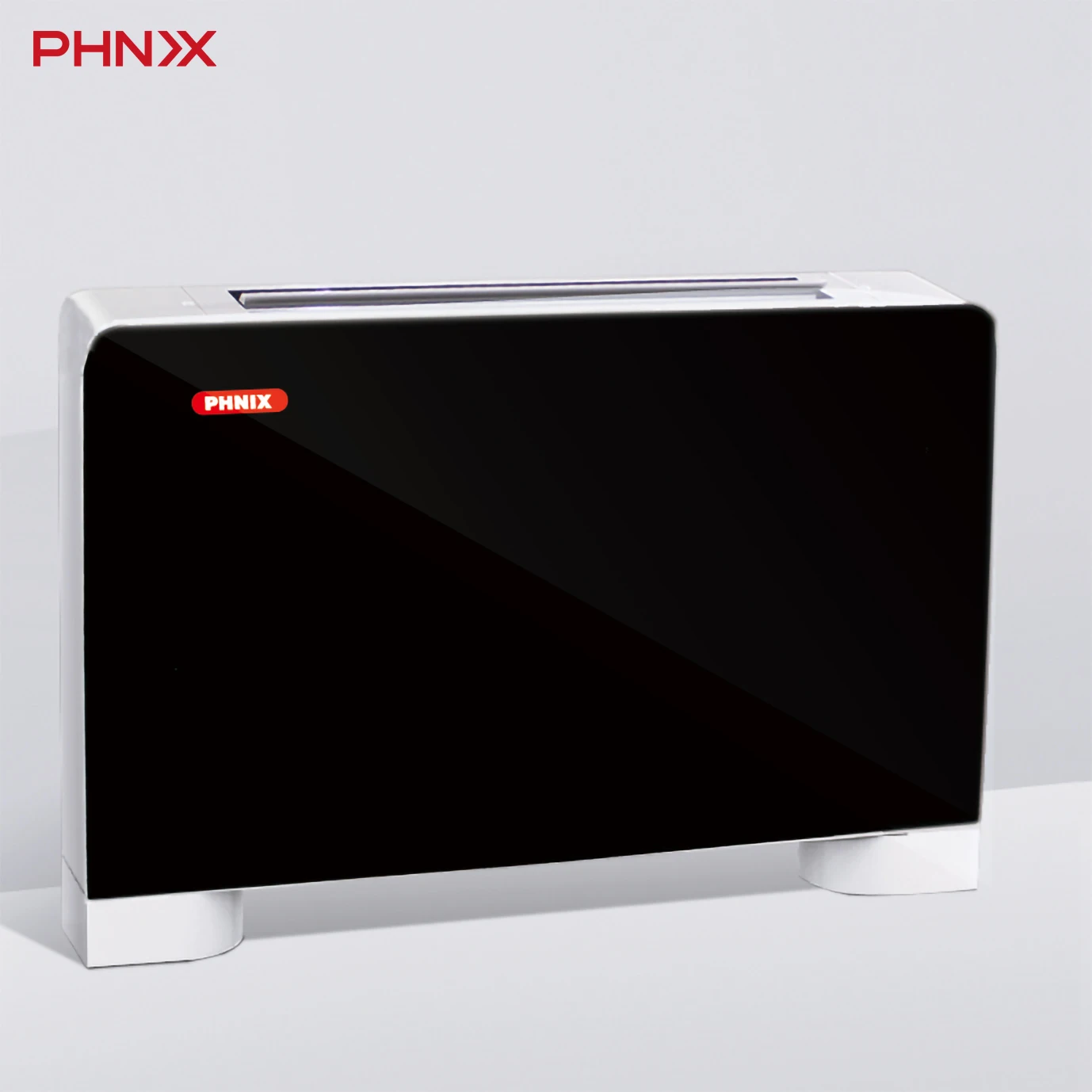

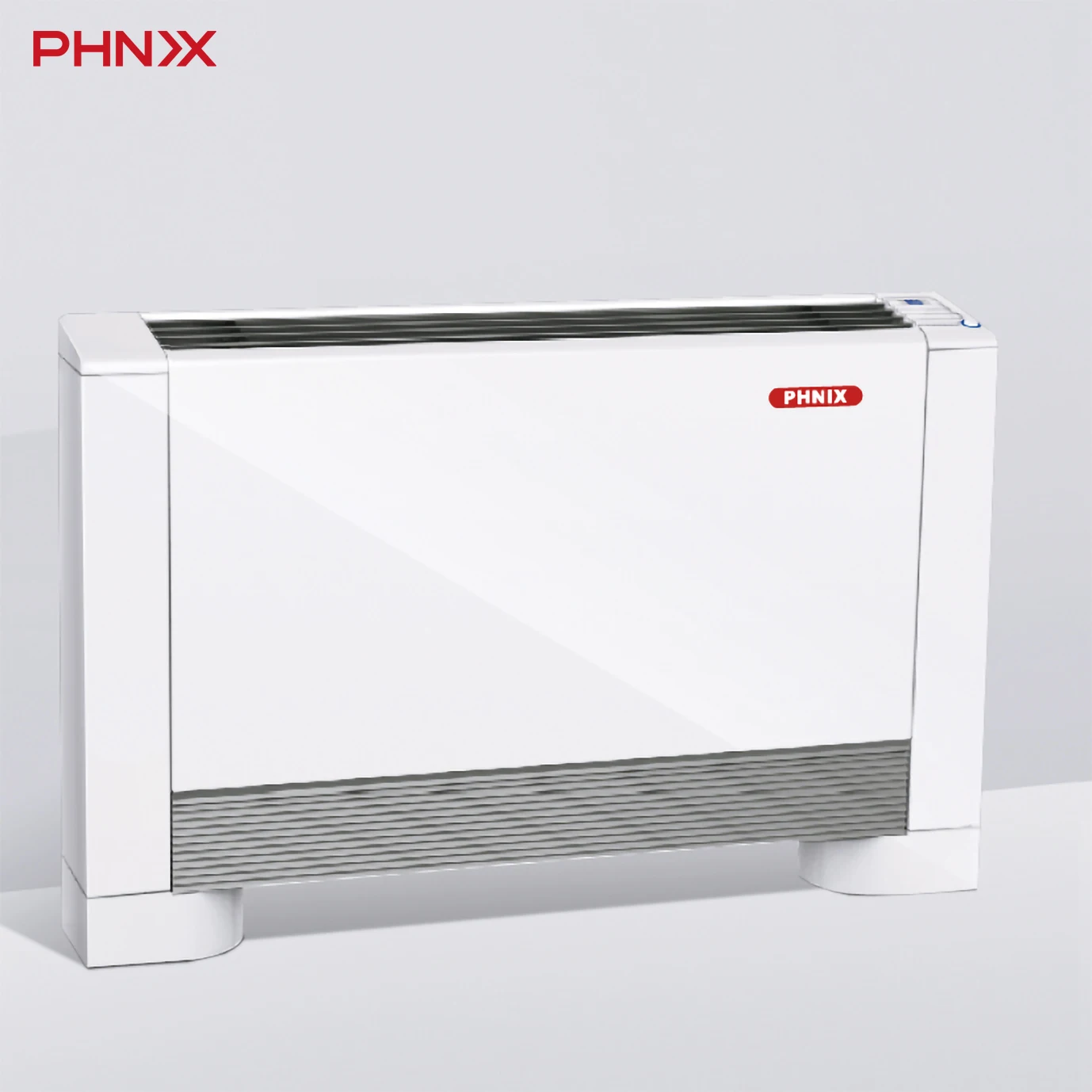

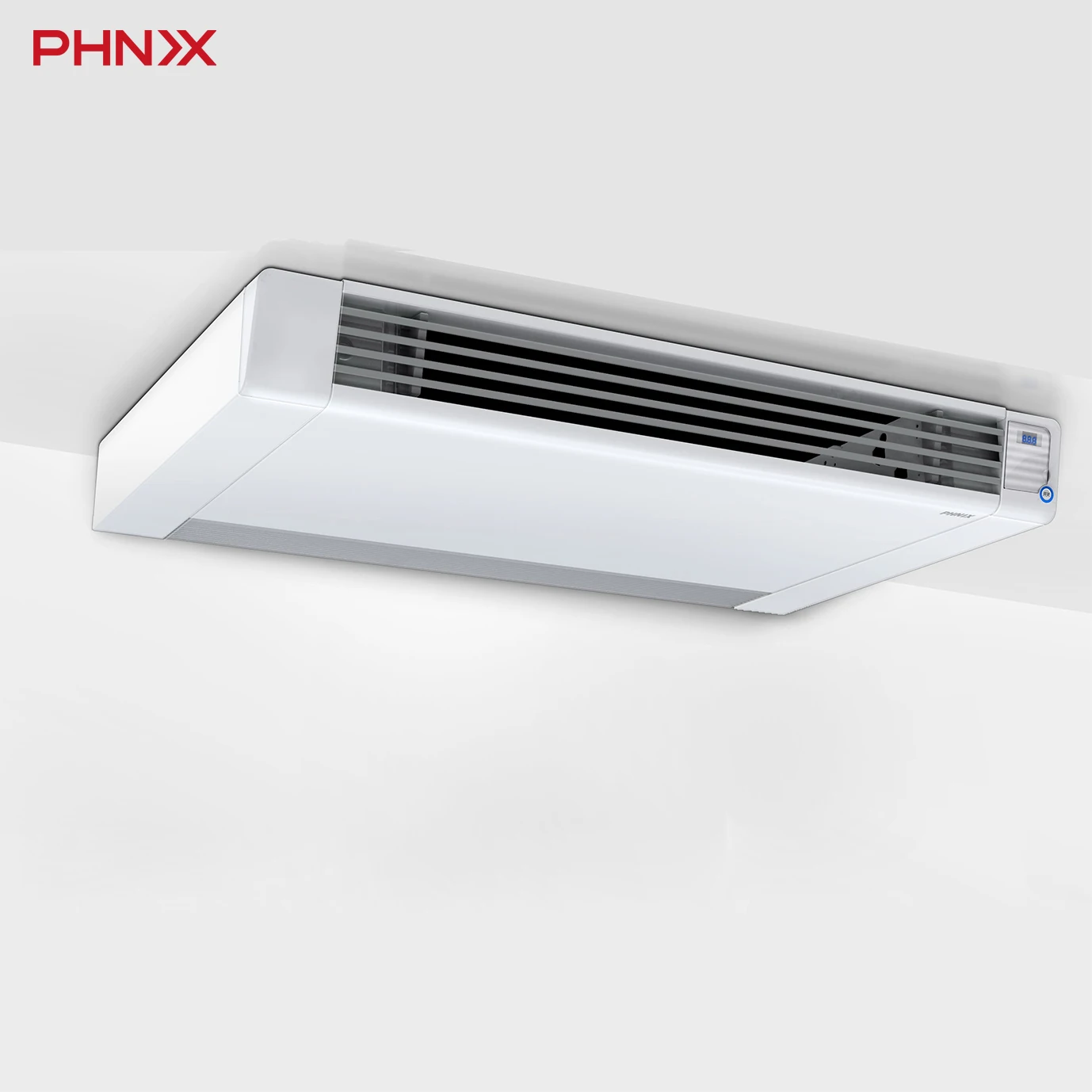

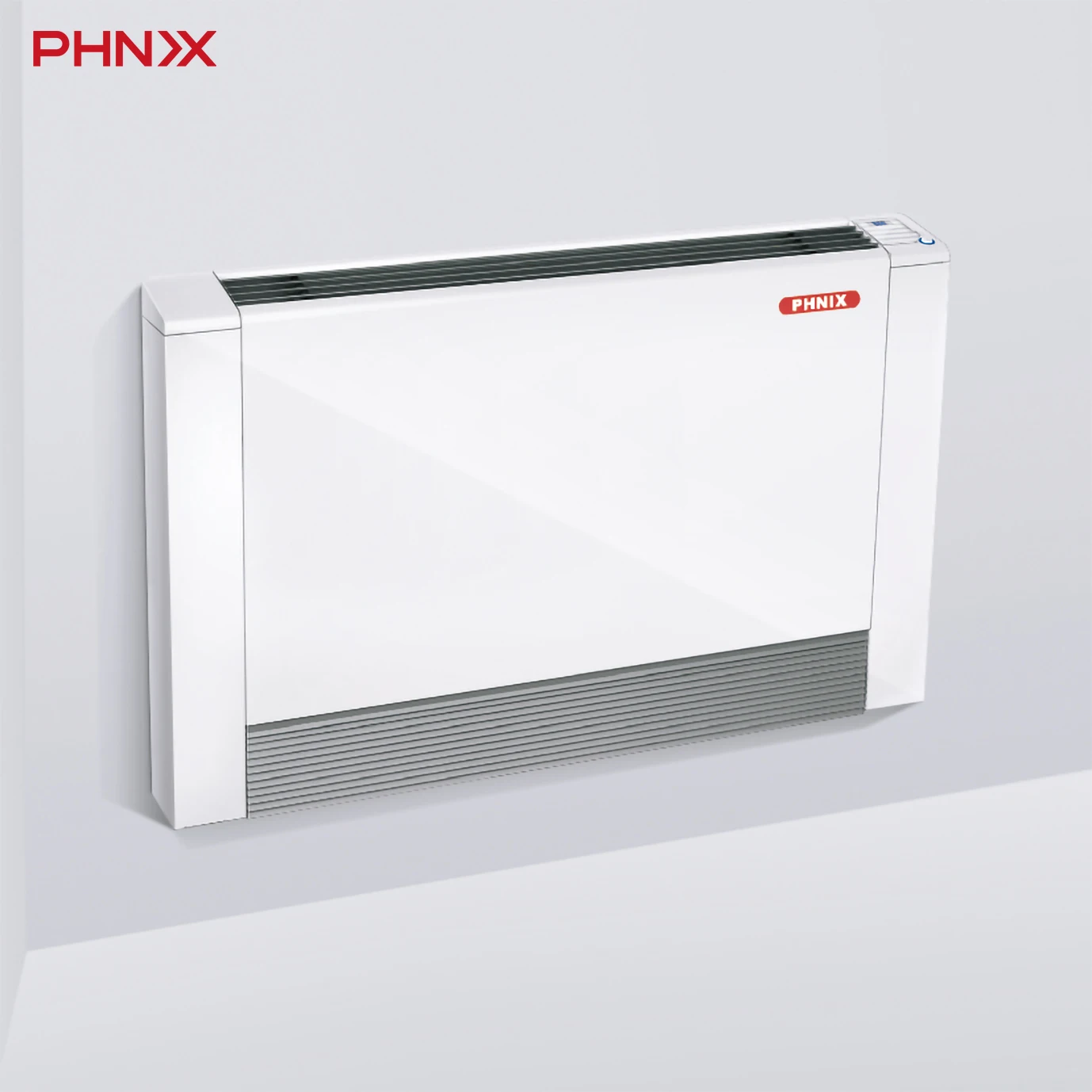

Duct Air Fan Coil
Product Parameter

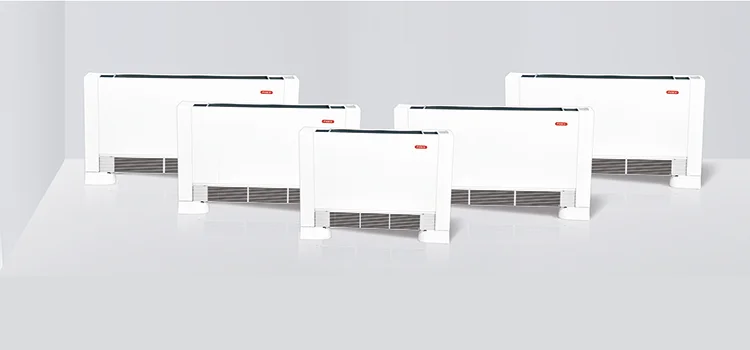

Product Family of PHNIX Ultra Thin Water Fan Coils
| Model | PFP-025(V)-A/C | PFP-040(V)-A/C | PFP-060(V)-A/C | PFP-080(V)-A/C | PFP-100(V)-A/C | |
| *Healing Capacity | BTU/h | 8700 | 13500 | 19600 | 24600 | 32000 |
| W | 2550 | 3950 | 5750 | 7200 | 9400 | |
| *Water Flow Rate | gal/min | 0.97 | 1.5 | 2.16 | 2.73 | 3.56 |
| *Water Pressure Drop | psig | 1.54 | 1.77 | 3.8 | 3.99 | 4.09 |
| **Heating Capacity | BTU/h | 4600 | 8500 | 11400 | 14600 | 17800 |
| W | 1350 | 2500 | 3350 | 4300 | 5200 | |
| **Water Flow Rate | gal/min | 1.01 | 1.89 | 2.55 | 3.26 | 3.92 |
| **Water Pressure Drop | psig | 1.57 | 1.9 | 3.99 | 4.05 | 4.13 |
| ***Cooling Capacity | BTU/h | 3400 | 6500 | 8500 | 12000 | 14800 |
| W | 1000 | 1900 | 2500 | 3500 | 4350 | |
| ***Water Flow Rate | gal/min | 0.75 | 1. 5 | 1.89 | 2.64 | 3.3 |
| ***Water Pressure Drop | psig | 1.61 | 1.93 | 4.02 | 4.1 | 4.44 |
| Air Volume(DC Motor) | cfm | 94 | 188 | 270 | 340 | 381 |
| Noise | dB(A) | 30 | 32 | 37 | 39 | 41 |
| Power Supply | / | 110-120V/~60Hz | ||||
| Power Input | W | 12 | 16 | 20 | 24 | 30 |
| Water In/Out | NPT | 3/4 | ||||
| Drain Connection | inch | 0.63 | ||||
| Net Dimensions(L/W/H) | inch | 27.6/5.1/26.4 | 35.4/5.1/26.4 | 43.3/5.1/26.4 | 51.2/5.1/26.4 | 59.1/5.1/26.4 |
| Shipping Dimensions(L/W/H) | inch | 29.1/7.1/28.7 | 37.0/7.1/28.7 | 44.9/7.1/28.7 | 52.8/7.1/28.7 | 60.6/7.1/28.7 |
| *Heating: Ambient temp.(DB/WB): 68℉/-, Water temp.(In/Out): 158℉/-; **Heating: Ambient temp.(DB/WB): 68℉/-, Water temp.(In/Out): 122℉/-; ***Cooling: Ambient temp.(DB/WB): 80.6°F/66.2°F,water temp.(In/Out): 44.6°F/53.6°F. | ||||||
| The data above is only a reference. For model specifications, please refer to the nameplate on the unit. | ||||||

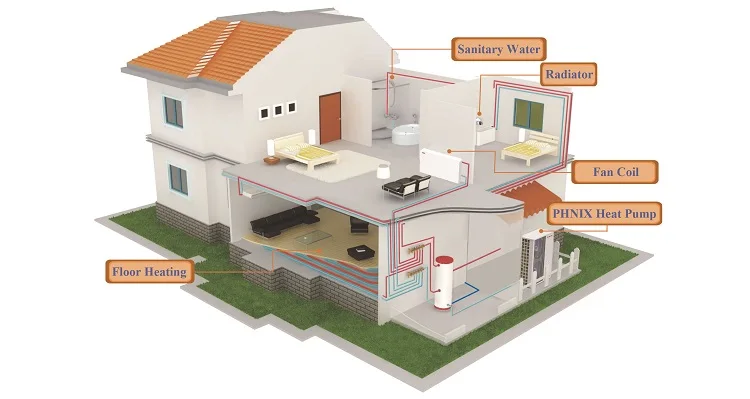

Product Appliction

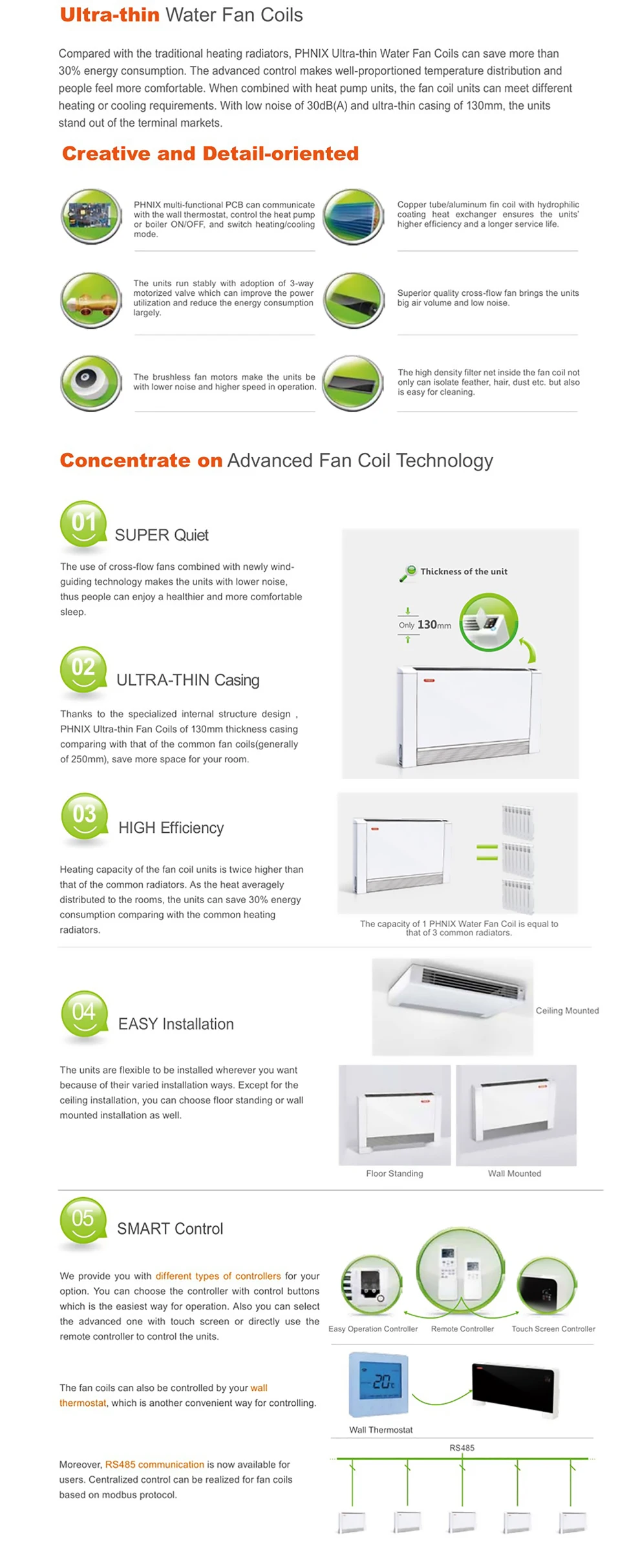

Product Detail
Certificate
Packaging & Shipping
About PHNIX
Founded in 2002, PHNIX is one of the largest manufacturers of Swimming Pool Heat Pumps, House Heating Heat Pumps and Heat Pump Water Heaters in China. With more 487 patents, 355 licensed patents and 10 copyrights, PHNIX has built up a complete heat pump industrial chain.
PHNIX attaches great importance to high-end overseas markets, exporting more than 50 percent of its products to Europe, North America, Middle East, Australia, and other developed regions.
PHNIX Factory has an area of more than 35000 square meters. Over 30 percent of automatic production devices are put into use in manufacturing process, involving Copper Pipe Cutter, Pipe Bender Robot, Automated Vacuum Circulatory System, Robotic Palletization and Packaging and AGV and so on.
PHNIX values product quality control, which account for about 8% of the company's sales revenue. PHNIX has 13 laboratories, whose test types include UV, RoHS, heat exchanger efficiency, constant temperature, humidity, pressure and so on. PHNIX’s integrated performance laboratory can meet product testing standard EN14511 and EN14825 of the European and American areas.
