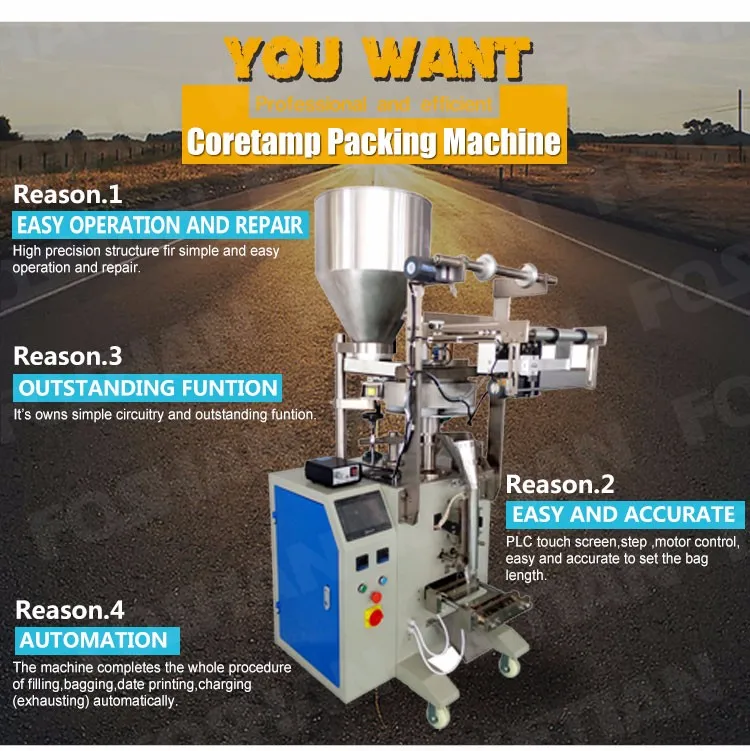

1. High precision structure for simple and easy operation and repair. 2. CPU simgle chip ,step motorl,easy and accurate to set the bag length. 3 .It's owns simple circuitry and outstanding function. 4 .The machine completes the whole procedure of filling,bagging,date printing,charging(exhausting) automatically. 5 .Selecte device: Linked bags device , triangle seal's horizontal seal.
Specification (With the product size selection models):
Type
ZV-320A
ZV-380A
ZV-320S
Film Width
120-320MM
180-380MM
80-220MM
Bag Length
50-200MM
60-280MM
50-220MM
Bag Width
50-150MM
60-180MM
30-10MM
Range of Measurement
50-500ML
50-570ML
5-200ML
Film Roll Diameter
Max.320MM
Max.320MM
Max.320MM
Packaging Rate
35-70Bag/Min
35-70Bag/Min
20-70Bag/Min
Power
220V 50/60HZ
2.2KW
220V 50/60HZ
2.5KW
220V 50/60HZ
2.0KW
Machine Size
970*680*1950mm
1100*800*2150mm
970*825*2020mm
Machine Quality
300KG
450KG
300KG
Optional External Device: 1. Take away conveyor 2. Check weigher 3. Metal detector
Automatic Egg Chocolate Wrapping Machine

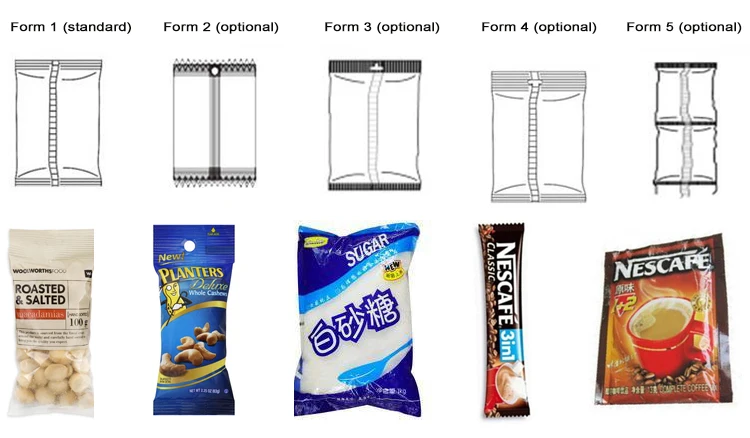

Bag Type:
Packaging & Shipping
Packaging:
We use the wooden case to pack our packing machine
Shipping: Upon receipt of payment , delivery date will be in 10-35days, By Air, by Sea or by Express (DHL etc) Shipment cost will depend on the destination, shipment way and the weight of the goods
Our Services
The machine will have one year warranty . During the warranty year if any of the parts broken not by man-made . We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L.
Company Information
Contact Us
Kindly Reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
