1000 watt solar panel

Product Overview

Description

We Are Manufacturer



We manufacture mono solar panel and poly solar panel from 30W-300W

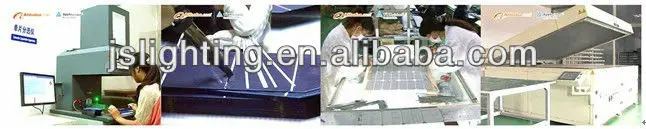

We produce Solar PV module from solar cell to solar module



We are capable to produce 2MW solar panels per month















Warranty



5 years material and workmanship warranty



10 years at 90% of the minimal rated power output



25 years at 80% of the minimal rated power output







Specifications







Electrical Spec.	Pmax	240W
	Vmp	35V
	Imp	6.86A
	Voc	43V
	Isc	7.77A
Physical Spec.	Cell Material	Poly
	Wind Resistance	60m/s
	Surf. Load-bearing	200kg/m2
	Hail Load-capacity	25mm, 80km/h
Packaging Data	Dimensions (mm)	990*1600*35
	Weight	25kg
	20’ Container	224pcs
	40’ Container	448pcs
Temp. Coefficients (TC)	NOCT	45°C±2°C
	Current TC	0.06±0.01%/K
	Voltage TC	-(155±10)mV/K
	Power TC	-(0.5±0.05)%/K

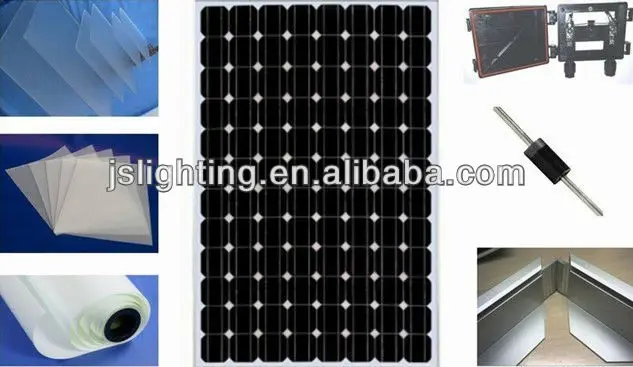

Product Details



Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation



Anodized aluminum frame: The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking systems and to withstand harshest conditions



Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells



Packing method: Innovative, environmentally friendly packing method using pile-edges insures modules arrive in perfect condition



New frame design incorporating hexagonal shaped Drainage holes, with more grounding holes, provide flexible installation and using



Waterproof Battery Box



Waterproof battery box, ideal for high humidity area



Air-bleed vent design, specially for gel and lead acid battery



High strength: PVC plastic box and wire reinforced PVC conduit













Special Features



Output power tolerance of +-3 %



Low voltage-temperature coefficient allows higher power output at high-temperature condition



High efficient, high reliable solar cells ensure our product output stability



Manufactured in an IEC61215, IEC61730, ISO 9001:2000, CE, SGS, TUV certified plant



25-years Limited warranty on Power output, 5-years limited warranty on materials and workmanship

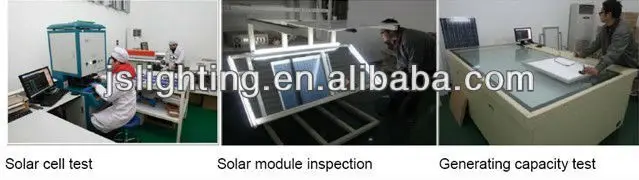

Testing











Certification

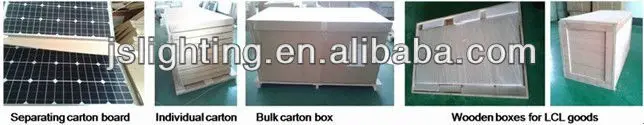

Packaging



Individual carton box for solar panel, 2 solar modules in a carton



A carton board separates two solar PV panels



For LCL goods, we use bulk carton box or wooden boxes











Payment Terms



30% in advance and 70% before shipment for our solar panel







Lead time



2~3 weeks upon receipt of payment for 500 pcs of solar panels







About BAODE



BAODE Solar Lighting Co., Ltd., as one of the most professional solar LED outdoor lighting manufacturers, is your reliable solar lighting solution provider. BAODE has obtained the ISO9001: 2000 International Quality System Certification and our products comply with CE and SGS criteria.. Since 2008, BAODE has introduced over 80,000 reliable and cost-effective solar powered lighting systems in more than 50 countries all over the world.







Why Us



One-stop Service



Ÿ You can find solutions for almost all outdoor lighting from us, like street lighting, square lighting, landscape lighting, traffic lighting and commercial lighting and so on.



Vertically Integrated Production System



Ÿ You will enjoy high-quality product with cost-effective price from us because we manufacture most of the main components from LED source, light fixture, solar panel, pole and even painting powder to control the cost and quality.



15 Years Manufacturing Experience



Ÿ Since 1998, we have started manufacturing street lighting. The 15 years’ experiences have been a persuasive insurance for us to offer reliable products.

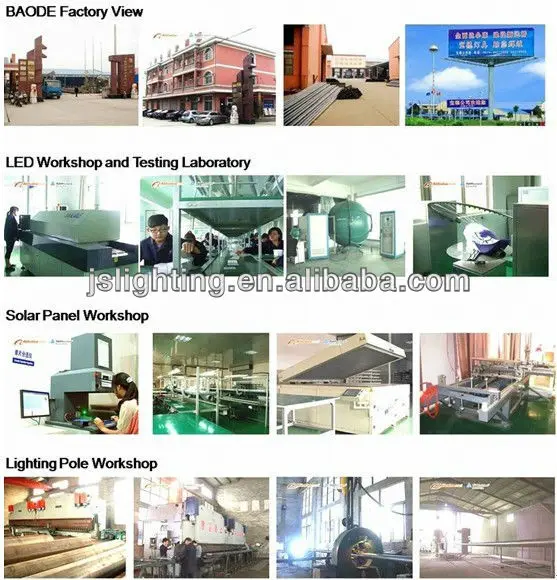

Large Factory with Complete Facility



Ÿ We have 400 staffs with factory area 6000 m². We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .



Advanced Technology



Ÿ Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.



Cost Efficiency



Ÿ Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.



Ÿ Factory outlet. There’s no middleman between the manufacturer BAODE and domestic and oversea buyers.
