FRP pultrusion grating: efficient and cost effective solution for flooring, structural integrity, without metal's corrosion.

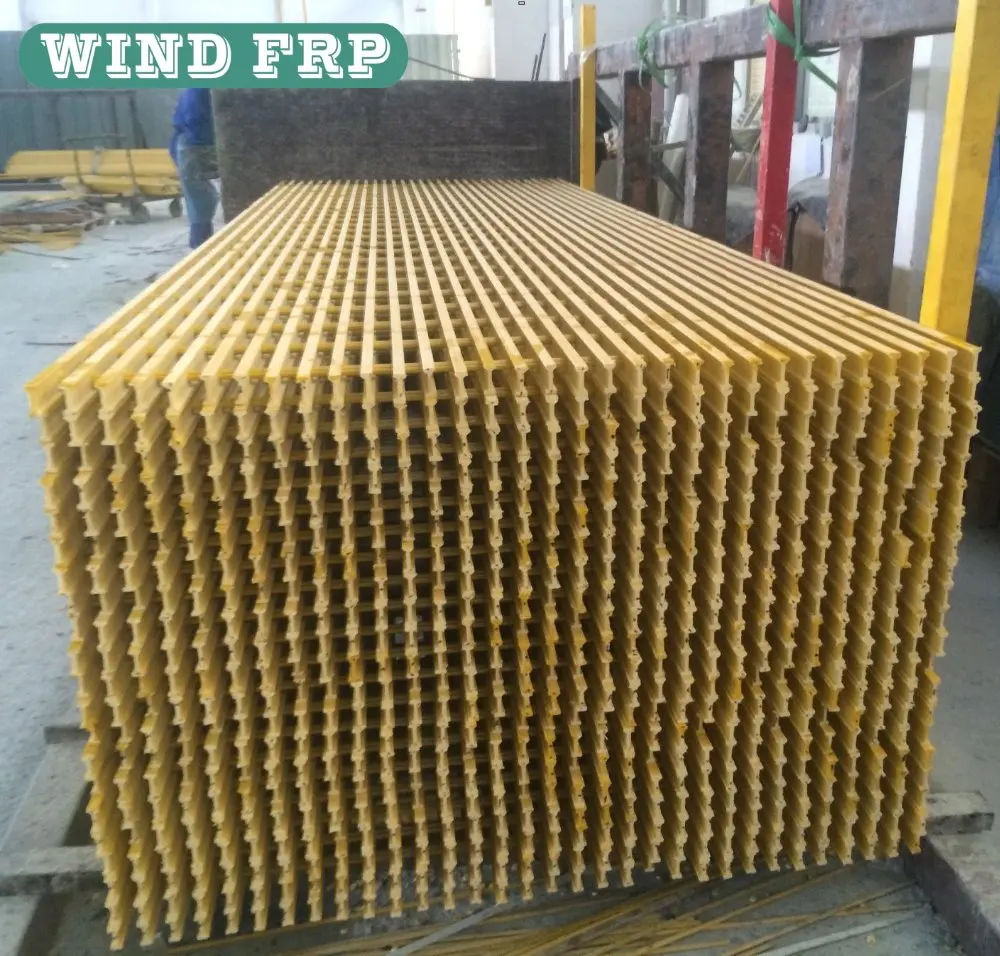

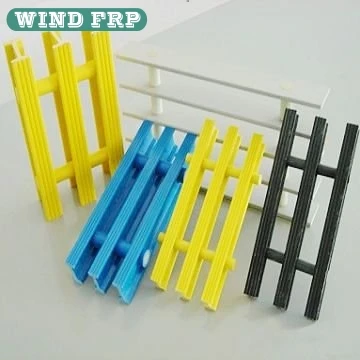

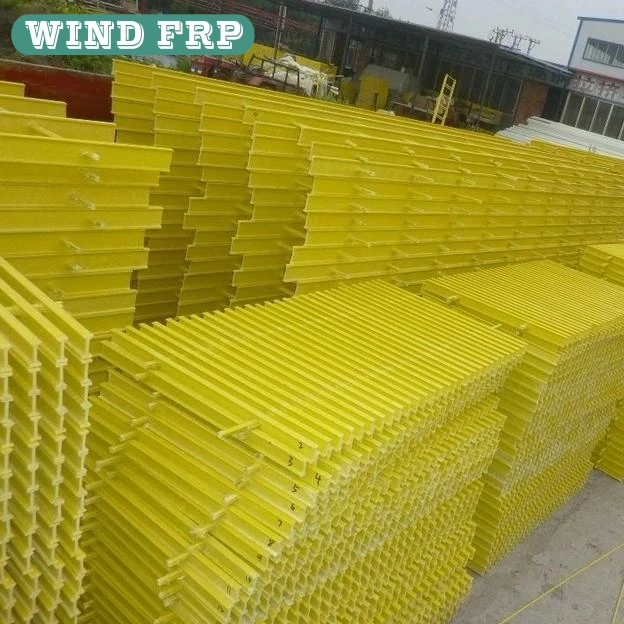

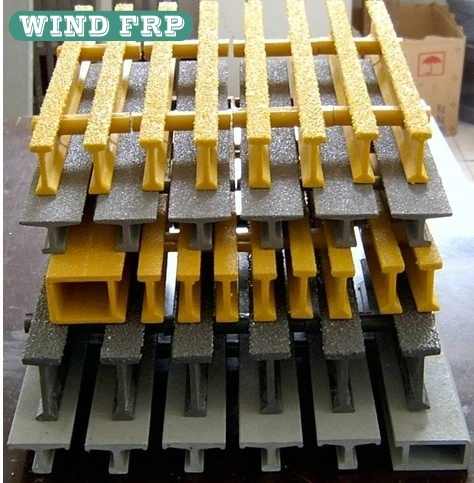

The FRP Grating are manufactured by assembly of pultruded I-Beam & pultruded cross roads. The distance between I-Beam & cross roads depend upon various load conditions. These FRP Gratings offered by us are acknowledged for offering advanced solutions against critical problem of corrosion in industrial enviorment.

Features:

1. Corrosion resistance, long service life

2. Light Weight, high strength

3. Non-electrical conduction

4. Maintenance free

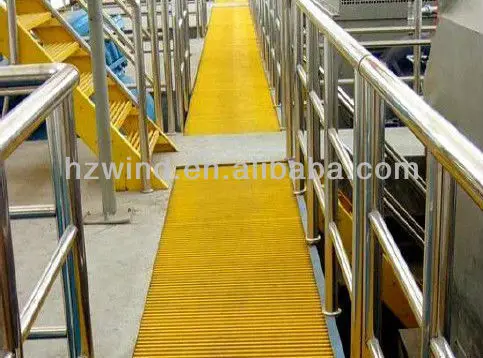

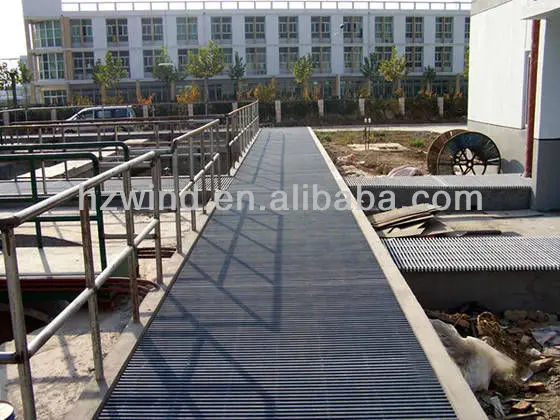

Application :

• Chemical Plants


• Refineries


• Power Plants


• Marine


• Off shore installations


• Effluent Treatment Plants

Spec. of FRP pultrusion gratings (mm)
type	height	top edge width	void width	void content(%)	weight(kg/m2)
1" I-4000	25.4	15	10	40	16.9
1" I-5000	25.4	15	15	50	14.2
1" I-6000	25.4	15	23	60	11.6
1.5" I-4000	38.1	15	10	40	20.9
1.5" I-5000	38.1	15	15	50	17.5
1.5" I-6000	38.1	15	23	60	14.2
2" I-4000	50.8	18	12	40	24.5
2" I-5000	50.8	18	18	50	21
2" I-6000	50.8	18	27	60	16.9

We can supply different void content according to the client's requirements applied in particular fields.
