NIMH battery 3.6V 4.8V 6V 7.2V 8.4V 9.6V 12V smart charger 9.6V 1.2A
- Category: >>>
- Supplier: Shenzhen Everpower Electronics Co. Ltd.
Share on (852328135):
Product Overview
Description

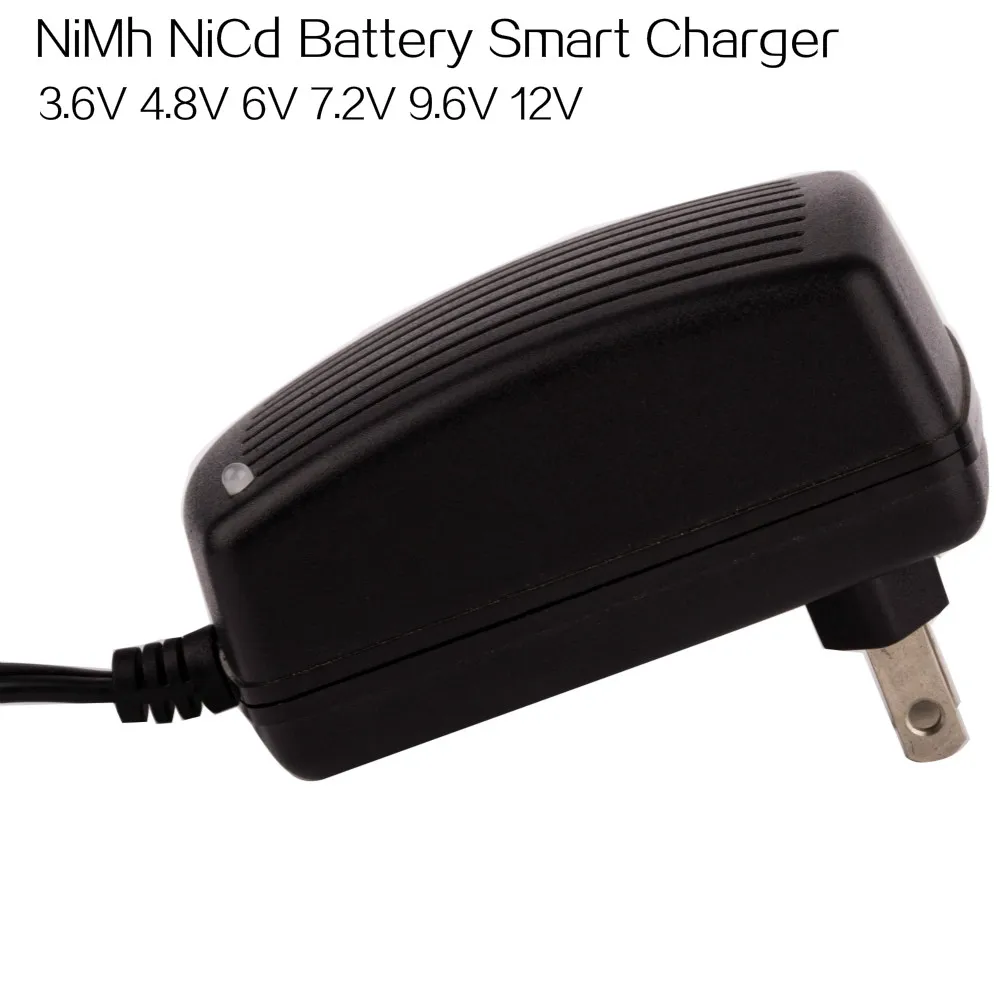

NIMH battery 3.6V 4.8V 6V 7.2V 8.4V 9.6V 12V smart charger 9.6V 1.2A charger
Product Description
Features and Benefits
- Best Charger for charging all RC Car, RC Airplane and Airsoft battery packs 3.6V 4.8V 6V 7.2V 8.4V 9.6V 10.8V 12V
- Universal for any NiMH /NiCd battery packs 3.6V - 12V (3-10Cells Pack)
- Smart Charger with automatic voltage detection
- Use pulse and negative pulse technology to avoid battery overheating during fast charging, optimized for battery pack's cycle life

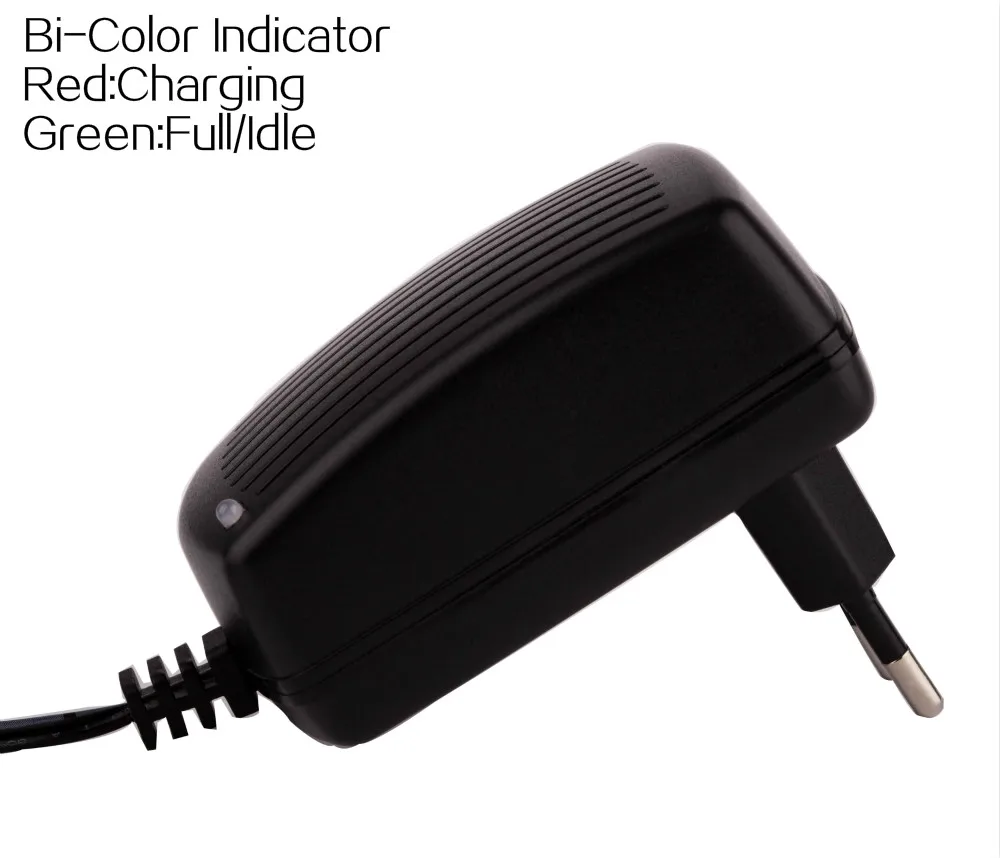

- charger indicator by Bi-color LED
- Automatically charging ending with negative delta V

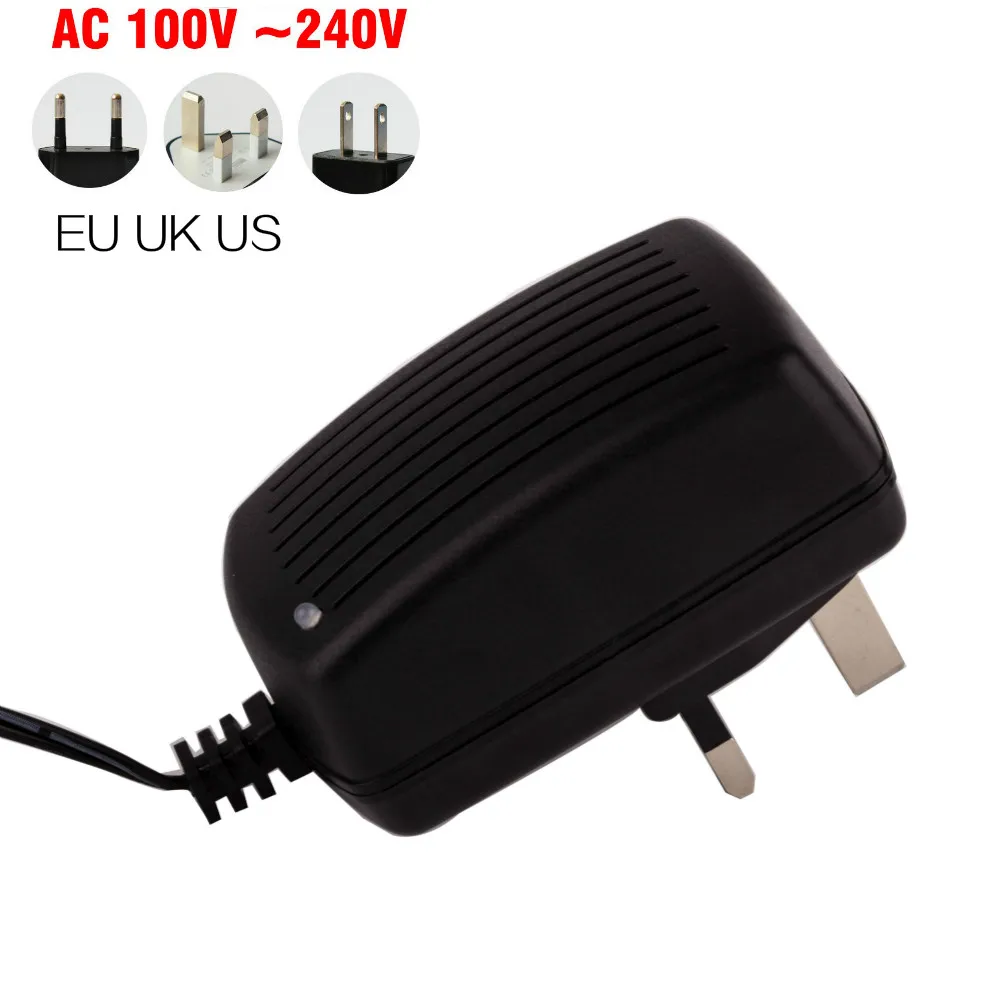

- Worldwide usage with 120-240V AC
Smart Charger Specification
- Model:EPN1008
- FOR 3.6V-9.6V NiMH/NiCD Battery Packs 5-8Cells
- Input: AC 100-240V
- Output: 9.6V 1.2A
Operation Instruction
- Connect battery pack to output connector and plug AC power source
- Make sure battery polarity is connected correctly (Red wire is positive)
- Charger will detect battery voltage automatically, Red LED will be on during charging
- When battery is fully charged, current will reduce to trickle charging at 50mA, Green LED will be on
- Battery will be charged at 1000mA constant current
- Approximate Charging time is about 1.5hrs for 1200mAh battery,
- The charger is designed for faster charging NiCd and NiMH battery packs from 6 to 9.6V for RC car/Air and Air soft gun
- Don't charge battery packs with voltage less than 3.6V or greater than 12V and capacity smaller than 1000mAh or larger than 20000mAh
- Battery pack must be made by high drain current cell
- Please contact your seller for instruction. Mfg is not responsible for any damage and consequent damage by Misuse.
Caution
- The charger is designed for indoor use only. Don't leave the charger unattended during charging.
- The Charger should be positioned horizontally and work in well ventilated condition, avoid water and keep away from flammable explosive goods.
- Don't cover the charger when charging, ambient temperature shall not be more than 40oC
- Don't touch the plug.
- Don't leave the batteries and chargers on wood surface or carpet.
- Cut off the power supply before connect or disconnect the charger with batteries.
- Don't try to disassemble the charger; High voltage inside!
product selected:
Everpower in-common-use 10W push-wall seriesNiMh/NiCd battery charger select guide
| Model | Input | Output | Suited battery pack |
| EPN1008 | AC100~240V | 6.4V 1500mA | nimh battery 3.6~4.8V 1600mAh ~ 10000mAh |
| EPN1012 | AC100~240V | 9.6V 1200mA | nimh battery 6~7.2V 1200mAh ~ 8000mAh |
| EPN1020 | AC100~240V | 16V 700mA | nimh battery 8.4~12V 1000mAh ~ 7000mAh |
Output DC connectors
Certification
ISO9001:2008
Company Information
About EVERPOWER
Everpower Electronics Co., Ltd. was established in 2011 and is specialized in Smart Battery Charger,battery charging solution,car emergency start power desiging and making in China.
Our main products include 10~500W all kinds of power battery charger.
We focus on power SLA/VRLA/GEL/AGM /Lead-Acid battery chargers;
Li-ion/ LiFePo4 power batteries chargers ;
Ni-MH/Ni-CD batteries pack chargers etc ;
Our products are widely used in electric tools, lamps, telecommunication, electrical equipment & household electronics.
Our design team has more than 10 years experience in battery intelligent charging.
We owned SMT workshop & AI workshop.Equipped complete testing equipment and burn-in house , the products conforms to international safety certification and approved by the CE, UL, ETL,FCC; GS,CB ,PSE, etc. popular in Europe and the United States and other developed countries.
Customer First, Honest Services and High Quality for Survival "is all Everpower man`s finally target!!!
