Product Overview

Description

Autoclaved aerated concrete production line AAC block machine light block machine

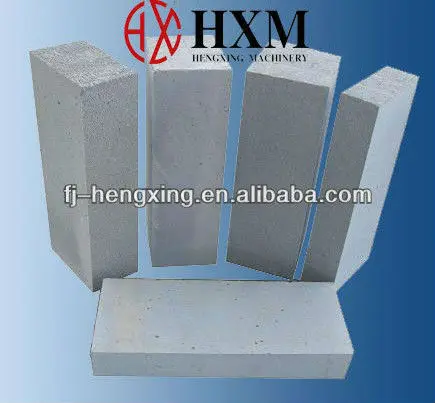

Autoclaved aerated concrete is a kind of lightweight porous construction material. It takes cement, lime, slag, fly ash, sand, aerated additive as raw materials. The aerated concrete blocks are made after production processes of fine grinding, batching, casting, cutting, autoclaved curing and milling. There are lots of uniform small air holes inside the blocks. The special structure ensure it has the advantages of lightweight, good insulation effect and process able.





Perfermance Advantage

1.AAC block making machine  enjoys a large variety of sizes, from standard blocks to large reinforcrd pannel.

2.It achieves very high thermal energy effciency due to its very loe thermal conductivity. This benefits the saving on heating and cooling costs.

3. It weighs approximately50% less than other comparable building product.

4.Its solid structure makes it highly load bearing.The entire surface area is used in structural caculation to improve its strength.

5.Thanks to its dimensional accuracy, AAC is extremly asy to install, as no  thick mortar is required

6.Its porous struture prvides a high acoustic insulation

7.It can not damaged by termites or insects

8.Thanks to its excellent size/weight ratio, the construction with AAC is very rapid.







What's features of high quality well  performance AAC production line AAC block machine with factory direct supplier



1) Factory covers an area of 25 acres or so.

2) There should be raw material area, finished block area and production area. Production process includes raw material disposal, rated material pouring, curing, cutting and steaming procedure .

3) From building foundation to equipments installing and testing, to trial producing, it will take 4-5 months.

4) Plant design: 2000m2

Raw material for making AAC Block: Cement, Lime, Sand, Gypsum, Aluminum powder, Water.



Capacity of AAC AAC production line AAC block machine /year:   50,000m3,  100,000m3, 150,000m3,    200,000m3,    300,000m3.

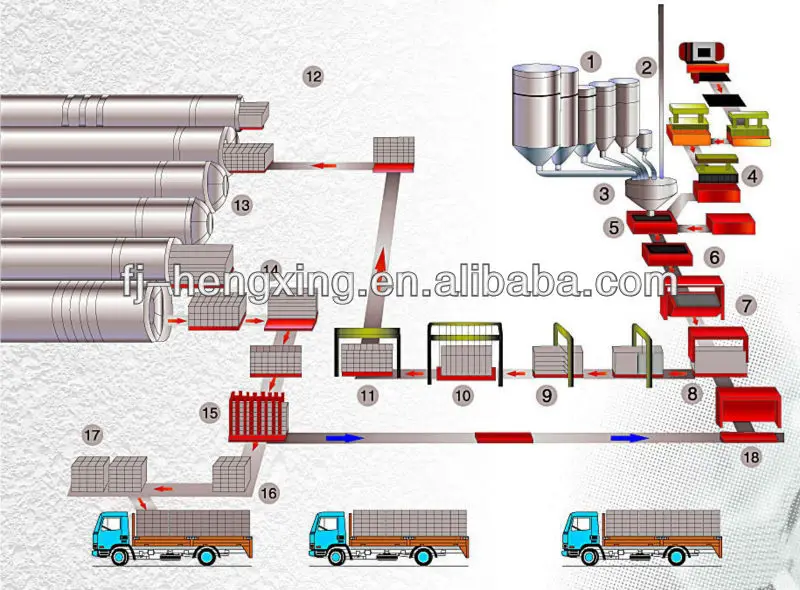

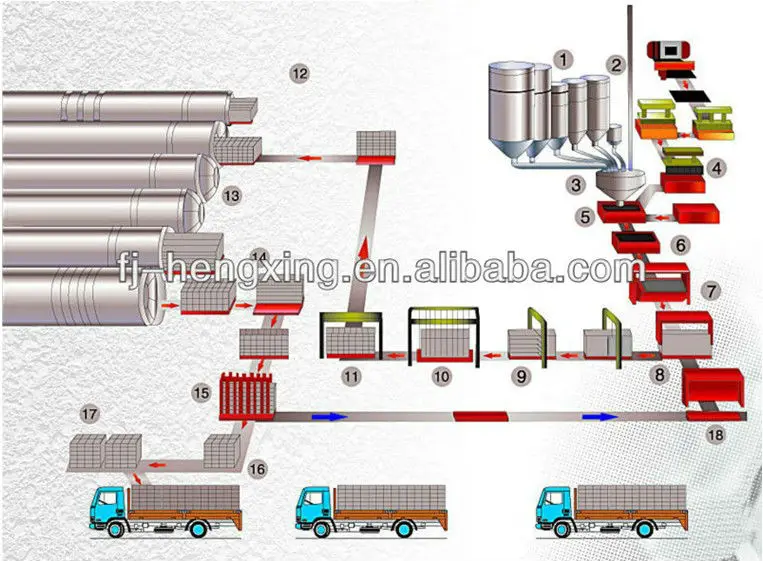

Autoclave aerated concrete production line production engineering

1. Raw material


2. Balanche material cutting


3. Mixing


4. Mould processing


5. Casting


6. Precuring


7. Turing


8. Demoulding


9. Horizontal cutting


10. Vertical cutting


11. Marking

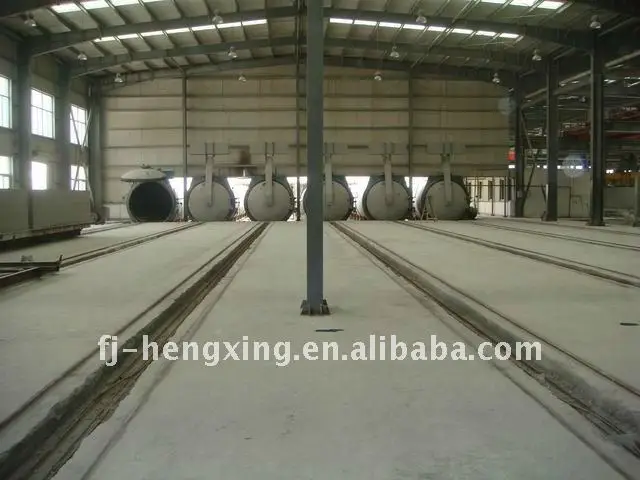

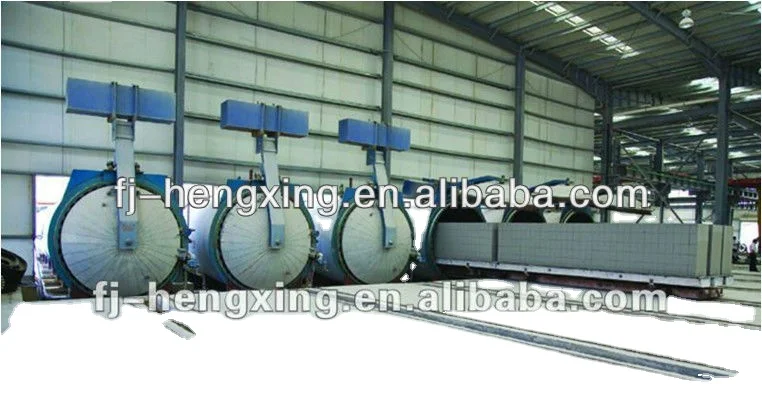

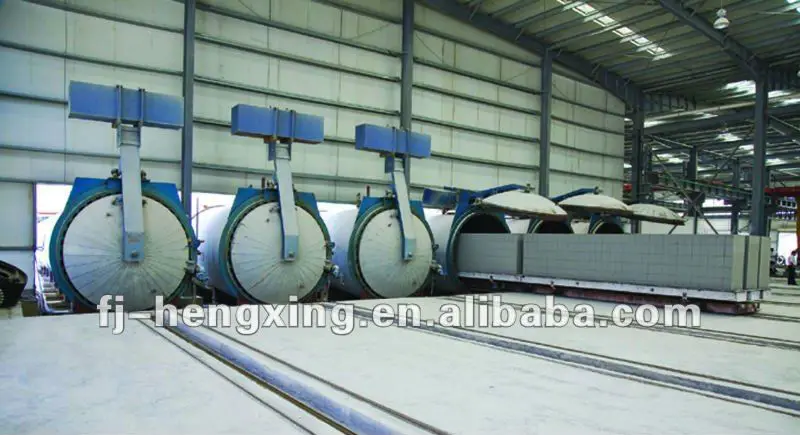

12. Loading block into autoclave


13. High temperature &pressure curing


14. Unloading blck out of autoclave


15. Plate detaching


16. Block inspection


17. Warehousing &shipment


18. Mould assembly



a.Raw material treatment

b.Jaw crusher

c.Function introduction of ball mill

d.Raw material measuring equipments:Raw material measuring usually adouots microcomputer contronl and full automatic measuring system.

Mixing pond:After measuring ,put raw material into pond ,then mix into slurry.

e.Casting mixer

f.Side plates :It’s used for carrying AAC block to cut, stack and system.

g.Precuring room

h.Mould:Slurry could be held in the combination of mould and side plate .after curing ,it could solidify into AAC block

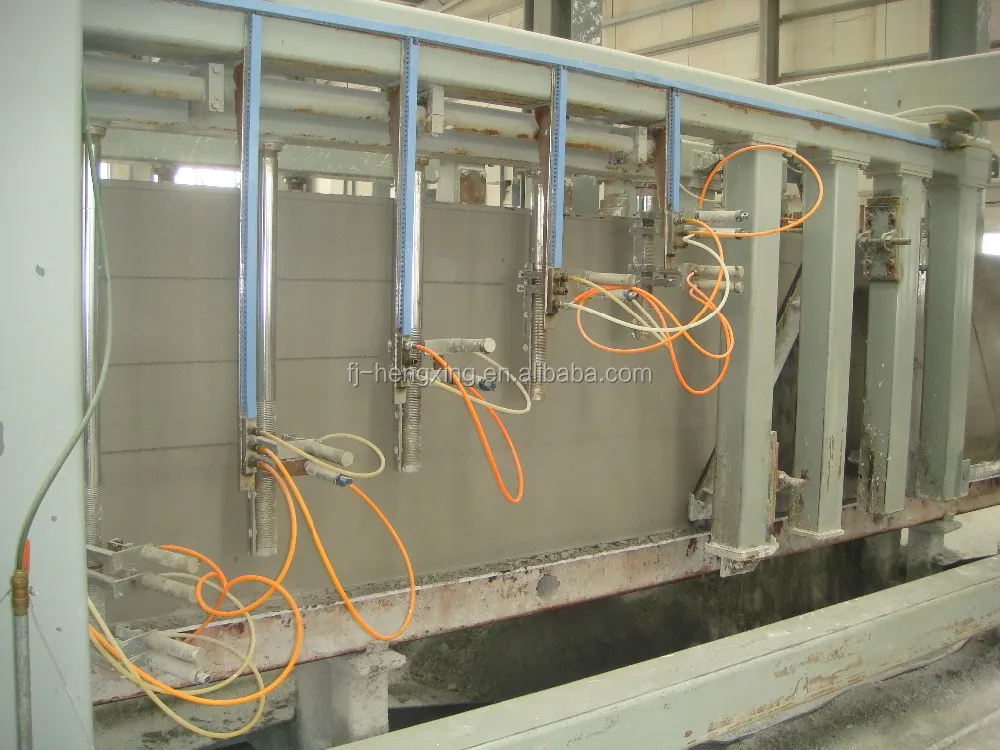

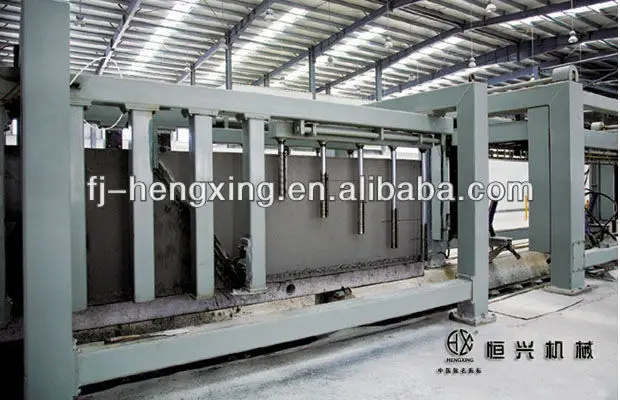

i.Cutting machine

j.Turing crane

k.acuum suction cover :After cutting, the waste slurry at the top surface of block shall be removed by vacuum suction Cover, to improve the waste utilization ratio.

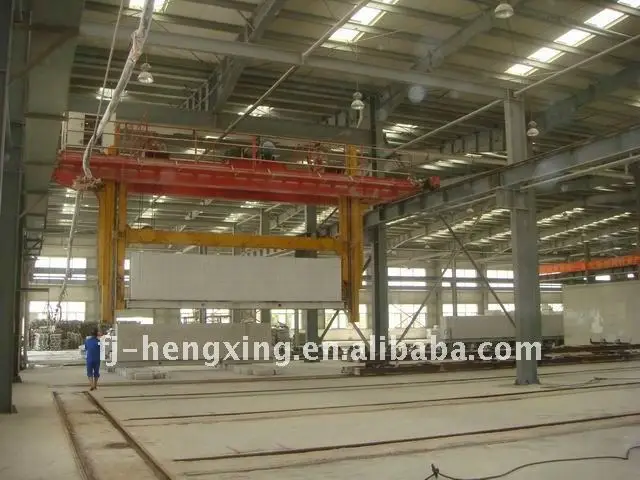

l.Semi product crane :After cutting ,semi product crane hang blocks on steam curing car , and group before into autoclave.

m.Turing paltofm

o.Finish product clamp:Carry the finish product to packing line after autoclave ,making final package .

Batching tower:Steel structure of batching tower, strong and durable



   What's applacations of high quality well  performance AAC production line AAC block machine with factory direct supplier  ?

  AAC is produced out of a mix of cement, lime, fly ash, gangue, river sand and aluminium powder etc., through batching, mixing casting, cuting and autoclaving. AAC has the advantage of extremely light weight, high compressive strength, excellent thermal insulation, great acoustic insulation and high fire resistance. AAC can be produced in a large variety of sizes, from stand blocks to large reinforced panel, and it can be cut, sawn, drilled, nailed and milled like wood, making it an extremely workable product. AAC is environmental-friendly and new building material.

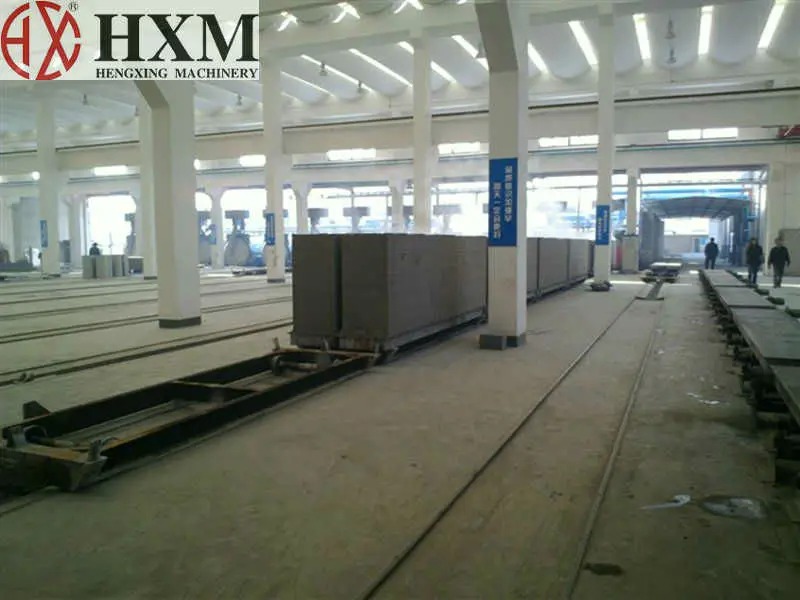

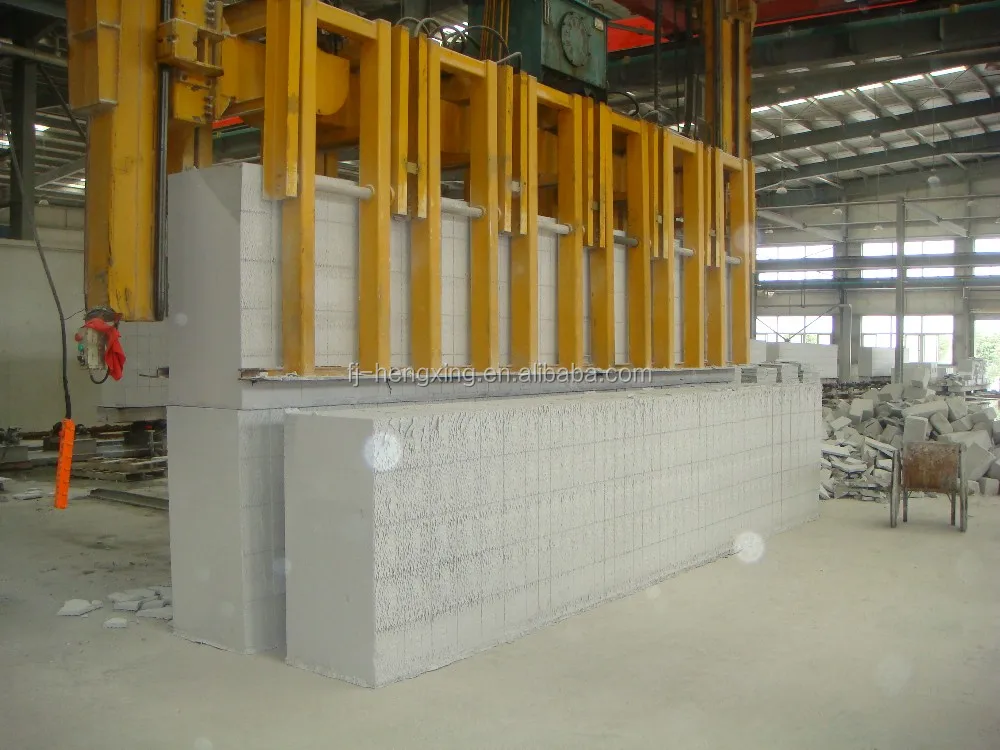

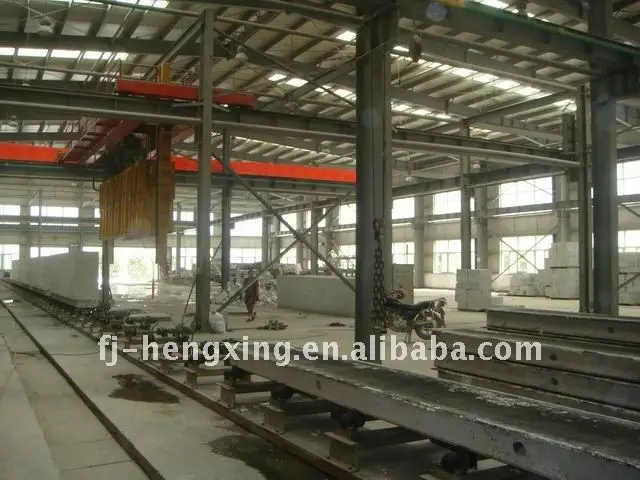

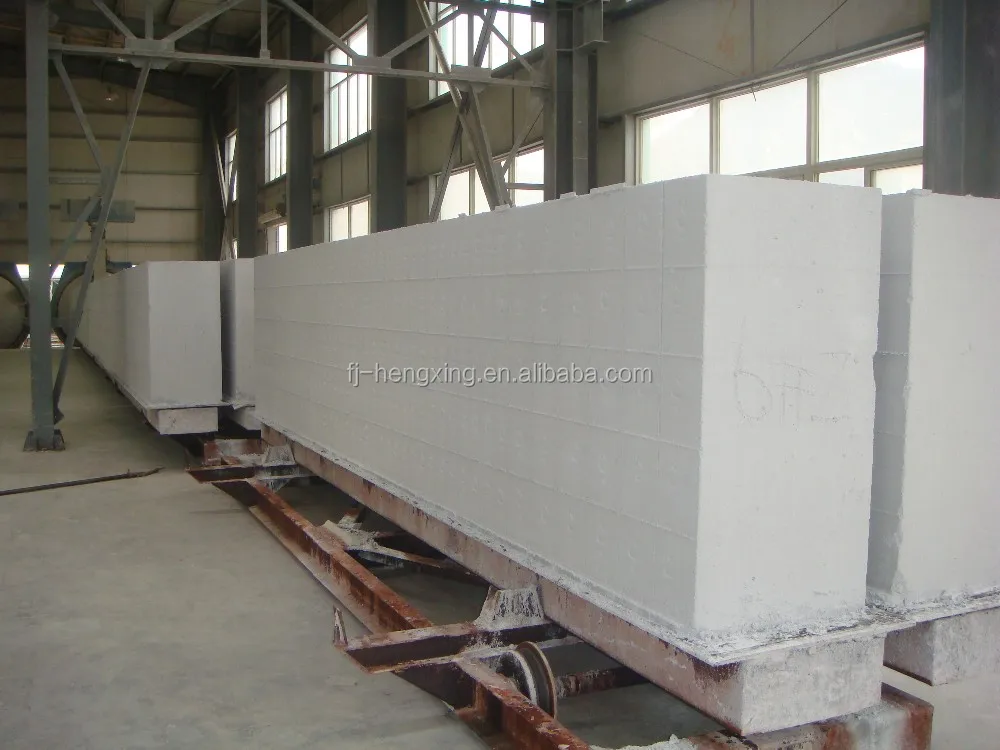

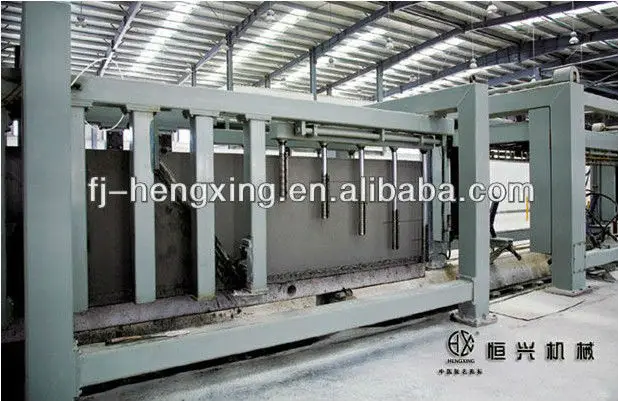

AAC production line AAC block machine live pictures













 More details demanding..please contact me,thanking you.
