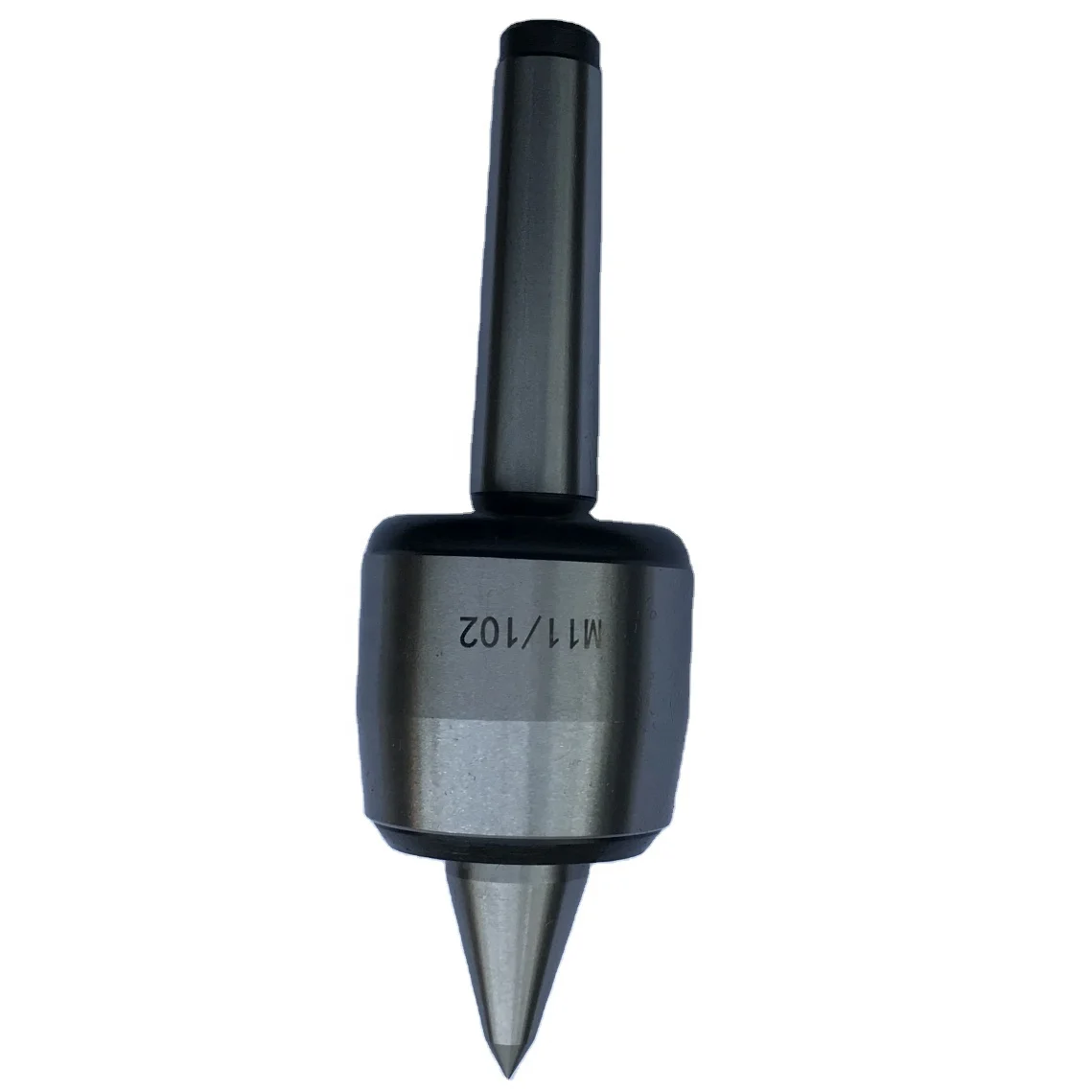

M11 type precision Live Center with size MS1,MS2,MS3,MS4,MS5,MS6

Product Overview

Description

M11 type precision live center with size MS1,MS2,MS3,MS4,MS5,MS6:

1)high precision
2)M11/101,M11/102,M11/103 etc

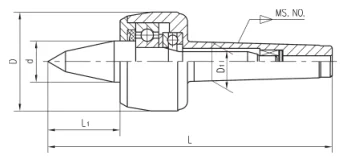

order no.	Ms no.	L	D	L1	d	D1	Max load	Max speed	accuracy
M11/101	MS1	124	36	27	15	12.065	80	7000	0.01
M11/102	MS2	139	45	34	20	17.780	140	7000	0.005
M11/106	MS3	176.5	60	47	25	23.825	400	5000	0.005
M11/108	MS4	217	70	53	32	31.267	500	3800	0.005
M11/110	MS5	273	90	65	40	44.399	1200	3000	0.005
M11/114	MS6	354.5	105	78	50	63.348	2500	2600	0.01
