Medium duty Live Center

Product Overview

Description

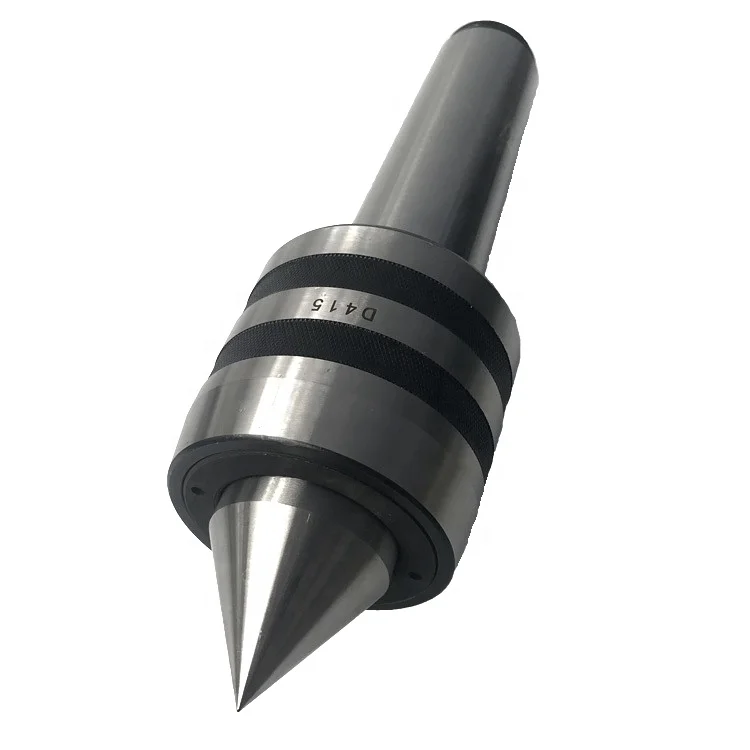

  Medium duty live center
1.Application and features:

   It is an necessary accessory used on medium type lathe for such machine tools as spindle sleeve,tubes and   other parts on lathe,locked by center hole.

  This product can take big axial load with high precision,and easy operation,spare time and strength reliable performance.

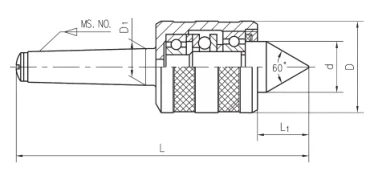

2.Constructions and main parameter(chart)







order no.	Ms no.	L	L1	D	D1	d	Max load	Max speed	Wt(kg)	accuracy(mm)
D411	MS1	115	20	34	12.065	18	900	5000	0.29	0.01
D412	MS2	145	26	45	17.780	25	1500	5000	0.70	0.01
D413	MS3	170	30	52	23.825	28	2000	4200	0.93	0.01
D414	MS4	205.7	34.7	60	31.267	32	3200	3200	1.70	0.01
D415	MS5	254	45	77	44.399	45	6300	2400	3.39	0.015
D416	MS6	362	68.5	125	63.348	75	10000	1600	12.00	0.015
D411L	MS1	125	30	34	12.065	18	900	5000	0.31	0.01
D412L	MS2	155	36	45	17.780	25	1500	5000	0.74	0.01
D413L	MS3	183	43	52	23.825	28	2000	4200	0.99	0.01
D414L	MS4	222	51	60	31.267	32	3200	3200	1.80	0.01
D415L	MS5	272	63	77	44.399	45	6300	2400	3.62	0.015
D416L	MS6	382	88.5	125	63.348	75	10000	1600	12.69	0.015



3.Operation steps:

 A.Clean the taper hole of the tail-stock of the lathe and the shank of center,before putting the shank in the tail stock.

B.Push the tail-stock to clamp the workpiece,if contacting well,lock the tail-stock,then ready for cutting.

C.After finishing cutting,cut off the power,loosen the stock to load down the workpiece.



4.Maintenance:

  A.Turn down the nut to grease the bearing by period.

 B.If long stored,cleaning ad covering it with oil.
