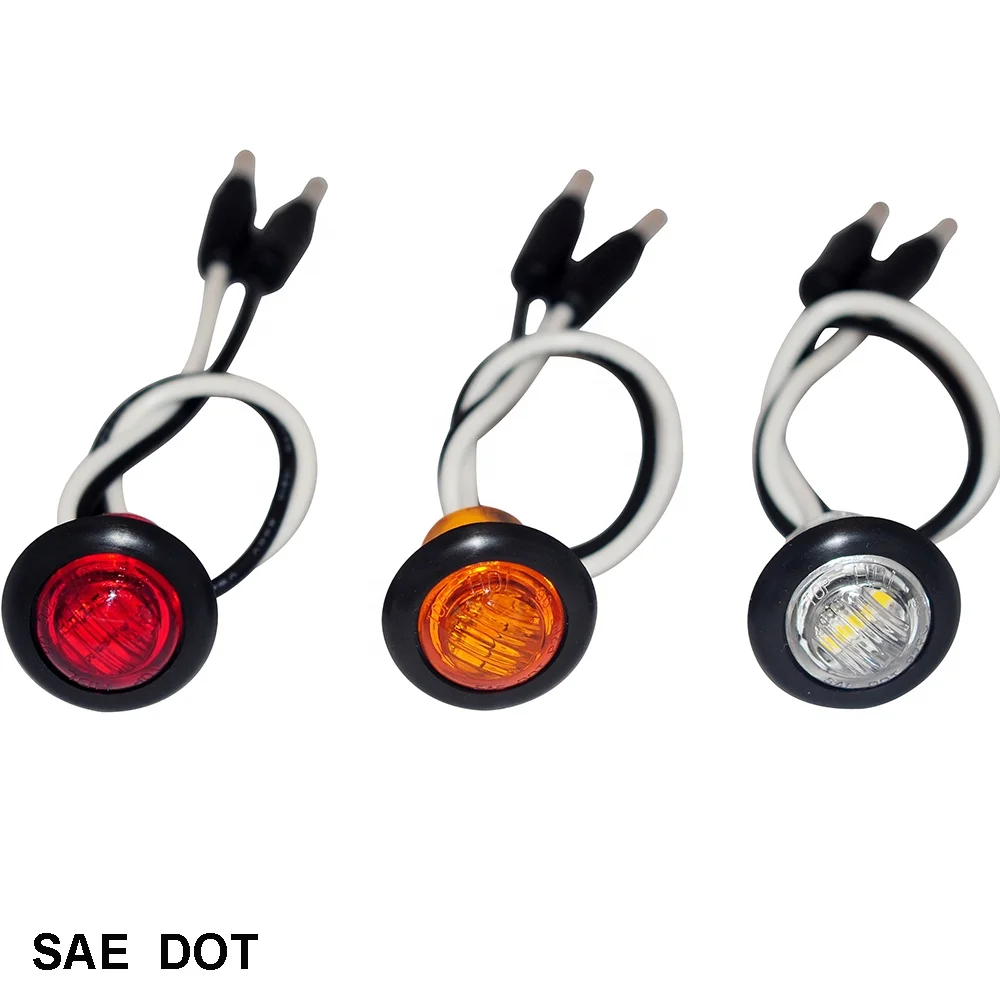

3/4 inch Mini Round LED Marker & Clearance Light 3/4 inch mini marker clearance light
- Category: >>>
- Supplier: Yuyao HOJA Lighting Products Co. Ltd.
Share on (855143131):
Product Overview
Description
3/4 inch Mini Round LED Marker & Clearance Light 3/4 inch mini marker clearance light
FEATURES:
Ÿ 3 LEDs of SMD type
Ÿ Features engineered lens optics, functions as clearance light, side marker or identification light, ideal for any
application on trailer and universal
Ÿ Compact size, easy for installation by drilling a 3/4” hole and pushing in
Ÿ Two-wire design includes separate lead and ground wires with bullet terminals
Ÿ PC lens, ABS housing and LED circuitry completely sealed by epoxy to ensure a permanent and water proof seal.
Ÿ Meets PC and P2 rating of DOT FMVSS 108/SAE requirements
Ÿ Rated for 12V, tested to 13.8V
Ÿ Also available in multi-voltage 10~30V operating range or 24V by special order only
SPECIFICATION:
Part No. | Description | Input Voltage | Lighting Color | Nos. of LEDs | Current Draw (mA) at 13.8V |
112903R | Red Light Kit w/ Bullet Ends | 12 V | Red | 3 | 20 mA |
112903A | Amber Light Kit w/ Bullet Ends | 12 V | Amber | 3 | 20 mA |
112903C | Clear Light Kit w/ Bullet Ends | 12 V | Clear | 3 | 20 mA |
112903CB | Clear Lens/Blue Light with Bullet Ends | 12 V | Blue | 3 | 20 mA |
112923R | Red Light Kit w/ Bullet Ends & SS Ring | 12 V | Red | 3 | 20 mA |
112923A | AmberLight Kit w/ Bullet Ends & SS Ring | 12 V | Amber | 3 | 20 mA |
112923C | Clear Light Kit w/ Bullet Ends & SS Ring | 12 V | Clear | 3 | 20 mA |
112923CB | Clear Lens/Blue Light w/ Bullet Ends & SS Ring | 12 V | Blue | 3 | 20 mA |
112953R | Red Light Kit w/ Bare Wire Ends | 12 V | Red | 3 | 20 mA |
112953A | AmberLight Kit w/ Bare Wire Ends | 12 V | Amber | 3 | 20 mA |
112953C | Clear Light Kit w/ Bare Wire Ends | 12 V | Clear | 3 | 20 mA |
112953CB | Clear Lens/Blue Light w/ Bare Wire Ends | 12 V | Blue | 3 | 20 mA |
112903RM | Red Light w/ Bullet Ends, Multi-voltage | 12~24 | Red | 3 | 20 mA |
112903AM | Amber Light w/ Bullet Ends, Multi-voltage | 12~24 | Amber | 3 | 20 mA |
112903CM | Clear Light w/ Bullet Ends, Multi-voltage | 12~24 | Clear | 3 | 20 mA |
112900S | Stainless Steel Ring Highly Polished |
| |||
PRODUCT DIMENSION:
