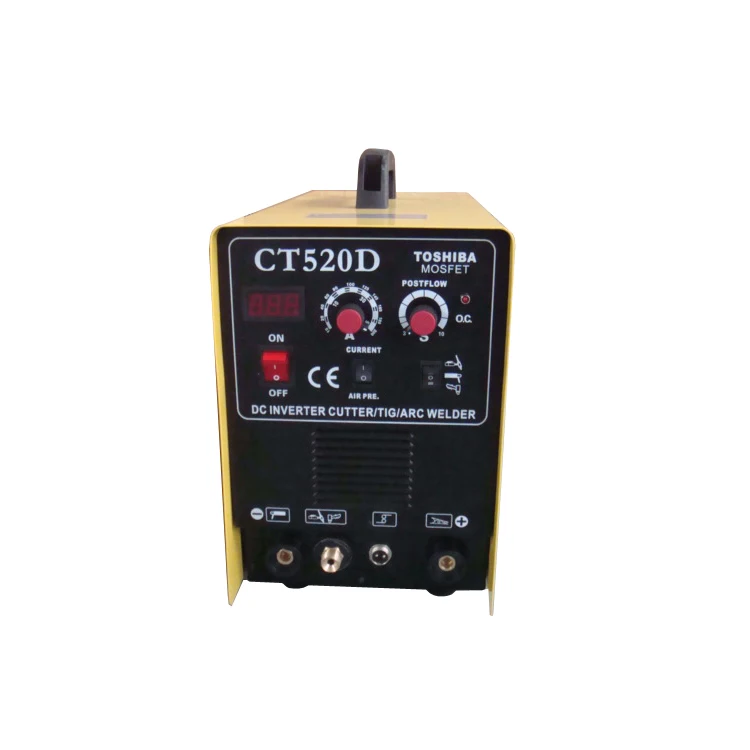

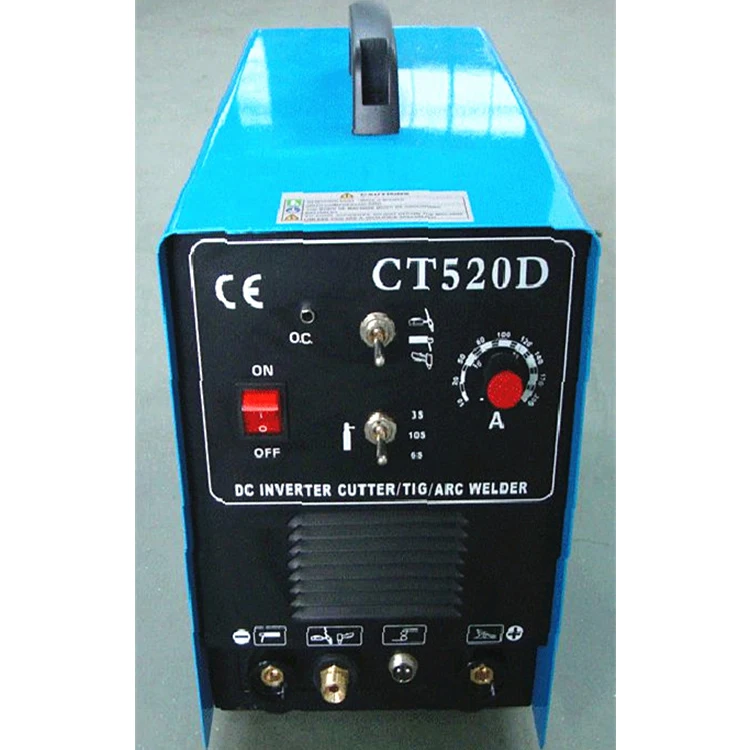

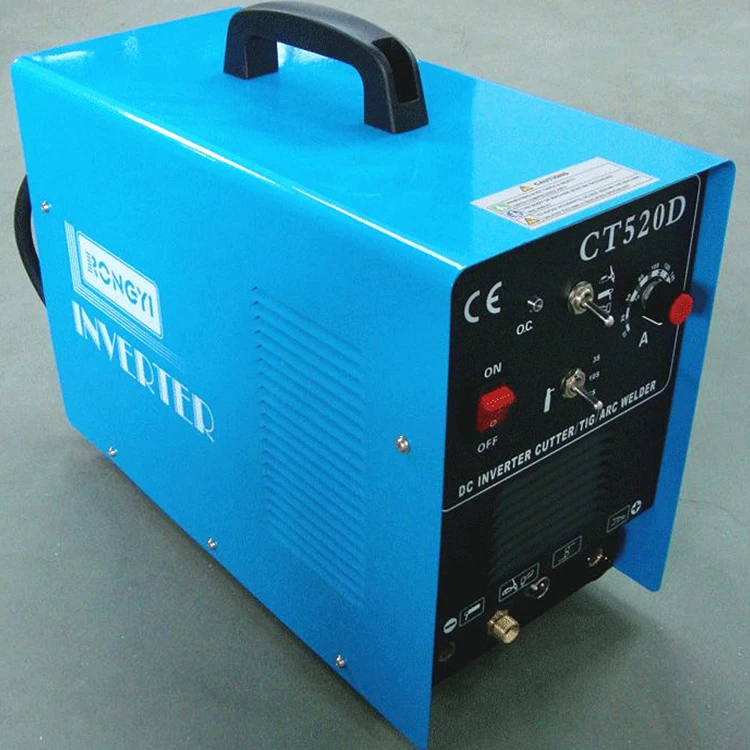

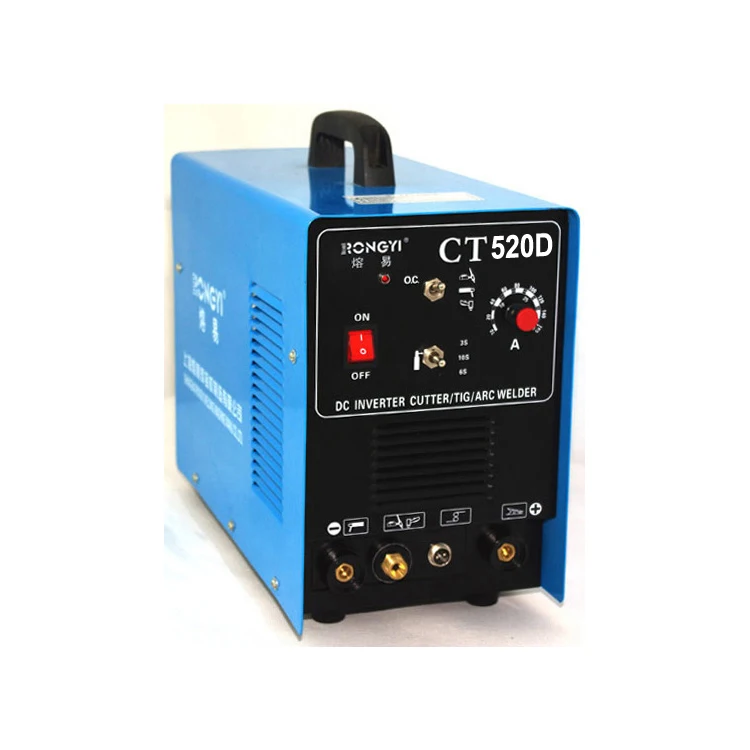

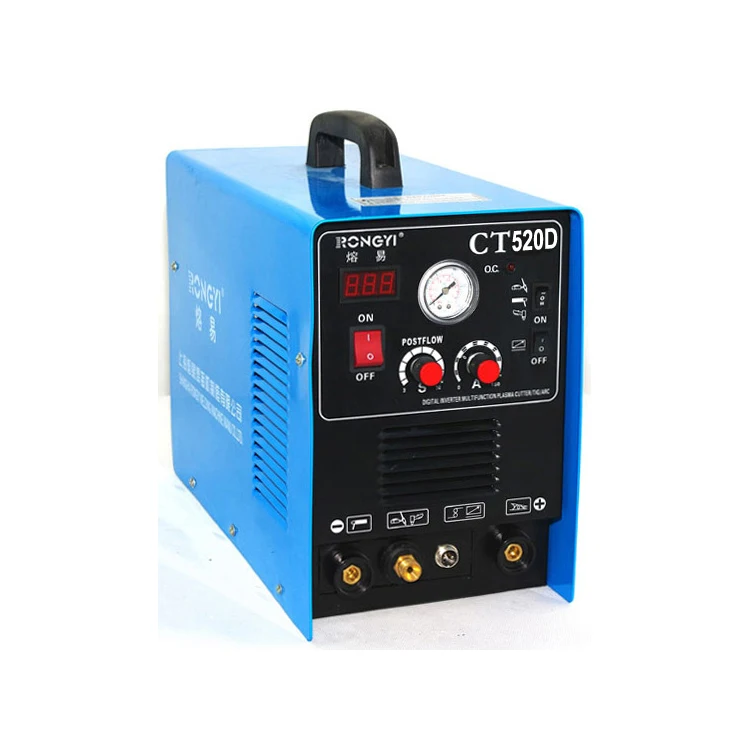

Shanghai Rongyi CT520D dual voltage 110v and 220v 3 in 1 Multi function inverter Digital DC TIG/MMA/CUT welder
- Category: >>>
- Supplier: Shanghai Rongyi Welding Corporation
Share on (855184470):
Product Overview
Description
Features of Shanghai Rongyi CT520D dual voltage 110v and 220v 3-in-1 Multi-function inverter Digital DC TIG/MMA/CUT welder:
1. Advanced MOSFET inverter technology, high working efficiency, DC output;
2. Compact structure, convenient to carry, reliable and durable, easy for maintenance;
3. Multi-function of TIG and MMA welder as well as air plasma cutting;
4. We also can provide 110/220 v duel automatic input voltage shift; or 110v voltage input,
5. Air cooling, thermostatic protection, suitable for DIY;
| Features: |
|
| Accessories: |
|
The parameters of Shanghai Rongyi CT520D dual voltage 110v and 220v 3-in-1 Multi-function inverter Digital DC TIG/MMA/CUT welder is as following:
Model Spec. | CT520 |
Power supply voltage | AC 220±10% V / 50~60Hz |
Power supply capacity | 3.6 kVA |
Rated input current (TIG) | 16.7 A |
Rated input current (MMA) | 23 A |
Rated input current (CUT) | 27 A |
Output current range (TIG) | 10 - 200 A |
Output current range (MMA) | 10 - 200 A |
Output current range (CUT) | 25 - 50 A |
No-load voltage (TIG) | 56 V |
No-load voltage (MMA) | 56 V |
No-load voltage (CUT) | 220 V |
Operating voltage (TIG) | 17.2 V |
Operating voltage (MMA) | 27.2 V |
Operating voltage (CUT) | 160 V |
Dia. of welding rodΦ(MMA) | 3.6 mm |
Arc initiation way (TIG) | HF |
Arc initiation way (MMA) | Touch |
Arc initiation way (CUT) | HF |
Protection grade provided by enclosure | IP 21 |
No-load loss | 50 W |
Cosφ (η) | 0.93 |
Insulation grade | F |
Duty cycle | 60% |
Efficiency | 85% |
Air pressure (CUT) | 0.5 MPa |
Gas flow (TIG) | 2-5 L/min |
Gas flow (CUT) | 100 L/min |
Cutting thickness (CUT) | 1-10 mm |
Weight | 12.4 kg |
Dimension (mm) | 575*320*455 |
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
