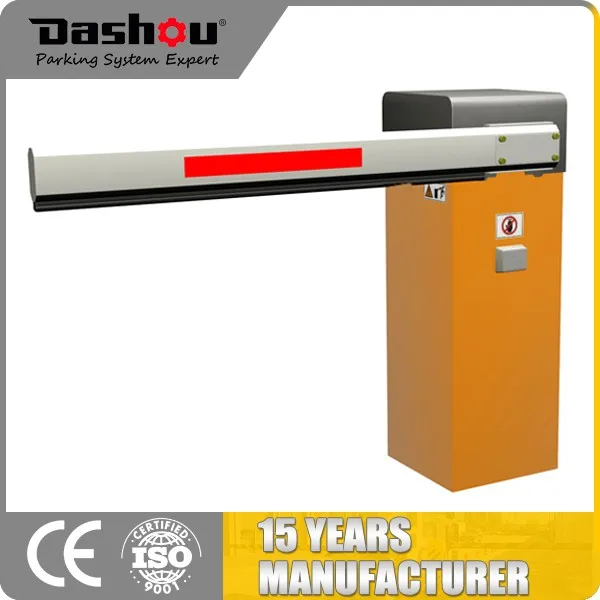

100% Duty Cycle Smart Parking Barrier Gate with 5 Million MTBF

Product Overview

Description

100% Duty Cycle Smart Parking Barrier Gate with 5 Million MTBF

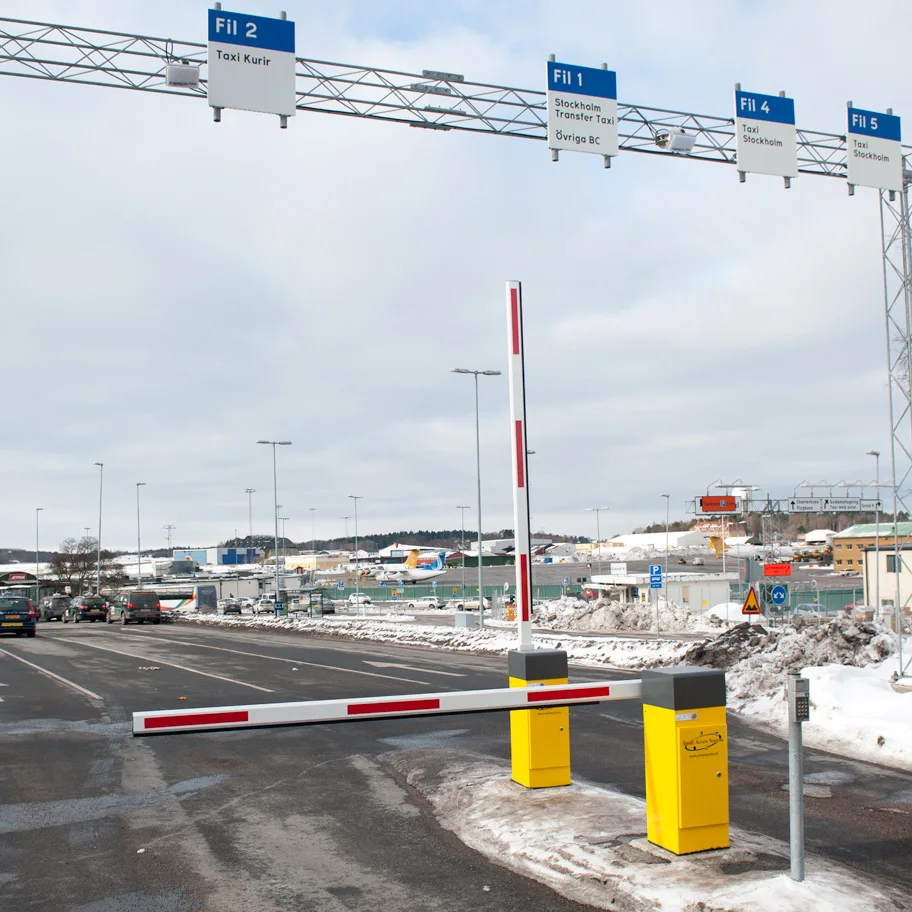

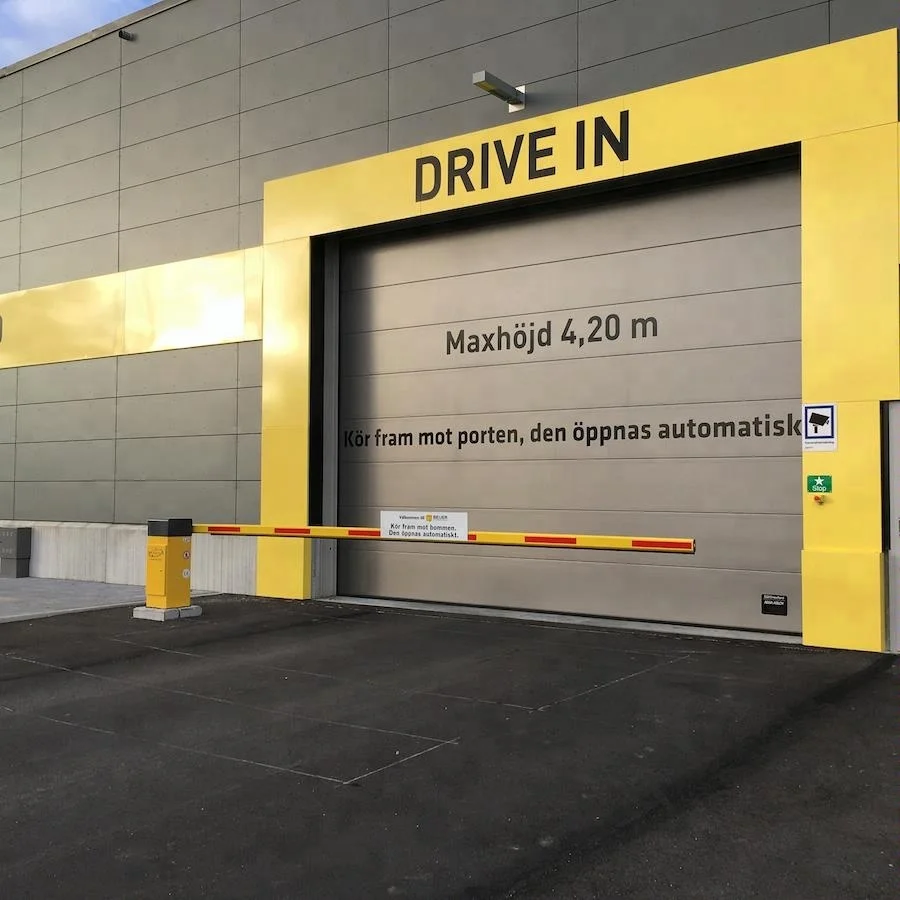

This Smart Parking Barrier Gate for Shopping Mall provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc.







Description

1)  Open/close time: 0.7 / 2 / 3 / 4 sec. optional

2)  Max. 6m straight arm with rubber bar

     Max. 4.5m folding arm with rubber bar

     Max. 4.5m fence arm with rubber bar

3)  Inclusive of arm and "push button" which opens/closes barrier

4)  Exclusive of LED light bar,remoter, boom bracket and anti-collision mechanism: need to buy extrally

5)  Optional housing color: yellow (default),orange, white, red and blue

6)  Optional boom arm direction: leftward or rightward





Model No.	Open/Close Time	Max. Boom Length	Boom Type
PAB-B-HSN	0.7s	3m	Straight Boom
PAB-B-NSN	2s	4m
	3s	5m
	4s	6m

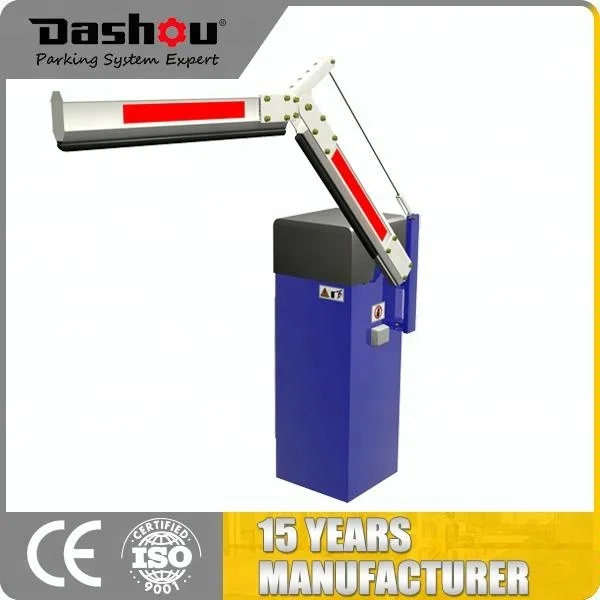

PAB-B-NCN	2s	3m	Crank Boom
	3s	4m
	4s	4.5

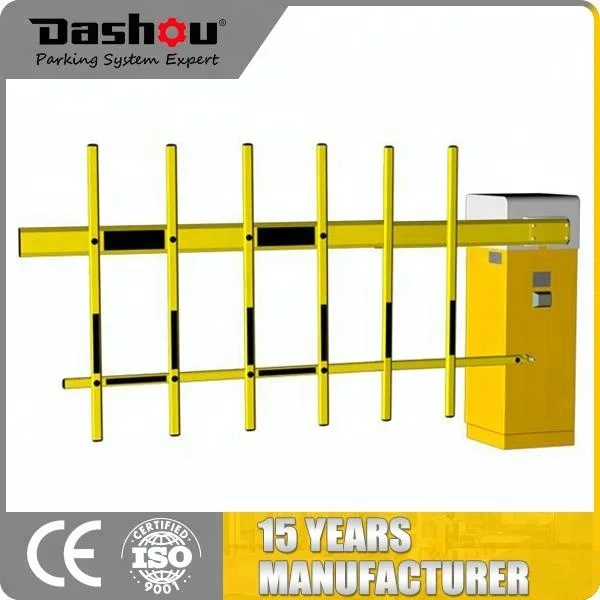

PAB-B-NFN	4s	4.5	Single Fence Boom
PAB-B-NFN2	4s	4	Double Fence Boom





Features

• Fatest 0.7 second open/close time, torque motor with 100% duty cycle & 5 million MTBF


• Variable frequency controller automatically detects and optimizes boom moving, ensures smooth moving without shake


• System automatically self-checks operation status and reports errors code

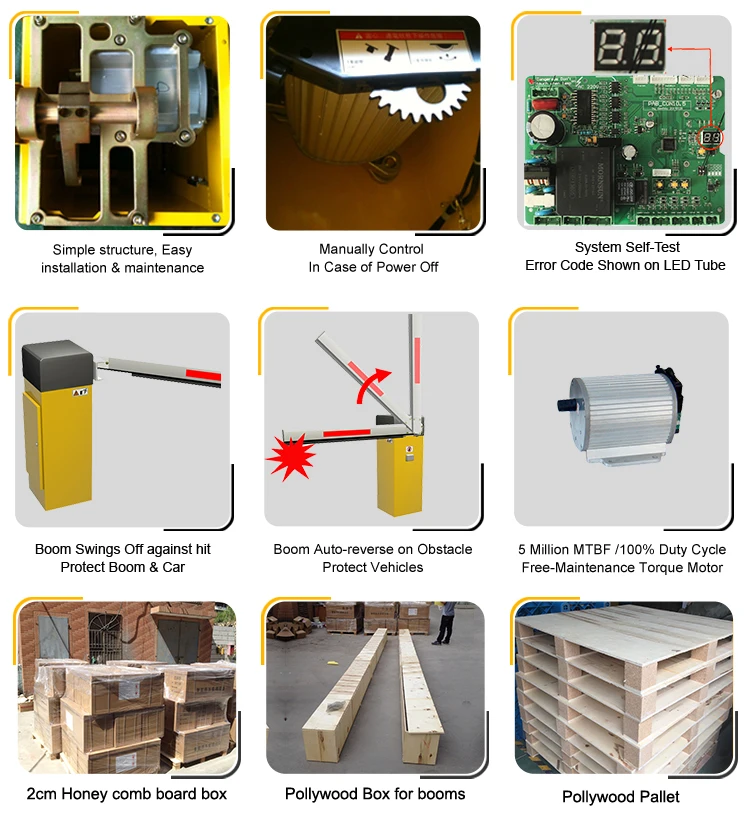

• Simplified design, easy installation and maintenance reduces your labor cost


• Manually control in case of power failure


• Boom open up fully or close down in case of power failure


• Boom swing-off protects boom and vehicle (optional)


• Alarm when boom swing-off (optional)

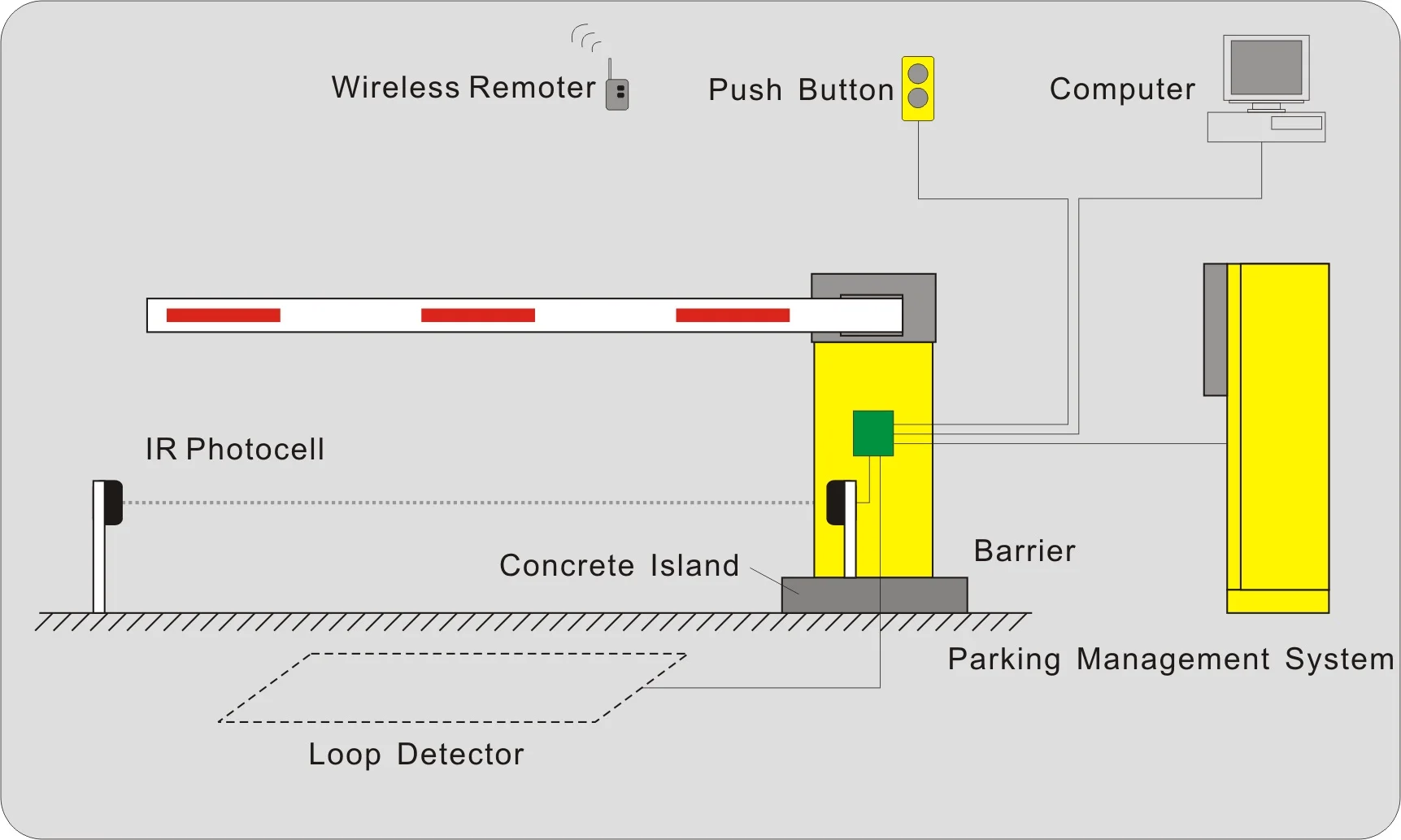

• Safety of Vehicle--- Boom Auto-reversing on Obstacle


• Safety of Vehicle--- Anti-hit by Loop Detector (Optional)


• Safety of Vehicle--- Anti-hit by IR photocell (Optional)


• Safety of Vehicle--- Anti-hit by “Opening Priority”


• Closing Priority


• Automatically close after the given time (proagrammable)


• Automatically close or open by loop detector (Optional)


• Heavy-duty and simple-design housing


• Anti-condensation in cold climate

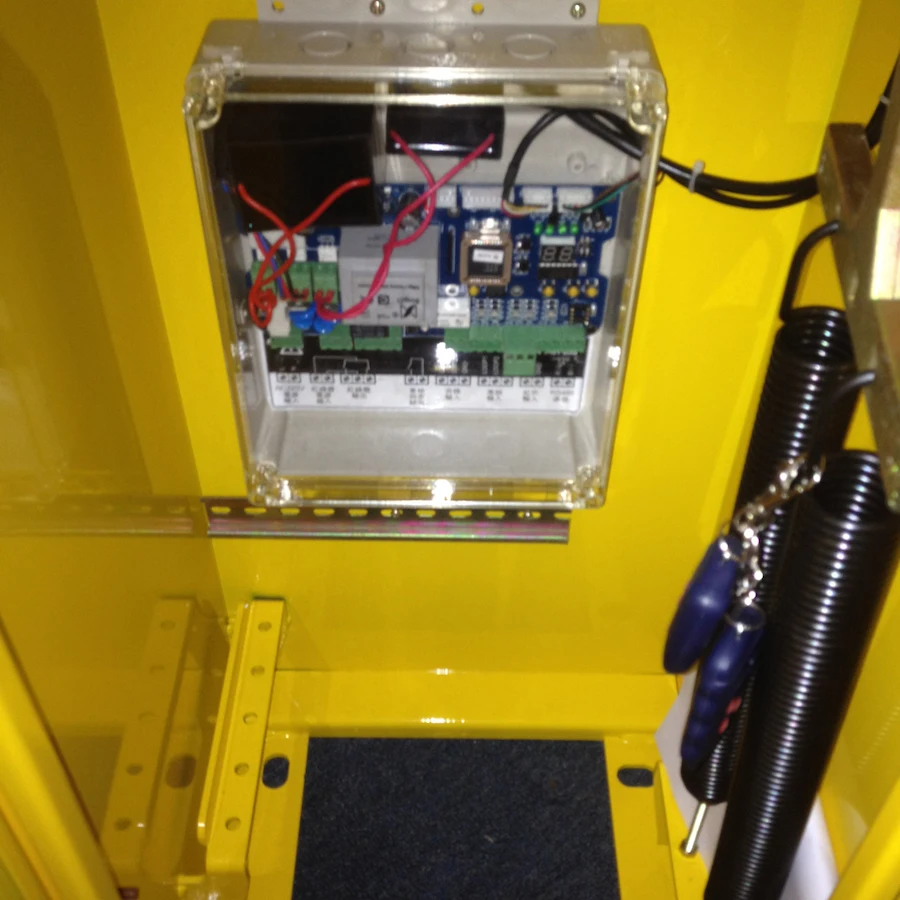

• Transparent plastic covers on Control Board









Specifications

Open/close time	0.7, 2, 3, 4 sec. optional
Octagonal Arm	Max. 6mtr. ;45×100mm Aluminum alloy
Power Supply	AC 220V±10%,50/60HZ
AC Motor	70W concreted decelerating torque motor
Controller	ARM 32 Cortex™-M3 CPU variable frequency board
Remote distance	20~50mtr.
RS 485 interface	9600bps, ASCII decimal encoded(optional)
Housing material	2mm cold-roller sheet
Housing Painting	Powder coating, 10 years without rust,shedding and fading
IP level	IP 54
Housing size	950mm×320mm×329mm
Package size	1040mm×460mm×390mm
G.W	55 KG
Operating temperature	-40°c -75°c
Humidity	10%-95%











Contact us for Catalogue and pricelist of PAB-B Beyond covers all models with different boom shape(straight/crank/fence), boom length( Max.6m) and open/close time (0.7//2/3/4 sec.). PAB-E Economic & PAB-E2 Economic barrier also be your economic choice.





Recommended Hot Sale Models











1. Warranty:     1 year

2. Certificates:  CE

3. MOQ:           1 piece

4. OEM:           Available

5. Lead time :  2~7 working days after deposite received
